FNetConnAnalyticsVars Struct Reference

#include <EngineNetAnalytics.h>

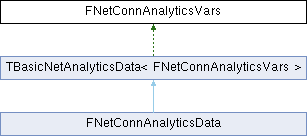

Inheritance diagram for FNetConnAnalyticsVars:

Classes
struct	FPerNetConnData

Public Types
using	FNetResult = UE::Net::FNetResult

Public Member Functions
	FNetConnAnalyticsVars ()
bool	operator== (const FNetConnAnalyticsVars &A) const
void	CommitAnalytics (FNetConnAnalyticsVars &AggregatedData)
void	IncreaseOutOfOrderPacketsLostCount (int32 Count=1)
void	IncreaseOutOfOrderPacketsRecoveredCount (int32 Count=1)
void	IncreaseOutOfOrderPacketsDuplicateCount (int32 Count=1)
void	AddFailedPingAddressICMP (FString PingAddress)
void	AddFailedPingAddressUDP (FString PingAddress)

Public Attributes
uint64	OutAckOnlyCount
uint64	OutKeepAliveCount
TUniquePtr< FNetResult >	CloseReason
TArray< FString >	ClientCloseReasons
TMap< FString, int32 >	RecoveredFaults
TArray< FPerNetConnData >	PerConnectionData

Friends
struct	FNetConnAnalyticsData

Detailed Description

Container class for separating analytics variables and processing, from the main NetConnection code

Member Typedef Documentation

FNetResult

using FNetConnAnalyticsVars::FNetResult = UE::Net::FNetResult

Constructor & Destructor Documentation

FNetConnAnalyticsVars()

FNetConnAnalyticsVars::FNetConnAnalyticsVars

(

)

Default constructor

FNetConnAnalyticsVars

Member Function Documentation

AddFailedPingAddressICMP()

void FNetConnAnalyticsVars::AddFailedPingAddressICMP ( FString  PingAddress )

inline

AddFailedPingAddressUDP()

void FNetConnAnalyticsVars::AddFailedPingAddressUDP ( FString  PingAddress )

inline

CommitAnalytics()

void FNetConnAnalyticsVars::CommitAnalytics

(

FNetConnAnalyticsVars &

AggregatedData

)

IncreaseOutOfOrderPacketsDuplicateCount()

void FNetConnAnalyticsVars::IncreaseOutOfOrderPacketsDuplicateCount ( int32  Count = 1 )

inline

IncreaseOutOfOrderPacketsLostCount()

void FNetConnAnalyticsVars::IncreaseOutOfOrderPacketsLostCount ( int32  Count = 1 )

inline

Accessors

IncreaseOutOfOrderPacketsRecoveredCount()

void FNetConnAnalyticsVars::IncreaseOutOfOrderPacketsRecoveredCount ( int32  Count = 1 )

inline

operator==()

bool FNetConnAnalyticsVars::operator==

(

const FNetConnAnalyticsVars &

A

)

const

Close results can't be shared - if either are set, equality comparison fails

Friends And Related Symbol Documentation

FNetConnAnalyticsData

friend struct FNetConnAnalyticsData

friend

Member Data Documentation

ClientCloseReasons

TArray<FString> FNetConnAnalyticsVars::ClientCloseReasons

The remotely-communicated result/reason for triggering NetConnection Close (remote, server only)

CloseReason

TUniquePtr<FNetResult> FNetConnAnalyticsVars::CloseReason

The result/reason for triggering NetConnection Close (local)

OutAckOnlyCount

uint64 FNetConnAnalyticsVars::OutAckOnlyCount

The number of packets that were exclusively ack packets

OutKeepAliveCount

uint64 FNetConnAnalyticsVars::OutKeepAliveCount

The number of packets that were just keep-alive packets

PerConnectionData

TArray<FPerNetConnData> FNetConnAnalyticsVars::PerConnectionData

(Not filled until final commit) Contains Per-NetConnection data which can't be aggregated until final commit

RecoveredFaults

TMap<FString, int32> FNetConnAnalyticsVars::RecoveredFaults

NetConnection faults that were recovered from, and the number of times they were recovered from

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/Engine/Public/Analytics/EngineNetAnalytics.h
• Engine/Source/Runtime/Engine/Private/Analytics/EngineNetAnalytics.cpp
