FStaticMeshDataType Struct Reference

#include <Components.h>

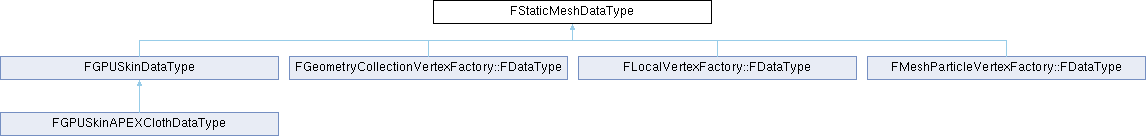

Inheritance diagram for FStaticMeshDataType:

Public Attributes
FVertexStreamComponent	PositionComponent
FVertexStreamComponent	TangentBasisComponents [2]
TArray< FVertexStreamComponent, TFixedAllocator< MAX_STATIC_TEXCOORDS/2 > >	TextureCoordinates
FVertexStreamComponent	LightMapCoordinateComponent
FVertexStreamComponent	ColorComponent
FRHIShaderResourceView *	PositionComponentSRV = nullptr
FRHIShaderResourceView *	TangentsSRV = nullptr
FRHIShaderResourceView *	TextureCoordinatesSRV = nullptr
FRHIShaderResourceView *	ColorComponentsSRV = nullptr
uint32	ColorIndexMask = ~0u
int8	LightMapCoordinateIndex = -1
uint8	NumTexCoords = 0
uint8	LODLightmapDataIndex = 0

Member Data Documentation

ColorComponent

FVertexStreamComponent FStaticMeshDataType::ColorComponent

The stream to read the vertex color from.

ColorComponentsSRV

FRHIShaderResourceView* FStaticMeshDataType::ColorComponentsSRV = nullptr

A SRV to manually bind and load Colors in the vertex shader.

ColorIndexMask

uint32 FStaticMeshDataType::ColorIndexMask = ~0u

LightMapCoordinateComponent

FVertexStreamComponent FStaticMeshDataType::LightMapCoordinateComponent

The stream to read the shadow map texture coordinates from.

LightMapCoordinateIndex

int8 FStaticMeshDataType::LightMapCoordinateIndex = -1

LODLightmapDataIndex

uint8 FStaticMeshDataType::LODLightmapDataIndex = 0

NumTexCoords

uint8 FStaticMeshDataType::NumTexCoords = 0

PositionComponent

FVertexStreamComponent FStaticMeshDataType::PositionComponent

The stream to read the vertex position from.

PositionComponentSRV

FRHIShaderResourceView* FStaticMeshDataType::PositionComponentSRV = nullptr

TangentBasisComponents

FVertexStreamComponent FStaticMeshDataType::TangentBasisComponents[2]

The streams to read the tangent basis from.

TangentsSRV

FRHIShaderResourceView* FStaticMeshDataType::TangentsSRV = nullptr

TextureCoordinates

TArray<FVertexStreamComponent, TFixedAllocator<MAX_STATIC_TEXCOORDS / 2> > FStaticMeshDataType::TextureCoordinates

The streams to read the texture coordinates from.

TextureCoordinatesSRV

FRHIShaderResourceView* FStaticMeshDataType::TextureCoordinatesSRV = nullptr

A SRV to manually bind and load TextureCoordinates in the vertex shader.

---

The documentation for this struct was generated from the following file:

• Engine/Source/Runtime/Engine/Public/Components.h
