IIoDispatcherBackend Struct Referenceabstract

#include <IoDispatcherBackend.h>

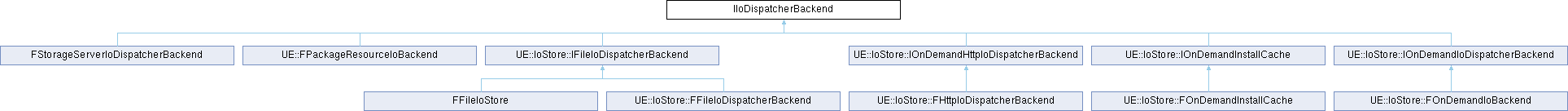

+ Inheritance diagram for IIoDispatcherBackend:

Public Member Functions

virtual void Initialize (TSharedRef< const FIoDispatcherBackendContext > Context)=0

virtual void Shutdown ()

virtual void ResolveIoRequests (FIoRequestList Requests, FIoRequestList &OutUnresolved)=0

virtual FIoRequestImpl * GetCompletedIoRequests ()=0

virtual void CancelIoRequest (FIoRequestImpl *Request)=0

virtual void UpdatePriorityForIoRequest (FIoRequestImpl *Request)=0

virtual bool DoesChunkExist (const FIoChunkId &ChunkId) const =0

virtual bool DoesChunkExist (const FIoChunkId &ChunkId, const FIoOffsetAndLength &ChunkRange) const

virtual TIoStatusOr< uint64 > GetSizeForChunk (const FIoChunkId &ChunkId) const =0

virtual TIoStatusOr< uint64 > GetSizeForChunk (const FIoChunkId &ChunkId, const FIoOffsetAndLength &ChunkRange, uint64 &OutAvailable) const

virtual TIoStatusOr< FIoMappedRegion > OpenMapped (const FIoChunkId &ChunkId, const FIoReadOptions &Options)=0

virtual const TCHAR * GetName () const =0


Detailed Description

I/O dispatcher backend interface.

The following methods are called from the I/O dispatcher thread:

  • ResolveIoRequests
  • CancelIoRequest
  • UpdatePriorityForIoRequest
  • GetCompletedRequests

All other methods can be called from any thread.

Member Function Documentation

◆ CancelIoRequest()

virtual void IIoDispatcherBackend::CancelIoRequest ( FIoRequestImpl *  Request)
pure virtual

Cancel the I/O request.

Implemented in UE::FPackageResourceIoBackend, UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FOnDemandInstallCache, UE::IoStore::FOnDemandIoBackend, UE::IoStore::FFileIoDispatcherBackend, FFileIoStore, and FStorageServerIoDispatcherBackend.

◆ DoesChunkExist() [1/2]

virtual bool IIoDispatcherBackend::DoesChunkExist ( const FIoChunkId &  ChunkId) const
pure virtual

Returns whether the chunk exists.

Implemented in UE::FPackageResourceIoBackend, UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FOnDemandInstallCache, UE::IoStore::FOnDemandIoBackend, UE::IoStore::FFileIoDispatcherBackend, FFileIoStore, and FStorageServerIoDispatcherBackend.

◆ DoesChunkExist() [2/2]

virtual bool IIoDispatcherBackend::DoesChunkExist ( const FIoChunkId &  ChunkId,
const FIoOffsetAndLength &  ChunkRange
) const
inlinevirtual

Returns whether specified range of the chunk exists.

Reimplemented in UE::IoStore::FHttpIoDispatcherBackend, and UE::IoStore::FOnDemandIoBackend.

◆ GetCompletedIoRequests()

virtual FIoRequestImpl * IIoDispatcherBackend::GetCompletedIoRequests ( )
pure virtual

Returns all completed request(s) to the I/O dispatcher. Triggered by invoking the wake-up callback on the backend context object.

Implemented in UE::FPackageResourceIoBackend, UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FOnDemandInstallCache, UE::IoStore::FOnDemandIoBackend, UE::IoStore::FFileIoDispatcherBackend, FFileIoStore, and FStorageServerIoDispatcherBackend.

◆ GetName()

virtual const TCHAR * IIoDispatcherBackend::GetName ( ) const
pure virtual

Returns the name of this backend, for logging purposes

Implemented in UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FFileIoDispatcherBackend, UE::FPackageResourceIoBackend, UE::IoStore::FOnDemandInstallCache, UE::IoStore::FOnDemandIoBackend, FFileIoStore, and FStorageServerIoDispatcherBackend.

◆ GetSizeForChunk() [1/2]

virtual TIoStatusOr< uint64 > IIoDispatcherBackend::GetSizeForChunk ( const FIoChunkId &  ChunkId) const
pure virtual

Returns the size of the chunk.

Implemented in FFileIoStore, UE::FPackageResourceIoBackend, UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FOnDemandInstallCache, UE::IoStore::FOnDemandIoBackend, UE::IoStore::FFileIoDispatcherBackend, and FStorageServerIoDispatcherBackend.

◆ GetSizeForChunk() [2/2]

virtual TIoStatusOr< uint64 > IIoDispatcherBackend::GetSizeForChunk ( const FIoChunkId &  ChunkId,
const FIoOffsetAndLength &  ChunkRange,
uint64 &  OutAvailable
) const
inlinevirtual

Returns the size of the chunk and the size of the requested range.

Reimplemented in UE::IoStore::FOnDemandIoBackend.

◆ Initialize()

virtual void IIoDispatcherBackend::Initialize ( TSharedRef< const FIoDispatcherBackendContext >  Context)
pure virtual

Called by the I/O dispatcher once initialized.

Parameters
ContextContext object used for signalling the I/O dispatcher.

Implemented in UE::FPackageResourceIoBackend, UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FOnDemandIoBackend, UE::IoStore::FFileIoDispatcherBackend, FFileIoStore, and FStorageServerIoDispatcherBackend.

◆ OpenMapped()

virtual TIoStatusOr< FIoMappedRegion > IIoDispatcherBackend::OpenMapped ( const FIoChunkId &  ChunkId,
const FIoReadOptions &  Options
)
pure virtual

Read the chunk as a memory mapped file.

Implemented in UE::FPackageResourceIoBackend, UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FOnDemandInstallCache, UE::IoStore::FOnDemandIoBackend, UE::IoStore::FFileIoDispatcherBackend, FFileIoStore, and FStorageServerIoDispatcherBackend.

◆ ResolveIoRequests()

virtual void IIoDispatcherBackend::ResolveIoRequests ( FIoRequestList  Requests,
FIoRequestList &  OutUnresolved
)
pure virtual

Create asynchronous read requests for the list of I/O request(s). The request(s) can span multiple chunks.

Parameters
RequestsRequest(s) to resolve.
OutUnresolvedUnresolved request(s) returned to the I/O dispatcher.

Implemented in UE::FPackageResourceIoBackend, UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FOnDemandInstallCache, UE::IoStore::FOnDemandIoBackend, UE::IoStore::FFileIoDispatcherBackend, FFileIoStore, and FStorageServerIoDispatcherBackend.

◆ Shutdown()

virtual void IIoDispatcherBackend::Shutdown ( )
inlinevirtual

Called by the I/O dispatcher when shutting down.

Reimplemented in UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FOnDemandInstallCache, UE::IoStore::FOnDemandIoBackend, UE::IoStore::FFileIoDispatcherBackend, FFileIoStore, and FStorageServerIoDispatcherBackend.

◆ UpdatePriorityForIoRequest()

virtual void IIoDispatcherBackend::UpdatePriorityForIoRequest ( FIoRequestImpl *  Request)
pure virtual

Update the priority of the I/O request.

Implemented in UE::FPackageResourceIoBackend, UE::IoStore::FHttpIoDispatcherBackend, UE::IoStore::FOnDemandInstallCache, UE::IoStore::FOnDemandIoBackend, UE::IoStore::FFileIoDispatcherBackend, FFileIoStore, and FStorageServerIoDispatcherBackend.

The documentation for this struct was generated from the following file:
