FDatasmithPostProcessElementImpl Class Reference

#include <DatasmithSceneElementsImpl.h>

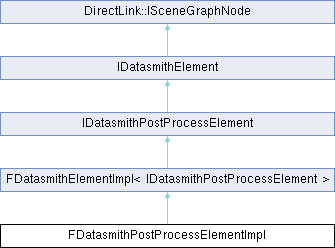

Inheritance diagram for FDatasmithPostProcessElementImpl:

Public Member Functions
	FDatasmithPostProcessElementImpl ()
virtual float	GetTemperature () const override
virtual void	SetTemperature (float InTemperature) override
virtual FLinearColor	GetColorFilter () const override
virtual void	SetColorFilter (FLinearColor InColorFilter) override
virtual float	GetVignette () const override
virtual void	SetVignette (float InVignette) override
virtual float	GetDof () const override
virtual void	SetDof (float InDof) override
virtual float	GetMotionBlur () const override
virtual void	SetMotionBlur (float InMotionBlur) override
virtual float	GetSaturation () const override
virtual void	SetSaturation (float InSaturation) override
virtual float	GetCameraISO () const override
virtual void	SetCameraISO (float InCameraISO) override
virtual float	GetCameraShutterSpeed () const override
virtual void	SetCameraShutterSpeed (float InCameraShutterSpeed) override
virtual float	GetDepthOfFieldFstop () const override
virtual void	SetDepthOfFieldFstop (float InFstop) override
Public Member Functions inherited from FDatasmithElementImpl< IDatasmithPostProcessElement >
	FDatasmithElementImpl (const TCHAR *InName, EDatasmithElementType InType, uint64 InSubType=0)
virtual	~FDatasmithElementImpl ()
virtual bool	IsA (EDatasmithElementType InType) const override
virtual const TCHAR *	GetName () const override
virtual void	SetName (const TCHAR *InName) override
virtual const TCHAR *	GetLabel () const override
virtual void	SetLabel (const TCHAR *InLabel) override
virtual FMD5Hash	CalculateElementHash (bool) override
virtual TSharedPtr< DirectLink::FSceneGraphSharedState >	MakeSharedState () const override
virtual const DirectLink::FParameterStore &	GetStore () const override
virtual DirectLink::FParameterStore &	GetStore () override
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Additional Inherited Members
Protected Member Functions inherited from FDatasmithElementImpl< IDatasmithPostProcessElement >
virtual bool	IsSubTypeInternal (uint64 InSubType) const
EDatasmithElementType	GetElementType () const
uint64	GetSubType () const
Protected Attributes inherited from FDatasmithElementImpl< IDatasmithPostProcessElement >
FMD5Hash	ElementHash
DirectLink::FParameterStore	Store
TReflected< EDatasmithElementType, uint64 >	Type
TReflected< uint64 >	Subtype
TReflected< FString >	Name
TReflected< FString >	Label

Constructor & Destructor Documentation

FDatasmithPostProcessElementImpl()

FDatasmithPostProcessElementImpl::FDatasmithPostProcessElementImpl

(

)

Member Function Documentation

GetCameraISO()

virtual float FDatasmithPostProcessElementImpl::GetCameraISO ( ) const

inlineoverridevirtual

Get camera ISO

Implements IDatasmithPostProcessElement.

GetCameraShutterSpeed()

virtual float FDatasmithPostProcessElementImpl::GetCameraShutterSpeed ( ) const

inlineoverridevirtual

The camera shutter speed in 1/seconds (ie: 60 = 1/60s)

Implements IDatasmithPostProcessElement.

GetColorFilter()

virtual FLinearColor FDatasmithPostProcessElementImpl::GetColorFilter ( ) const

inlineoverridevirtual

Set color filter in linear color scale

Implements IDatasmithPostProcessElement.

GetDepthOfFieldFstop()

virtual float FDatasmithPostProcessElementImpl::GetDepthOfFieldFstop ( ) const

inlineoverridevirtual

Defines the opening of the camera lens, Aperture is 1/fstop, typical lens go down to f/1.2 (large opening), larger numbers reduce the DOF effect

Implements IDatasmithPostProcessElement.

GetDof()

virtual float FDatasmithPostProcessElementImpl::GetDof ( ) const

inlineoverridevirtual

Get depth of field multiplier

Implements IDatasmithPostProcessElement.

GetMotionBlur()

virtual float FDatasmithPostProcessElementImpl::GetMotionBlur ( ) const

inlineoverridevirtual

Get motion blur multiplier

Implements IDatasmithPostProcessElement.

GetSaturation()

virtual float FDatasmithPostProcessElementImpl::GetSaturation ( ) const

inlineoverridevirtual

Get color saturation

Implements IDatasmithPostProcessElement.

GetTemperature()

virtual float FDatasmithPostProcessElementImpl::GetTemperature ( ) const

inlineoverridevirtual

Get color filter temperature in Kelvin

Implements IDatasmithPostProcessElement.

GetVignette()

virtual float FDatasmithPostProcessElementImpl::GetVignette ( ) const

inlineoverridevirtual

Get vignette amount

Implements IDatasmithPostProcessElement.

SetCameraISO()

virtual void FDatasmithPostProcessElementImpl::SetCameraISO ( float  CameraISO )

inlineoverridevirtual

Set camera ISO

Implements IDatasmithPostProcessElement.

SetCameraShutterSpeed()

virtual void FDatasmithPostProcessElementImpl::SetCameraShutterSpeed ( float  InCameraShutterSpeed )

inlineoverridevirtual

Implements IDatasmithPostProcessElement.

SetColorFilter()

virtual void FDatasmithPostProcessElementImpl::SetColorFilter ( FLinearColor  ColorFilter )

inlineoverridevirtual

Get color filter in linear color scale

Implements IDatasmithPostProcessElement.

SetDepthOfFieldFstop()

virtual void FDatasmithPostProcessElementImpl::SetDepthOfFieldFstop ( float  InFstop )

inlineoverridevirtual

Implements IDatasmithPostProcessElement.

SetDof()

virtual void FDatasmithPostProcessElementImpl::SetDof ( float  Dof )

inlineoverridevirtual

Set depth of field multiplier

Implements IDatasmithPostProcessElement.

SetMotionBlur()

virtual void FDatasmithPostProcessElementImpl::SetMotionBlur ( float  MotionBlur )

inlineoverridevirtual

Set motion blur multiplier

Implements IDatasmithPostProcessElement.

SetSaturation()

virtual void FDatasmithPostProcessElementImpl::SetSaturation ( float  Saturation )

inlineoverridevirtual

Set color saturation

Implements IDatasmithPostProcessElement.

SetTemperature()

virtual void FDatasmithPostProcessElementImpl::SetTemperature ( float  Temperature )

inlineoverridevirtual

Set color filter temperature in Kelvin

Implements IDatasmithPostProcessElement.

SetVignette()

virtual void FDatasmithPostProcessElementImpl::SetVignette ( float  Vignette )

inlineoverridevirtual

Set vignette amount

Implements IDatasmithPostProcessElement.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Private/DatasmithSceneElementsImpl.h
• Engine/Source/Runtime/Datasmith/DatasmithCore/Private/DatasmithSceneElementsImpl.cpp
