IDatasmithPostProcessElement Class Reference

#include <IDatasmithSceneElements.h>

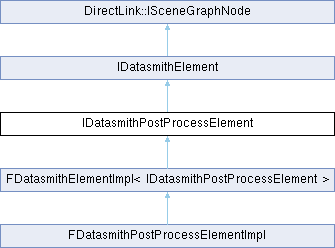

Inheritance diagram for IDatasmithPostProcessElement:

Public Member Functions
virtual float	GetTemperature () const =0
virtual void	SetTemperature (float Temperature)=0
virtual FLinearColor	GetColorFilter () const =0
virtual void	SetColorFilter (FLinearColor ColorFilter)=0
virtual float	GetVignette () const =0
virtual void	SetVignette (float Vignette)=0
virtual float	GetDof () const =0
virtual void	SetDof (float Dof)=0
virtual float	GetMotionBlur () const =0
virtual void	SetMotionBlur (float MotionBlur)=0
virtual float	GetSaturation () const =0
virtual void	SetSaturation (float Saturation)=0
virtual float	GetCameraISO () const =0
virtual void	SetCameraISO (float CameraISO)=0
virtual float	GetCameraShutterSpeed () const =0
virtual void	SetCameraShutterSpeed (float CameraShutterSpeed)=0
virtual float	GetDepthOfFieldFstop () const =0
virtual void	SetDepthOfFieldFstop (float Fstop)=0
Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Member Function Documentation

GetCameraISO()

virtual float IDatasmithPostProcessElement::GetCameraISO ( ) const

pure virtual

Get camera ISO

Implemented in FDatasmithPostProcessElementImpl.

GetCameraShutterSpeed()

virtual float IDatasmithPostProcessElement::GetCameraShutterSpeed ( ) const

pure virtual

The camera shutter speed in 1/seconds (ie: 60 = 1/60s)

Implemented in FDatasmithPostProcessElementImpl.

GetColorFilter()

virtual FLinearColor IDatasmithPostProcessElement::GetColorFilter ( ) const

pure virtual

Set color filter in linear color scale

Implemented in FDatasmithPostProcessElementImpl.

GetDepthOfFieldFstop()

virtual float IDatasmithPostProcessElement::GetDepthOfFieldFstop ( ) const

pure virtual

Defines the opening of the camera lens, Aperture is 1/fstop, typical lens go down to f/1.2 (large opening), larger numbers reduce the DOF effect

Implemented in FDatasmithPostProcessElementImpl.

GetDof()

virtual float IDatasmithPostProcessElement::GetDof ( ) const

pure virtual

Get depth of field multiplier

Implemented in FDatasmithPostProcessElementImpl.

GetMotionBlur()

virtual float IDatasmithPostProcessElement::GetMotionBlur ( ) const

pure virtual

Get motion blur multiplier

Implemented in FDatasmithPostProcessElementImpl.

GetSaturation()

virtual float IDatasmithPostProcessElement::GetSaturation ( ) const

pure virtual

Get color saturation

Implemented in FDatasmithPostProcessElementImpl.

GetTemperature()

virtual float IDatasmithPostProcessElement::GetTemperature ( ) const

pure virtual

Get color filter temperature in Kelvin

Implemented in FDatasmithPostProcessElementImpl.

GetVignette()

virtual float IDatasmithPostProcessElement::GetVignette ( ) const

pure virtual

Get vignette amount

Implemented in FDatasmithPostProcessElementImpl.

SetCameraISO()

virtual void IDatasmithPostProcessElement::SetCameraISO ( float  CameraISO )

pure virtual

Set camera ISO

Implemented in FDatasmithPostProcessElementImpl.

SetCameraShutterSpeed()

virtual void IDatasmithPostProcessElement::SetCameraShutterSpeed ( float  CameraShutterSpeed )

pure virtual

Implemented in FDatasmithPostProcessElementImpl.

SetColorFilter()

virtual void IDatasmithPostProcessElement::SetColorFilter ( FLinearColor  ColorFilter )

pure virtual

Get color filter in linear color scale

Implemented in FDatasmithPostProcessElementImpl.

SetDepthOfFieldFstop()

virtual void IDatasmithPostProcessElement::SetDepthOfFieldFstop ( float  Fstop )

pure virtual

Implemented in FDatasmithPostProcessElementImpl.

SetDof()

virtual void IDatasmithPostProcessElement::SetDof ( float  Dof )

pure virtual

Set depth of field multiplier

Implemented in FDatasmithPostProcessElementImpl.

SetMotionBlur()

virtual void IDatasmithPostProcessElement::SetMotionBlur ( float  MotionBlur )

pure virtual

Set motion blur multiplier

Implemented in FDatasmithPostProcessElementImpl.

SetSaturation()

virtual void IDatasmithPostProcessElement::SetSaturation ( float  Saturation )

pure virtual

Set color saturation

Implemented in FDatasmithPostProcessElementImpl.

SetTemperature()

virtual void IDatasmithPostProcessElement::SetTemperature ( float  Temperature )

pure virtual

Set color filter temperature in Kelvin

Implemented in FDatasmithPostProcessElementImpl.

SetVignette()

virtual void IDatasmithPostProcessElement::SetVignette ( float  Vignette )

pure virtual

Set vignette amount

Implemented in FDatasmithPostProcessElementImpl.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
