UDocumentation UE5.7 10.02.2026 (Source)
API documentation for Unreal Engine 5.7
FDatasmithSpotLightElementImpl< InterfaceType > Class Template Reference

#include <DatasmithSceneElementsImpl.h>

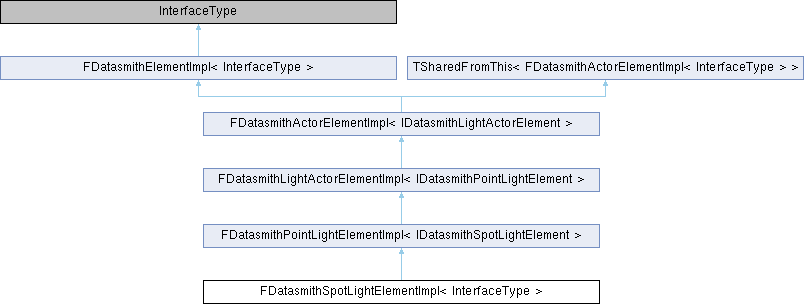

+ Inheritance diagram for FDatasmithSpotLightElementImpl< InterfaceType >:

Public Member Functions

 FDatasmithSpotLightElementImpl (const TCHAR *InName)

virtual float GetInnerConeAngle () const override

virtual void SetInnerConeAngle (float InInnerConeAngle) override

virtual float GetOuterConeAngle () const override

virtual void SetOuterConeAngle (float InOuterConeAngle) override

- Public Member Functions inherited from FDatasmithPointLightElementImpl< InterfaceType >
 FDatasmithPointLightElementImpl (const TCHAR *InName)

virtual void SetIntensityUnits (EDatasmithLightUnits InUnits)

virtual EDatasmithLightUnits GetIntensityUnits () const

virtual float GetSourceRadius () const override

virtual void SetSourceRadius (float InSourceRadius) override

virtual float GetSourceLength () const override

virtual void SetSourceLength (float InSourceLength) override

virtual float GetAttenuationRadius () const override

virtual void SetAttenuationRadius (float InAttenuationRadius) override

- Public Member Functions inherited from FDatasmithLightActorElementImpl< InterfaceType >
virtual bool IsEnabled () const override

virtual void SetEnabled (bool bInIsEnabled) override

virtual double GetIntensity () const override

virtual void SetIntensity (double InIntensity) override

virtual FLinearColor GetColor () const override

virtual void SetColor (FLinearColor InColor) override

virtual double GetTemperature () const override

virtual void SetTemperature (double InTemperature) override

virtual bool GetUseTemperature () const override

virtual void SetUseTemperature (bool bInUseTemperature) override

virtual const TCHARGetIesFile () const override

virtual void SetIesFile (const TCHAR *InIesFile) override

virtual bool GetUseIes () const override

virtual void SetUseIes (bool bInUseIes) override

virtual double GetIesBrightnessScale () const override

virtual void SetIesBrightnessScale (double InIesBrightnessScale) override

virtual bool GetUseIesBrightness () const override

virtual void SetUseIesBrightness (bool bInUseIesBrightness) override

virtual FQuat GetIesRotation () const override

virtual void SetIesRotation (const FQuat &InIesRotation) override

TSharedPtr< IDatasmithMaterialIDElement > & GetLightFunctionMaterial () override

void SetLightFunctionMaterial (const TSharedPtr< IDatasmithMaterialIDElement > &InMaterial) override

void SetLightFunctionMaterial (const TCHAR *InMaterialName) override

const TCHARGetIesTexturePathName () const override

void SetIesTexturePathName (const TCHAR *InTextureName) override

- Public Member Functions inherited from FDatasmithActorElementImpl< InterfaceType >
 FDatasmithActorElementImpl (const TCHAR *InName, EDatasmithElementType InType)

virtual FVector GetTranslation () const override

virtual void SetTranslation (double InX, double InY, double InZ, bool bKeepChildrenRelative) override

virtual void SetTranslation (const FVector &Value, bool bKeepChildrenRelative) override

virtual FVector GetScale () const override

virtual void SetScale (double InX, double InY, double InZ, bool bKeepChildrenRelative) override

virtual void SetScale (const FVector &Value, bool bKeepChildrenRelative) override

virtual FQuat GetRotation () const override

virtual void SetRotation (double InX, double InY, double InZ, double InW, bool bKeepChildrenRelative) override

virtual void SetRotation (const FQuat &Value, bool bKeepChildrenRelative) override

virtual FTransform GetRelativeTransform () const override

virtual const TCHARGetLayer () const override

virtual void SetLayer (const TCHAR *InLayer) override

virtual void AddTag (const TCHAR *InTag) override

virtual void ResetTags () override

virtual int32 GetTagsCount () const

virtual const TCHARGetTag (int32 TagIndex) const override

virtual void AddChild (const TSharedPtr< IDatasmithActorElement > &InChild, EDatasmithActorAttachmentRule AttachementRule=EDatasmithActorAttachmentRule::KeepWorldTransform) override

virtual int32 GetChildrenCount () const override

virtual TSharedPtr< IDatasmithActorElementGetChild (int32 InIndex) override

virtual const TSharedPtr< IDatasmithActorElement > & GetChild (int32 InIndex) const override

virtual void RemoveChild (const TSharedPtr< IDatasmithActorElement > &InChild) override

virtual const TSharedPtr< IDatasmithActorElement > & GetParentActor () const override

virtual void SetIsAComponent (bool Value) override

virtual bool IsAComponent () const override

virtual void SetVisibility (bool bInVisibility) override

virtual bool GetVisibility () const override

virtual void SetCastShadow (bool bInCastShadow) override

virtual bool GetCastShadow () const override

virtual void SetMobility (EDatasmithActorMobilityType InMobility) override

virtual EDatasmithActorMobilityType GetMobility () const override

- Public Member Functions inherited from FDatasmithElementImpl< InterfaceType >
 FDatasmithElementImpl (const TCHAR *InName, EDatasmithElementType InType, uint64 InSubType=0)

virtual ~FDatasmithElementImpl ()

virtual bool IsA (EDatasmithElementType InType) const override

virtual const TCHARGetName () const override

virtual void SetName (const TCHAR *InName) override

virtual const TCHARGetLabel () const override

virtual void SetLabel (const TCHAR *InLabel) override

virtual FMD5Hash CalculateElementHash (bool) override

virtual TSharedPtr< DirectLink::FSceneGraphSharedStateMakeSharedState () const override

virtual const DirectLink::FParameterStoreGetStore () const override

virtual DirectLink::FParameterStoreGetStore () override

- Public Member Functions inherited from TSharedFromThis< FDatasmithActorElementImpl< InterfaceType > >
TSharedRef< FDatasmithActorElementImpl< InterfaceType >, Mode > AsShared ()

TSharedRef< FDatasmithActorElementImpl< InterfaceType > const, Mode > AsShared () const

TSharedRef< SubobjectType, Mode > AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< FDatasmithActorElementImpl< InterfaceType >, Mode > AsWeak ()

TWeakPtr< FDatasmithActorElementImpl< InterfaceType > const, Mode > AsWeak () const

TWeakPtr< SubobjectType, Mode > AsWeakSubobject (SubobjectType *SubobjectPtr) const

void UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const *InSharedPtr, OtherType *InObject) const

void UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const *InSharedRef, OtherType *InObject) const

UE_FORCEINLINE_HINT bool DoesSharedInstanceExist () const


Protected Member Functions

 FDatasmithSpotLightElementImpl (const TCHAR *InName, EDatasmithElementType ChildType)

- Protected Member Functions inherited from FDatasmithPointLightElementImpl< InterfaceType >
 FDatasmithPointLightElementImpl (const TCHAR *InName, EDatasmithElementType ChildType)

- Protected Member Functions inherited from FDatasmithLightActorElementImpl< InterfaceType >
 FDatasmithLightActorElementImpl (const TCHAR *InName, EDatasmithElementType ChildType)

- Protected Member Functions inherited from FDatasmithActorElementImpl< InterfaceType >
void ConvertChildsToRelative ()

void ConvertChildsToWorld ()

void SetInternalRotation (const FQuat &Value)

void SetInternalScale (const FVector &Value)

void SetInternalTranslation (const FVector &Value)

- Protected Member Functions inherited from FDatasmithElementImpl< InterfaceType >
virtual bool IsSubTypeInternal (uint64 InSubType) const

EDatasmithElementType GetElementType () const

uint64 GetSubType () const

- Protected Member Functions inherited from TSharedFromThis< FDatasmithActorElementImpl< InterfaceType > >
 TSharedFromThis ()

 TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThisoperator= (TSharedFromThis const &)

 ~TSharedFromThis ()


Additional Inherited Members

- Static Protected Member Functions inherited from TSharedFromThis< FDatasmithActorElementImpl< InterfaceType > >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode > SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode > SharedThis (const OtherType *ThisPtr)

- Protected Attributes inherited from FDatasmithElementImpl< InterfaceType >
FMD5Hash ElementHash

DirectLink::FParameterStore Store

TReflected< EDatasmithElementType, uint64Type

TReflected< uint64Subtype

TReflected< FString > Name

TReflected< FString > Label


Constructor & Destructor Documentation

◆ FDatasmithSpotLightElementImpl() [1/2]

template<typename InterfaceType = IDatasmithSpotLightElement>
FDatasmithSpotLightElementImpl< InterfaceType >::FDatasmithSpotLightElementImpl ( const TCHAR InName)
inlineexplicit

◆ FDatasmithSpotLightElementImpl() [2/2]

template<typename InterfaceType = IDatasmithSpotLightElement>
FDatasmithSpotLightElementImpl< InterfaceType >::FDatasmithSpotLightElementImpl ( const TCHAR InName,
EDatasmithElementType  ChildType
)
inlineexplicitprotected

Member Function Documentation

◆ GetInnerConeAngle()

template<typename InterfaceType = IDatasmithSpotLightElement>
virtual float FDatasmithSpotLightElementImpl< InterfaceType >::GetInnerConeAngle ( ) const
inlineoverridevirtual

◆ GetOuterConeAngle()

template<typename InterfaceType = IDatasmithSpotLightElement>
virtual float FDatasmithSpotLightElementImpl< InterfaceType >::GetOuterConeAngle ( ) const
inlineoverridevirtual

◆ SetInnerConeAngle()

template<typename InterfaceType = IDatasmithSpotLightElement>
virtual void FDatasmithSpotLightElementImpl< InterfaceType >::SetInnerConeAngle ( float  InInnerConeAngle)
inlineoverridevirtual

◆ SetOuterConeAngle()

template<typename InterfaceType = IDatasmithSpotLightElement>
virtual void FDatasmithSpotLightElementImpl< InterfaceType >::SetOuterConeAngle ( float  InOuterConeAngle)
inlineoverridevirtual

The documentation for this class was generated from the following file:
