#include <MallocBinned2.h>

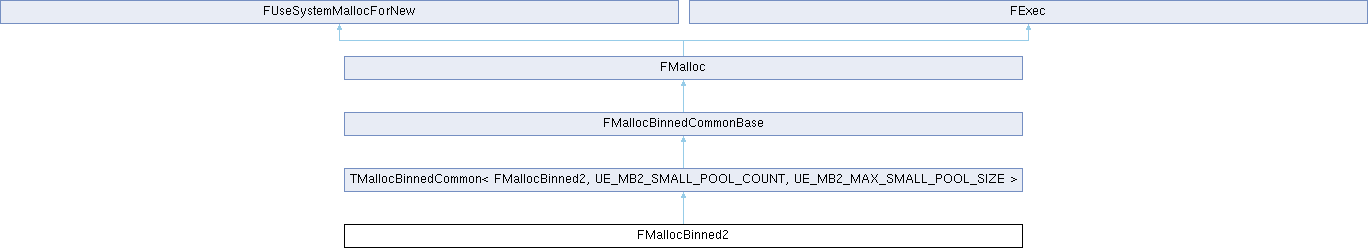

Inheritance diagram for FMallocBinned2:

Classes
struct	FPoolInfo

struct	FPoolTable

struct	Private

Public Member Functions
	FMallocBinned2 ()

virtual	~FMallocBinned2 ()

virtual bool	IsInternallyThreadSafe () const override

virtual UE_AUTORTFM_NOAUTORTFM void *	Malloc (SIZE_T Size, uint32 Alignment) override

virtual UE_AUTORTFM_NOAUTORTFM void *	Realloc (void *Ptr, SIZE_T NewSize, uint32 Alignment) override

virtual UE_AUTORTFM_NOAUTORTFM void	Free (void *Ptr) override

bool	GetSmallAllocationSize (void *Ptr, SIZE_T &SizeOut) const

virtual bool	GetAllocationSize (void *Ptr, SIZE_T &SizeOut) override

virtual FORCEINLINE SIZE_T	QuantizeSize (SIZE_T Count, uint32 Alignment) override

virtual bool	ValidateHeap () override

virtual void	Trim (bool bTrimThreadCaches) override

virtual const TCHAR *	GetDescriptiveName () override

virtual void	UpdateStats () override

virtual void	OnMallocInitialized () override

virtual void	OnPreFork () override

virtual void	OnPostFork () override

virtual uint64	GetImmediatelyFreeableCachedMemorySize () const override

virtual uint64	GetTotalFreeCachedMemorySize () const override

void *	MallocExternalSmall (SIZE_T Size, uint32 Alignment)

void *	MallocExternalLarge (SIZE_T Size, uint32 Alignment)

void	CanaryFail (const FFreeBlock *Block) const

void	CanaryTest (const FFreeBlock *Block) const

virtual void	DumpAllocatorStats (class FOutputDevice &Ar) override

FORCEINLINE uint32	PoolIndexToBinSize (uint32 PoolIndex) const

void	FreeBundles (FBundleNode *Bundles, uint32 PoolIndex)

void	FlushCurrentThreadCacheInternal (bool bNewEpochOnly=false)

Public Member Functions inherited from TMallocBinnedCommon< FMallocBinned2, UE_MB2_SMALL_POOL_COUNT, UE_MB2_MAX_SMALL_POOL_SIZE >
virtual void	GetAllocatorStats (FGenericMemoryStats &OutStats) override

Public Member Functions inherited from FMalloc
virtual CORE_API void *	TryMalloc (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)

virtual CORE_API void *	TryRealloc (void *Original, SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)

virtual CORE_API void *	MallocZeroed (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)

virtual CORE_API void *	TryMallocZeroed (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)

virtual CORE_API void	InitializeStatsMetadata ()

Public Member Functions inherited from FUseSystemMallocForNew
CORE_API void *	operator new (size_t Size)

CORE_API void	operator delete (void *Ptr)

void *	operator new[] (size_t Size)

void	operator delete[] (void *Ptr)

Public Member Functions inherited from FExec
virtual CORE_API	~FExec ()

virtual CORE_API bool	Exec (UWorld InWorld, const TCHAR Cmd, FOutputDevice &Ar)

Static Public Member Functions
static void *	AllocateMetaDataMemory (SIZE_T Size)

static void	FreeMetaDataMemory (void *Ptr, SIZE_T Size)

Public Attributes
FPoolTable	SmallPoolTables [UE_MB2_SMALL_POOL_COUNT]

Static Public Attributes
static uint16	SmallBinSizes [UE_MB2_SMALL_POOL_COUNT] = { 0 }

static FMallocBinned2 *	MallocBinned2 = nullptr

static uint8	MemSizeToPoolIndex [1+(UE_MB2_MAX_SMALL_POOL_SIZE > > UE_MBC_BIN_SIZE_SHIFT)] = { 0 }

Static Public Attributes inherited from FMalloc
static CORE_API TAtomic< uint64 >	MaxSingleAlloc

Additional Inherited Members
Protected Member Functions inherited from TMallocBinnedCommon< FMallocBinned2, UE_MB2_SMALL_POOL_COUNT, UE_MB2_MAX_SMALL_POOL_SIZE >
virtual void	SetupTLSCachesOnCurrentThread () override

virtual void	ClearAndDisableTLSCachesOnCurrentThread () override

virtual void	MarkTLSCachesAsUsedOnCurrentThread () override

virtual void	MarkTLSCachesAsUnusedOnCurrentThread () override

SIZE_T	QuantizeSizeCommon (SIZE_T Count, uint32 Alignment, const FMallocBinned2 &Alloc) const

uint32	BoundSizeToPoolIndex (SIZE_T Size, const uint8(&MemSizeToPoolIndex)[SIZE_TO_POOL_INDEX_NUM]) const

FORCENOINLINE bool	PromoteToLargerBin (SIZE_T &Size, uint32 &Alignment, const FMallocBinned2 &Alloc) const

bool	GetAllocationSizeExternal (void *Ptr, SIZE_T &SizeOut)

int64	GetTotalAllocatedSmallPoolMemory () const

void	UpdateStatsCommon (const FMallocBinned2 &Alloc)

void	AllocateHashBuckets ()

Protected Member Functions inherited from FMallocBinnedCommonBase
void	GetAllocatorStatsInternal (FGenericMemoryStats &OutStats, int64 TotalAllocatedSmallPoolMemory)

void	UnrecognizedPointerFatalError (void *Ptr)

void	LogLargeAllocation (SIZE_T Size) const

Protected Member Functions inherited from FExec
virtual bool	Exec_Runtime (UWorld InWorld, const TCHAR Cmd, FOutputDevice &Ar)

virtual bool	Exec_Dev (UWorld InWorld, const TCHAR Cmd, FOutputDevice &Ar)

virtual bool	Exec_Editor (UWorld InWorld, const TCHAR Cmd, FOutputDevice &Ar)

Static Protected Member Functions inherited from TMallocBinnedCommon< FMallocBinned2, UE_MB2_SMALL_POOL_COUNT, UE_MB2_MAX_SMALL_POOL_SIZE >
static UE::FPlatformRecursiveMutex &	GetFreeBlockListsRegistrationMutex ()

static TArray< FPerThreadFreeBlockLists * > &	GetRegisteredFreeBlockLists ()

Static Protected Member Functions inherited from FMallocBinnedCommonBase
static void	OutOfMemory (uint64 Size, uint32 Alignment=0)

Protected Attributes inherited from FMallocBinnedCommonBase
FPtrToPoolMapping	PtrToPoolMapping

uint64	NumPoolsPerPage

UE::FPlatformRecursiveMutex	ExternalAllocMutex

std::atomic< uint64 >	MemoryTrimEpoch { 0 }

Static Protected Attributes inherited from TMallocBinnedCommon< FMallocBinned2, UE_MB2_SMALL_POOL_COUNT, UE_MB2_MAX_SMALL_POOL_SIZE >
static constexpr int	SIZE_TO_POOL_INDEX_NUM

Static Protected Attributes inherited from FMallocBinnedCommonBase
static uint32	OsAllocationGranularity = 0

static CORE_API uint32	BinnedTlsSlot = FPlatformTLS::InvalidTlsSlot

static std::atomic< int64 >	TLSMemory

static std::atomic< int64 >	ConsolidatedMemory

static std::atomic< int64 >	AllocatedSmallPoolMemory

static std::atomic< int64 >	AllocatedOSSmallPoolMemory

static std::atomic< int64 >	AllocatedLargePoolMemory

static std::atomic< int64 >	AllocatedLargePoolMemoryWAlignment

static int64	PoolInfoMemory

static int64	HashMemory

Constructor & Destructor Documentation

◆ FMallocBinned2()

FMallocBinned2::FMallocBinned2 ( )

◆ ~FMallocBinned2()

FMallocBinned2::~FMallocBinned2 ( )

virtual

Member Function Documentation

◆ AllocateMetaDataMemory()

void * FMallocBinned2::AllocateMetaDataMemory ( SIZE_T Size )

static

◆ CanaryFail()

void FMallocBinned2::CanaryFail ( const FFreeBlock * Block ) const

◆ CanaryTest()

void FMallocBinned2::CanaryTest ( const FFreeBlock * Block ) const

inline

◆ DumpAllocatorStats()

void FMallocBinned2::DumpAllocatorStats ( class FOutputDevice & Ar )

overridevirtual

Dumps current allocator stats to the log.

Reimplemented from FMalloc.

◆ FlushCurrentThreadCacheInternal()

void FMallocBinned2::FlushCurrentThreadCacheInternal ( bool bNewEpochOnly = false )

◆ Free()

void FMallocBinned2::Free ( void * Original )

overridevirtual

Free

Implements FMalloc.

◆ FreeBundles()

void FMallocBinned2::FreeBundles	(	FBundleNode *	Bundles,
		uint32	PoolIndex
	)

◆ FreeMetaDataMemory()

void FMallocBinned2::FreeMetaDataMemory	(	void *	Ptr,
		SIZE_T	Size
	)

static

◆ GetAllocationSize()

virtual bool FMallocBinned2::GetAllocationSize	(	void *	Original,
		SIZE_T &	SizeOut
	)

inlineoverridevirtual

If possible determine the size of the memory allocated at the given address

Parameters

Original	- Pointer to memory we are checking the size of
SizeOut	- If possible, this value is set to the size of the passed in pointer

Returns: true if succeeded

Reimplemented from FMalloc.

◆ GetDescriptiveName()

const TCHAR * FMallocBinned2::GetDescriptiveName ( )

overridevirtual

Gets descriptive name for logging purposes.

Returns: pointer to human-readable malloc name

Reimplemented from FMalloc.

◆ GetImmediatelyFreeableCachedMemorySize()

virtual uint64 FMallocBinned2::GetImmediatelyFreeableCachedMemorySize ( ) const

inlineoverridevirtual

Returns the amount of free memory cached by the allocator that can be returned to the system in case of a memory shortage

Reimplemented from FMalloc.

◆ GetSmallAllocationSize()

bool FMallocBinned2::GetSmallAllocationSize	(	void *	Ptr,
		SIZE_T &	SizeOut
	)		const

inline

◆ GetTotalFreeCachedMemorySize()

virtual uint64 FMallocBinned2::GetTotalFreeCachedMemorySize ( ) const

inlineoverridevirtual

Returns the amount of total free memory cached by the allocator. This includes memory that can be returned to the system in case of a memory shortage, see GetImmediatelyFreeableCachedMemorySize() as well as any memory that can't be returned back to the kernel, but can be used to satisfy some of the allocation requirements.

Reimplemented from FMalloc.

◆ IsInternallyThreadSafe()

bool FMallocBinned2::IsInternallyThreadSafe ( ) const

overridevirtual

Returns if the allocator is guaranteed to be thread-safe and therefore doesn't need a unnecessary thread-safety wrapper around it.

Reimplemented from FMalloc.

◆ Malloc()

void * FMallocBinned2::Malloc	(	SIZE_T	Count,
		uint32	Alignment
	)

overridevirtual

Malloc

Implements FMalloc.

◆ MallocExternalLarge()

void * FMallocBinned2::MallocExternalLarge	(	SIZE_T	Size,
		uint32	Alignment
	)

◆ MallocExternalSmall()

void * FMallocBinned2::MallocExternalSmall	(	SIZE_T	Size,
		uint32	Alignment
	)

◆ OnMallocInitialized()

void FMallocBinned2::OnMallocInitialized ( )

overridevirtual

Notifies the malloc implementation that initialization of all allocators in GMalloc is complete, so it's safe to initialize any extra features that require "regular" allocations

Reimplemented from FMallocBinnedCommonBase.

◆ OnPostFork()

void FMallocBinned2::OnPostFork ( )

overridevirtual

Notifies the malloc implementation that the process has forked so we can try and avoid dirtying pre-fork pages.

Reimplemented from FMalloc.

◆ OnPreFork()

void FMallocBinned2::OnPreFork ( )

overridevirtual

Notifies the malloc implementation that the process is about to fork. May be used to trim caches etc.

Reimplemented from FMalloc.

◆ PoolIndexToBinSize()

FORCEINLINE uint32 FMallocBinned2::PoolIndexToBinSize ( uint32 PoolIndex ) const

inline

◆ QuantizeSize()

virtual FORCEINLINE SIZE_T FMallocBinned2::QuantizeSize	(	SIZE_T	Count,
		uint32	Alignment
	)

inlineoverridevirtual

For some allocators this will return the actual size that should be requested to eliminate internal fragmentation. The return value will always be >= Count. This can be used to grow and shrink containers to optimal sizes. This call is always fast and threadsafe with no locking.

Reimplemented from FMalloc.

◆ Realloc()

void * FMallocBinned2::Realloc	(	void *	Original,
		SIZE_T	Count,
		uint32	Alignment
	)

overridevirtual

Realloc

Implements FMalloc.

◆ Trim()

void FMallocBinned2::Trim ( bool bTrimThreadCaches )

overridevirtual

Releases as much memory as possible. Must be called from the main thread.

Reimplemented from FMalloc.

◆ UpdateStats()

void FMallocBinned2::UpdateStats ( )

overridevirtual

Called once per frame, gathers and sets all memory allocator statistics into the corresponding stats. MUST BE THREAD SAFE.

Reimplemented from FMalloc.

◆ ValidateHeap()

bool FMallocBinned2::ValidateHeap ( )

overridevirtual

Validates the allocator's heap

Reimplemented from FMalloc.

Member Data Documentation

◆ MallocBinned2

FMallocBinned2 * FMallocBinned2::MallocBinned2 = nullptr

static

◆ MemSizeToPoolIndex

uint8 FMallocBinned2::MemSizeToPoolIndex = { 0 }

static

◆ SmallBinSizes

uint16 FMallocBinned2::SmallBinSizes = { 0 }

static

◆ SmallPoolTables

FPoolTable FMallocBinned2::SmallPoolTables[UE_MB2_SMALL_POOL_COUNT]

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Core/Public/HAL/MallocBinned2.h
Engine/Source/Runtime/Core/Private/HAL/MallocBinned2.cpp
