UDocumentation UE5.7 10.02.2026 (Source)
API documentation for Unreal Engine 5.7
Public Member Functions | Public Attributes | Protected Member Functions | List of all members
FRDGView Class Referenceabstract

#include <RenderGraphResources.h>

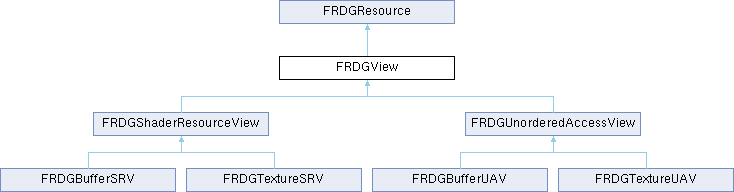

+ Inheritance diagram for FRDGView:

Public Member Functions

virtual FRDGViewableResource * GetParent () const =0

ERDGViewableResourceType GetParentType () const

FRDGViewHandle GetHandle () const

- Public Member Functions inherited from FRDGResource
 FRDGResource (const FRDGResource &)=delete

virtual ~FRDGResource ()=default

virtual RENDERCORE_API void MarkResourceAsUsed ()
 The following methods may only be called during pass execution.

FRHIResource * GetRHI () const


Public Attributes

const ERDGViewType Type

- Public Attributes inherited from FRDGResource
const TCHAR *const Name = nullptr


Protected Member Functions

 FRDGView (const TCHAR *Name, ERDGViewType InType)

- Protected Member Functions inherited from FRDGResource
 FRDGResource (const TCHAR *InName)

FRHIResource * GetRHIUnchecked () const

bool HasRHI () const

RENDERCORE_API void ValidateRHIAccess () const


Additional Inherited Members

- Protected Attributes inherited from FRDGResource
FRHIResource * ResourceRHI = nullptr


Detailed Description

A render graph resource (e.g. a view) which references a single viewable resource (e.g. a texture / buffer). Provides an abstract way to access the viewable resource.

Constructor & Destructor Documentation

◆ FRDGView()

FRDGView::FRDGView ( const TCHAR *  Name,
ERDGViewType  InType
)
inlineprotected

Member Function Documentation

◆ GetHandle()

FRDGViewHandle FRDGView::GetHandle ( ) const
inline

◆ GetParent()

virtual FRDGViewableResource * FRDGView::GetParent ( ) const
pure virtual

Returns the referenced parent render graph resource.

Implemented in FRDGTextureSRV, FRDGTextureUAV, FRDGBufferSRV, and FRDGBufferUAV.

◆ GetParentType()

ERDGViewableResourceType FRDGView::GetParentType ( ) const
inline

Member Data Documentation

◆ Type

const ERDGViewType FRDGView::Type

The type of this child resource; useful for casting between types.

The documentation for this class was generated from the following file:
