FRDGViewableResource Class Reference

#include <RenderGraphResources.h>

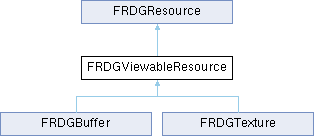

+ Inheritance diagram for FRDGViewableResource:

Classes

struct  FAccessModeState


Public Member Functions

bool IsExternal () const

bool IsExtracted () const

bool HasBeenProduced () const

void SetOwnerName (const FName &InOwnerName)

bool IsDebugNameHeapAllocated () const

- Public Member Functions inherited from FRDGResource
 FRDGResource (const FRDGResource &)=delete

virtual ~FRDGResource ()=default

virtual RENDERCORE_API void MarkResourceAsUsed ()
 The following methods may only be called during pass execution.

FRHIResource * GetRHI () const


Public Attributes

const ERDGViewableResourceType Type

- Public Attributes inherited from FRDGResource
const TCHAR *const Name = nullptr


Protected Types

enum class  ETransientExtractionHint : uint8 { None , Disable , Enable }

enum class  EAccessMode : uint8 { Internal , External }


Protected Member Functions

RENDERCORE_API FRDGViewableResource (const TCHAR *InName, ERDGViewableResourceType InType, bool bSkipTracking, bool bImmediateFirstBarrier)

bool IsCullRoot () const

- Protected Member Functions inherited from FRDGResource
 FRDGResource (const TCHAR *InName)

FRHIResource * GetRHIUnchecked () const

bool HasRHI () const

RENDERCORE_API void ValidateRHIAccess () const


Protected Attributes

uint8 bExternal: 1

uint8 bExtracted: 1

uint8 bProduced: 1

uint8 bTransient: 1

uint8 bForceNonTransient: 1

uint8 bSkipLastTransition: 1

uint8 bSplitFirstTransition: 1

uint8 bQueuedForUpload: 1

uint8 bCollectForAllocate: 1

uint8 bClobbered: 1

ETransientExtractionHint TransientExtractionHint

struct FRDGViewableResource::FAccessModeState AccessModeState

FRDGPassHandle AcquirePass

FRDGPassHandle DiscardPass

FRDGPassHandle FirstPass

FRDGPassHandlesByPipeline LastPasses

uint32 ReferenceCount

uint32 PassStateIndex = 0

TArrayView< const FRHITransientAliasingOverlap > AliasingOverlaps

ERHIAccess EpilogueAccess = DefaultEpilogueAccess

- Protected Attributes inherited from FRDGResource
FRHIResource * ResourceRHI = nullptr


Static Protected Attributes

static const ERHIAccess DefaultEpilogueAccess = ERHIAccess::SRVMask


Friends

bool IsExtendedLifetimeResource (FRDGViewableResource *)


Detailed Description

A render graph resource with an allocation lifetime tracked by the graph. May have child resources which reference it (e.g. views).

Member Enumeration Documentation

◆ EAccessMode

enum class FRDGViewableResource::EAccessMode : uint8
strongprotected
Enumerator
Internal
External

◆ ETransientExtractionHint

enum class FRDGViewableResource::ETransientExtractionHint : uint8
strongprotected
Enumerator
None
Disable
Enable

Constructor & Destructor Documentation

◆ FRDGViewableResource()

FRDGViewableResource::FRDGViewableResource ( const TCHAR *  InName,
ERDGViewableResourceType  InType,
bool  bSkipTracking,
bool  bImmediateFirstBarrier
)
protected

Member Function Documentation

◆ HasBeenProduced()

bool FRDGViewableResource::HasBeenProduced ( ) const
inline

Whether a prior pass added to the graph produced contents for this resource. External resources are not considered produced until used for a write operation. This is a union of all subresources, so any subresource write will set this to true.

◆ IsCullRoot()

bool FRDGViewableResource::IsCullRoot ( ) const
inlineprotected

◆ IsDebugNameHeapAllocated()

bool FRDGViewableResource::IsDebugNameHeapAllocated ( ) const
inline

◆ IsExternal()

bool FRDGViewableResource::IsExternal ( ) const
inline

Whether this resource is externally registered with the graph (i.e. the user holds a reference to the underlying resource outside the graph).

◆ IsExtracted()

bool FRDGViewableResource::IsExtracted ( ) const
inline

Whether this resource is has been queued for extraction at the end of graph execution.

◆ SetOwnerName()

void FRDGViewableResource::SetOwnerName ( const FName &  InOwnerName)
inline

Friends And Related Symbol Documentation

◆ IsExtendedLifetimeResource

bool IsExtendedLifetimeResource ( FRDGViewableResource *  )
friend

Member Data Documentation

◆ AccessModeState

struct FRDGViewableResource::FAccessModeState FRDGViewableResource::AccessModeState
protected

◆ AcquirePass

FRDGPassHandle FRDGViewableResource::AcquirePass
protected

◆ AliasingOverlaps

TArrayView<const FRHITransientAliasingOverlap> FRDGViewableResource::AliasingOverlaps
protected

Set of aliasing overlaps to apply to the acquire transition if transient.

◆ bClobbered

uint8 FRDGViewableResource::bClobbered
protected

◆ bCollectForAllocate

uint8 FRDGViewableResource::bCollectForAllocate
protected

If false, the resource needs to be collected.

◆ bExternal

uint8 FRDGViewableResource::bExternal
protected

Whether this is an externally registered resource.

◆ bExtracted

uint8 FRDGViewableResource::bExtracted
protected

Whether this is an extracted resource.

◆ bForceNonTransient

uint8 FRDGViewableResource::bForceNonTransient
protected

Whether this resource cannot be made transient.

◆ bProduced

uint8 FRDGViewableResource::bProduced
protected

Whether any sub-resource has been used for write by a pass.

◆ bQueuedForUpload

uint8 FRDGViewableResource::bQueuedForUpload
protected

If true, the resource has been queued for an upload operation.

◆ bSkipLastTransition

uint8 FRDGViewableResource::bSkipLastTransition
protected

If true, the graph will skip the last graph transition. Used for aliased pooled resources.

◆ bSplitFirstTransition

uint8 FRDGViewableResource::bSplitFirstTransition
protected

If true, this resource should skip the first split barrier and perform transition right away.

◆ bTransient

uint8 FRDGViewableResource::bTransient
protected

Whether this resource is allocated through the transient resource allocator.

◆ DefaultEpilogueAccess

const ERHIAccess FRDGViewableResource::DefaultEpilogueAccess = ERHIAccess::SRVMask
staticprotected

◆ DiscardPass

FRDGPassHandle FRDGViewableResource::DiscardPass
protected

◆ EpilogueAccess

ERHIAccess FRDGViewableResource::EpilogueAccess = DefaultEpilogueAccess
protected

The state of the resource at the graph epilogue.

◆ FirstPass

FRDGPassHandle FRDGViewableResource::FirstPass
protected

◆ LastPasses

FRDGPassHandlesByPipeline FRDGViewableResource::LastPasses
protected

◆ PassStateIndex

uint32 FRDGViewableResource::PassStateIndex = 0
protected

Scratch index allocated for the resource in the pass being setup.

◆ ReferenceCount

uint32 FRDGViewableResource::ReferenceCount
protected

Number of references in passes and deferred queries.

◆ TransientExtractionHint

ETransientExtractionHint FRDGViewableResource::TransientExtractionHint
protected

Whether this resource is allowed to be both transient and extracted.

◆ Type

const ERDGViewableResourceType FRDGViewableResource::Type

The type of this resource; useful for casting between types.

The documentation for this class was generated from the following files:
