FSlate3DRenderer Class Reference

#include <Slate3DRenderer.h>

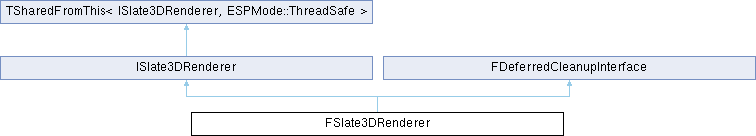

Inheritance diagram for FSlate3DRenderer:

Public Member Functions
	FSlate3DRenderer (TSharedRef< FSlateFontServices > InSlateFontServices, TSharedRef< FSlateRHIResourceManager > InResourceManager, bool bUseGammaCorrection=false)
void	Cleanup ()
virtual void	SetUseGammaCorrection (bool bUseGammaCorrection) override
virtual void	SetApplyColorDeficiencyCorrection (bool bApplyColorCorrection) override
virtual FSlateDrawBuffer &	AcquireDrawBuffer () override
virtual void	ReleaseDrawBuffer (FSlateDrawBuffer &DrawBuffer) override
virtual void	DrawWindow_GameThread (FSlateDrawBuffer &DrawBuffer) override
virtual void	DrawWindowToTarget_RenderThread (FRDGBuilder &GraphBuilder, const struct FRenderThreadUpdateContext &Context) override
Public Member Functions inherited from ISlate3DRenderer
virtual	~ISlate3DRenderer ()=default
virtual FSlateDrawBuffer &	GetDrawBuffer ()
virtual void	DrawWindowToTarget_RenderThread (FRHICommandListImmediate &RHICmdList, const struct FRenderThreadUpdateContext &Context)
Public Member Functions inherited from TSharedFromThis< ISlate3DRenderer, ESPMode::ThreadSafe >
TSharedRef< ISlate3DRenderer, Mode >	AsShared ()
TSharedRef< ISlate3DRenderer const, Mode >	AsShared () const
TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const
TWeakPtr< ISlate3DRenderer, Mode >	AsWeak ()
TWeakPtr< ISlate3DRenderer const, Mode >	AsWeak () const
TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const
void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const *InSharedPtr, OtherType *InObject) const
void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const *InSharedRef, OtherType *InObject) const
UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const
Public Member Functions inherited from FDeferredCleanupInterface
virtual	~FDeferredCleanupInterface ()

Additional Inherited Members
Protected Member Functions inherited from TSharedFromThis< ISlate3DRenderer, ESPMode::ThreadSafe >
	TSharedFromThis ()
	TSharedFromThis (TSharedFromThis const &)
UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)
	~TSharedFromThis ()
Static Protected Member Functions inherited from TSharedFromThis< ISlate3DRenderer, ESPMode::ThreadSafe >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)
static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Constructor & Destructor Documentation

FSlate3DRenderer()

FSlate3DRenderer::FSlate3DRenderer	(	TSharedRef< FSlateFontServices >	InSlateFontServices,
		TSharedRef< FSlateRHIResourceManager >	InResourceManager,
		bool	bUseGammaCorrection = false
	)

Member Function Documentation

AcquireDrawBuffer()

FSlateDrawBuffer & FSlate3DRenderer::AcquireDrawBuffer ( )

overridevirtual

Returns

The free buffer for drawing

Implements ISlate3DRenderer.

Cleanup()

void FSlate3DRenderer::Cleanup

(

)

DrawWindow_GameThread()

void FSlate3DRenderer::DrawWindow_GameThread ( FSlateDrawBuffer &  DrawBuffer )

overridevirtual

Batches the draw elements in the buffer to prepare it for rendering. Call in the game thread before sending to the render thread.

Parameters

DrawBuffer

The draw buffer to prepare

Implements ISlate3DRenderer.

DrawWindowToTarget_RenderThread()

void FSlate3DRenderer::DrawWindowToTarget_RenderThread ( FRDGBuilder &  GraphBuilder, const struct FRenderThreadUpdateContext &  Context  )

overridevirtual

Renders the batched draw elements of the draw buffer to the given render target. Call after preparing the draw buffer and render target on the game thread.

Parameters

RenderTarget	The render target to render the contents of the draw buffer to
InDrawBuffer	The draw buffer containing the batched elements to render

Implements ISlate3DRenderer.

ReleaseDrawBuffer()

void FSlate3DRenderer::ReleaseDrawBuffer ( FSlateDrawBuffer &  InWindowDrawBuffer )

overridevirtual

Return the previously acquired buffer.

Implements ISlate3DRenderer.

SetApplyColorDeficiencyCorrection()

void FSlate3DRenderer::SetApplyColorDeficiencyCorrection ( bool  bApplyColorCorrection )

overridevirtual

Implements ISlate3DRenderer.

SetUseGammaCorrection()

void FSlate3DRenderer::SetUseGammaCorrection ( bool  bUseGammaCorrection )

overridevirtual

set if this renderer should render in gamma space by default.

Implements ISlate3DRenderer.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/SlateRHIRenderer/Private/Slate3DRenderer.h
• Engine/Source/Runtime/SlateRHIRenderer/Private/Slate3DRenderer.cpp
