ISlate3DRenderer Class Reference

#include <ISlate3DRenderer.h>

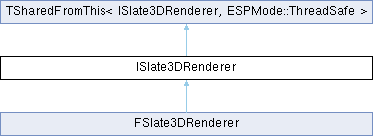

Inheritance diagram for ISlate3DRenderer:

Classes
struct	FScopedAcquireDrawBuffer

Public Member Functions
virtual	~ISlate3DRenderer ()=default
virtual void	SetUseGammaCorrection (bool bUseGammaCorrection)=0
virtual void	SetApplyColorDeficiencyCorrection (bool bApplyColorCorrection)=0
virtual FSlateDrawBuffer &	GetDrawBuffer ()
virtual FSlateDrawBuffer &	AcquireDrawBuffer ()=0
virtual void	ReleaseDrawBuffer (FSlateDrawBuffer &InWindowDrawBuffer)=0
virtual void	DrawWindow_GameThread (FSlateDrawBuffer &DrawBuffer)=0
virtual void	DrawWindowToTarget_RenderThread (FRDGBuilder &GraphBuilder, const struct FRenderThreadUpdateContext &Context)=0
virtual void	DrawWindowToTarget_RenderThread (FRHICommandListImmediate &RHICmdList, const struct FRenderThreadUpdateContext &Context)
Public Member Functions inherited from TSharedFromThis< ISlate3DRenderer, ESPMode::ThreadSafe >
TSharedRef< ISlate3DRenderer, Mode >	AsShared ()
TSharedRef< ISlate3DRenderer const, Mode >	AsShared () const
TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const
TWeakPtr< ISlate3DRenderer, Mode >	AsWeak ()
TWeakPtr< ISlate3DRenderer const, Mode >	AsWeak () const
TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const
void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const *InSharedPtr, OtherType *InObject) const
void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const *InSharedRef, OtherType *InObject) const
UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Additional Inherited Members
Protected Member Functions inherited from TSharedFromThis< ISlate3DRenderer, ESPMode::ThreadSafe >
	TSharedFromThis ()
	TSharedFromThis (TSharedFromThis const &)
UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)
	~TSharedFromThis ()
Static Protected Member Functions inherited from TSharedFromThis< ISlate3DRenderer, ESPMode::ThreadSafe >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)
static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Constructor & Destructor Documentation

~ISlate3DRenderer()

virtual ISlate3DRenderer::~ISlate3DRenderer ( )

virtualdefault

Member Function Documentation

AcquireDrawBuffer()

virtual FSlateDrawBuffer & ISlate3DRenderer::AcquireDrawBuffer ( )

pure virtual

Returns

The free buffer for drawing

Implemented in FSlate3DRenderer.

DrawWindow_GameThread()

virtual void ISlate3DRenderer::DrawWindow_GameThread ( FSlateDrawBuffer &  DrawBuffer )

pure virtual

Batches the draw elements in the buffer to prepare it for rendering. Call in the game thread before sending to the render thread.

Parameters

DrawBuffer

The draw buffer to prepare

Implemented in FSlate3DRenderer.

DrawWindowToTarget_RenderThread() [1/2]

virtual void ISlate3DRenderer::DrawWindowToTarget_RenderThread ( FRDGBuilder &  GraphBuilder, const struct FRenderThreadUpdateContext &  Context  )

pure virtual

Renders the batched draw elements of the draw buffer to the given render target. Call after preparing the draw buffer and render target on the game thread.

Parameters

RenderTarget	The render target to render the contents of the draw buffer to
InDrawBuffer	The draw buffer containing the batched elements to render

Implemented in FSlate3DRenderer.

DrawWindowToTarget_RenderThread() [2/2]

virtual void ISlate3DRenderer::DrawWindowToTarget_RenderThread ( FRHICommandListImmediate &  RHICmdList, const struct FRenderThreadUpdateContext &  Context  )

inlinevirtual

GetDrawBuffer()

virtual FSlateDrawBuffer & ISlate3DRenderer::GetDrawBuffer ( )

inlinevirtual

Returns

The free buffer for drawing

ReleaseDrawBuffer()

virtual void ISlate3DRenderer::ReleaseDrawBuffer ( FSlateDrawBuffer &  InWindowDrawBuffer )

pure virtual

Return the previously acquired buffer.

Implemented in FSlate3DRenderer.

SetApplyColorDeficiencyCorrection()

virtual void ISlate3DRenderer::SetApplyColorDeficiencyCorrection ( bool  bApplyColorCorrection )

pure virtual

Implemented in FSlate3DRenderer.

SetUseGammaCorrection()

virtual void ISlate3DRenderer::SetUseGammaCorrection ( bool  bUseGammaCorrection )

pure virtual

set if this renderer should render in gamma space by default.

Implemented in FSlate3DRenderer.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/SlateRHIRenderer/Public/Interfaces/ISlate3DRenderer.h
