FStaticMeshPhysicsProxy Class Reference

#include <StaticMeshPhysicsProxy.h>

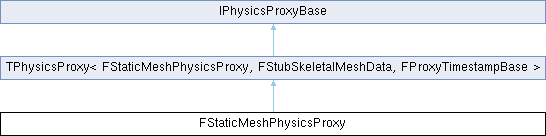

Inheritance diagram for FStaticMeshPhysicsProxy:

Classes
struct	FShapeParams
struct	Params

Public Types
using	FCallbackInitFunc = TFunction< void(FStaticMeshPhysicsProxy::Params &)>
using	FSyncDynamicFunc = TFunction< void(const FTransform &)>
Public Types inherited from TPhysicsProxy< FStaticMeshPhysicsProxy, FStubSkeletalMeshData, FProxyTimestampBase >
using	FParticleType = FStaticMeshPhysicsProxy
using	FParticlesType = Chaos::FPBDRigidParticles
using	FIntArray = Chaos::TArrayCollectionArray< int32 >

Public Member Functions
	FStaticMeshPhysicsProxy ()=delete
CHAOS_API	FStaticMeshPhysicsProxy (UObject *InOwner, FCallbackInitFunc InInitFunc, FSyncDynamicFunc InSyncFunc)
CHAOS_API void	Initialize ()
CHAOS_API void	Reset ()
CHAOS_API void	BufferKinematicUpdate (const FPhysicsProxyKinematicUpdate &InParamUpdate)
CHAOS_API bool	IsSimulating () const
CHAOS_API void	UpdateKinematicBodiesCallback (const FParticlesType &Particles, const float Dt, const float Time, FKinematicProxy &Proxy)
CHAOS_API void	StartFrameCallback (const float InDt, const float InTime)
CHAOS_API void	EndFrameCallback (const float InDt)
CHAOS_API void	BindParticleCallbackMapping (Chaos::TArrayCollectionArray< PhysicsProxyWrapper > &PhysicsProxyReverseMap, Chaos::TArrayCollectionArray< int32 > &ParticleIDReverseMap)
CHAOS_API void	CreateRigidBodyCallback (FParticlesType &InOutParticles)
CHAOS_API void	ParameterUpdateCallback (FParticlesType &InParticles, const float InTime)
CHAOS_API void	DisableCollisionsCallback (TSet< TTuple< int32, int32 > > &InPairs)
CHAOS_API void	AddForceCallback (FParticlesType &InParticles, const float InDt, const int32 InIndex)
void	BufferCommand (Chaos::FPhysicsSolver *InSolver, const FFieldSystemCommand &InCommand)
void	SyncBeforeDestroy ()
CHAOS_API void	OnRemoveFromScene ()
void	PushToPhysicsState (const Chaos::FParticleData *)
void	ClearAccumulatedData ()
CHAOS_API void	BufferPhysicsResults ()
CHAOS_API void	FlipBuffer ()
CHAOS_API bool	PullFromPhysicsState (const int32 SolverSyncTimestamp)
bool	IsDirty ()
FStubSkeletalMeshData *	NewData ()
Public Member Functions inherited from TPhysicsProxy< FStaticMeshPhysicsProxy, FStubSkeletalMeshData, FProxyTimestampBase >
	TPhysicsProxy ()
	TPhysicsProxy (UObject *InOwner)
virtual	~TPhysicsProxy ()
bool	IsSimulating () const
void	UpdateKinematicBodiesCallback (const FParticlesType &InParticles, const float InDt, const float InTime, FKinematicProxy &InKinematicProxy)
void	StartFrameCallback (const float InDt, const float InTime)
void	EndFrameCallback (const float InDt)
void	CreateRigidBodyCallback (FParticlesType &InOutParticles)
void	DisableCollisionsCallback (TSet< TTuple< int32, int32 > > &InPairs)
void	AddForceCallback (FParticlesType &InParticles, const float InDt, const int32 InIndex)
void	BindParticleCallbackMapping (Chaos::TArrayCollectionArray< PhysicsProxyWrapper > &PhysicsProxyReverseMap, Chaos::TArrayCollectionArray< int32 > &ParticleIDReverseMap)
void	ClearAccumulatedData ()
void	SyncBeforeDestroy ()
void	OnRemoveFromScene ()
bool	IsDirty ()
void *	GetUserData () const
Chaos::FRigidTransform3	GetTransform () const
FORCEINLINE_DEBUGGABLE FProxyTimestampBase &	GetSyncTimestampTyped ()
Public Member Functions inherited from IPhysicsProxyBase
	IPhysicsProxyBase (EPhysicsProxyType InType, UObject *InOwner, TSharedPtr< FProxyTimestampBase, ESPMode::ThreadSafe > InProxyTimeStamp)
UObject *	GetOwner () const
template<class SOLVER_TYPE >
SOLVER_TYPE *	GetSolver () const
Chaos::FPhysicsSolverBase *	GetSolverBase () const
template<class SOLVER_TYPE = Chaos::FPhysicsSolver>
void	SetSolver (SOLVER_TYPE *InSolver)
EPhysicsProxyType	GetType () const
virtual void *	GetHandleUnsafe () const
int32	GetDirtyIdx () const
void	SetDirtyIdx (const int32 Idx)
void	ResetDirtyIdx ()
void	MarkDeleted ()
bool	GetMarkedDeleted () const
TSharedPtr< FProxyTimestampBase, ESPMode::ThreadSafe >	GetSyncTimestamp () const
bool	IsInitialized () const
void	SetInitialized (const int32 InitializeStep)
int32	GetInitializedStep () const
int32	GetIgnoreDataOnStep_Internal () const
IPhysicsProxyBase *	GetParentProxy () const
void	SetParentProxy (IPhysicsProxyBase *InProxy)

Static Public Member Functions
static constexpr EPhysicsProxyType	ConcreteType ()
Static Public Member Functions inherited from TPhysicsProxy< FStaticMeshPhysicsProxy, FStubSkeletalMeshData, FProxyTimestampBase >
static constexpr EPhysicsProxyType	ConcreteType ()
Static Public Member Functions inherited from IPhysicsProxyBase
static float	GetRenderInterpErrorCorrectionDuration ()
static float	GetRenderInterpMaximumErrorCorrectionBeforeSnapping ()
static float	GetRenderInterpErrorVelocitySmoothingDuration ()
static bool	GetRenderInterpDebugDraw ()
static float	GetRenderInterpErrorDirectionalDecayMultiplier ()

Additional Inherited Members
Protected Member Functions inherited from IPhysicsProxyBase
virtual CHAOS_API	~IPhysicsProxyBase ()
template<typename TProxyTimeStamp >
FORCEINLINE_DEBUGGABLE TProxyTimeStamp &	GetSyncTimestampAs ()
CHAOS_API int32	GetSolverSyncTimestamp_External () const
Protected Attributes inherited from IPhysicsProxyBase
Chaos::FPhysicsSolverBase *	Solver
UObject *	Owner
EPhysicsProxyType	Type
int32	InitializedOnStep = INDEX_NONE
int32	IgnoreDataOnStep_Internal = INDEX_NONE

Member Typedef Documentation

FCallbackInitFunc

using FStaticMeshPhysicsProxy::FCallbackInitFunc = TFunction<void(FStaticMeshPhysicsProxy::Params&)>

FSyncDynamicFunc

using FStaticMeshPhysicsProxy::FSyncDynamicFunc = TFunction<void(const FTransform&)>

Constructor & Destructor Documentation

FStaticMeshPhysicsProxy() [1/2]

FStaticMeshPhysicsProxy::FStaticMeshPhysicsProxy ( )

delete

FStaticMeshPhysicsProxy() [2/2]

FStaticMeshPhysicsProxy::FStaticMeshPhysicsProxy	(	UObject *	InOwner,
		FCallbackInitFunc	InInitFunc,
		FSyncDynamicFunc	InSyncFunc
	)

Member Function Documentation

AddForceCallback()

void FStaticMeshPhysicsProxy::AddForceCallback	(	FParticlesType &	InParticles,
		const float	InDt,
		const int32	InIndex
	)

BindParticleCallbackMapping()

void FStaticMeshPhysicsProxy::BindParticleCallbackMapping	(	Chaos::TArrayCollectionArray< PhysicsProxyWrapper > &	PhysicsProxyReverseMap,
		Chaos::TArrayCollectionArray< int32 > &	ParticleIDReverseMap
	)

BufferCommand()

void FStaticMeshPhysicsProxy::BufferCommand ( Chaos::FPhysicsSolver *  InSolver, const FFieldSystemCommand &  InCommand  )

inline

BufferKinematicUpdate()

void FStaticMeshPhysicsProxy::BufferKinematicUpdate

(

const FPhysicsProxyKinematicUpdate &

InParamUpdate

)

Stores latest update, to be applied at next opportunity (via UpdateKinematicBodiesCallback).

BufferPhysicsResults()

void FStaticMeshPhysicsProxy::BufferPhysicsResults

(

)

ClearAccumulatedData()

void FStaticMeshPhysicsProxy::ClearAccumulatedData ( )

inline

ConcreteType()

static constexpr EPhysicsProxyType FStaticMeshPhysicsProxy::ConcreteType ( )

inlinestaticconstexpr

CreateRigidBodyCallback()

void FStaticMeshPhysicsProxy::CreateRigidBodyCallback

(

FParticlesType &

InOutParticles

)

DisableCollisionsCallback()

void FStaticMeshPhysicsProxy::DisableCollisionsCallback

(

TSet< TTuple< int32, int32 > > &

InPairs

)

EndFrameCallback()

void FStaticMeshPhysicsProxy::EndFrameCallback

(

const float

InDt

)

FlipBuffer()

void FStaticMeshPhysicsProxy::FlipBuffer

(

)

Initialize()

void FStaticMeshPhysicsProxy::Initialize

(

)

IsDirty()

bool FStaticMeshPhysicsProxy::IsDirty ( )

inline

IsSimulating()

bool FStaticMeshPhysicsProxy::IsSimulating

(

)

const

Solver Object interface

NewData()

FStubSkeletalMeshData * FStaticMeshPhysicsProxy::NewData ( )

inline

OnRemoveFromScene()

void FStaticMeshPhysicsProxy::OnRemoveFromScene

(

)

ParameterUpdateCallback()

void FStaticMeshPhysicsProxy::ParameterUpdateCallback	(	FParticlesType &	InParticles,
		const float	InTime
	)

PullFromPhysicsState()

bool FStaticMeshPhysicsProxy::PullFromPhysicsState

(

const int32

SolverSyncTimestamp

)

PushToPhysicsState()

void FStaticMeshPhysicsProxy::PushToPhysicsState ( const Chaos::FParticleData *  )

inline

Reset()

void FStaticMeshPhysicsProxy::Reset

(

)

StartFrameCallback()

void FStaticMeshPhysicsProxy::StartFrameCallback	(	const float	InDt,
		const float	InTime
	)

SyncBeforeDestroy()

void FStaticMeshPhysicsProxy::SyncBeforeDestroy ( )

inline

UpdateKinematicBodiesCallback()

void FStaticMeshPhysicsProxy::UpdateKinematicBodiesCallback	(	const FParticlesType &	Particles,
		const float	Dt,
		const float	Time,
		FKinematicProxy &	Proxy
	)

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Experimental/Chaos/Public/PhysicsProxy/StaticMeshPhysicsProxy.h
• Engine/Source/Runtime/Experimental/Chaos/Private/PhysicsProxy/StaticMeshPhysicsObject.cpp
