IDatasmithDecalActorElement Class Reference

#include <IDatasmithSceneElements.h>

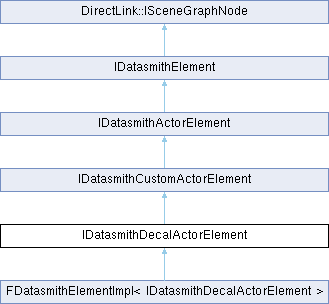

Inheritance diagram for IDatasmithDecalActorElement:

Public Member Functions
virtual FVector	GetDimensions () const =0
virtual void	SetDimensions (const FVector &)=0
virtual const TCHAR *	GetDecalMaterialPathName () const =0
virtual void	SetDecalMaterialPathName (const TCHAR *)=0
virtual int32	GetSortOrder () const =0
virtual void	SetSortOrder (int32)=0
Public Member Functions inherited from IDatasmithCustomActorElement
virtual const TCHAR *	GetClassOrPathName () const =0
virtual void	SetClassOrPathName (const TCHAR *InClassOrPathName)=0
virtual int32	GetPropertiesCount () const =0
virtual const TSharedPtr< IDatasmithKeyValueProperty > &	GetProperty (int32 i) const =0
virtual const TSharedPtr< IDatasmithKeyValueProperty > &	GetPropertyByName (const TCHAR *Name) const =0
virtual void	AddProperty (const TSharedPtr< IDatasmithKeyValueProperty > &Property)=0
virtual void	RemoveProperty (const TSharedPtr< IDatasmithKeyValueProperty > &Property)=0
Public Member Functions inherited from IDatasmithActorElement
virtual	~IDatasmithActorElement ()
virtual FVector	GetTranslation () const =0
virtual void	SetTranslation (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetTranslation (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FVector	GetScale () const =0
virtual void	SetScale (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetScale (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FQuat	GetRotation () const =0
virtual void	SetRotation (double InX, double InY, double InZ, double InW, bool bKeepChildrenRelative=true)=0
virtual void	SetRotation (const FQuat &Value, bool bKeepChildrenRelative=true)=0
virtual FTransform	GetRelativeTransform () const =0
virtual const TCHAR *	GetLayer () const =0
virtual void	SetLayer (const TCHAR *InLayer)=0
virtual void	AddTag (const TCHAR *InTag)=0
virtual void	ResetTags ()=0
virtual int32	GetTagsCount () const =0
virtual const TCHAR *	GetTag (int32 TagIndex) const =0
virtual void	AddChild (const TSharedPtr< IDatasmithActorElement > &InChild, EDatasmithActorAttachmentRule AttachementRule=EDatasmithActorAttachmentRule::KeepWorldTransform)=0
virtual int32	GetChildrenCount () const =0
virtual TSharedPtr< IDatasmithActorElement >	GetChild (int32 InIndex)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetChild (int32 InIndex) const =0
virtual void	RemoveChild (const TSharedPtr< IDatasmithActorElement > &InChild)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetParentActor () const =0
virtual void	SetIsAComponent (bool Value)=0
virtual bool	IsAComponent () const =0
virtual void	SetVisibility (bool bInVisibility)=0
virtual bool	GetVisibility () const =0
virtual void	SetCastShadow (bool bInCastShadow)=0
virtual bool	GetCastShadow () const =0
virtual void	SetMobility (EDatasmithActorMobilityType Mobility)=0
virtual EDatasmithActorMobilityType	GetMobility () const =0
Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Member Function Documentation

GetDecalMaterialPathName()

virtual const TCHAR * IDatasmithDecalActorElement::GetDecalMaterialPathName ( ) const

pure virtual

Get the path name of the Material associated with the actor

GetDimensions()

virtual FVector IDatasmithDecalActorElement::GetDimensions ( ) const

pure virtual

Get the Decal element size

GetSortOrder()

virtual int32 IDatasmithDecalActorElement::GetSortOrder ( ) const

pure virtual

Get the order in which Decal element is rendered.

SetDecalMaterialPathName()

virtual void IDatasmithDecalActorElement::SetDecalMaterialPathName ( const TCHAR *  )

pure virtual

Set the path name of the Material that the Decal actor uses It can be either a package path referring to an existing material asset or a material name referring a DecalMaterialElement in the DatasmithScene If this is not a DecalMaterialElement or a material with its material domain as DeferredDecal The DecalActor generated in Unreal at import will use its default material

SetDimensions()

virtual void IDatasmithDecalActorElement::SetDimensions ( const FVector &  )

pure virtual

Set the Decal element size

SetSortOrder()

virtual void IDatasmithDecalActorElement::SetSortOrder ( int32  )

pure virtual

Set the order in which decal elements are rendered. Higher values draw later (on top).

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
