IDatasmithLandscapeElement Class Reference

#include <IDatasmithSceneElements.h>

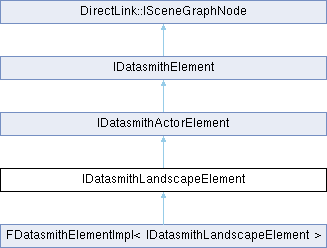

Inheritance diagram for IDatasmithLandscapeElement:

Public Member Functions
virtual void	SetHeightmap (const TCHAR *FilePath)=0
virtual const TCHAR *	GetHeightmap () const =0
virtual void	SetMaterial (const TCHAR *MaterialPathName)=0
virtual const TCHAR *	GetMaterial () const =0
Public Member Functions inherited from IDatasmithActorElement
virtual	~IDatasmithActorElement ()
virtual FVector	GetTranslation () const =0
virtual void	SetTranslation (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetTranslation (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FVector	GetScale () const =0
virtual void	SetScale (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetScale (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FQuat	GetRotation () const =0
virtual void	SetRotation (double InX, double InY, double InZ, double InW, bool bKeepChildrenRelative=true)=0
virtual void	SetRotation (const FQuat &Value, bool bKeepChildrenRelative=true)=0
virtual FTransform	GetRelativeTransform () const =0
virtual const TCHAR *	GetLayer () const =0
virtual void	SetLayer (const TCHAR *InLayer)=0
virtual void	AddTag (const TCHAR *InTag)=0
virtual void	ResetTags ()=0
virtual int32	GetTagsCount () const =0
virtual const TCHAR *	GetTag (int32 TagIndex) const =0
virtual void	AddChild (const TSharedPtr< IDatasmithActorElement > &InChild, EDatasmithActorAttachmentRule AttachementRule=EDatasmithActorAttachmentRule::KeepWorldTransform)=0
virtual int32	GetChildrenCount () const =0
virtual TSharedPtr< IDatasmithActorElement >	GetChild (int32 InIndex)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetChild (int32 InIndex) const =0
virtual void	RemoveChild (const TSharedPtr< IDatasmithActorElement > &InChild)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetParentActor () const =0
virtual void	SetIsAComponent (bool Value)=0
virtual bool	IsAComponent () const =0
virtual void	SetVisibility (bool bInVisibility)=0
virtual bool	GetVisibility () const =0
virtual void	SetCastShadow (bool bInCastShadow)=0
virtual bool	GetCastShadow () const =0
virtual void	SetMobility (EDatasmithActorMobilityType Mobility)=0
virtual EDatasmithActorMobilityType	GetMobility () const =0
Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Member Function Documentation

GetHeightmap()

virtual const TCHAR * IDatasmithLandscapeElement::GetHeightmap ( ) const

pure virtual

GetMaterial()

virtual const TCHAR * IDatasmithLandscapeElement::GetMaterial ( ) const

pure virtual

SetHeightmap()

virtual void IDatasmithLandscapeElement::SetHeightmap ( const TCHAR *  FilePath )

pure virtual

The path to the heightmap file

SetMaterial()

virtual void IDatasmithLandscapeElement::SetMaterial ( const TCHAR *  MaterialPathName )

pure virtual

The name or path to the material to assign to this landscape layer

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
