IDatasmithLightActorElement Class Reference

#include <IDatasmithSceneElements.h>

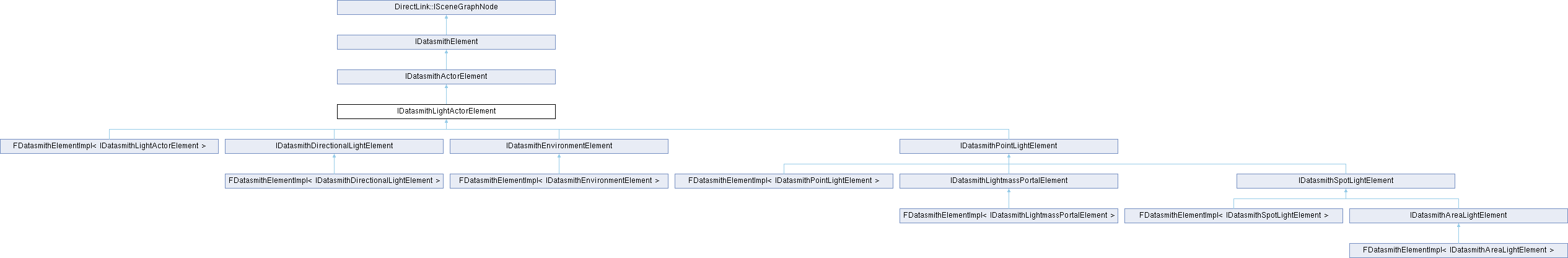

Inheritance diagram for IDatasmithLightActorElement:

Public Member Functions
virtual	~IDatasmithLightActorElement ()
virtual bool	IsEnabled () const =0
virtual void	SetEnabled (bool bIsEnabled)=0
virtual double	GetIntensity () const =0
virtual void	SetIntensity (double Intensity)=0
virtual FLinearColor	GetColor () const =0
virtual void	SetColor (FLinearColor Color)=0
virtual double	GetTemperature () const =0
virtual void	SetTemperature (double Temperature)=0
virtual bool	GetUseTemperature () const =0
virtual void	SetUseTemperature (bool bUseTemperature)=0
virtual const TCHAR *	GetIesFile () const =0
virtual const TCHAR *	GetIesTexturePathName () const =0
virtual void	SetIesFile (const TCHAR *IesFile)=0
virtual void	SetIesTexturePathName (const TCHAR *TextureName)=0
virtual bool	GetUseIes () const =0
virtual void	SetUseIes (bool bUseIes)=0
virtual double	GetIesBrightnessScale () const =0
virtual void	SetIesBrightnessScale (double IesBrightnessScale)=0
virtual bool	GetUseIesBrightness () const =0
virtual void	SetUseIesBrightness (bool bUseIesBrightness)=0
virtual FQuat	GetIesRotation () const =0
virtual void	SetIesRotation (const FQuat &IesRotation)=0
virtual TSharedPtr< IDatasmithMaterialIDElement > &	GetLightFunctionMaterial ()=0
virtual void	SetLightFunctionMaterial (const TSharedPtr< IDatasmithMaterialIDElement > &InMaterial)=0
virtual void	SetLightFunctionMaterial (const TCHAR *InMaterialName)=0
Public Member Functions inherited from IDatasmithActorElement
virtual	~IDatasmithActorElement ()
virtual FVector	GetTranslation () const =0
virtual void	SetTranslation (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetTranslation (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FVector	GetScale () const =0
virtual void	SetScale (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetScale (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FQuat	GetRotation () const =0
virtual void	SetRotation (double InX, double InY, double InZ, double InW, bool bKeepChildrenRelative=true)=0
virtual void	SetRotation (const FQuat &Value, bool bKeepChildrenRelative=true)=0
virtual FTransform	GetRelativeTransform () const =0
virtual const TCHAR *	GetLayer () const =0
virtual void	SetLayer (const TCHAR *InLayer)=0
virtual void	AddTag (const TCHAR *InTag)=0
virtual void	ResetTags ()=0
virtual int32	GetTagsCount () const =0
virtual const TCHAR *	GetTag (int32 TagIndex) const =0
virtual void	AddChild (const TSharedPtr< IDatasmithActorElement > &InChild, EDatasmithActorAttachmentRule AttachementRule=EDatasmithActorAttachmentRule::KeepWorldTransform)=0
virtual int32	GetChildrenCount () const =0
virtual TSharedPtr< IDatasmithActorElement >	GetChild (int32 InIndex)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetChild (int32 InIndex) const =0
virtual void	RemoveChild (const TSharedPtr< IDatasmithActorElement > &InChild)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetParentActor () const =0
virtual void	SetIsAComponent (bool Value)=0
virtual bool	IsAComponent () const =0
virtual void	SetVisibility (bool bInVisibility)=0
virtual bool	GetVisibility () const =0
virtual void	SetCastShadow (bool bInCastShadow)=0
virtual bool	GetCastShadow () const =0
virtual void	SetMobility (EDatasmithActorMobilityType Mobility)=0
virtual EDatasmithActorMobilityType	GetMobility () const =0
Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Constructor & Destructor Documentation

~IDatasmithLightActorElement()

virtual IDatasmithLightActorElement::~IDatasmithLightActorElement ( )

inlinevirtual

Member Function Documentation

GetColor()

virtual FLinearColor IDatasmithLightActorElement::GetColor ( ) const

pure virtual

Get light color on linear mode

GetIesBrightnessScale()

virtual double IDatasmithLightActorElement::GetIesBrightnessScale ( ) const

pure virtual

Get the Ies brightness multiplier

GetIesFile()

virtual const TCHAR * IDatasmithLightActorElement::GetIesFile ( ) const

pure virtual

Get the path of the Ies definition file - DEPRECATED in 4.26: Replaced with GetIesTexturePathName

GetIesRotation()

virtual FQuat IDatasmithLightActorElement::GetIesRotation ( ) const

pure virtual

Get the rotation applied to the IES shape

GetIesTexturePathName()

virtual const TCHAR * IDatasmithLightActorElement::GetIesTexturePathName ( ) const

pure virtual

Get the IES texture path

GetIntensity()

virtual double IDatasmithLightActorElement::GetIntensity ( ) const

pure virtual

Get light intensity

GetLightFunctionMaterial()

virtual TSharedPtr< IDatasmithMaterialIDElement > & IDatasmithLightActorElement::GetLightFunctionMaterial ( )

pure virtual

Get emissive material on this light

GetTemperature()

virtual double IDatasmithLightActorElement::GetTemperature ( ) const

pure virtual

Get the light temperature in Kelvin

GetUseIes()

virtual bool IDatasmithLightActorElement::GetUseIes ( ) const

pure virtual

Set if this light is controlled by Ies definition file

GetUseIesBrightness()

virtual bool IDatasmithLightActorElement::GetUseIesBrightness ( ) const

pure virtual

Get if the emissive amount of the ies is controlled by the brightness scale

GetUseTemperature()

virtual bool IDatasmithLightActorElement::GetUseTemperature ( ) const

pure virtual

Get if the light color is controlled by temperature

IsEnabled()

virtual bool IDatasmithLightActorElement::IsEnabled ( ) const

pure virtual

Return true on light enabled, false otherwise

SetColor()

virtual void IDatasmithLightActorElement::SetColor ( FLinearColor  Color )

pure virtual

Set light color on linear mode

SetEnabled()

virtual void IDatasmithLightActorElement::SetEnabled ( bool  bIsEnabled )

pure virtual

Set enable property of the light

SetIesBrightnessScale()

virtual void IDatasmithLightActorElement::SetIesBrightnessScale ( double  IesBrightnessScale )

pure virtual

Set the Ies brightness multiplier

SetIesFile()

virtual void IDatasmithLightActorElement::SetIesFile ( const TCHAR *  IesFile )

pure virtual

Set the path of the Ies definition file - DEPRECATED in 4.26: Replaced with SetIesTexturePathName

SetIesRotation()

virtual void IDatasmithLightActorElement::SetIesRotation ( const FQuat &  IesRotation )

pure virtual

Set the rotation to apply to the IES shape

SetIesTexturePathName()

virtual void IDatasmithLightActorElement::SetIesTexturePathName ( const TCHAR *  TextureName )

pure virtual

Set the IES texture path The path is either the name of an element attached to the scene or the path of a UE texture asset, i.e. /Game/.../TextureAssetName.TextureAssetName

SetIntensity()

virtual void IDatasmithLightActorElement::SetIntensity ( double  Intensity )

pure virtual

Set light intensity

SetLightFunctionMaterial() [1/2]

virtual void IDatasmithLightActorElement::SetLightFunctionMaterial ( const TCHAR *  InMaterialName )

pure virtual

Set emissive material on this light

SetLightFunctionMaterial() [2/2]

virtual void IDatasmithLightActorElement::SetLightFunctionMaterial ( const TSharedPtr< IDatasmithMaterialIDElement > &  InMaterial )

pure virtual

Set emissive material on this light

SetTemperature()

virtual void IDatasmithLightActorElement::SetTemperature ( double  Temperature )

pure virtual

Set the light temperature in Kelvin

SetUseIes()

virtual void IDatasmithLightActorElement::SetUseIes ( bool  bUseIes )

pure virtual

Get if this light is controlled by Ies definition file

SetUseIesBrightness()

virtual void IDatasmithLightActorElement::SetUseIesBrightness ( bool  bUseIesBrightness )

pure virtual

Set if the emissive amount of the ies is controlled by the brightness scale

SetUseTemperature()

virtual void IDatasmithLightActorElement::SetUseTemperature ( bool  bUseTemperature )

pure virtual

Set if the light color is controlled by temperature

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
