#include <IDatasmithSceneElements.h>

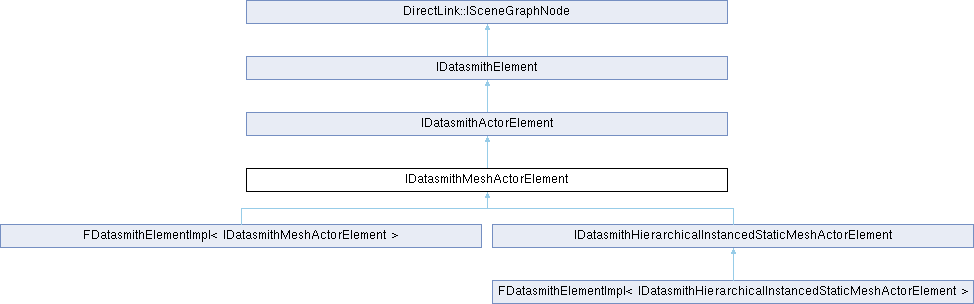

Inheritance diagram for IDatasmithMeshActorElement:

Public Member Functions
virtual	~IDatasmithMeshActorElement ()

virtual void	AddMaterialOverride (const TCHAR *MaterialName, int32 Id)=0

virtual void	AddMaterialOverride (const TSharedPtr< IDatasmithMaterialIDElement > &Material)=0

virtual int32	GetMaterialOverridesCount () const =0

virtual TSharedPtr< IDatasmithMaterialIDElement >	GetMaterialOverride (int32 i)=0

virtual TSharedPtr< const IDatasmithMaterialIDElement >	GetMaterialOverride (int32 i) const =0

virtual void	RemoveMaterialOverride (const TSharedPtr< IDatasmithMaterialIDElement > &Material)=0

virtual void	ResetMaterialOverrides ()=0

virtual const TCHAR *	GetStaticMeshPathName () const =0

virtual void	SetStaticMeshPathName (const TCHAR *InStaticMeshPathName)=0

Public Member Functions inherited from IDatasmithActorElement
virtual	~IDatasmithActorElement ()

virtual FVector	GetTranslation () const =0

virtual void	SetTranslation (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0

virtual void	SetTranslation (const FVector &Value, bool bKeepChildrenRelative=true)=0

virtual FVector	GetScale () const =0

virtual void	SetScale (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0

virtual void	SetScale (const FVector &Value, bool bKeepChildrenRelative=true)=0

virtual FQuat	GetRotation () const =0

virtual void	SetRotation (double InX, double InY, double InZ, double InW, bool bKeepChildrenRelative=true)=0

virtual void	SetRotation (const FQuat &Value, bool bKeepChildrenRelative=true)=0

virtual FTransform	GetRelativeTransform () const =0

virtual const TCHAR *	GetLayer () const =0

virtual void	SetLayer (const TCHAR *InLayer)=0

virtual void	AddTag (const TCHAR *InTag)=0

virtual void	ResetTags ()=0

virtual int32	GetTagsCount () const =0

virtual const TCHAR *	GetTag (int32 TagIndex) const =0

virtual void	AddChild (const TSharedPtr< IDatasmithActorElement > &InChild, EDatasmithActorAttachmentRule AttachementRule=EDatasmithActorAttachmentRule::KeepWorldTransform)=0

virtual int32	GetChildrenCount () const =0

virtual TSharedPtr< IDatasmithActorElement >	GetChild (int32 InIndex)=0

virtual const TSharedPtr< IDatasmithActorElement > &	GetChild (int32 InIndex) const =0

virtual void	RemoveChild (const TSharedPtr< IDatasmithActorElement > &InChild)=0

virtual const TSharedPtr< IDatasmithActorElement > &	GetParentActor () const =0

virtual void	SetIsAComponent (bool Value)=0

virtual bool	IsAComponent () const =0

virtual void	SetVisibility (bool bInVisibility)=0

virtual bool	GetVisibility () const =0

virtual void	SetCastShadow (bool bInCastShadow)=0

virtual bool	GetCastShadow () const =0

virtual void	SetMobility (EDatasmithActorMobilityType Mobility)=0

virtual EDatasmithActorMobilityType	GetMobility () const =0

Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0

virtual const TCHAR *	GetName () const =0

virtual void	SetName (const TCHAR *InName)=0

virtual const TCHAR *	GetLabel () const =0

virtual void	SetLabel (const TCHAR *InLabel)=0

virtual FMD5Hash	CalculateElementHash (bool bForce)=0

Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default

virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.

virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const

UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)

virtual const FParameterStore &	GetStore () const =0
	data

virtual FParameterStore &	GetStore ()=0

virtual void	CustomSerialize (class FSnapshotProxy &Ar)

void	CustomSerialize (class FSnapshotProxy &Ar) const

FSceneGraphId	GetNodeId () const
	References.

void	SetNodeId (FSceneGraphId Id)

UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)

UE_API int32	GetReferenceProxyCount () const

UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const

UE_API FName	GetReferenceProxyName (int32 Index) const

UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)

UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Detailed Description

IDatasmithClothElement class: experimental class that describes a cloth asset IDatasmithActorElement used in any geometry instance independently if it could be static or movable. It doesn't define the actual geometry, you'll need IDatasmithMeshElement for this. Notice that several IDatasmithMeshActorElements could use the same geometry.

Constructor & Destructor Documentation

◆ ~IDatasmithMeshActorElement()

virtual IDatasmithMeshActorElement::~IDatasmithMeshActorElement ( )

inlinevirtual

Member Function Documentation

◆ AddMaterialOverride() [1/2]

virtual void IDatasmithMeshActorElement::AddMaterialOverride	(	const TCHAR *	MaterialName,
		int32	Id
	)

pure virtual

Adds a new material override to the Actor Element

Parameters

MaterialName	name of the material, it should be unique
Id	material identifier to be used with mesh sub-material indices. Use -1 to override all material slots.

◆ AddMaterialOverride() [2/2]

virtual void IDatasmithMeshActorElement::AddMaterialOverride ( const TSharedPtr< IDatasmithMaterialIDElement > & Material )

pure virtual

Adds a new material override to the Actor Element

◆ GetMaterialOverride() [1/2]

virtual TSharedPtr< const IDatasmithMaterialIDElement > IDatasmithMeshActorElement::GetMaterialOverride ( int32 i ) const

pure virtual

Get the i-th material override of this actor

◆ GetMaterialOverride() [2/2]

virtual TSharedPtr< IDatasmithMaterialIDElement > IDatasmithMeshActorElement::GetMaterialOverride ( int32 i )

pure virtual

Get the i-th material override of this actor

◆ GetMaterialOverridesCount()

virtual int32 IDatasmithMeshActorElement::GetMaterialOverridesCount ( ) const

pure virtual

Get the amount of material overrides on this mesh

◆ GetStaticMeshPathName()

virtual const TCHAR * IDatasmithMeshActorElement::GetStaticMeshPathName ( ) const

pure virtual

Get the path name of the StaticMesh associated with the actor

◆ RemoveMaterialOverride()

virtual void IDatasmithMeshActorElement::RemoveMaterialOverride ( const TSharedPtr< IDatasmithMaterialIDElement > & Material )

pure virtual

Remove material from the Actor Element

◆ ResetMaterialOverrides()

virtual void IDatasmithMeshActorElement::ResetMaterialOverrides ( )

pure virtual

Remove all material overrides from the Actor Element

◆ SetStaticMeshPathName()

virtual void IDatasmithMeshActorElement::SetStaticMeshPathName ( const TCHAR * InStaticMeshPathName )

pure virtual

Set the path name of the StaticMesh that the actor is using It can be either a package path to refer to an existing mesh or a mesh name to refer to a MeshElement in the DatasmithScene

The documentation for this class was generated from the following file:

Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
