INavMovementInterface Class Reference

#include <NavMovementInterface.h>

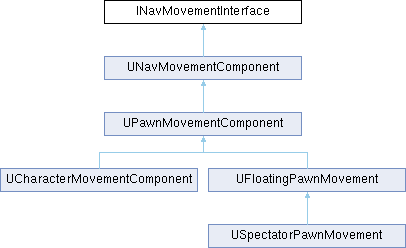

Inheritance diagram for INavMovementInterface:

Public Member Functions
virtual bool	CanStartPathFollowing () const =0
virtual bool	CanStopPathFollowing () const =0
virtual FNavMovementProperties *	GetNavMovementProperties ()=0
virtual const FNavMovementProperties &	GetNavMovementProperties () const =0
virtual FNavAgentProperties &	GetNavAgentPropertiesRef ()=0
virtual const FNavAgentProperties &	GetNavAgentPropertiesRef () const =0
virtual void	SetPathFollowingAgent (IPathFollowingAgentInterface *InPathFollowingAgent)=0
virtual IPathFollowingAgentInterface *	GetPathFollowingAgent ()=0
virtual const IPathFollowingAgentInterface *	GetPathFollowingAgent () const =0
virtual void	RequestDirectMove (const FVector &MoveVelocity, bool bForceMaxSpeed)=0
virtual void	RequestPathMove (const FVector &MoveInput)=0
virtual void	StopMovementImmediately ()=0
virtual void	ResetMoveState ()=0
virtual FVector	GetLocation () const =0
virtual FVector	GetFeetLocation () const =0
virtual FBasedPosition	GetFeetLocationBased () const =0
virtual UObject *	GetOwnerAsObject () const =0
virtual TObjectPtr< UObject >	GetUpdatedObject () const =0
virtual void	GetSimpleCollisionCylinder (float &CollisionRadius, float &CollisionHalfHeight) const =0
virtual FVector	GetSimpleCollisionCylinderExtent () const =0
virtual FVector	GetForwardVector () const =0
virtual void	UpdateNavAgent (const UObject &ObjectToUpdateFrom)=0
virtual FVector	GetVelocityForNavMovement () const =0
virtual float	GetMaxSpeedForNavMovement () const =0
virtual bool	IsCrouching () const =0
virtual bool	IsFalling () const =0
virtual bool	IsMovingOnGround () const =0
virtual bool	IsSwimming () const =0
virtual bool	IsFlying () const =0
virtual UE_API void	StopActiveMovement ()
virtual UE_API void	StopMovementKeepPathing ()
UE_API FVector	GetNavLocation () const
virtual UE_API float	GetPathFollowingBrakingDistance (float MaxSpeed) const
UE_API void	SetFixedBrakingDistance (float DistanceToEndOfPath)
UE_API bool	UseAccelerationForPathFollowing () const
virtual bool	CanEverCrouch () const
virtual bool	CanEverJump () const
virtual bool	CanEverMoveOnGround () const
virtual bool	CanEverSwim () const
virtual bool	CanEverFly () const

Member Function Documentation

CanEverCrouch()

virtual bool INavMovementInterface::CanEverCrouch ( ) const

inlinevirtual

Returns true if agent can crouch

CanEverFly()

virtual bool INavMovementInterface::CanEverFly ( ) const

inlinevirtual

Returns true if agent can fly

CanEverJump()

virtual bool INavMovementInterface::CanEverJump ( ) const

inlinevirtual

Returns true if agent can jump

CanEverMoveOnGround()

virtual bool INavMovementInterface::CanEverMoveOnGround ( ) const

inlinevirtual

Returns true if agent can move along the ground (walk, drive, etc)

CanEverSwim()

virtual bool INavMovementInterface::CanEverSwim ( ) const

inlinevirtual

Returns true if agent can swim

CanStartPathFollowing()

virtual bool INavMovementInterface::CanStartPathFollowing ( ) const

pure virtual

Returns true if path following can start

Implemented in UCharacterMovementComponent, and UNavMovementComponent.

CanStopPathFollowing()

virtual bool INavMovementInterface::CanStopPathFollowing ( ) const

pure virtual

check if current move target can be reached right now if positions are matching (e.g. performing scripted move and can't stop)

Implemented in UCharacterMovementComponent, and UNavMovementComponent.

GetFeetLocation()

virtual FVector INavMovementInterface::GetFeetLocation ( ) const

pure virtual

Returns location of controlled agent's "feet" meaning center of bottom of collision shape

Implemented in UNavMovementComponent.

GetFeetLocationBased()

virtual FBasedPosition INavMovementInterface::GetFeetLocationBased ( ) const

pure virtual

Returns based location of controlled agent

Implemented in UNavMovementComponent.

GetForwardVector()

virtual FVector INavMovementInterface::GetForwardVector ( ) const

pure virtual

Get forward vector of the object being driven by nav movement

Implemented in UNavMovementComponent.

GetLocation()

virtual FVector INavMovementInterface::GetLocation ( ) const

pure virtual

Returns location of controlled agent - meaning center of collision shape

Implemented in UNavMovementComponent.

GetMaxSpeedForNavMovement()

virtual float INavMovementInterface::GetMaxSpeedForNavMovement ( ) const

pure virtual

Get maximum movement speed of the agent

Implemented in UNavMovementComponent.

GetNavAgentPropertiesRef() [1/2]

virtual const FNavAgentProperties & INavMovementInterface::GetNavAgentPropertiesRef ( ) const

pure virtual

Returns the NavAgentProperties(const) used by NavMovementInterface and PathFollowing

Implemented in UNavMovementComponent.

GetNavAgentPropertiesRef() [2/2]

virtual FNavAgentProperties & INavMovementInterface::GetNavAgentPropertiesRef ( )

pure virtual

Returns the NavAgentProperties used by NavMovementInterface and PathFollowing

Implemented in UNavMovementComponent.

GetNavLocation()

FVector INavMovementInterface::GetNavLocation

(

)

const

Returns navigation location of controlled agent

GetNavMovementProperties() [1/2]

virtual const FNavMovementProperties & INavMovementInterface::GetNavMovementProperties ( ) const

pure virtual

Returns the Nav movement properties struct (const) used by NavMovementInterface and PathFollowing

Implemented in UNavMovementComponent.

GetNavMovementProperties() [2/2]

virtual FNavMovementProperties * INavMovementInterface::GetNavMovementProperties ( )

pure virtual

Returns the Nav movement properties struct used by NavMovementInterface and PathFollowing

Implemented in UNavMovementComponent.

GetOwnerAsObject()

virtual UObject * INavMovementInterface::GetOwnerAsObject ( ) const

pure virtual

Get the owner of the object consuming nav movement

Implemented in UNavMovementComponent.

GetPathFollowingAgent() [1/2]

virtual const IPathFollowingAgentInterface * INavMovementInterface::GetPathFollowingAgent ( ) const

pure virtual

Get path following agent this interface uses(const)

Implemented in UNavMovementComponent.

GetPathFollowingAgent() [2/2]

virtual IPathFollowingAgentInterface * INavMovementInterface::GetPathFollowingAgent ( )

pure virtual

Get path following agent this interface uses

Implemented in UNavMovementComponent.

GetPathFollowingBrakingDistance()

float INavMovementInterface::GetPathFollowingBrakingDistance ( float  MaxSpeed ) const

virtual

Returns braking distance for acceleration driven path following

Reimplemented in UCharacterMovementComponent.

GetSimpleCollisionCylinder()

virtual void INavMovementInterface::GetSimpleCollisionCylinder ( float &  CollisionRadius, float &  CollisionHalfHeight  ) const

pure virtual

Get axis-aligned cylinder around this agent, used for simple collision checks in nav movement

Implemented in UNavMovementComponent.

GetSimpleCollisionCylinderExtent()

virtual FVector INavMovementInterface::GetSimpleCollisionCylinderExtent ( ) const

pure virtual

Returns collision extents vector for this object

Implemented in UNavMovementComponent.

GetUpdatedObject()

virtual TObjectPtr< UObject > INavMovementInterface::GetUpdatedObject ( ) const

pure virtual

Get the Object this movement interface is updating

Implemented in UNavMovementComponent.

GetVelocityForNavMovement()

virtual FVector INavMovementInterface::GetVelocityForNavMovement ( ) const

pure virtual

Get the current velocity of the agent for nav movement

Implemented in UNavMovementComponent.

IsCrouching()

virtual bool INavMovementInterface::IsCrouching ( ) const

pure virtual

Returns true if currently crouching

Implemented in UCharacterMovementComponent, and UNavMovementComponent.

IsFalling()

virtual bool INavMovementInterface::IsFalling ( ) const

pure virtual

Returns true if currently falling (not flying, in a non-fluid volume, and not on the ground)

Implemented in UCharacterMovementComponent, and UNavMovementComponent.

IsFlying()

virtual bool INavMovementInterface::IsFlying ( ) const

pure virtual

Returns true if currently flying (moving through a non-fluid volume without resting on the ground)

Implemented in UCharacterMovementComponent, and UNavMovementComponent.

IsMovingOnGround()

virtual bool INavMovementInterface::IsMovingOnGround ( ) const

pure virtual

Returns true if currently moving on the ground (e.g. walking or driving)

Implemented in UCharacterMovementComponent, and UNavMovementComponent.

IsSwimming()

virtual bool INavMovementInterface::IsSwimming ( ) const

pure virtual

Returns true if currently swimming (moving through a fluid volume)

Implemented in UCharacterMovementComponent, and UNavMovementComponent.

RequestDirectMove()

virtual void INavMovementInterface::RequestDirectMove ( const FVector &  MoveVelocity, bool  bForceMaxSpeed  )

pure virtual

path following: request movement through a velocity directly

Implemented in UCharacterMovementComponent, and UNavMovementComponent.

RequestPathMove()

virtual void INavMovementInterface::RequestPathMove ( const FVector &  MoveInput )

pure virtual

path following: request movement through a new move input (normal vector = full strength)

Implemented in UCharacterMovementComponent, UNavMovementComponent, and UPawnMovementComponent.

ResetMoveState()

virtual void INavMovementInterface::ResetMoveState ( )

pure virtual

Resets runtime movement state to default movement capabilities

Implemented in UNavMovementComponent.

SetFixedBrakingDistance()

void INavMovementInterface::SetFixedBrakingDistance

(

float

DistanceToEndOfPath

)

Set fixed braking distance

SetPathFollowingAgent()

virtual void INavMovementInterface::SetPathFollowingAgent ( IPathFollowingAgentInterface *  InPathFollowingAgent )

pure virtual

Set the path following agent this interface uses. Must implement IPathFollowingAgentInterface.

Implemented in UNavMovementComponent.

StopActiveMovement()

void INavMovementInterface::StopActiveMovement ( )

virtual

Stops applying further movement (usually zeros acceleration).

Reimplemented in UCharacterMovementComponent.

StopMovementImmediately()

virtual void INavMovementInterface::StopMovementImmediately ( )

pure virtual

Stops movement by setting velocity to zero - Note: depending on the movement system this may take effect next tick

Implemented in UNavMovementComponent.

StopMovementKeepPathing()

void INavMovementInterface::StopMovementKeepPathing ( )

virtual

Stops movement immediately (reset velocity) but keeps following current path

UpdateNavAgent()

virtual void INavMovementInterface::UpdateNavAgent ( const UObject &  ObjectToUpdateFrom )

pure virtual

Set nav agent properties from an object

Implemented in UNavMovementComponent.

UseAccelerationForPathFollowing()

bool INavMovementInterface::UseAccelerationForPathFollowing

(

)

const

Returns true if acceleration should be used for path following

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Engine/Classes/GameFramework/NavMovementInterface.h
• Engine/Source/Runtime/Engine/Private/NavMovementInterface.cpp
