UDebugDrawComponent Class Reference

#include <DebugDrawComponent.h>

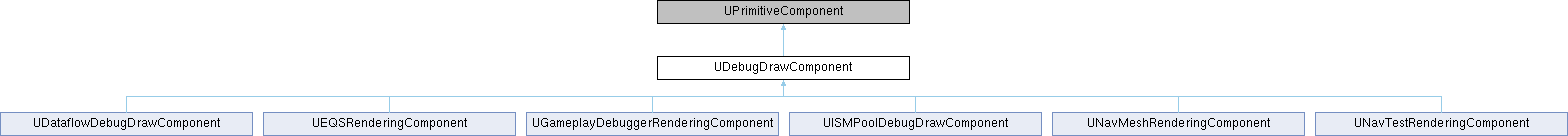

Inheritance diagram for UDebugDrawComponent:

Protected Member Functions
virtual ENGINE_API FPrimitiveSceneProxy *	CreateSceneProxy () override final
virtual FDebugRenderSceneProxy *	CreateDebugSceneProxy ()
virtual ENGINE_API void	CreateRenderState_Concurrent (FRegisterComponentContext *Context) override
virtual ENGINE_API void	DestroyRenderState_Concurrent () override
virtual FDebugDrawDelegateHelper &	GetDebugDrawDelegateHelper ()

Protected Attributes
FDebugDrawDelegateHelper	DebugDrawDelegateHelper

Detailed Description

Helper class to derive from to use debug draw delegate functionalities (i.e. DrawDebugLabels) The class will take care of registering a delegate to the UDebugDrawService and draw all FText3d provided by the scene proxy. This functionality only requires the derived classes to override CreateDebugSceneProxy.

It is also possible to add text from other sources of data from the scene proxy but that requires a few extra steps:

• create a class that inherits from FDebugDrawDelegateHelper

  • override DrawDebugLabels
  • add a method to be able to populate the source data from the scene proxy

  ex: class FMyDelegateHelper : public FDebugDrawDelegateHelper { public: void SetupFromProxy(const FMySceneProxy* InSceneProxy) { <collect data> }; protected: virtual void DrawDebugLabels(UCanvas* Canvas, APlayerController*) override { <draw data> }; private: TArray<FVector> SomeData; };

• Within the component inheriting from UDebugDrawComponent

  • add a property of that new helper type in the component inheriting from UDebugDrawComponent
  • override GetDebugDrawDelegateHelper to return that new member as the new delegate helper to use
  • and then use it in CreateDebugSceneProxy before returning the created proxy.

  ex: class MyDebugDrawComponent : public UDebugDrawComponent { protected: virtual FDebugRenderSceneProxy* CreateDebugSceneProxy() override { FMySceneProxy* Proxy = new FMySceneProxy(this); MyDelegateHelper.SetupFromProxy(Proxy); return Proxy; }

  virtual FDebugDrawDelegateHelper& GetDebugDrawDelegateHelper() override { return MyDelegateHelper; } private: FMyDelegateHelper MyDelegateHelper; }

Member Function Documentation

CreateDebugSceneProxy()

virtual FDebugRenderSceneProxy * UDebugDrawComponent::CreateDebugSceneProxy ( )

inlineprotectedvirtual

Reimplemented in UGameplayDebuggerRenderingComponent.

CreateRenderState_Concurrent()

void UDebugDrawComponent::CreateRenderState_Concurrent ( FRegisterComponentContext *  Context )

overrideprotectedvirtual

CreateSceneProxy()

FPrimitiveSceneProxy * UDebugDrawComponent::CreateSceneProxy ( )

finaloverrideprotectedvirtual

DestroyRenderState_Concurrent()

void UDebugDrawComponent::DestroyRenderState_Concurrent ( )

overrideprotectedvirtual

GetDebugDrawDelegateHelper()

virtual FDebugDrawDelegateHelper & UDebugDrawComponent::GetDebugDrawDelegateHelper ( )

inlineprotectedvirtual

Method that should be overriden when subclass uses a custom delegate helper.

Reimplemented in UGameplayDebuggerRenderingComponent.

Member Data Documentation

DebugDrawDelegateHelper

FDebugDrawDelegateHelper UDebugDrawComponent::DebugDrawDelegateHelper

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Engine/Classes/Debug/DebugDrawComponent.h
• Engine/Source/Runtime/Engine/Private/Debug/DebugDrawComponent.cpp
