UE::Geometry::Spline::TSplineInterface< VALUETYPE > Class Template Referenceabstract

#include <SplineInterfaces.h>

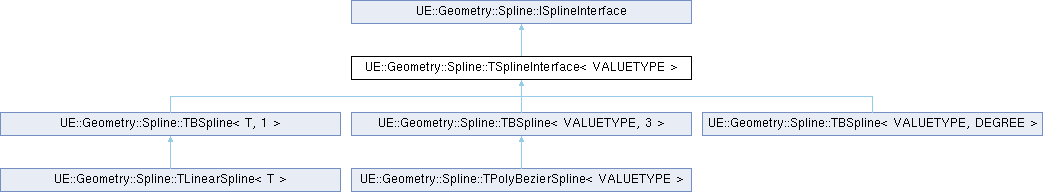

+ Inheritance diagram for UE::Geometry::Spline::TSplineInterface< VALUETYPE >:

Public Types

typedef VALUETYPE ValueType


Public Member Functions

 TSplineInterface ()

virtual ~TSplineInterface () override=default

ValueType Evaluate (float Parameter) const

virtual float FindNearest (const ValueType &Point, float &OutSquaredDistance) const =0

virtual bool Serialize (FArchive &Ar) override

virtual FSplineTypeId::IdType GetTypeId () const override

virtual FString GetValueTypeName () const override

virtual void SetPreInfinityMode (EOutOfBoundsHandlingMode InMode)

virtual void SetPostInfinityMode (EOutOfBoundsHandlingMode InMode)

virtual EOutOfBoundsHandlingMode GetPreInfinityMode () const

virtual EOutOfBoundsHandlingMode GetPostInfinityMode () const

- Public Member Functions inherited from UE::Geometry::Spline::ISplineInterface
virtual ~ISplineInterface ()=default

virtual void Clear ()=0

virtual TUniquePtr< ISplineInterface > Clone () const =0

virtual bool IsEqual (const ISplineInterface *OtherSpline) const =0

virtual FString GetImplementationName () const =0

virtual FInterval1f GetParameterSpace () const =0

virtual void SetClosedLoop (bool bClosed)=0

virtual bool IsClosedLoop () const =0

virtual int32 GetNumberOfSegments () const =0

virtual FInterval1f GetSegmentParameterRange (int32 SegmentIndex) const =0


Static Public Member Functions

static void SetTypeName (const FString &InTypeName)


Protected Member Functions

float HandleOutOfBounds (float Parameter) const

virtual ValueType EvaluateImpl (float Parameter) const =0


Protected Attributes

EOutOfBoundsHandlingMode PreInfinityMode = EOutOfBoundsHandlingMode::Zero

EOutOfBoundsHandlingMode PostInfinityMode = EOutOfBoundsHandlingMode::Zero


Friends

FArchive & operator<< (FArchive &Ar, TSplineInterface &Spline)


Detailed Description

template<typename VALUETYPE>
class UE::Geometry::Spline::TSplineInterface< VALUETYPE >

Typed interface for splines with a specific value type Provides evaluation and other type-specific functionality

Member Typedef Documentation

◆ ValueType

template<typename VALUETYPE >
typedef VALUETYPE UE::Geometry::Spline::TSplineInterface< VALUETYPE >::ValueType

Constructor & Destructor Documentation

◆ TSplineInterface()

template<typename VALUETYPE >
UE::Geometry::Spline::TSplineInterface< VALUETYPE >::TSplineInterface ( )
inline

Default constructor - ensures value type name is set

◆ ~TSplineInterface()

template<typename VALUETYPE >
virtual UE::Geometry::Spline::TSplineInterface< VALUETYPE >::~TSplineInterface ( )
overridevirtualdefault

Member Function Documentation

◆ Evaluate()

template<typename VALUETYPE >
ValueType UE::Geometry::Spline::TSplineInterface< VALUETYPE >::Evaluate ( float  Parameter) const
inline

Evaluates the spline at the given parameter value

Parameters
ParameterThe parameter value to evaluate at
Returns
The spline value at the parameter

◆ EvaluateImpl()

template<typename VALUETYPE >
virtual ValueType UE::Geometry::Spline::TSplineInterface< VALUETYPE >::EvaluateImpl ( float  Parameter) const
protectedpure virtual

Implementation of evaluate with parameter handling

Implemented in UE::Geometry::Spline::TBSpline< VALUETYPE, DEGREE >, UE::Geometry::Spline::TBSpline< T, 1 >, UE::Geometry::Spline::TBSpline< VALUETYPE, 3 >, UE::Geometry::Spline::TSplineWrapper< SPLINETYPE >, UE::Geometry::Spline::TSplineWrapper< TPolyBezierSpline< VALUETYPE > >, and UE::Geometry::Spline::TSplineWrapper< UE::Geometry::Spline::FTangentBezierSpline3d >.

◆ FindNearest()

template<typename VALUETYPE >
virtual float UE::Geometry::Spline::TSplineInterface< VALUETYPE >::FindNearest ( const ValueType &  Point,
float &  OutSquaredDistance
) const
pure virtual

Finds the nearest parameter value to a point

Parameters
PointThe point to find nearest to
OutSquaredDistanceThe squared distance to the nearest point
Returns
The parameter value at the nearest point

Implemented in UE::Geometry::Spline::TBSpline< VALUETYPE, DEGREE >, UE::Geometry::Spline::TBSpline< VALUETYPE, 3 >, and UE::Geometry::Spline::TPolyBezierSpline< VALUETYPE >.

◆ GetPostInfinityMode()

template<typename VALUETYPE >
virtual EOutOfBoundsHandlingMode UE::Geometry::Spline::TSplineInterface< VALUETYPE >::GetPostInfinityMode ( ) const
inlinevirtual

Get the current Post-Infinity mode

Reimplemented in UE::Geometry::Spline::TSplineWrapper< SPLINETYPE >, UE::Geometry::Spline::TSplineWrapper< TPolyBezierSpline< VALUETYPE > >, and UE::Geometry::Spline::TSplineWrapper< UE::Geometry::Spline::FTangentBezierSpline3d >.

◆ GetPreInfinityMode()

template<typename VALUETYPE >
virtual EOutOfBoundsHandlingMode UE::Geometry::Spline::TSplineInterface< VALUETYPE >::GetPreInfinityMode ( ) const
inlinevirtual

Get the current Pre-Infinity mode

Reimplemented in UE::Geometry::Spline::TSplineWrapper< SPLINETYPE >, UE::Geometry::Spline::TSplineWrapper< TPolyBezierSpline< VALUETYPE > >, and UE::Geometry::Spline::TSplineWrapper< UE::Geometry::Spline::FTangentBezierSpline3d >.

◆ GetTypeId()

template<typename VALUETYPE >
virtual FSplineTypeId::IdType UE::Geometry::Spline::TSplineInterface< VALUETYPE >::GetTypeId ( ) const
inlineoverridevirtual

Default implementation of type ID (derived classes should override)

Implements UE::Geometry::Spline::ISplineInterface.

Reimplemented in UE::Geometry::Spline::TMultiSpline< SPLINETYPE >, and UE::Geometry::Spline::TMultiSpline< UE::Geometry::Spline::FTangentBezierSpline3d >.

◆ GetValueTypeName()

template<typename VALUETYPE >
virtual FString UE::Geometry::Spline::TSplineInterface< VALUETYPE >::GetValueTypeName ( ) const
inlineoverridevirtual

Implements UE::Geometry::Spline::ISplineInterface.

Reimplemented in UE::Geometry::Spline::TSplineWrapper< SPLINETYPE >, UE::Geometry::Spline::TSplineWrapper< TPolyBezierSpline< VALUETYPE > >, and UE::Geometry::Spline::TSplineWrapper< UE::Geometry::Spline::FTangentBezierSpline3d >.

◆ HandleOutOfBounds()

template<typename VALUETYPE >
float UE::Geometry::Spline::TSplineInterface< VALUETYPE >::HandleOutOfBounds ( float  Parameter) const
inlineprotected

Apply out-of-bounds handling to parameter

◆ Serialize()

template<typename VALUETYPE >
virtual bool UE::Geometry::Spline::TSplineInterface< VALUETYPE >::Serialize ( FArchive &  Ar)
inlineoverridevirtual

Serializes the spline

Reimplemented from UE::Geometry::Spline::ISplineInterface.

Reimplemented in FNewSpline, UE::Geometry::Spline::TBSpline< VALUETYPE, DEGREE >, UE::Geometry::Spline::TBSpline< T, 1 >, UE::Geometry::Spline::TBSpline< VALUETYPE, 3 >, UE::Geometry::Spline::TMultiSpline< SPLINETYPE >, UE::Geometry::Spline::TMultiSpline< UE::Geometry::Spline::FTangentBezierSpline3d >, UE::Geometry::Spline::TSplineWrapper< SPLINETYPE >, UE::Geometry::Spline::TSplineWrapper< TPolyBezierSpline< VALUETYPE > >, UE::Geometry::Spline::TSplineWrapper< UE::Geometry::Spline::FTangentBezierSpline3d >, and UE::Geometry::Spline::TTangentBezierSpline< VALUETYPE >.

◆ SetPostInfinityMode()

template<typename VALUETYPE >
virtual void UE::Geometry::Spline::TSplineInterface< VALUETYPE >::SetPostInfinityMode ( EOutOfBoundsHandlingMode  InMode)
inlinevirtual

Set Post-Infinity handling mode when out of bounds

Reimplemented in UE::Geometry::Spline::TSplineWrapper< SPLINETYPE >, UE::Geometry::Spline::TSplineWrapper< TPolyBezierSpline< VALUETYPE > >, and UE::Geometry::Spline::TSplineWrapper< UE::Geometry::Spline::FTangentBezierSpline3d >.

◆ SetPreInfinityMode()

template<typename VALUETYPE >
virtual void UE::Geometry::Spline::TSplineInterface< VALUETYPE >::SetPreInfinityMode ( EOutOfBoundsHandlingMode  InMode)
inlinevirtual

Set Pre-Infinity handling mode when out of bounds

Reimplemented in UE::Geometry::Spline::TSplineWrapper< SPLINETYPE >, UE::Geometry::Spline::TSplineWrapper< TPolyBezierSpline< VALUETYPE > >, and UE::Geometry::Spline::TSplineWrapper< UE::Geometry::Spline::FTangentBezierSpline3d >.

◆ SetTypeName()

template<typename VALUETYPE >
static void UE::Geometry::Spline::TSplineInterface< VALUETYPE >::SetTypeName ( const FString &  InTypeName)
inlinestatic

Set and get the type name for the value type

Friends And Related Symbol Documentation

◆ operator<<

template<typename VALUETYPE >
FArchive & operator<< ( FArchive &  Ar,
TSplineInterface< VALUETYPE > &  Spline
)
friend

Member Data Documentation

◆ PostInfinityMode

template<typename VALUETYPE >
EOutOfBoundsHandlingMode UE::Geometry::Spline::TSplineInterface< VALUETYPE >::PostInfinityMode = EOutOfBoundsHandlingMode::Zero
protected

◆ PreInfinityMode

template<typename VALUETYPE >
EOutOfBoundsHandlingMode UE::Geometry::Spline::TSplineInterface< VALUETYPE >::PreInfinityMode = EOutOfBoundsHandlingMode::Zero
protected

How to handle parameters outside the mapped range
