FTickFunction Struct Reference

#include <EngineBaseTypes.h>

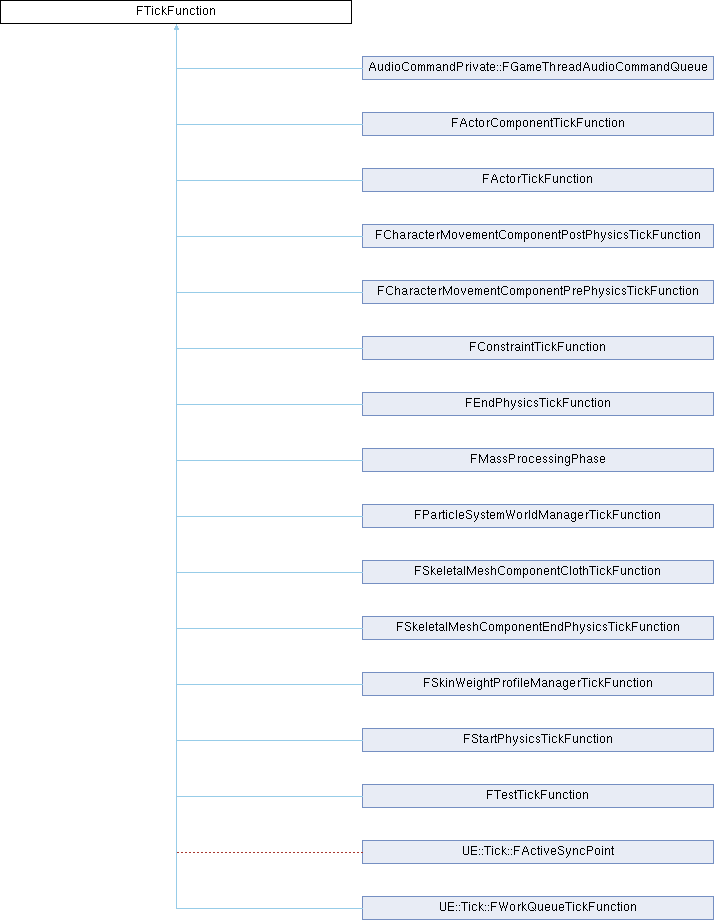

Inheritance diagram for FTickFunction:

Public Member Functions
	UPROPERTY (EditDefaultsOnly, Category="Tick", meta=(DisplayName="Tick Interval (secs)")) float TickInterval
ENGINE_API	FTickFunction ()
virtual ENGINE_API	~FTickFunction ()
ENGINE_API void	RegisterTickFunction (class ULevel *Level)
ENGINE_API void	UnRegisterTickFunction ()
bool	IsTickFunctionRegistered () const
ENGINE_API void	SetTickFunctionEnable (bool bInEnabled)
bool	IsTickFunctionEnabled () const
ENGINE_API void	UpdateTickIntervalAndCoolDown (float NewTickInterval)
ENGINE_API bool	IsCompletionHandleValid () const
ENGINE_API FGraphEventRef	GetCompletionHandle () const
virtual ENGINE_API bool	CanDispatchManually () const
virtual ENGINE_API bool	DispatchManually ()
TEnumAsByte< enum ETickingGroup >	GetActualTickGroup () const
TEnumAsByte< enum ETickingGroup >	GetActualEndTickGroup () const
ENGINE_API void	AddPrerequisite (UObject *TargetObject, struct FTickFunction &TargetTickFunction)
ENGINE_API void	RemovePrerequisite (UObject *TargetObject, struct FTickFunction &TargetTickFunction)
ENGINE_API void	SetPriorityIncludingPrerequisites (bool bInHighPriority)
TArray< struct FTickPrerequisite > &	GetPrerequisites ()
const TArray< struct FTickPrerequisite > &	GetPrerequisites () const
float	GetLastTickGameTime () const
ENGINE_API void	ExecuteNestedTick (float DeltaTime, ELevelTick TickType, ENamedThreads::Type CurrentThread, const FGraphEventRef &MyCompletionGraphEvent)
ENGINE_API float	CalculateDeltaTime (float DeltaTime, const class UWorld *TickingWorld)
ENGINE_API void	LogTickFunction (ENamedThreads::Type CurrentThread, bool bLogPrerequisites, int32 Indent=0)
ENGINE_API void	ShowPrerequistes (int32 Indent=1)
ENGINE_API void	ClearTaskInformation ()
virtual void	ExecuteTick (float DeltaTime, ELevelTick TickType, ENamedThreads::Type CurrentThread, const FGraphEventRef &MyCompletionGraphEvent) PURE_VIRTUAL(
virtual void virtual FString	DiagnosticMessage () PURE_VIRTUAL(
virtual void virtual FString return	TEXT ("DiagnosticMessage() not implemented")
virtual FName	DiagnosticContext (bool bDetailed)
virtual void	ForEachNestedTick (TFunctionRef< void(FTickFunction &)> InFunc) const
FTickFunction &	operator= (const FTickFunction &)=delete

Public Attributes
TEnumAsByte< enum ETickingGroup >	TickGroup
TEnumAsByte< enum ETickingGroup >	EndTickGroup
uint8	bTickEvenWhenPaused:1
uint8	bCanEverTick:1
uint8	bStartWithTickEnabled:1
uint8	bAllowTickOnDedicatedServer:1
uint8	bAllowTickBatching:1
uint8	bHighPriority:1
uint8	bRunOnAnyThread:1
uint8	bRunTransactionally:1
uint8	bDispatchManually: 1

Friends
class	FTickTaskSequencer
class	FTickTaskManager
class	FTickTaskLevel

Detailed Description

Abstract Base class for all tick functions.

Constructor & Destructor Documentation

FTickFunction()

FTickFunction::FTickFunction

(

)

Default constructor, intitalizes to reasonable defaults

~FTickFunction()

FTickFunction::~FTickFunction ( )

virtual

Destructor, unregisters the tick function

Member Function Documentation

AddPrerequisite()

void FTickFunction::AddPrerequisite	(	UObject *	TargetObject,
		struct FTickFunction &	TargetTickFunction
	)

Adds a tick function to the list of prerequisites...in other words, adds the requirement that TargetTickFunction is called before this tick function is

Parameters

TargetObject	- UObject containing this tick function. Only used to verify that the other pointer is still usable
TargetTickFunction	- Actual tick function to use as a prerequisite

CalculateDeltaTime()

float FTickFunction::CalculateDeltaTime	(	float	DeltaTime,
		const class UWorld *	TickingWorld
	)

Returns the delta time to use when ticking this function given the delta time and world. This also updates internal tracking data

CanDispatchManually()

bool FTickFunction::CanDispatchManually ( ) const

virtual

Returns true if bDispatchManually is set and this has a task that can be triggered right now.

ClearTaskInformation()

void FTickFunction::ClearTaskInformation

(

)

Clear any current task information such as the completion handle, called after execution

DiagnosticContext()

virtual FName FTickFunction::DiagnosticContext ( bool  bDetailed )

inlinevirtual

Function to give a 'context' for this tick, used for grouped active tick reporting

Reimplemented in FSkeletalMeshComponentEndPhysicsTickFunction, FSkeletalMeshComponentClothTickFunction, FActorTickFunction, FActorComponentTickFunction, FStartPhysicsTickFunction, FEndPhysicsTickFunction, FCharacterMovementComponentPostPhysicsTickFunction, FCharacterMovementComponentPrePhysicsTickFunction, FParticleSystemWorldManagerTickFunction, FTestTickFunction, FSkinWeightProfileManagerTickFunction, UE::Tick::FWorkQueueTickFunction, and FMassProcessingPhase.

DiagnosticMessage()

virtual void virtual FString FTickFunction::DiagnosticMessage ( )

virtual

Abstract function to describe this tick. Used to print messages about illegal cycles in the dependency graph

Reimplemented in FSkeletalMeshComponentEndPhysicsTickFunction, FSkeletalMeshComponentClothTickFunction, FActorTickFunction, FActorComponentTickFunction, FStartPhysicsTickFunction, FEndPhysicsTickFunction, FCharacterMovementComponentPostPhysicsTickFunction, FCharacterMovementComponentPrePhysicsTickFunction, FParticleSystemWorldManagerTickFunction, FTestTickFunction, FSkinWeightProfileManagerTickFunction, UE::Tick::FWorkQueueTickFunction, FConstraintTickFunction, and FMassProcessingPhase.

DispatchManually()

bool FTickFunction::DispatchManually ( )

virtual

If bDispatchManually is set, attempt to start the task based on some event during a frame. It will return true if it worked, which may have executed immediately or may be waiting for a prerequisite.

ExecuteNestedTick()

void FTickFunction::ExecuteNestedTick	(	float	DeltaTime,
		ELevelTick	TickType,
		ENamedThreads::Type	CurrentThread,
		const FGraphEventRef &	MyCompletionGraphEvent
	)

Correctly call ExecuteTick on a nested function, and will set the completion event properly for the duration of the tick function

Parameters

DeltaTime	- frame time to advance, in seconds
TickType	- kind of tick for this frame
CurrentThread	- thread we are executing on, useful to pass along as new tasks are created
MyCompletionGraphEvent	- completion event for this task. Useful for holding the completetion of this task until certain child tasks are complete.

ExecuteTick()

virtual void FTickFunction::ExecuteTick ( float  DeltaTime, ELevelTick  TickType, ENamedThreads::Type  CurrentThread, const FGraphEventRef &  MyCompletionGraphEvent  )

virtual

Abstract function actually execute the tick. Batched tick managers should use ExecuteNestedTick

Parameters

DeltaTime	- frame time to advance, in seconds
TickType	- kind of tick for this frame
CurrentThread	- thread we are executing on, useful to pass along as new tasks are created
MyCompletionGraphEvent	- completion event for this task. Useful for holding the completetion of this task until certain child tasks are complete.

Reimplemented in FActorTickFunction, FActorComponentTickFunction, FParticleSystemWorldManagerTickFunction, FTestTickFunction, FSkinWeightProfileManagerTickFunction, UE::Tick::FWorkQueueTickFunction, FConstraintTickFunction, FMassProcessingPhase, FSkeletalMeshComponentEndPhysicsTickFunction, FSkeletalMeshComponentClothTickFunction, FStartPhysicsTickFunction, FEndPhysicsTickFunction, FCharacterMovementComponentPostPhysicsTickFunction, and FCharacterMovementComponentPrePhysicsTickFunction.

ForEachNestedTick()

virtual void FTickFunction::ForEachNestedTick ( TFunctionRef< void(FTickFunction &)>  InFunc ) const

inlinevirtual

To properly expose nested/batched tick functions to the logging and debugging systems of the tick manager, override this to execute InFunc for every nested tick function that would be executed as part of this tick.

GetActualEndTickGroup()

TEnumAsByte< enum ETickingGroup > FTickFunction::GetActualEndTickGroup ( ) const

inline

Gets the action tick group that this function will be required to end in. Only valid after StartFrame has been called through the end of the frame.

GetActualTickGroup()

TEnumAsByte< enum ETickingGroup > FTickFunction::GetActualTickGroup ( ) const

inline

Gets the action tick group that this function will be elligible to start in. Only valid after StartFrame has been called through the end of the frame.

GetCompletionHandle()

FGraphEventRef FTickFunction::GetCompletionHandle

(

)

const

Gets the current completion handle of this tick function, so it can be delayed until a later point when some additional tasks have been completed. Only valid after StartFrame has been called and then only until the TickFunction finishes execution. This returns a reference so IsCompletionHandleValid must be called first.

GetLastTickGameTime()

float FTickFunction::GetLastTickGameTime ( ) const

inline

For actively registered tick functions with an interval, return the last time it ticked. For unregistered or non-interval functions it will return -1;

GetPrerequisites() [1/2]

TArray< struct FTickPrerequisite > & FTickFunction::GetPrerequisites ( )

inline

Returns

a reference to prerequisites for this tick function.

GetPrerequisites() [2/2]

const TArray< struct FTickPrerequisite > & FTickFunction::GetPrerequisites ( ) const

inline

Returns

a reference to prerequisites for this tick function (const).

IsCompletionHandleValid()

bool FTickFunction::IsCompletionHandleValid

(

)

const

Returns true if it is valid to access this tick function's completion handle

IsTickFunctionEnabled()

bool FTickFunction::IsTickFunctionEnabled ( ) const

inline

Returns whether the tick function is currently enabled

IsTickFunctionRegistered()

bool FTickFunction::IsTickFunctionRegistered ( ) const

inline

See if the tick function is currently registered

LogTickFunction()

void FTickFunction::LogTickFunction	(	ENamedThreads::Type	CurrentThread,
		bool	bLogPrerequisites,
		int32	Indent = 0
	)

Logs function info based on flags

operator=()

FTickFunction & FTickFunction::operator= ( const FTickFunction &  )

delete

RegisterTickFunction()

void FTickFunction::RegisterTickFunction

(

class ULevel *

Level

)

Adds the tick function to the primary list of tick functions.

Parameters

Level

- level to place this tick function in

RemovePrerequisite()

void FTickFunction::RemovePrerequisite	(	UObject *	TargetObject,
		struct FTickFunction &	TargetTickFunction
	)

Removes a prerequisite that was previously added.

Parameters

TargetObject	- UObject containing this tick function. Only used to verify that the other pointer is still usable
TargetTickFunction	- Actual tick function to use as a prerequisite

SetPriorityIncludingPrerequisites()

void FTickFunction::SetPriorityIncludingPrerequisites

(

bool

bInHighPriority

)

Sets this function to hipri and all prerequisites recursively

Parameters

bInHighPriority

- priority to set

SetTickFunctionEnable()

void FTickFunction::SetTickFunctionEnable

(

bool

bInEnabled

)

Enables or disables this tick function.

ShowPrerequistes()

void FTickFunction::ShowPrerequistes

(

int32

Indent = 1

)

Logs the prerequisites

TEXT()

virtual void virtual FString return FTickFunction::TEXT

(

"DiagnosticMessage() not implemented"

)

UnRegisterTickFunction()

void FTickFunction::UnRegisterTickFunction

(

)

Removes the tick function from the primary list of tick functions.

UpdateTickIntervalAndCoolDown()

void FTickFunction::UpdateTickIntervalAndCoolDown

(

float

NewTickInterval

)

Update tick interval in the system and overwrite the current cooldown if any.

UPROPERTY()

FTickFunction::UPROPERTY	(	EditDefaultsOnly	,
		Category	= "Tick",
		meta	= (DisplayName="Tick Interval (secs)")
	)

The frequency in seconds at which this tick function will be executed. If less than or equal to 0 then it will tick every frame

Friends And Related Symbol Documentation

FTickTaskLevel

friend class FTickTaskLevel

friend

FTickTaskManager

friend class FTickTaskManager

friend

FTickTaskSequencer

friend class FTickTaskSequencer

friend

Member Data Documentation

bAllowTickBatching

uint8 FTickFunction::bAllowTickBatching

True if we allow this tick to be combined with other ticks for improved performance

bAllowTickOnDedicatedServer

uint8 FTickFunction::bAllowTickOnDedicatedServer

If we allow this tick to run on a dedicated server

bCanEverTick

uint8 FTickFunction::bCanEverTick

If false, this tick function will never be registered and will never tick. Only settable in defaults.

bDispatchManually

uint8 FTickFunction::bDispatchManually

True if this is an event that will not execute until it has been manually dispatched (and prerequisites complete) instead of being dispatched at start of the tick group

bHighPriority

uint8 FTickFunction::bHighPriority

Run this tick first within the tick group, presumably to start async tasks that must be completed with this tick group, hiding the latency.

bRunOnAnyThread

uint8 FTickFunction::bRunOnAnyThread

If false, this tick will run on the game thread, otherwise it will run on any thread in parallel with the game thread and in parallel with other "async ticks"

bRunTransactionally

uint8 FTickFunction::bRunTransactionally

(experimental) if true, the tick function will be run transactionally

bStartWithTickEnabled

uint8 FTickFunction::bStartWithTickEnabled

If true, this tick function will start enabled, but can be disabled later on.

bTickEvenWhenPaused

uint8 FTickFunction::bTickEvenWhenPaused

Bool indicating that this function should execute even if the game is paused. Pause ticks are very limited in capabilities.

EndTickGroup

TEnumAsByte<enum ETickingGroup> FTickFunction::EndTickGroup

Defines the tick group that this tick function must finish in. These groups determine the relative order of when objects tick during a frame update.

See also

ETickingGroup

TickGroup

TEnumAsByte<enum ETickingGroup> FTickFunction::TickGroup

Defines the minimum tick group for this tick function. These groups determine the relative order of when objects tick during a frame update. Given prerequisites, the tick may be delayed.

See also

ETickingGroup

FTickFunction::AddPrerequisite()

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/Engine/Classes/Engine/EngineBaseTypes.h
• Engine/Source/Runtime/Engine/Private/TickTaskManager.cpp
