IStreamingManager Struct Reference

#include <ContentStreaming.h>

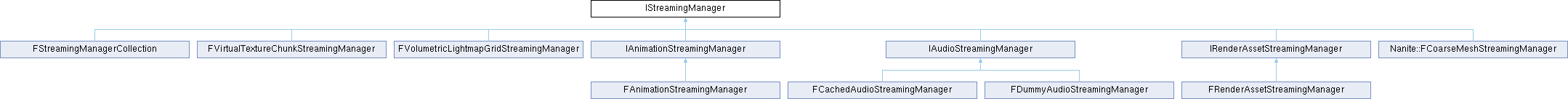

Inheritance diagram for IStreamingManager:

Classes
struct	FSecondaryLocation

Public Member Functions
	IStreamingManager ()
virtual	~IStreamingManager ()
virtual ENGINE_API void	Tick (float DeltaTime, bool bProcessEverything=false)
virtual void	UpdateResourceStreaming (float DeltaTime, bool bProcessEverything=false)=0
virtual ENGINE_API int32	StreamAllResources (float TimeLimit=0.0f)
virtual int32	BlockTillAllRequestsFinished (float TimeLimit=0.0f, bool bLogResults=false)=0
virtual void	CancelForcedResources ()=0
virtual void	NotifyLevelChange ()=0
void	RemoveStreamingViews (ERemoveStreamingViews RemovalType)
ENGINE_API void	AddViewInformation (const FVector &ViewOrigin, float ScreenSize, float FOVScreenSize, float BoostFactor=1.0f, bool bOverrideLocation=false, float Duration=0.0f, TWeakObjectPtr< AActor > InActorToBoost=NULL, TWeakObjectPtr< UWorld > InWorld=NULL)
ENGINE_API void	AddViewLocation (const FVector &Location, float BoostFactor=1.0f, bool bOverrideLocation=false, float Duration=0.0f)
virtual void	SetDisregardWorldResourcesForFrames (int32 NumFrames)=0
virtual bool	Exec (UWorld *InWorld, const TCHAR *Cmd, FOutputDevice &Ar)
virtual void	AddLevel (class ULevel *Level)=0
virtual void	RemoveLevel (class ULevel *Level)=0
virtual void	NotifyLevelOffset (class ULevel *Level, const FVector &Offset)=0
virtual void	NotifyActorDestroyed (AActor *Actor)
virtual void	NotifyPrimitiveDetached (const UPrimitiveComponent *Primitive)
virtual void	NotifyPrimitiveUpdated (const UPrimitiveComponent *Primitive)
virtual void	NotifyPrimitiveUpdated_Concurrent (const UPrimitiveComponent *Primitive)
int32	GetNumViews () const
const FStreamingViewInfo &	GetViewInformation (int32 ViewIndex) const
virtual int32	GetNumWantingResources () const
virtual int32	GetNumWantingResourcesID () const
virtual void	PropagateLightingScenarioChange ()

Static Public Member Functions
static ENGINE_API struct FStreamingManagerCollection &	Get ()
static ENGINE_API struct FStreamingManagerCollection *	Get_Concurrent ()
static ENGINE_API void	Shutdown ()
static ENGINE_API bool	HasShutdown ()

Protected Member Functions
void	SetupViewInfos (float DeltaTime)

Static Protected Member Functions
static void	AddViewInfoToArray (TArray< FStreamingViewInfo > &ViewInfos, const FVector &ViewOrigin, float ScreenSize, float FOVScreenSize, float BoostFactor, bool bOverrideLocation, float Duration, TWeakObjectPtr< AActor > InActorToBoost, TWeakObjectPtr< UWorld > InWorld)
static void	RemoveViewInfoFromArray (TArray< FStreamingViewInfo > &ViewInfos, const FVector &ViewOrigin)

Protected Attributes
int32	NumWantingResources
int32	NumWantingResourcesCounter

Static Protected Attributes
static ENGINE_API TArray< FStreamingViewInfo >	CurrentViewInfos
static TArray< FStreamingViewInfo >	PendingViewInfos
static TArray< FStreamingViewInfo >	LastingViewInfos
static TArray< FSecondaryLocation >	SecondaryLocations
static bool	bPendingRemoveViews = false

Detailed Description

Pure virtual base class of a streaming manager.

Constructor & Destructor Documentation

IStreamingManager()

IStreamingManager::IStreamingManager ( )

inline

~IStreamingManager()

virtual IStreamingManager::~IStreamingManager ( )

inlinevirtual

Virtual destructor

Member Function Documentation

AddLevel()

virtual void IStreamingManager::AddLevel ( class ULevel *  Level )

pure virtual

Adds a ULevel that has already prepared StreamingData to the streaming manager.

Implemented in FDummyAudioStreamingManager, FVolumetricLightmapGridStreamingManager, FRenderAssetStreamingManager, FVirtualTextureChunkStreamingManager, FAnimationStreamingManager, FCachedAudioStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

AddViewInformation()

void IStreamingManager::AddViewInformation	(	const FVector &	ViewOrigin,
		float	ScreenSize,
		float	FOVScreenSize,
		float	BoostFactor = 1.0f,
		bool	bOverrideLocation = false,
		float	Duration = 0.0f,
		TWeakObjectPtr< AActor >	InActorToBoost = NULL,
		TWeakObjectPtr< UWorld >	InWorld = NULL
	)

Adds the passed in view information to the static array.

Parameters

ScreenSize	Screen size
FOVScreenSize	Screen size taking FOV into account
BoostFactor	A factor that affects all streaming distances for this location. 1.0f is default. Higher means higher-resolution textures and vice versa.
bOverrideLocation	Whether this is an override location, which forces the streaming system to ignore all other regular locations
Duration	How long the streaming system should keep checking this location, in seconds. 0 means just for the next Tick.
InActorToBoost	Optional pointer to an actor who's textures should have their streaming priority boosted
InWorld	The world this view is located in

Adds the passed in view information to the static array.

Parameters

ViewOrigin	View origin
ScreenSize	Screen size
FOVScreenSize	Screen size taking FOV into account
BoostFactor	A factor that affects all streaming distances for this location. 1.0f is default. Higher means higher-resolution textures and vice versa.
bOverrideLocation	Whether this is an override location, which forces the streaming system to ignore all other regular locations
Duration	How long the streaming system should keep checking this location (in seconds). 0 means just for the next Tick.
InActorToBoost	Optional pointer to an actor who's textures should have their streaming priority boosted

AddViewInfoToArray()

void IStreamingManager::AddViewInfoToArray ( TArray< FStreamingViewInfo > &  ViewInfos, const FVector &  ViewOrigin, float  ScreenSize, float  FOVScreenSize, float  BoostFactor, bool  bOverrideLocation, float  Duration, TWeakObjectPtr< AActor >  InActorToBoost, TWeakObjectPtr< UWorld >  InWorld  )

staticprotected

Adds the passed in view information to the static array.

Parameters

ViewInfos	Array to add the view to
ViewOrigin	View origin
ScreenSize	Screen size
FOVScreenSize	Screen size taking FOV into account
BoostFactor	A factor that affects all streaming distances for this location. 1.0f is default. Higher means higher-resolution textures and vice versa.
bOverrideLocation	Whether this is an override location, which forces the streaming system to ignore all other regular locations
Duration	How long the streaming system should keep checking this location (in seconds). 0 means just for the next Tick.
InActorToBoost	Optional pointer to an actor who's textures should have their streaming priority boosted
InWorld	The world this view is located in

Adds the passed in view information to the static array.

Parameters

ViewInfos	[in/out] Array to add the view to
ViewOrigin	View origin
ScreenSize	Screen size
FOVScreenSize	Screen size taking FOV into account
BoostFactor	A factor that affects all streaming distances for this location. 1.0f is default. Higher means higher-resolution textures and vice versa.
bOverrideLocation	Whether this is an override location, which forces the streaming system to ignore all other regular locations
Duration	How long the streaming system should keep checking this location (in seconds). 0 means just for the next Tick.
InActorToBoost	Optional pointer to an actor who's textures should have their streaming priority boosted

AddViewLocation()

void IStreamingManager::AddViewLocation	(	const FVector &	Location,
		float	BoostFactor = 1.0f,
		bool	bOverrideLocation = false,
		float	Duration = 0.0f
	)

Queue up view locations to the streaming system. These locations will be added properly at the next call to AddViewInformation, re-using the screensize and FOV settings.

Parameters

Location	World-space view origin
BoostFactor	A factor that affects all streaming distances for this location. 1.0f is default. Higher means higher-resolution textures and vice versa.
bOverrideLocation	Whether this is an override location, which forces the streaming system to ignore all other locations
Duration	How long the streaming system should keep checking this location, in seconds. 0 means just for the next Tick.

Queue up view locations to the streaming system. These locations will be added properly at the next call to AddViewInformation, re-using the screensize and FOV settings.

Parameters

Location	World-space view origin
BoostFactor	A factor that affects all streaming distances for this location. 1.0f is default. Higher means higher-resolution textures and vice versa.
bOverrideLocation	Whether this is an override location, which forces the streaming system to ignore all other locations
Duration	How long the streaming system should keep checking this location (in seconds). 0 means just for the next Tick.

BlockTillAllRequestsFinished()

virtual int32 IStreamingManager::BlockTillAllRequestsFinished ( float  TimeLimit = 0.0f, bool  bLogResults = false  )

pure virtual

Blocks till all pending requests are fulfilled.

Parameters

TimeLimit	Optional time limit for processing, in seconds. Specifying 0 means infinite time limit.
bLogResults	Whether to dump the results to the log.

Returns

Number of streaming requests still in flight, if the time limit was reached before they were finished.

Implemented in FVolumetricLightmapGridStreamingManager, FRenderAssetStreamingManager, FVirtualTextureChunkStreamingManager, FAnimationStreamingManager, FCachedAudioStreamingManager, FDummyAudioStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

CancelForcedResources()

virtual void IStreamingManager::CancelForcedResources ( )

pure virtual

Cancels the timed Forced resources (i.e used the Kismet action "Stream In Textures").

Implemented in FVolumetricLightmapGridStreamingManager, FRenderAssetStreamingManager, FVirtualTextureChunkStreamingManager, FAnimationStreamingManager, FCachedAudioStreamingManager, FDummyAudioStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

Exec()

virtual bool IStreamingManager::Exec ( UWorld *  InWorld, const TCHAR *  Cmd, FOutputDevice &  Ar  )

inlinevirtual

Allows the streaming manager to process exec commands.

Parameters

InWorld	World context
Cmd	Exec command
Ar	Output device for feedback

Returns

true if the command was handled

Reimplemented in FRenderAssetStreamingManager, and FStreamingManagerCollection.

Get()

FStreamingManagerCollection & IStreamingManager::Get ( )

static

Get_Concurrent()

FStreamingManagerCollection * IStreamingManager::Get_Concurrent ( )

static

Same as get but could fail if state not allocated or shutdown.

GetNumViews()

int32 IStreamingManager::GetNumViews ( ) const

inline

Returns the number of view infos.

GetNumWantingResources()

virtual int32 IStreamingManager::GetNumWantingResources ( ) const

inlinevirtual

Returns the number of resources that currently wants to be streamed in.

Reimplemented in FVolumetricLightmapGridStreamingManager, and FStreamingManagerCollection.

GetNumWantingResourcesID()

virtual int32 IStreamingManager::GetNumWantingResourcesID ( ) const

inlinevirtual

Returns the current ID for GetNumWantingResources(). The ID is incremented every time NumWantingResources is updated by the streaming system (every few frames). Can be used to verify that any changes have been fully examined, by comparing current ID with what it was when the changes were made.

Reimplemented in FStreamingManagerCollection.

GetViewInformation()

const FStreamingViewInfo & IStreamingManager::GetViewInformation ( int32  ViewIndex ) const

inline

Returns the view info by the specified index.

HasShutdown()

bool IStreamingManager::HasShutdown ( )

static

Checks if the streaming manager has already been shut down.

NotifyActorDestroyed()

virtual void IStreamingManager::NotifyActorDestroyed ( AActor *  Actor )

inlinevirtual

Called when a spawned actor is destroyed.

Reimplemented in FRenderAssetStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

NotifyLevelChange()

virtual void IStreamingManager::NotifyLevelChange ( )

pure virtual

Notifies manager of "level" change.

Implemented in FVolumetricLightmapGridStreamingManager, FRenderAssetStreamingManager, FVirtualTextureChunkStreamingManager, FAnimationStreamingManager, FCachedAudioStreamingManager, FDummyAudioStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

NotifyLevelOffset()

virtual void IStreamingManager::NotifyLevelOffset ( class ULevel *  Level, const FVector &  Offset  )

pure virtual

Notifies manager that level primitives were shifted

Implemented in FDummyAudioStreamingManager, FVolumetricLightmapGridStreamingManager, FVirtualTextureChunkStreamingManager, FAnimationStreamingManager, FCachedAudioStreamingManager, FStreamingManagerCollection, Nanite::FCoarseMeshStreamingManager, and FRenderAssetStreamingManager.

NotifyPrimitiveDetached()

virtual void IStreamingManager::NotifyPrimitiveDetached ( const UPrimitiveComponent *  Primitive )

inlinevirtual

Called when a primitive is detached from an actor or another component.

Reimplemented in FRenderAssetStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

NotifyPrimitiveUpdated()

virtual void IStreamingManager::NotifyPrimitiveUpdated ( const UPrimitiveComponent *  Primitive )

inlinevirtual

Called when a primitive streaming data needs to be updated.

Reimplemented in FRenderAssetStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

NotifyPrimitiveUpdated_Concurrent()

virtual void IStreamingManager::NotifyPrimitiveUpdated_Concurrent ( const UPrimitiveComponent *  Primitive )

inlinevirtual

Called when a primitive streaming data needs to be updated in the last stage of the frame.

Reimplemented in FRenderAssetStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

PropagateLightingScenarioChange()

virtual void IStreamingManager::PropagateLightingScenarioChange ( )

inlinevirtual

Propagates a change to the active lighting scenario.

Reimplemented in FRenderAssetStreamingManager, and FStreamingManagerCollection.

RemoveLevel()

virtual void IStreamingManager::RemoveLevel ( class ULevel *  Level )

pure virtual

Removes a ULevel from the streaming manager.

Implemented in FDummyAudioStreamingManager, FVolumetricLightmapGridStreamingManager, FRenderAssetStreamingManager, FVirtualTextureChunkStreamingManager, FAnimationStreamingManager, FCachedAudioStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

RemoveStreamingViews()

void IStreamingManager::RemoveStreamingViews

(

ERemoveStreamingViews

RemovalType

)

Removes streaming views from the streaming manager. This is also called by Tick().

Parameters

RemovalType

What types of views to remove (all or just the normal views)

RemoveViewInfoFromArray()

void IStreamingManager::RemoveViewInfoFromArray ( TArray< FStreamingViewInfo > &  ViewInfos, const FVector &  ViewOrigin  )

staticprotected

Remove view infos with the same location from the given array.

Parameters

ViewInfos	[in/out] Array to remove the view from
ViewOrigin	View origin

SetDisregardWorldResourcesForFrames()

virtual void IStreamingManager::SetDisregardWorldResourcesForFrames ( int32  NumFrames )

pure virtual

Don't stream world resources for the next NumFrames.

Implemented in FDummyAudioStreamingManager, FVolumetricLightmapGridStreamingManager, FRenderAssetStreamingManager, FVirtualTextureChunkStreamingManager, FAnimationStreamingManager, FCachedAudioStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

SetupViewInfos()

void IStreamingManager::SetupViewInfos ( float  DeltaTime )

protected

Sets up the CurrentViewInfos array based on PendingViewInfos, LastingViewInfos and SecondaryLocations. Removes out-dated LastingViewInfos.

Parameters

DeltaTime

Time since last call in seconds

Shutdown()

void IStreamingManager::Shutdown ( )

static

StreamAllResources()

int32 IStreamingManager::StreamAllResources ( float  TimeLimit = 0.0f )

virtual

Streams in/out all resources that wants to and blocks until it's done.

Parameters

TimeLimit

Maximum number of seconds to wait for streaming I/O. If zero, uses .ini setting

Returns

Number of streaming requests still in flight, if the time limit was reached before they were finished.

Reimplemented in FStreamingManagerCollection.

Tick()

void IStreamingManager::Tick ( float  DeltaTime, bool  bProcessEverything = false  )

virtual

Calls UpdateResourceStreaming(), and does per-frame cleaning. Call once per frame.

Parameters

DeltaTime	Time since last call in seconds
bProcessEverything	[opt] If true, process all resources with no throttling limits

Reimplemented in FVolumetricLightmapGridStreamingManager, and FStreamingManagerCollection.

UpdateResourceStreaming()

virtual void IStreamingManager::UpdateResourceStreaming ( float  DeltaTime, bool  bProcessEverything = false  )

pure virtual

Updates streaming, taking into account all current view infos. Can be called multiple times per frame.

Parameters

DeltaTime	Time since last call in seconds
bProcessEverything	[opt] If true, process all resources with no throttling limits

Implemented in FVolumetricLightmapGridStreamingManager, FRenderAssetStreamingManager, FVirtualTextureChunkStreamingManager, FAnimationStreamingManager, FCachedAudioStreamingManager, FDummyAudioStreamingManager, FStreamingManagerCollection, and Nanite::FCoarseMeshStreamingManager.

Member Data Documentation

bPendingRemoveViews

bool IStreamingManager::bPendingRemoveViews = false

staticprotected

Set when Tick() has been called. The first time a new view is added, it will clear out all old views.

CurrentViewInfos

TArray< FStreamingViewInfo > IStreamingManager::CurrentViewInfos

staticprotected

Current collection of views that need to be taken into account for streaming. Emptied every frame.

Collection of views that need to be taken into account for streaming.

LastingViewInfos

TArray< FStreamingViewInfo > IStreamingManager::LastingViewInfos

staticprotected

Views that stick around for a while. Override views are ignored if no movie is playing.

NumWantingResources

int32 IStreamingManager::NumWantingResources

protected

Number of resources that currently wants to be streamed in.

NumWantingResourcesCounter

int32 IStreamingManager::NumWantingResourcesCounter

protected

The current counter for NumWantingResources. This counter is bumped every time NumWantingResources is updated by the streaming system (every few frames). Can be used to verify that any changes have been fully examined, by comparing current counter with what it was when the changes were made.

PendingViewInfos

TArray< FStreamingViewInfo > IStreamingManager::PendingViewInfos

staticprotected

Pending views. Emptied every frame.

SecondaryLocations

TArray< IStreamingManager::FSecondaryLocation > IStreamingManager::SecondaryLocations

staticprotected

Collection of view locations that will be added at the next call to AddViewInformation.

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/Engine/Public/ContentStreaming.h
• Engine/Source/Runtime/Engine/Private/ContentStreaming.cpp
