#include <TypedElementQueryStorageInterfaces.h>

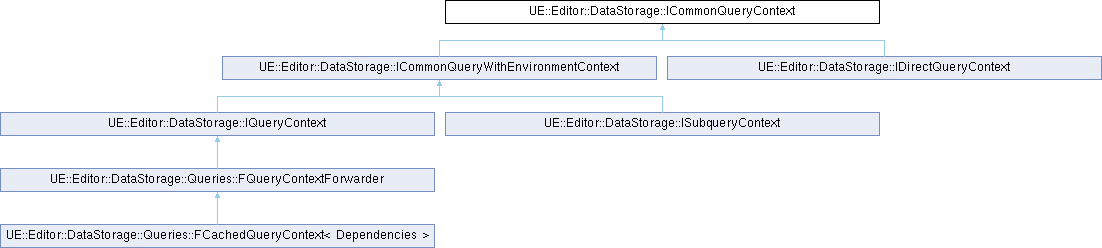

Inheritance diagram for UE::Editor::DataStorage::ICommonQueryContext:

Classes
struct	FEmplaceObjectParams

Public Member Functions
virtual	~ICommonQueryContext ()=default

virtual uint32	GetRowCount () const =0

virtual TConstArrayView< RowHandle >	GetRowHandles () const =0

virtual const void *	GetColumn (const UScriptStruct *ColumnType) const =0

template<TDataColumnType Column>
const Column *	GetColumn () const

template<TDynamicColumnTemplate TemplateType>
const TemplateType *	GetColumn (const FName &Identifier) const

virtual void *	GetMutableColumn (const UScriptStruct *ColumnType)=0

template<typename Column >
Column *	GetMutableColumn ()

template<TDynamicColumnTemplate TemplateType>
TemplateType *	GetMutableColumn (const FName &Identifier)

virtual void	GetColumns (TArrayView< char * > RetrievedAddresses, TConstArrayView< TWeakObjectPtr< const UScriptStruct > > ColumnTypes, TConstArrayView< EQueryAccessType > AccessTypes)=0

virtual void	GetColumnsUnguarded (int32 TypeCount, char *RetrievedAddresses, const TWeakObjectPtr< const UScriptStruct > ColumnTypes, const EQueryAccessType *AccessTypes)=0

virtual bool	HasColumn (const UScriptStruct *ColumnType) const =0

template<typename Column >
bool	HasColumn () const

virtual bool	HasColumn (RowHandle Row, const UScriptStruct *ColumnType) const =0

template<typename Column >
bool	HasColumn (RowHandle Row) const

template<TDynamicColumnTemplate DynamicColumnTemplate>
bool	HasColumn (RowHandle Row, const FName &Identifier) const

virtual const UScriptStruct *	FindDynamicColumnType (const FDynamicColumnDescription &Description) const =0

template<TDynamicColumnTemplate TemplateType>
const UScriptStruct *	FindDynamicColumnType (const FName &Identifier) const

virtual void	SetParentRow (RowHandle Target, RowHandle Parent)=0

virtual void	SetUnresolvedParent (RowHandle Target, FMapKey ParentId, FName MappingDomain)=0

virtual RowHandle	GetParentRow (RowHandle Target) const =0

virtual float	GetDeltaTimeSeconds () const =0

template<typename T >
void	PushCommand (T CommandContext)

virtual void	PushCommand (void(CommandFunction)(void ), void *InCommandData)=0

Protected Member Functions
virtual void *	EmplaceObjectInScratch (const FEmplaceObjectParams &Params)=0

Detailed Description

Base interface for any contexts provided to query callbacks.

Constructor & Destructor Documentation

◆ ~ICommonQueryContext()

virtual UE::Editor::DataStorage::ICommonQueryContext::~ICommonQueryContext ( )

virtualdefault

Member Function Documentation

◆ EmplaceObjectInScratch()

virtual void * UE::Editor::DataStorage::ICommonQueryContext::EmplaceObjectInScratch ( const FEmplaceObjectParams & Params )

protectedpure virtual

◆ FindDynamicColumnType() [1/2]

virtual const UScriptStruct * UE::Editor::DataStorage::ICommonQueryContext::FindDynamicColumnType ( const FDynamicColumnDescription & Description ) const

pure virtual

Finds the type of a dynamic column

Returns: The UScriptStruct for a previously created Dynamic Column. If no column exists, then nullptr

◆ FindDynamicColumnType() [2/2]

template<TDynamicColumnTemplate TemplateType>

const UScriptStruct * UE::Editor::DataStorage::ICommonQueryContext::FindDynamicColumnType ( const FName & Identifier ) const

◆ GetColumn() [1/3]

template<TDataColumnType Column>

const Column * UE::Editor::DataStorage::ICommonQueryContext::GetColumn ( ) const

Return the address of a immutable column matching the requested type or a nullptr if not found.

◆ GetColumn() [2/3]

template<TDynamicColumnTemplate TemplateType>

const TemplateType * UE::Editor::DataStorage::ICommonQueryContext::GetColumn ( const FName & Identifier ) const

◆ GetColumn() [3/3]

virtual const void * UE::Editor::DataStorage::ICommonQueryContext::GetColumn ( const UScriptStruct * ColumnType ) const

pure virtual

Return the address of a immutable column matching the requested type or a nullptr if not found.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder, and UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ GetColumns()

virtual void UE::Editor::DataStorage::ICommonQueryContext::GetColumns	(	TArrayView< char * >	RetrievedAddresses,
		TConstArrayView< TWeakObjectPtr< const UScriptStruct > >	ColumnTypes,
		TConstArrayView< EQueryAccessType >	AccessTypes
	)

pure virtual

Get a list of columns or nullptrs if the column type wasn't found. Mutable addresses are returned and it's up to the caller to not change immutable addresses.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ GetColumnsUnguarded()

virtual void UE::Editor::DataStorage::ICommonQueryContext::GetColumnsUnguarded	(	int32	TypeCount,
		char **	RetrievedAddresses,
		const TWeakObjectPtr< const UScriptStruct > *	ColumnTypes,
		const EQueryAccessType *	AccessTypes
	)

pure virtual

Get a list of columns or nullptrs if the column type wasn't found. Mutable addresses are returned and it's up to the caller to not change immutable addresses. This version doesn't verify that the enough space is provided and it's up to the caller to guarantee the target addresses have enough space.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ GetDeltaTimeSeconds()

virtual float UE::Editor::DataStorage::ICommonQueryContext::GetDeltaTimeSeconds ( ) const

pure virtual

Returns the amount of time now and the last update in seconds.

◆ GetMutableColumn() [1/3]

template<typename Column >

Column * UE::Editor::DataStorage::ICommonQueryContext::GetMutableColumn ( )

Return the address of a mutable column matching the requested type or a nullptr if not found.

◆ GetMutableColumn() [2/3]

template<TDynamicColumnTemplate TemplateType>

TemplateType * UE::Editor::DataStorage::ICommonQueryContext::GetMutableColumn ( const FName & Identifier )

◆ GetMutableColumn() [3/3]

virtual void * UE::Editor::DataStorage::ICommonQueryContext::GetMutableColumn ( const UScriptStruct * ColumnType )

pure virtual

Return the address of a mutable column matching the requested type or a nullptr if not found.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder, and UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ GetParentRow()

virtual RowHandle UE::Editor::DataStorage::ICommonQueryContext::GetParentRow ( RowHandle Target ) const

pure virtual

◆ GetRowCount()

virtual uint32 UE::Editor::DataStorage::ICommonQueryContext::GetRowCount ( ) const

pure virtual

Returns the number rows in the batch.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ GetRowHandles()

virtual TConstArrayView< RowHandle > UE::Editor::DataStorage::ICommonQueryContext::GetRowHandles ( ) const

pure virtual

Returns an immutable view that contains the row handles for all returned results. The returned size will be the same as the value returned by GetRowCount().

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ HasColumn() [1/5]

template<typename Column >

bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn ( ) const

◆ HasColumn() [2/5]

virtual bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn ( const UScriptStruct * ColumnType ) const

pure virtual

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder, and UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ HasColumn() [3/5]

template<typename Column >

bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn ( RowHandle Row ) const

◆ HasColumn() [4/5]

template<TDynamicColumnTemplate DynamicColumnTemplate>

bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn	(	RowHandle	Row,
		const FName &	Identifier
	)		const

◆ HasColumn() [5/5]

virtual bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn	(	RowHandle	Row,
		const UScriptStruct *	ColumnType
	)		const

pure virtual

Implemented in UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ PushCommand() [1/2]

template<typename T >

void UE::Editor::DataStorage::ICommonQueryContext::PushCommand ( T CommandContext )

Creates a command that will run at the termination of an execution context. Intended to be used for cases where the query callback requires doing some work that needs to be serialized with respect to other callback invocations. Note that commands will be executed in order with respect to the thread that pushed them and will be executed on the query exection thread serially.

Usage: Define a command struct with a mutable operator() overload struct FMyCommand { void operator()() { DoSomethingWithSideEffects(MyActor) }; TWeakObjectPtr<AActor> MyActor; };

Context.PushCommand(FMyCommand{ .MyActor = Actor });

◆ PushCommand() [2/2]

virtual void UE::Editor::DataStorage::ICommonQueryContext::PushCommand	(	void()(void )	CommandFunction,
		void *	InCommandData
	)

pure virtual

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ SetParentRow()

virtual void UE::Editor::DataStorage::ICommonQueryContext::SetParentRow	(	RowHandle	Target,
		RowHandle	Parent
	)

pure virtual

◆ SetUnresolvedParent()

virtual void UE::Editor::DataStorage::ICommonQueryContext::SetUnresolvedParent	(	RowHandle	Target,
		FMapKey	ParentId,
		FName	MappingDomain
	)

pure virtual

Establishes a parent relationship between the Target row and a Parent that is not registered in TEDS yet. Every frame, TEDS will attempt to resolve the missing relation by looking up the parent using TEDS Mapping. An optional MaxFrameCount can be specified, which will be decremented every frame until the potential relationship is discarded

The documentation for this struct was generated from the following file:

Engine/Source/Runtime/TypedElementFramework/Public/Elements/Interfaces/TypedElementQueryStorageInterfaces.h
