#include <TypedElementQueryBuilder.h>

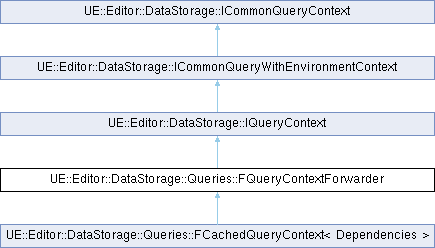

Inheritance diagram for UE::Editor::DataStorage::Queries::FQueryContextForwarder:

Public Member Functions
	FQueryContextForwarder (const FQueryDescription &InDescription, IQueryContext &InParentContext)

	~FQueryContextForwarder ()=default

const void *	GetColumn (const UScriptStruct *ColumnType) const override

void *	GetMutableColumn (const UScriptStruct *ColumnType) override

void	GetColumns (TArrayView< char * > RetrievedAddresses, TConstArrayView< TWeakObjectPtr< const UScriptStruct > > ColumnTypes, TConstArrayView< EQueryAccessType > AccessTypes) override

void	GetColumnsUnguarded (int32 TypeCount, char *RetrievedAddresses, const TWeakObjectPtr< const UScriptStruct > ColumnTypes, const EQueryAccessType *AccessTypes) override

bool	HasColumn (const UScriptStruct *ColumnType) const override

UObject *	GetMutableDependency (const UClass *DependencyClass) override

const UObject *	GetDependency (const UClass *DependencyClass) override

void	GetDependencies (TArrayView< UObject * > RetrievedAddresses, TConstArrayView< TWeakObjectPtr< const UClass > > SubsystemTypes, TConstArrayView< EQueryAccessType > AccessTypes) override

uint32	GetRowCount () const override

TConstArrayView< RowHandle >	GetRowHandles () const override

void	RemoveRow (RowHandle Row) override

void	RemoveRows (TConstArrayView< RowHandle > Rows) override

void	AddColumns (RowHandle Row, TConstArrayView< const UScriptStruct * > ColumnTypes) override

void	AddColumns (TConstArrayView< RowHandle > Rows, TConstArrayView< const UScriptStruct * > ColumnTypes) override

void	RemoveColumns (RowHandle Row, TConstArrayView< const UScriptStruct * > ColumnTypes) override

void	RemoveColumns (TConstArrayView< RowHandle > Rows, TConstArrayView< const UScriptStruct * > ColumnTypes) override

void	PushCommand (void(CommandFunction)(void ), void *CommandData) override

FQueryResult	RunQuery (QueryHandle Query) override

FQueryResult	RunSubquery (int32 SubqueryIndex) override

FQueryResult	RunSubquery (int32 SubqueryIndex, SubqueryCallbackRef Callback) override

FQueryResult	RunSubquery (int32 SubqueryIndex, RowHandle Row, SubqueryCallbackRef Callback) override

Public Member Functions inherited from UE::Editor::DataStorage::IQueryContext
virtual	~IQueryContext ()=default

virtual RowHandle	LookupMappedRow (const FName &Domain, const FMapKeyView &Index) const =0

Public Member Functions inherited from UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext
template<typename DynamicColumnTemplate >
const DynamicColumnTemplate *	GetColumn (const FName &Identifier) const

template<typename DynamicColumnTemplate >
DynamicColumnTemplate *	GetMutableColumn (const FName &Identifier)

template<typename DynamicColumnTemplate >
bool	HasColumn (const FName &Identifier) const

template<typename DynamicColumnTemplate >
bool	HasColumn (RowHandle Row, const FName &Identifier) const

virtual uint64	GetUpdateCycleId () const =0

virtual bool	IsRowAvailable (RowHandle Row) const =0

virtual bool	IsRowAssigned (RowHandle Row) const =0

virtual void	ActivateQueries (FName ActivationName)=0

virtual RowHandle	AddRow (TableHandle Table)=0

template<typename ColumnType >
ColumnType &	AddColumn (RowHandle Row, ColumnType &&Column)

template<typename ColumnTypeTemplate >
ColumnTypeTemplate *	AddColumn (RowHandle Row, const FName &Identifier)

template<typename ColumnTypeTemplate >
ColumnTypeTemplate &	AddColumn (RowHandle Row, const FName &Identifier, ColumnTypeTemplate &&Column)

template<typename... Columns>
void	AddColumns (RowHandle Row)

template<typename... Columns>
void	AddColumns (TConstArrayView< RowHandle > Rows)

virtual void	AddColumns (TConstArrayView< RowHandle > Rows, TConstArrayView< FDynamicColumnDescription > DynamicColumnDescriptions)=0

virtual void *	AddColumnUninitialized (RowHandle Row, const UScriptStruct *ColumnType)=0

virtual void *	AddColumnUninitialized (RowHandle Row, const UScriptStruct *ObjectType, ObjectCopyOrMove Relocator)=0

virtual void *	AddColumnUninitialized (RowHandle Row, const FDynamicColumnDescription &DynamicColumnDescription, ObjectCopyOrMove Relocator)=0

virtual void *	AddColumnUninitialized (RowHandle Row, const FDynamicColumnDescription &DynamicColumnDescription)=0

template<typename... Columns>
void	RemoveColumns (RowHandle Row)

template<typename... Columns>
void	RemoveColumns (TConstArrayView< RowHandle > Rows)

virtual const void *	GetColumn (const UScriptStruct *ColumnType) const=0

template<TDataColumnType Column>
const Column *	GetColumn () const

template<TDynamicColumnTemplate TemplateType>
const TemplateType *	GetColumn (const FName &Identifier) const

virtual bool	HasColumn (const UScriptStruct *ColumnType) const=0

template<typename Column >
bool	HasColumn () const

virtual bool	HasColumn (RowHandle Row, const UScriptStruct *ColumnType) const=0

template<typename Column >
bool	HasColumn (RowHandle Row) const

template<TDynamicColumnTemplate DynamicColumnTemplate>
bool	HasColumn (RowHandle Row, const FName &Identifier) const

virtual void *	GetMutableColumn (const UScriptStruct *ColumnType)=0

template<typename Column >
Column *	GetMutableColumn ()

template<TDynamicColumnTemplate TemplateType>
TemplateType *	GetMutableColumn (const FName &Identifier)

Public Member Functions inherited from UE::Editor::DataStorage::ICommonQueryContext
virtual	~ICommonQueryContext ()=default

template<TDataColumnType Column>
const Column *	GetColumn () const

template<TDynamicColumnTemplate TemplateType>
const TemplateType *	GetColumn (const FName &Identifier) const

template<typename Column >
Column *	GetMutableColumn ()

template<TDynamicColumnTemplate TemplateType>
TemplateType *	GetMutableColumn (const FName &Identifier)

template<typename Column >
bool	HasColumn () const

template<typename Column >
bool	HasColumn (RowHandle Row) const

template<TDynamicColumnTemplate DynamicColumnTemplate>
bool	HasColumn (RowHandle Row, const FName &Identifier) const

virtual const UScriptStruct *	FindDynamicColumnType (const FDynamicColumnDescription &Description) const =0

template<TDynamicColumnTemplate TemplateType>
const UScriptStruct *	FindDynamicColumnType (const FName &Identifier) const

virtual void	SetParentRow (RowHandle Target, RowHandle Parent)=0

virtual void	SetUnresolvedParent (RowHandle Target, FMapKey ParentId, FName MappingDomain)=0

virtual RowHandle	GetParentRow (RowHandle Target) const =0

virtual float	GetDeltaTimeSeconds () const =0

template<typename T >
void	PushCommand (T CommandContext)

Public Attributes
IQueryContext &	ParentContext

const FQueryDescription &	Description

Additional Inherited Members
Public Types inherited from UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext
using	ObjectCopyOrMove = void()(const UScriptStruct &TypeInfo, void Destination, void *Source)

Protected Member Functions inherited from UE::Editor::DataStorage::ICommonQueryContext
virtual void *	EmplaceObjectInScratch (const FEmplaceObjectParams &Params)=0

Constructor & Destructor Documentation

◆ FQueryContextForwarder()

UE::Editor::DataStorage::Queries::FQueryContextForwarder::FQueryContextForwarder	(	const FQueryDescription &	InDescription,
		IQueryContext &	InParentContext
	)

inline

◆ ~FQueryContextForwarder()

UE::Editor::DataStorage::Queries::FQueryContextForwarder::~FQueryContextForwarder ( )

inlinedefault

Member Function Documentation

◆ AddColumns() [1/2]

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::AddColumns	(	RowHandle	Row,
		TConstArrayView< const UScriptStruct * >	ColumnTypes
	)

inlineoverridevirtual

Adds new empty columns to a row of the provided type. The addition will not be immediately done but delayed until the end of the tick group.

Implements UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ AddColumns() [2/2]

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::AddColumns	(	TConstArrayView< RowHandle >	Rows,
		TConstArrayView< const UScriptStruct * >	ColumnTypes
	)

inlineoverridevirtual

Adds new empty columns to the listed rows of the provided type. The addition will not be immediately done but delayed until the end of the tick group.

Implements UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ GetColumn()

const void * UE::Editor::DataStorage::Queries::FQueryContextForwarder::GetColumn ( const UScriptStruct * ColumnType ) const

inlineoverridevirtual

Return the address of a immutable column matching the requested type or a nullptr if not found.

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ GetColumns()

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::GetColumns	(	TArrayView< char * >	RetrievedAddresses,
		TConstArrayView< TWeakObjectPtr< const UScriptStruct > >	ColumnTypes,
		TConstArrayView< EQueryAccessType >	AccessTypes
	)

inlineoverridevirtual

Get a list of columns or nullptrs if the column type wasn't found. Mutable addresses are returned and it's up to the caller to not change immutable addresses.

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ GetColumnsUnguarded()

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::GetColumnsUnguarded	(	int32	TypeCount,
		char **	RetrievedAddresses,
		const TWeakObjectPtr< const UScriptStruct > *	ColumnTypes,
		const EQueryAccessType *	AccessTypes
	)

inlineoverridevirtual

Get a list of columns or nullptrs if the column type wasn't found. Mutable addresses are returned and it's up to the caller to not change immutable addresses. This version doesn't verify that the enough space is provided and it's up to the caller to guarantee the target addresses have enough space.

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ GetDependencies()

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::GetDependencies	(	TArrayView< UObject * >	RetrievedAddresses,
		TConstArrayView< TWeakObjectPtr< const UClass > >	DependencyTypes,
		TConstArrayView< EQueryAccessType >	AccessTypes
	)

inlineoverridevirtual

Returns a list of dependencies or nullptrs if a dependency wasn't found. Mutable versions are return and it's up to the caller to not change immutable dependencies.

Implements UE::Editor::DataStorage::IQueryContext.

◆ GetDependency()

const UObject * UE::Editor::DataStorage::Queries::FQueryContextForwarder::GetDependency ( const UClass * DependencyClass )

inlineoverridevirtual

Returns an immutable instance of the requested dependency or a nullptr if not found.

Implements UE::Editor::DataStorage::IQueryContext.

◆ GetMutableColumn()

void * UE::Editor::DataStorage::Queries::FQueryContextForwarder::GetMutableColumn ( const UScriptStruct * ColumnType )

inlineoverridevirtual

Return the address of a mutable column matching the requested type or a nullptr if not found.

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ GetMutableDependency()

UObject * UE::Editor::DataStorage::Queries::FQueryContextForwarder::GetMutableDependency ( const UClass * DependencyClass )

inlineoverridevirtual

Returns a mutable instance of the requested dependency or a nullptr if not found.

Implements UE::Editor::DataStorage::IQueryContext.

◆ GetRowCount()

uint32 UE::Editor::DataStorage::Queries::FQueryContextForwarder::GetRowCount ( ) const

inlineoverridevirtual

Returns the number rows in the batch.

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ GetRowHandles()

TConstArrayView< RowHandle > UE::Editor::DataStorage::Queries::FQueryContextForwarder::GetRowHandles ( ) const

inlineoverridevirtual

Returns an immutable view that contains the row handles for all returned results. The returned size will be the same as the value returned by GetRowCount().

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ HasColumn()

bool UE::Editor::DataStorage::Queries::FQueryContextForwarder::HasColumn ( const UScriptStruct * ColumnType ) const

inlineoverridevirtual

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ PushCommand()

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::PushCommand	(	void()(void )	CommandFunction,
		void *	CommandData
	)

inlineoverridevirtual

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ RemoveColumns() [1/2]

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::RemoveColumns	(	RowHandle	Row,
		TConstArrayView< const UScriptStruct * >	ColumnTypes
	)

inlineoverridevirtual

Removes columns of the provided types from a row. The removal will not be immediately done but delayed until the end of the tick group.

Implements UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ RemoveColumns() [2/2]

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::RemoveColumns	(	TConstArrayView< RowHandle >	Rows,
		TConstArrayView< const UScriptStruct * >	ColumnTypes
	)

inlineoverridevirtual

Removes columns of the provided types from the listed rows. The removal will not be immediately done but delayed until the end of the tick group.

Implements UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ RemoveRow()

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::RemoveRow ( RowHandle Row )

inlineoverridevirtual

Removes the row with the provided row handle. The removal will not be immediately done but delayed until the end of the tick group.

Implements UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ RemoveRows()

void UE::Editor::DataStorage::Queries::FQueryContextForwarder::RemoveRows ( TConstArrayView< RowHandle > Rows )

inlineoverridevirtual

Removes rows with the provided row handles. The removal will not be immediately done but delayed until the end of the tick group.

Implements UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext.

◆ RunQuery()

FQueryResult UE::Editor::DataStorage::Queries::FQueryContextForwarder::RunQuery ( QueryHandle Query )

inlineoverridevirtual

Runs a previously created query. This version takes an arbitrary query, but is limited to running queries that do not directly access data from rows such as count queries. The returned result is a snap shot and values may change between phases.

Implements UE::Editor::DataStorage::IQueryContext.

◆ RunSubquery() [1/3]

FQueryResult UE::Editor::DataStorage::Queries::FQueryContextForwarder::RunSubquery ( int32 SubqueryIndex )

inlineoverridevirtual

Runs a subquery registered with the current query. The subquery index is in the order of registration with the query. Subqueries are executed as part of their parent query and are not scheduled separately.

Implements UE::Editor::DataStorage::IQueryContext.

◆ RunSubquery() [2/3]

FQueryResult UE::Editor::DataStorage::Queries::FQueryContextForwarder::RunSubquery	(	int32	SubqueryIndex,
		RowHandle	Row,
		SubqueryCallbackRef	Callback
	)

inlineoverridevirtual

Runs the provided callback on a subquery registered with the current query for the exact provided row. The subquery index is in the order of registration with the query. If the row handle is in a table that doesn't match the selected subquery the callback will not be called. Check the count in the returned results to determine if the callback was called or not. Subqueries are executed as part of their parent query and are not scheduled separately.

Implements UE::Editor::DataStorage::IQueryContext.

◆ RunSubquery() [3/3]

FQueryResult UE::Editor::DataStorage::Queries::FQueryContextForwarder::RunSubquery	(	int32	SubqueryIndex,
		SubqueryCallbackRef	Callback
	)

inlineoverridevirtual

Runs the provided callback on a subquery registered with the current query. The subquery index is in the order of registration with the query. Subqueries are executed as part of their parent query and are not scheduled separately.

Implements UE::Editor::DataStorage::IQueryContext.

Member Data Documentation

◆ Description

const FQueryDescription& UE::Editor::DataStorage::Queries::FQueryContextForwarder::Description

◆ ParentContext

IQueryContext& UE::Editor::DataStorage::Queries::FQueryContextForwarder::ParentContext

The documentation for this struct was generated from the following files:

Engine/Source/Runtime/TypedElementFramework/Public/Elements/Framework/TypedElementQueryBuilder.h
Engine/Source/Runtime/TypedElementFramework/Public/Elements/Framework/TypedElementQueryBuilder.inl

Public Member Functions

Public Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ FQueryContextForwarder()

◆ ~FQueryContextForwarder()

Member Function Documentation

◆ AddColumns() [1/2]

◆ AddColumns() [2/2]

◆ GetColumn()

◆ GetColumns()

◆ GetColumnsUnguarded()

◆ GetDependencies()

◆ GetDependency()

◆ GetMutableColumn()

◆ GetMutableDependency()

◆ GetRowCount()

◆ GetRowHandles()

◆ HasColumn()

◆ PushCommand()

◆ RemoveColumns() [1/2]

◆ RemoveColumns() [2/2]

◆ RemoveRow()

◆ RemoveRows()

◆ RunQuery()

◆ RunSubquery() [1/3]

◆ RunSubquery() [2/3]

◆ RunSubquery() [3/3]

Member Data Documentation

◆ Description

◆ ParentContext
