#include <TypedElementQueryStorageInterfaces.h>

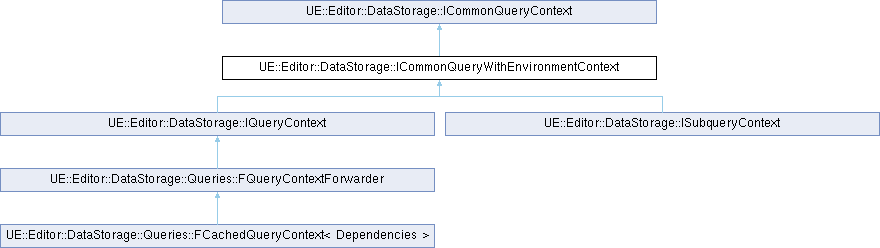

Inheritance diagram for UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext:

Public Types
using	ObjectCopyOrMove = void()(const UScriptStruct &TypeInfo, void Destination, void *Source)

Public Member Functions
template<typename DynamicColumnTemplate >
const DynamicColumnTemplate *	GetColumn (const FName &Identifier) const

template<typename DynamicColumnTemplate >
DynamicColumnTemplate *	GetMutableColumn (const FName &Identifier)

template<typename DynamicColumnTemplate >
bool	HasColumn (const FName &Identifier) const

template<typename DynamicColumnTemplate >
bool	HasColumn (RowHandle Row, const FName &Identifier) const

virtual uint64	GetUpdateCycleId () const =0

virtual bool	IsRowAvailable (RowHandle Row) const =0

virtual bool	IsRowAssigned (RowHandle Row) const =0

virtual void	ActivateQueries (FName ActivationName)=0

virtual RowHandle	AddRow (TableHandle Table)=0

virtual void	RemoveRow (RowHandle Row)=0

virtual void	RemoveRows (TConstArrayView< RowHandle > Rows)=0

template<typename ColumnType >
ColumnType &	AddColumn (RowHandle Row, ColumnType &&Column)

template<typename ColumnTypeTemplate >
ColumnTypeTemplate *	AddColumn (RowHandle Row, const FName &Identifier)

template<typename ColumnTypeTemplate >
ColumnTypeTemplate &	AddColumn (RowHandle Row, const FName &Identifier, ColumnTypeTemplate &&Column)

template<typename... Columns>
void	AddColumns (RowHandle Row)

template<typename... Columns>
void	AddColumns (TConstArrayView< RowHandle > Rows)

virtual void	AddColumns (RowHandle Row, TConstArrayView< const UScriptStruct * > ColumnTypes)=0

virtual void	AddColumns (TConstArrayView< RowHandle > Rows, TConstArrayView< const UScriptStruct * > ColumnTypes)=0

virtual void	AddColumns (TConstArrayView< RowHandle > Rows, TConstArrayView< FDynamicColumnDescription > DynamicColumnDescriptions)=0

virtual void *	AddColumnUninitialized (RowHandle Row, const UScriptStruct *ColumnType)=0

virtual void *	AddColumnUninitialized (RowHandle Row, const UScriptStruct *ObjectType, ObjectCopyOrMove Relocator)=0

virtual void *	AddColumnUninitialized (RowHandle Row, const FDynamicColumnDescription &DynamicColumnDescription, ObjectCopyOrMove Relocator)=0

virtual void *	AddColumnUninitialized (RowHandle Row, const FDynamicColumnDescription &DynamicColumnDescription)=0

template<typename... Columns>
void	RemoveColumns (RowHandle Row)

template<typename... Columns>
void	RemoveColumns (TConstArrayView< RowHandle > Rows)

virtual void	RemoveColumns (RowHandle Row, TConstArrayView< const UScriptStruct * > ColumnTypes)=0

virtual void	RemoveColumns (TConstArrayView< RowHandle > Rows, TConstArrayView< const UScriptStruct * > ColumnTypes)=0

virtual const void *	GetColumn (const UScriptStruct *ColumnType) const=0

template<TDataColumnType Column>
const Column *	GetColumn () const

template<TDynamicColumnTemplate TemplateType>
const TemplateType *	GetColumn (const FName &Identifier) const

virtual bool	HasColumn (const UScriptStruct *ColumnType) const=0

template<typename Column >
bool	HasColumn () const

virtual bool	HasColumn (RowHandle Row, const UScriptStruct *ColumnType) const=0

template<typename Column >
bool	HasColumn (RowHandle Row) const

template<TDynamicColumnTemplate DynamicColumnTemplate>
bool	HasColumn (RowHandle Row, const FName &Identifier) const

virtual void *	GetMutableColumn (const UScriptStruct *ColumnType)=0

template<typename Column >
Column *	GetMutableColumn ()

template<TDynamicColumnTemplate TemplateType>
TemplateType *	GetMutableColumn (const FName &Identifier)

Public Member Functions inherited from UE::Editor::DataStorage::ICommonQueryContext
virtual	~ICommonQueryContext ()=default

virtual uint32	GetRowCount () const =0

virtual TConstArrayView< RowHandle >	GetRowHandles () const =0

template<TDataColumnType Column>
const Column *	GetColumn () const

template<TDynamicColumnTemplate TemplateType>
const TemplateType *	GetColumn (const FName &Identifier) const

template<typename Column >
Column *	GetMutableColumn ()

template<TDynamicColumnTemplate TemplateType>
TemplateType *	GetMutableColumn (const FName &Identifier)

virtual void	GetColumns (TArrayView< char * > RetrievedAddresses, TConstArrayView< TWeakObjectPtr< const UScriptStruct > > ColumnTypes, TConstArrayView< EQueryAccessType > AccessTypes)=0

virtual void	GetColumnsUnguarded (int32 TypeCount, char *RetrievedAddresses, const TWeakObjectPtr< const UScriptStruct > ColumnTypes, const EQueryAccessType *AccessTypes)=0

template<typename Column >
bool	HasColumn () const

template<typename Column >
bool	HasColumn (RowHandle Row) const

template<TDynamicColumnTemplate DynamicColumnTemplate>
bool	HasColumn (RowHandle Row, const FName &Identifier) const

virtual const UScriptStruct *	FindDynamicColumnType (const FDynamicColumnDescription &Description) const =0

template<TDynamicColumnTemplate TemplateType>
const UScriptStruct *	FindDynamicColumnType (const FName &Identifier) const

virtual void	SetParentRow (RowHandle Target, RowHandle Parent)=0

virtual void	SetUnresolvedParent (RowHandle Target, FMapKey ParentId, FName MappingDomain)=0

virtual RowHandle	GetParentRow (RowHandle Target) const =0

virtual float	GetDeltaTimeSeconds () const =0

template<typename T >
void	PushCommand (T CommandContext)

virtual void	PushCommand (void(CommandFunction)(void ), void *InCommandData)=0

Additional Inherited Members
Protected Member Functions inherited from UE::Editor::DataStorage::ICommonQueryContext
virtual void *	EmplaceObjectInScratch (const FEmplaceObjectParams &Params)=0

Member Typedef Documentation

◆ ObjectCopyOrMove

using UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::ObjectCopyOrMove = void (*)(const UScriptStruct& TypeInfo, void* Destination, void* Source)

Member Function Documentation

◆ ActivateQueries()

virtual void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::ActivateQueries ( FName ActivationName )

pure virtual

Triggers all queries registered under the activation name to run for one update cycle. The activatable queries will be activated at start of the cycle and disabled at the end of the cycle and act like regular queries for that cycle. This includes not running if there are not columns to match against.

◆ AddColumn() [1/3]

template<typename ColumnType >

ColumnType & UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumn	(	RowHandle	Row,
		ColumnType &&	Column
	)

Adds the provided column to the requested row.

Note: The addition of the column will not be immediately done. Instead it will be deferred until the end of the tick group. Changes made to the return column will still be applied when the column is added to the row.

◆ AddColumn() [2/3]

template<typename ColumnTypeTemplate >

ColumnTypeTemplate * UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumn	(	RowHandle	Row,
		const FName &	Identifier
	)

Helper template for adding a dynamic column to the requested row. The resulting column will be default initialized.

Template Parameters

ColumnTypeTemplate The template layout of the column

Parameters

Row	The row to add the column to
Identifier	Combined with the template type, the dynamic column is uniquely identified with this parameter

Returns: An ephemeral reference to the data of the column. The returned column will have been constructed.

◆ AddColumn() [3/3]

template<typename ColumnTypeTemplate >

ColumnTypeTemplate & UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumn	(	RowHandle	Row,
		const FName &	Identifier,
		ColumnTypeTemplate &&	Column
	)

Helper template for adding a dynamic column to the requested row

Template Parameters

ColumnTypeTemplate The template layout of the column

Parameters

Row	The row to add the column to
Identifier	Combined with the template type, the dynamic column is uniquely identified with this parameter

Returns: An ephemeral reference to the data of the column. The returned column will have been constructed.

◆ AddColumns() [1/5]

template<typename... Columns>

void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumns ( RowHandle Row )

Adds new empty columns to a row of the provided type. The addition will not be immediately done but delayed until the end of the tick group.

◆ AddColumns() [2/5]

virtual void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumns	(	RowHandle	Row,
		TConstArrayView< const UScriptStruct * >	ColumnTypes
	)

pure virtual

Adds new empty columns to a row of the provided type. The addition will not be immediately done but delayed until the end of the tick group.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ AddColumns() [3/5]

template<typename... Columns>

void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumns ( TConstArrayView< RowHandle > Rows )

Adds new empty columns to the listed rows of the provided type. The addition will not be immediately done but delayed until the end of the tick group.

◆ AddColumns() [4/5]

virtual void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumns	(	TConstArrayView< RowHandle >	Rows,
		TConstArrayView< const UScriptStruct * >	ColumnTypes
	)

pure virtual

Adds new empty columns to the listed rows of the provided type. The addition will not be immediately done but delayed until the end of the tick group.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ AddColumns() [5/5]

virtual void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumns	(	TConstArrayView< RowHandle >	Rows,
		TConstArrayView< FDynamicColumnDescription >	DynamicColumnDescriptions
	)

pure virtual

◆ AddColumnUninitialized() [1/4]

virtual void * UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumnUninitialized	(	RowHandle	Row,
		const FDynamicColumnDescription &	DynamicColumnDescription
	)

pure virtual

◆ AddColumnUninitialized() [2/4]

virtual void * UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumnUninitialized	(	RowHandle	Row,
		const FDynamicColumnDescription &	DynamicColumnDescription,
		ObjectCopyOrMove	Relocator
	)

pure virtual

◆ AddColumnUninitialized() [3/4]

virtual void * UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumnUninitialized	(	RowHandle	Row,
		const UScriptStruct *	ColumnType
	)

pure virtual

Add a new uninitialized column of the provided type if one does not exist. Returns a staged column which is used to copy into the database at a later time via the UStructScript Copy operator at the end of the tick group. It is the caller's responsibility to ensure the staged column's constructor is called. The caller may modify other values in the column. This function can not be used to add a tag as tags do not contain any data.

◆ AddColumnUninitialized() [4/4]

virtual void * UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddColumnUninitialized	(	RowHandle	Row,
		const UScriptStruct *	ObjectType,
		ObjectCopyOrMove	Relocator
	)

pure virtual

Add a new uninitialized column of the provided type if one does not exist. Returns a staged column which is used to copy/move into the database at a later time via the provided relocator at the end of the tick group. It is the caller's responsibility to ensure the staged column's constructor is called. The caller may modify other values in the column. This function can not be used to add a tag as tags do not contain any data.

◆ AddRow()

virtual RowHandle UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::AddRow ( TableHandle Table )

pure virtual

Adds a row to the given table.

◆ GetColumn() [1/4]

template<TDataColumnType Column>

const Column * UE::Editor::DataStorage::ICommonQueryContext::GetColumn ( ) const

Return the address of a immutable column matching the requested type or a nullptr if not found.

◆ GetColumn() [2/4]

template<TDynamicColumnTemplate TemplateType>

const TemplateType * UE::Editor::DataStorage::ICommonQueryContext::GetColumn ( const FName & Identifier ) const

◆ GetColumn() [3/4]

template<typename DynamicColumnTemplate >

const DynamicColumnTemplate * UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::GetColumn ( const FName & Identifier ) const

Helper template that returns a const reference to the column array data for the range of rows being processed Returns nullptr if type not found or column not assigned to row

Warning: It is advised to only use this function in a query callback that handles multiple rows the returned reference will be to the first column in the table chunk, not necessarily the column corresponding to the row that the singular callback form is using.

◆ GetColumn() [4/4]

virtual const void * UE::Editor::DataStorage::ICommonQueryContext::GetColumn ( const UScriptStruct * ColumnType ) const

virtual

Return the address of a immutable column matching the requested type or a nullptr if not found.

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ GetMutableColumn() [1/4]

template<typename Column >

Column * UE::Editor::DataStorage::ICommonQueryContext::GetMutableColumn ( )

Return the address of a mutable column matching the requested type or a nullptr if not found.

◆ GetMutableColumn() [2/4]

template<TDynamicColumnTemplate TemplateType>

TemplateType * UE::Editor::DataStorage::ICommonQueryContext::GetMutableColumn ( const FName & Identifier )

◆ GetMutableColumn() [3/4]

template<typename DynamicColumnTemplate >

DynamicColumnTemplate * UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::GetMutableColumn ( const FName & Identifier )

Helper template that returns the reference to the column array data for the range of rows being processed Returns nullptr if type not found or column not assigned to row

Warning: It is advised to only use this function in a query callback that handles multiple rows the returned reference will be to the first column in the table chunk, not necessarily the column corresponding to the row that the singular callback form is using.

◆ GetMutableColumn() [4/4]

virtual void * UE::Editor::DataStorage::ICommonQueryContext::GetMutableColumn ( const UScriptStruct * ColumnType )

virtual

Return the address of a mutable column matching the requested type or a nullptr if not found.

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ GetUpdateCycleId()

virtual uint64 UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::GetUpdateCycleId ( ) const

pure virtual

Returns the id for the current update cycle. Every time TEDS goes through a cycle of running query callbacks, this is incremented by one. This guarantees that all query callbacks in the same run see the same cycle id. This can be useful in avoiding duplicated work.

◆ HasColumn() [1/7]

template<typename Column >

bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn ( ) const

◆ HasColumn() [2/7]

template<typename DynamicColumnTemplate >

bool UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::HasColumn ( const FName & Identifier ) const

◆ HasColumn() [3/7]

virtual bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn ( const UScriptStruct * ColumnType ) const

virtual

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ HasColumn() [4/7]

template<typename Column >

bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn ( RowHandle Row ) const

◆ HasColumn() [5/7]

template<TDynamicColumnTemplate DynamicColumnTemplate>

bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn	(	RowHandle	Row,
		const FName &	Identifier
	)		const

◆ HasColumn() [6/7]

template<typename DynamicColumnTemplate >

bool UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::HasColumn	(	RowHandle	Row,
		const FName &	Identifier
	)		const

◆ HasColumn() [7/7]

virtual bool UE::Editor::DataStorage::ICommonQueryContext::HasColumn	(	RowHandle	Row,
		const UScriptStruct *	ColumnType
	)		const

virtual

Implements UE::Editor::DataStorage::ICommonQueryContext.

◆ IsRowAssigned()

virtual bool UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::IsRowAssigned ( RowHandle Row ) const

pure virtual

Checks whether or not a row has been reserved but not yet assigned to a table.

◆ IsRowAvailable()

virtual bool UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::IsRowAvailable ( RowHandle Row ) const

pure virtual

Checks whether or not a row is in use. This is true even if the row has only been reserved.

◆ RemoveColumns() [1/4]

template<typename... Columns>

void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::RemoveColumns ( RowHandle Row )

Removes columns of the provided types from a row. The removal will not be immediately done but delayed until the end of the tick group.

◆ RemoveColumns() [2/4]

virtual void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::RemoveColumns	(	RowHandle	Row,
		TConstArrayView< const UScriptStruct * >	ColumnTypes
	)

pure virtual

Removes columns of the provided types from a row. The removal will not be immediately done but delayed until the end of the tick group.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ RemoveColumns() [3/4]

template<typename... Columns>

void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::RemoveColumns ( TConstArrayView< RowHandle > Rows )

Removes columns of the provided types from the listed rows. The removal will not be immediately done but delayed until the end of the tick group.

◆ RemoveColumns() [4/4]

virtual void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::RemoveColumns	(	TConstArrayView< RowHandle >	Rows,
		TConstArrayView< const UScriptStruct * >	ColumnTypes
	)

pure virtual

Removes columns of the provided types from the listed rows. The removal will not be immediately done but delayed until the end of the tick group.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ RemoveRow()

virtual void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::RemoveRow ( RowHandle Row )

pure virtual

Removes the row with the provided row handle. The removal will not be immediately done but delayed until the end of the tick group.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

◆ RemoveRows()

virtual void UE::Editor::DataStorage::ICommonQueryWithEnvironmentContext::RemoveRows ( TConstArrayView< RowHandle > Rows )

pure virtual

Removes rows with the provided row handles. The removal will not be immediately done but delayed until the end of the tick group.

Implemented in UE::Editor::DataStorage::Queries::FQueryContextForwarder.

The documentation for this struct was generated from the following file:

Engine/Source/Runtime/TypedElementFramework/Public/Elements/Interfaces/TypedElementQueryStorageInterfaces.h

Public Types

Public Member Functions

Additional Inherited Members

Member Typedef Documentation

◆ ObjectCopyOrMove

Member Function Documentation

◆ ActivateQueries()

◆ AddColumn() [1/3]

◆ AddColumn() [2/3]

◆ AddColumn() [3/3]

◆ AddColumns() [1/5]

◆ AddColumns() [2/5]

◆ AddColumns() [3/5]

◆ AddColumns() [4/5]

◆ AddColumns() [5/5]

◆ AddColumnUninitialized() [1/4]

◆ AddColumnUninitialized() [2/4]

◆ AddColumnUninitialized() [3/4]

◆ AddColumnUninitialized() [4/4]

◆ AddRow()

◆ GetColumn() [1/4]

◆ GetColumn() [2/4]

◆ GetColumn() [3/4]

◆ GetColumn() [4/4]

◆ GetMutableColumn() [1/4]

◆ GetMutableColumn() [2/4]

◆ GetMutableColumn() [3/4]

◆ GetMutableColumn() [4/4]

◆ GetUpdateCycleId()

◆ HasColumn() [1/7]

◆ HasColumn() [2/7]

◆ HasColumn() [3/7]

◆ HasColumn() [4/7]

◆ HasColumn() [5/7]

◆ HasColumn() [6/7]

◆ HasColumn() [7/7]

◆ IsRowAssigned()

◆ IsRowAvailable()

◆ RemoveColumns() [1/4]

◆ RemoveColumns() [2/4]

◆ RemoveColumns() [3/4]

◆ RemoveColumns() [4/4]

◆ RemoveRow()

◆ RemoveRows()
