Chaos::TThreadedJointConstraintPhysicsProxyBase< bExternal > Class Template Reference

#include <JointConstraintProxy.h>

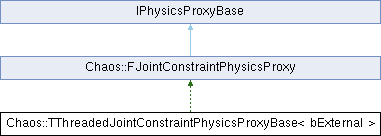

+ Inheritance diagram for Chaos::TThreadedJointConstraintPhysicsProxyBase< bExternal >:

Additional Inherited Members

- Protected Member Functions inherited from Chaos::FJointConstraintPhysicsProxy
 FJointConstraintPhysicsProxy ()=delete

 FJointConstraintPhysicsProxy (FJointConstraint *InConstraint, FPBDJointConstraintHandle *InHandle, UObject *InOwner=nullptr)

void CHAOS_API InitializeOnPhysicsThread (FPBDRigidsSolver *InSolver, FDirtyPropertiesManager &Manager, int32 DataIdx, FDirtyChaosProperties &RemoteData)

void CHAOS_API PushStateOnGameThread (FDirtyPropertiesManager &Manager, int32 DataIdx, FDirtyChaosProperties &RemoteData)

void CHAOS_API PushStateOnPhysicsThread (FPBDRigidsSolver *InSolver, const FDirtyPropertiesManager &Manager, int32 DataIdx, const FDirtyChaosProperties &RemoteData)

void CHAOS_API DestroyOnPhysicsThread (FPBDRigidsSolver *InSolver)

void CHAOS_API DestroyOnGameThread ()

FORCEINLINE Chaos::FJointConstraintHandle_External & GetGameThreadAPI ()

FORCEINLINE const Chaos::FJointConstraintHandle_External & GetGameThreadAPI () const

FORCEINLINE Chaos::FJointConstraintHandle_Internal * GetPhysicsThreadAPI ()

FORCEINLINE const Chaos::FJointConstraintHandle_Internal * GetPhysicsThreadAPI () const

FPBDJointConstraintHandle * GetHandle ()

const FPBDJointConstraintHandle * GetHandle () const

virtual void * GetHandleUnsafe () const override

void SetHandle (FPBDJointConstraintHandle *InHandle)

FJointConstraint * GetConstraint ()

const FJointConstraint * GetConstraint () const

void BufferPhysicsResults (FDirtyJointConstraintData &Buffer)

bool CHAOS_API PullFromPhysicsState (const FDirtyJointConstraintData &Buffer, const int32 SolverSyncTimestamp)

- Protected Member Functions inherited from IPhysicsProxyBase
virtual CHAOS_API ~IPhysicsProxyBase ()

template<typename TProxyTimeStamp >
FORCEINLINE_DEBUGGABLE TProxyTimeStamp & GetSyncTimestampAs ()

CHAOS_API int32 GetSolverSyncTimestamp_External () const

 IPhysicsProxyBase (EPhysicsProxyType InType, UObject *InOwner, TSharedPtr< FProxyTimestampBase, ESPMode::ThreadSafe > InProxyTimeStamp)

UObject * GetOwner () const

template<class SOLVER_TYPE >
SOLVER_TYPE * GetSolver () const

Chaos::FPhysicsSolverBase * GetSolverBase () const

template<class SOLVER_TYPE = Chaos::FPhysicsSolver>
void SetSolver (SOLVER_TYPE *InSolver)

EPhysicsProxyType GetType () const

int32 GetDirtyIdx () const

void SetDirtyIdx (const int32 Idx)

void ResetDirtyIdx ()

void MarkDeleted ()

bool GetMarkedDeleted () const

TSharedPtr< FProxyTimestampBase, ESPMode::ThreadSafe > GetSyncTimestamp () const

bool IsInitialized () const

void SetInitialized (const int32 InitializeStep)

int32 GetInitializedStep () const

int32 GetIgnoreDataOnStep_Internal () const

IPhysicsProxyBase * GetParentProxy () const

void SetParentProxy (IPhysicsProxyBase *InProxy)

- Static Protected Member Functions inherited from Chaos::FJointConstraintPhysicsProxy
static FGeometryParticleHandle * GetParticleHandleFromProxy (IPhysicsProxyBase *ProxyBase)

- Static Protected Member Functions inherited from IPhysicsProxyBase
static float GetRenderInterpErrorCorrectionDuration ()

static float GetRenderInterpMaximumErrorCorrectionBeforeSnapping ()

static float GetRenderInterpErrorVelocitySmoothingDuration ()

static bool GetRenderInterpDebugDraw ()

static float GetRenderInterpErrorDirectionalDecayMultiplier ()

- Protected Attributes inherited from IPhysicsProxyBase
Chaos::FPhysicsSolverBase * Solver

UObject * Owner

EPhysicsProxyType Type

int32 InitializedOnStep = INDEX_NONE

int32 IgnoreDataOnStep_Internal = INDEX_NONE


Detailed Description

template<bool bExternal>
class Chaos::TThreadedJointConstraintPhysicsProxyBase< bExternal >

Wrapper class that routes all reads and writes to the appropriate joint data. This is helpful for cases where we want to both write to a joint and a network buffer for example

The documentation for this class was generated from the following file:
