FBaseGraphTask Class Reference

#include <TaskGraphInterfaces.h>

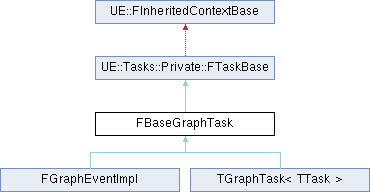

Inheritance diagram for FBaseGraphTask:

Public Member Functions
	FBaseGraphTask (const FGraphEventArray *InPrerequisites)
void	Init (const TCHAR *InDebugName, UE::Tasks::ETaskPriority InPriority, UE::Tasks::EExtendedTaskPriority InExtendedPriority, UE::Tasks::ETaskFlags InTaskFlags=UE::Tasks::ETaskFlags::None)
void	Execute (TArray< FBaseGraphTask * > &NewTasks, ENamedThreads::Type CurrentThread, bool bDeleteOnCompletion)
FGraphEventRef	GetCompletionEvent ()
void	DontCompleteUntil (FGraphEventRef NestedTask)
bool	IsComplete () const
bool	IsTaskEvent () const
void	Unlock (ENamedThreads::Type CurrentThreadIfKnown=ENamedThreads::AnyThread)
void	DispatchSubsequents (ENamedThreads::Type CurrentThreadIfKnown=ENamedThreads::AnyThread)
void	DispatchSubsequents (TArray< FBaseGraphTask * > &NewTasks, ENamedThreads::Type CurrentThreadIfKnown=ENamedThreads::AnyThread)
void	SetDebugName (const TCHAR *InDebugName)
void	Wait (ENamedThreads::Type CurrentThreadIfKnown=ENamedThreads::AnyThread)
ENamedThreads::Type	GetThreadToExecuteOn () const
Public Member Functions inherited from UE::Tasks::Private::FTaskBase
void	AddRef ()
void	Release ()
uint32	GetRefCount (std::memory_order MemoryOrder=std::memory_order_relaxed) const
bool	IsAwaitable () const
bool	IsNamedThreadTask () const
ETaskPriority	GetPriority () const
EExtendedTaskPriority	GetExtendedPriority () const
bool	AddPrerequisites (FTaskBase &Prerequisite)
template<typename HigherLevelTaskType , decltype(std::declval< HigherLevelTaskType >().Pimpl) * = nullptr>
bool	AddPrerequisites (const HigherLevelTaskType &Prerequisite)
template<typename HigherLevelTaskType , std::enable_if_t< std::is_same_v< HigherLevelTaskType, FGraphEventRef > > * = nullptr>
bool	AddPrerequisites (const HigherLevelTaskType &Prerequisite)
template<typename PrerequisiteCollectionType , decltype(std::declval< PrerequisiteCollectionType >().begin()) * = nullptr>
void	AddPrerequisites (const PrerequisiteCollectionType &InPrerequisites)
bool	AddSubsequent (FTaskBase &Subsequent)
void	SetPipe (FPipe &InPipe)
FPipe *	GetPipe () const
bool	Trigger (uint64 TaskSize)
bool	TryLaunch (uint64 TaskSize)
bool	IsCompleted () const
CORE_API bool	TryRetractAndExecute (FTimeout Timeout, uint32 RecursionDepth=0)
void	ReleaseInternalReference ()
void	AddNested (FTaskBase &Nested)
CORE_API bool	Wait (FTimeout Timeout)
CORE_API void	Wait ()
CORE_API void	WaitWithNamedThreadsSupport ()
TaskTrace::FId	GetTraceId () const

Static Public Member Functions
static FGraphEventRef	CreateGraphEvent ()

Additional Inherited Members
Protected Member Functions inherited from UE::Tasks::Private::FTaskBase
	FTaskBase (uint32 InitRefCount, bool bUnlockPrerequisites=true)
void	Init (const TCHAR *InDebugName, ETaskPriority InPriority, EExtendedTaskPriority InExtendedPriority, ETaskFlags Flags)
virtual	~FTaskBase ()
virtual void	ExecuteTask ()=0
template<typename PrerequisiteCollectionType , decltype(std::declval< PrerequisiteCollectionType >().begin()) * = nullptr>
void	AddPrerequisites (const PrerequisiteCollectionType &InPrerequisites, bool bLockPrerequisite)
bool	TryExecuteTask ()
void	Close ()
CORE_API void	ClearPipe ()
void	UnlockPrerequisites ()

Detailed Description

Base class for all graph tasks, used for both TGraphTask and simple graph events. This is a wrapper around the Tasks::Private::FTaskBase functionality

Constructor & Destructor Documentation

FBaseGraphTask()

FBaseGraphTask::FBaseGraphTask ( const FGraphEventArray *  InPrerequisites )

inlineexplicit

Member Function Documentation

CreateGraphEvent()

FGraphEventRef FBaseGraphTask::CreateGraphEvent ( )

inlinestatic

Create a simple task event that can be used as a prerequisite for other tasks, and then manually triggered with DispatchSubsequents

DispatchSubsequents() [1/2]

void FBaseGraphTask::DispatchSubsequents ( ENamedThreads::Type  CurrentThreadIfKnown = ENamedThreads::AnyThread )

inline

Backward compatibility wrapper for Unlock

DispatchSubsequents() [2/2]

void FBaseGraphTask::DispatchSubsequents ( TArray< FBaseGraphTask * > &  NewTasks, ENamedThreads::Type  CurrentThreadIfKnown = ENamedThreads::AnyThread  )

inline

DontCompleteUntil()

void FBaseGraphTask::DontCompleteUntil ( FGraphEventRef  NestedTask )

inline

Call on a currently active task to add a nested task, which will delay any subsequent tasks until the nested task completes. AddPrerequisites should be used instead if the task has not yet been launched.

Execute()

void FBaseGraphTask::Execute ( TArray< FBaseGraphTask * > &  NewTasks, ENamedThreads::Type  CurrentThread, bool  bDeleteOnCompletion  )

inline

GetCompletionEvent()

FGraphEventRef FBaseGraphTask::GetCompletionEvent ( )

inline

Returns a reference to this task that can be used as a prerequisite for new tasks or passed to DontCompleteUntil

GetThreadToExecuteOn()

ENamedThreads::Type FBaseGraphTask::GetThreadToExecuteOn ( ) const

inline

Returns the old-style named thread this task will be executed on

Init()

void FBaseGraphTask::Init ( const TCHAR *  InDebugName, UE::Tasks::ETaskPriority  InPriority, UE::Tasks::EExtendedTaskPriority  InExtendedPriority, UE::Tasks::ETaskFlags  InTaskFlags = UE::Tasks::ETaskFlags::None  )

inline

IsComplete()

bool FBaseGraphTask::IsComplete ( ) const

inline

Return true if this task has finished executing, this wrapper exists for backward compatibility

IsTaskEvent()

bool FBaseGraphTask::IsTaskEvent ( ) const

inline

Returns true if this is a simple task event, which cannot execute code and must be manually dispatched

SetDebugName()

void FBaseGraphTask::SetDebugName ( const TCHAR *  InDebugName )

inline

Unlock()

void FBaseGraphTask::Unlock ( ENamedThreads::Type  CurrentThreadIfKnown = ENamedThreads::AnyThread )

inline

Unlocks a task that was returned from ConstructAndHold or CreateGraphEvent, which may execute immediately if prerequisites are already completed. This can only be safely called exactly once and the caller is responsible for tracking that.

Wait()

void FBaseGraphTask::Wait ( ENamedThreads::Type  CurrentThreadIfKnown = ENamedThreads::AnyThread )

inline

Blocks the current thread and waits for the completion of this task

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Core/Public/Async/TaskGraphInterfaces.h
