Classes | Static Public Member Functions | List of all members
TGraphTask< TTask > Class Template Referencefinal

#include <TaskGraphInterfaces.h>

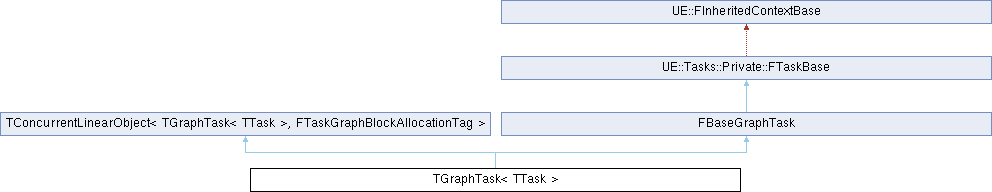

+ Inheritance diagram for TGraphTask< TTask >:

Classes

class  FConstructor


Static Public Member Functions

static FConstructor CreateTask (const FGraphEventArray *Prerequisites=nullptr, ENamedThreads::Type CurrentThreadIfKnown=ENamedThreads::AnyThread)

- Static Public Member Functions inherited from TConcurrentLinearObject< TGraphTask< TTask >, FTaskGraphBlockAllocationTag >
static void * operator new (size_t Size)

static void * operator new (size_t Size, void *Object)

static void * operator new (size_t Size, std::align_val_t Align)

static void * operator new[] (size_t Size)

static void * operator new[] (size_t Size, std::align_val_t Align)

static UE_FORCEINLINE_HINT void operator delete (void *Ptr)

static UE_FORCEINLINE_HINT void operator delete[] (void *Ptr)

- Static Public Member Functions inherited from FBaseGraphTask
static FGraphEventRef CreateGraphEvent ()


Additional Inherited Members

- Public Member Functions inherited from FBaseGraphTask
 FBaseGraphTask (const FGraphEventArray *InPrerequisites)

void Init (const TCHAR *InDebugName, UE::Tasks::ETaskPriority InPriority, UE::Tasks::EExtendedTaskPriority InExtendedPriority, UE::Tasks::ETaskFlags InTaskFlags=UE::Tasks::ETaskFlags::None)

void Execute (TArray< FBaseGraphTask * > &NewTasks, ENamedThreads::Type CurrentThread, bool bDeleteOnCompletion)

FGraphEventRef GetCompletionEvent ()

void DontCompleteUntil (FGraphEventRef NestedTask)

bool IsComplete () const

bool IsTaskEvent () const

void Unlock (ENamedThreads::Type CurrentThreadIfKnown=ENamedThreads::AnyThread)

void DispatchSubsequents (ENamedThreads::Type CurrentThreadIfKnown=ENamedThreads::AnyThread)

void DispatchSubsequents (TArray< FBaseGraphTask * > &NewTasks, ENamedThreads::Type CurrentThreadIfKnown=ENamedThreads::AnyThread)

void SetDebugName (const TCHAR *InDebugName)

void Wait (ENamedThreads::Type CurrentThreadIfKnown=ENamedThreads::AnyThread)

ENamedThreads::Type GetThreadToExecuteOn () const

- Public Member Functions inherited from UE::Tasks::Private::FTaskBase
void AddRef ()

void Release ()

uint32 GetRefCount (std::memory_order MemoryOrder=std::memory_order_relaxed) const

bool IsAwaitable () const

bool IsNamedThreadTask () const

ETaskPriority GetPriority () const

EExtendedTaskPriority GetExtendedPriority () const

bool AddPrerequisites (FTaskBase &Prerequisite)

template<typename HigherLevelTaskType , decltype(std::declval< HigherLevelTaskType >().Pimpl) * = nullptr>
bool AddPrerequisites (const HigherLevelTaskType &Prerequisite)

template<typename HigherLevelTaskType , std::enable_if_t< std::is_same_v< HigherLevelTaskType, FGraphEventRef > > * = nullptr>
bool AddPrerequisites (const HigherLevelTaskType &Prerequisite)

template<typename PrerequisiteCollectionType , decltype(std::declval< PrerequisiteCollectionType >().begin()) * = nullptr>
void AddPrerequisites (const PrerequisiteCollectionType &InPrerequisites)

bool AddSubsequent (FTaskBase &Subsequent)

void SetPipe (FPipe &InPipe)

FPipe * GetPipe () const

bool Trigger (uint64 TaskSize)

bool TryLaunch (uint64 TaskSize)

bool IsCompleted () const

CORE_API bool TryRetractAndExecute (FTimeout Timeout, uint32 RecursionDepth=0)

void ReleaseInternalReference ()

void AddNested (FTaskBase &Nested)

CORE_API bool Wait (FTimeout Timeout)

CORE_API void Wait ()

CORE_API void WaitWithNamedThreadsSupport ()

TaskTrace::FId GetTraceId () const

- Protected Member Functions inherited from UE::Tasks::Private::FTaskBase
 FTaskBase (uint32 InitRefCount, bool bUnlockPrerequisites=true)

void Init (const TCHAR *InDebugName, ETaskPriority InPriority, EExtendedTaskPriority InExtendedPriority, ETaskFlags Flags)

virtual ~FTaskBase ()

template<typename PrerequisiteCollectionType , decltype(std::declval< PrerequisiteCollectionType >().begin()) * = nullptr>
void AddPrerequisites (const PrerequisiteCollectionType &InPrerequisites, bool bLockPrerequisite)

bool TryExecuteTask ()

void Close ()

CORE_API void ClearPipe ()

void UnlockPrerequisites ()


Detailed Description

template<typename TTask>
class TGraphTask< TTask >

Templated graph task that is created to execute a specific function

Member Function Documentation

◆ CreateTask()

template<typename TTask >
static FConstructor TGraphTask< TTask >::CreateTask ( const FGraphEventArray *  Prerequisites = nullptr,
ENamedThreads::Type  CurrentThreadIfKnown = ENamedThreads::AnyThread
)
inlinestatic

Factory to create a task and return the helper object to construct the embedded task and set it up for execution.

Parameters
Prerequisites;the list of FGraphEvents that must be completed prior to this task executing.
CurrentThreadIfKnown;provides the index of the thread we are running on. Can be ENamedThreads::AnyThread if the current thread is unknown.
Returns
a temporary helper class which can be used to complete the process.
The documentation for this class was generated from the following file:
