FCanvasTextItemBase Class Reference

#include <CanvasItem.h>

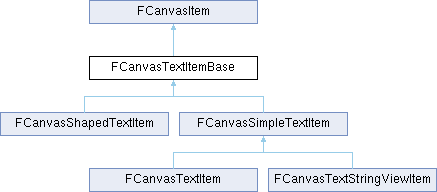

Inheritance diagram for FCanvasTextItemBase:

Classes
struct	FTextEffect

Public Member Functions
ENGINE_API	FCanvasTextItemBase (const FVector2D &InPosition, const FLinearColor &InColor)
virtual ENGINE_API	~FCanvasTextItemBase ()
void	EnableShadow (const FLinearColor &InColor, const FVector2D &InOffset=FVector2D(1.0f, 1.0f))
void	DisableShadow ()
virtual ENGINE_API void	Draw (FCanvas *InCanvas) override
virtual void	SetColor (const FLinearColor &InColor) override final
virtual void	Draw (FCanvas *InCanvas)=0
virtual void	Draw (FCanvas *InCanvas, const FVector2D &InPosition)
virtual void	Draw (FCanvas *InCanvas, float X, float Y)
Public Member Functions inherited from FCanvasItem
	FCanvasItem (const FVector2D &InPosition)
virtual	~FCanvasItem ()

Public Attributes
float	HorizSpacingAdjust
float	Depth
FFontRenderInfo	FontRenderInfo
FLinearColor	ShadowColor
FVector2D	ShadowOffset
FVector2D	DrawnSize
bool	bCentreX
bool	bCentreY
bool	bOutlined
FLinearColor	OutlineColor
bool	bDontCorrectStereoscopic
FVector2D	Scale
Public Attributes inherited from FCanvasItem
FVector2D	Position
uint32	StereoDepth
ESimpleElementBlendMode	BlendMode
bool	bFreezeTime
FBatchedElementParameters *	BatchedElementParameters

Protected Member Functions
virtual bool	HasValidText () const =0
virtual ESimpleElementBlendMode	GetTextBlendMode (const bool bHasShadow) const =0
virtual FVector2D	GetTextSize (float DPIScale) const =0
virtual void	DrawStringInternal (FCanvas *InCanvas, const FVector2D &DrawPos, const FLinearColor &DrawColor, TArrayView< FTextEffect > Offsets)=0

Protected Attributes
FCanvasTileItem	TileItem
FBatchedElements *	BatchedElements
Protected Attributes inherited from FCanvasItem
FLinearColor	Color

Constructor & Destructor Documentation

FCanvasTextItemBase()

FCanvasTextItemBase::FCanvasTextItemBase	(	const FVector2D &	InPosition,
		const FLinearColor &	InColor
	)

~FCanvasTextItemBase()

FCanvasTextItemBase::~FCanvasTextItemBase ( )

virtualdefault

Member Function Documentation

DisableShadow()

void FCanvasTextItemBase::DisableShadow ( )

inline

Disable the shadow

Draw() [1/4]

void FCanvasTextItemBase::Draw ( FCanvas *  InCanvas )

overridevirtual

Draw the item at the given coordinates.

Parameters

InCanvas

Canvas on which to draw

Implements FCanvasItem.

Draw() [2/4]

virtual void FCanvasItem::Draw ( FCanvas *  InCanvas )

virtual

Implements FCanvasItem.

Draw() [3/4]

virtual void FCanvasItem::Draw ( FCanvas *  InCanvas, const FVector2D &  InPosition  )

inlinevirtual

Draw this item (this will affect the items position for future draw calls that do no specify a position)

Parameters

InCanvas	Canvas on which to draw
InPosition	Draw position - this will not preserve the items position

Reimplemented from FCanvasItem.

Draw() [4/4]

virtual void FCanvasItem::Draw ( FCanvas *  InCanvas, float  X, float  Y  )

inlinevirtual

Draw this item (this will affect the items position for future draw calls that do no specify a position)

Parameters

InCanvas	Canvas on which to draw
X	X Draw position
Y	Y Draw position

Reimplemented from FCanvasItem.

DrawStringInternal()

virtual void FCanvasTextItemBase::DrawStringInternal ( FCanvas *  InCanvas, const FVector2D &  DrawPos, const FLinearColor &  DrawColor, TArrayView< FTextEffect >  Offsets  )

protectedpure virtual

Internal string draw

In a method to make it simpler to do effects like shadow, outline

Implemented in FCanvasSimpleTextItem, FCanvasTextItem, FCanvasTextStringViewItem, and FCanvasShapedTextItem.

EnableShadow()

void FCanvasTextItemBase::EnableShadow ( const FLinearColor &  InColor, const FVector2D &  InOffset = FVector2D( 1.0f, 1.0f )  )

inline

Set the shadow offset and color.

Parameters

InColor	Shadow color
InOffset	Shadow offset. Defaults to 1,1. (Passing zero vector will disable the shadow)

GetTextBlendMode()

virtual ESimpleElementBlendMode FCanvasTextItemBase::GetTextBlendMode ( const bool  bHasShadow ) const

protectedpure virtual

Get the blend mode we should use to draw this text

Implemented in FCanvasSimpleTextItem, and FCanvasShapedTextItem.

GetTextSize()

virtual FVector2D FCanvasTextItemBase::GetTextSize ( float  DPIScale ) const

protectedpure virtual

Get the measured size of the text to draw

Implemented in FCanvasTextItem, FCanvasTextStringViewItem, FCanvasShapedTextItem, and FCanvasSimpleTextItem.

HasValidText()

virtual bool FCanvasTextItemBase::HasValidText ( ) const

protectedpure virtual

Does this text item have valid text to draw?

Implemented in FCanvasTextItem, FCanvasTextStringViewItem, FCanvasShapedTextItem, and FCanvasSimpleTextItem.

SetColor()

virtual void FCanvasTextItemBase::SetColor ( const FLinearColor &  InColor )

inlinefinaloverridevirtual

Reimplemented from FCanvasItem.

Member Data Documentation

BatchedElements

FBatchedElements* FCanvasTextItemBase::BatchedElements

protected

These are used by the DrawStringInternal function.

bCentreX

bool FCanvasTextItemBase::bCentreX

bCentreY

bool FCanvasTextItemBase::bCentreY

bDontCorrectStereoscopic

bool FCanvasTextItemBase::bDontCorrectStereoscopic

bOutlined

bool FCanvasTextItemBase::bOutlined

Depth

float FCanvasTextItemBase::Depth

DrawnSize

FVector2D FCanvasTextItemBase::DrawnSize

FontRenderInfo

FFontRenderInfo FCanvasTextItemBase::FontRenderInfo

HorizSpacingAdjust

float FCanvasTextItemBase::HorizSpacingAdjust

OutlineColor

FLinearColor FCanvasTextItemBase::OutlineColor

Scale

FVector2D FCanvasTextItemBase::Scale

ShadowColor

FLinearColor FCanvasTextItemBase::ShadowColor

ShadowOffset

FVector2D FCanvasTextItemBase::ShadowOffset

TileItem

FCanvasTileItem FCanvasTextItemBase::TileItem

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Engine/Public/CanvasItem.h
• Engine/Source/Runtime/Engine/Private/UserInterface/CanvasItem.cpp
