FCanvasSimpleTextItem Class Reference

#include <CanvasItem.h>

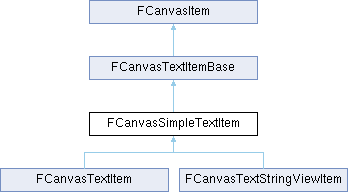

Inheritance diagram for FCanvasSimpleTextItem:

Public Member Functions
	FCanvasSimpleTextItem (const FVector2D &InPosition, const UFont *InFont, const FLinearColor &InColor)
	FCanvasSimpleTextItem (const FVector2D &InPosition, const FSlateFontInfo &InFontInfo, const FLinearColor &InColor)
virtual	~FCanvasSimpleTextItem () override=default
Public Member Functions inherited from FCanvasTextItemBase
ENGINE_API	FCanvasTextItemBase (const FVector2D &InPosition, const FLinearColor &InColor)
virtual ENGINE_API	~FCanvasTextItemBase ()
void	EnableShadow (const FLinearColor &InColor, const FVector2D &InOffset=FVector2D(1.0f, 1.0f))
void	DisableShadow ()
virtual ENGINE_API void	Draw (FCanvas *InCanvas) override
virtual void	SetColor (const FLinearColor &InColor) override final
virtual void	Draw (FCanvas *InCanvas)=0
virtual void	Draw (FCanvas *InCanvas, const FVector2D &InPosition)
virtual void	Draw (FCanvas *InCanvas, float X, float Y)
Public Member Functions inherited from FCanvasItem
	FCanvasItem (const FVector2D &InPosition)
virtual	~FCanvasItem ()

Public Attributes
const UFont *	Font
TOptional< FSlateFontInfo >	SlateFontInfo
Public Attributes inherited from FCanvasTextItemBase
float	HorizSpacingAdjust
float	Depth
FFontRenderInfo	FontRenderInfo
FLinearColor	ShadowColor
FVector2D	ShadowOffset
FVector2D	DrawnSize
bool	bCentreX
bool	bCentreY
bool	bOutlined
FLinearColor	OutlineColor
bool	bDontCorrectStereoscopic
FVector2D	Scale
Public Attributes inherited from FCanvasItem
FVector2D	Position
uint32	StereoDepth
ESimpleElementBlendMode	BlendMode
bool	bFreezeTime
FBatchedElementParameters *	BatchedElementParameters

Protected Member Functions
ENGINE_API EFontCacheType	GetFontCacheType () const
virtual bool	HasValidText () const override=0
virtual ENGINE_API ESimpleElementBlendMode	GetTextBlendMode (const bool bHasShadow) const override
virtual FVector2D	GetTextSize (float DPIScale) const override=0
virtual void	DrawStringInternal (FCanvas *InCanvas, const FVector2D &DrawPos, const FLinearColor &DrawColor, TArrayView< FTextEffect > Offsets) override=0
ENGINE_API FVector2D	GetTextSizeInternal (FStringView Text, float DPIScale) const
ENGINE_API void	DrawStringInternal (FCanvas *InCanvas, FStringView Text, const FVector2D &DrawPos, const FLinearColor &DrawColor, TArrayView< FTextEffect > TextEffects)
ENGINE_API void	DrawStringInternal_OfflineCache (FCanvas *InCanvas, FStringView Text, const FVector2D &DrawPos, const FLinearColor &DrawColor, TArrayView< FTextEffect > TextEffects)
ENGINE_API void	DrawStringInternal_RuntimeCache (FCanvas *InCanvas, FStringView Text, const FVector2D &DrawPos, const FLinearColor &DrawColor, TArrayView< FTextEffect > TextEffects)

Additional Inherited Members
Protected Attributes inherited from FCanvasTextItemBase
FCanvasTileItem	TileItem
FBatchedElements *	BatchedElements
Protected Attributes inherited from FCanvasItem
FLinearColor	Color

Constructor & Destructor Documentation

FCanvasSimpleTextItem() [1/2]

FCanvasSimpleTextItem::FCanvasSimpleTextItem ( const FVector2D &  InPosition, const UFont *  InFont, const FLinearColor &  InColor  )

inline

Constructor.

Parameters

InPosition	Draw position.
InFont	Font to draw with.
InColor	Color to draw the text with.

FCanvasSimpleTextItem() [2/2]

FCanvasSimpleTextItem::FCanvasSimpleTextItem ( const FVector2D &  InPosition, const FSlateFontInfo &  InFontInfo, const FLinearColor &  InColor  )

inline

Constructor.

Parameters

InPosition	Draw position.
InFontInfo	Font info to draw with.
InColor	Color to draw the text with.

~FCanvasSimpleTextItem()

virtual FCanvasSimpleTextItem::~FCanvasSimpleTextItem ( )

overridevirtualdefault

Member Function Documentation

DrawStringInternal() [1/2]

virtual void FCanvasSimpleTextItem::DrawStringInternal ( FCanvas *  InCanvas, const FVector2D &  DrawPos, const FLinearColor &  DrawColor, TArrayView< FTextEffect >  Offsets  )

overrideprotectedpure virtual

Internal string draw

In a method to make it simpler to do effects like shadow, outline

Implements FCanvasTextItemBase.

Implemented in FCanvasTextItem, and FCanvasTextStringViewItem.

DrawStringInternal() [2/2]

void FCanvasSimpleTextItem::DrawStringInternal ( FCanvas *  InCanvas, FStringView  Text, const FVector2D &  DrawPos, const FLinearColor &  DrawColor, TArrayView< FTextEffect >  TextEffects  )

protected

DrawStringInternal_OfflineCache()

void FCanvasSimpleTextItem::DrawStringInternal_OfflineCache ( FCanvas *  InCanvas, FStringView  Text, const FVector2D &  DrawPos, const FLinearColor &  DrawColor, TArrayView< FTextEffect >  TextEffects  )

protected

Internal string draw

In a method to make it simpler to do effects like shadow, outline

DrawStringInternal_RuntimeCache()

void FCanvasSimpleTextItem::DrawStringInternal_RuntimeCache ( FCanvas *  InCanvas, FStringView  Text, const FVector2D &  DrawPos, const FLinearColor &  DrawColor, TArrayView< FTextEffect >  TextEffects  )

protected

GetFontCacheType()

EFontCacheType FCanvasSimpleTextItem::GetFontCacheType ( ) const

protected

Get the type of font cache the UFont is using

GetTextBlendMode()

ESimpleElementBlendMode FCanvasSimpleTextItem::GetTextBlendMode ( const bool  bHasShadow ) const

overrideprotectedvirtual

Get the blend mode we should use to draw this text

Implements FCanvasTextItemBase.

GetTextSize()

virtual FVector2D FCanvasSimpleTextItem::GetTextSize ( float  DPIScale ) const

overrideprotectedpure virtual

Get the measured size of the text to draw

Implements FCanvasTextItemBase.

Implemented in FCanvasTextItem, and FCanvasTextStringViewItem.

GetTextSizeInternal()

FVector2D FCanvasSimpleTextItem::GetTextSizeInternal ( FStringView  Text, float  DPIScale  ) const

protected

HasValidText()

bool FCanvasSimpleTextItem::HasValidText ( ) const

overrideprotectedpure virtual

Does this text item have valid text to draw?

Implements FCanvasTextItemBase.

Implemented in FCanvasTextItem, and FCanvasTextStringViewItem.

Member Data Documentation

Font

const UFont* FCanvasSimpleTextItem::Font

SlateFontInfo

TOptional<FSlateFontInfo> FCanvasSimpleTextItem::SlateFontInfo

Font info to draw the text with.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Engine/Public/CanvasItem.h
• Engine/Source/Runtime/Engine/Private/UserInterface/CanvasItem.cpp
