UDocumentation UE5.7 10.02.2026 (Source)
API documentation for Unreal Engine 5.7
Public Types | List of all members
FD3D12VertexShader Class Reference

#include <D3D12Shader.h>

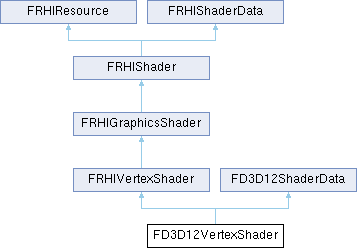

+ Inheritance diagram for FD3D12VertexShader:

Public Types

enum  { StaticFrequency = SF_Vertex }


Additional Inherited Members

- Public Member Functions inherited from FRHIVertexShader
 FRHIVertexShader ()

- Public Member Functions inherited from FRHIGraphicsShader
 FRHIGraphicsShader (ERHIResourceType InResourceType, EShaderFrequency InFrequency)

- Public Member Functions inherited from FRHIShader
void SetHash (const FSHAHash &InHash)

const FSHAHash & GetHash () const

bool HasShaderName () const

const TCHAR * GetShaderName () const

FString GetUniformBufferName (uint32 Index) const

 FRHIShader ()=delete

 FRHIShader (ERHIResourceType InResourceType, EShaderFrequency InFrequency)

EShaderFrequency GetFrequency () const

void SetNoDerivativeOps (bool bValue)

bool HasNoDerivativeOps () const

void SetShaderBundleUsage (bool bValue)

bool HasShaderBundleUsage () const

- Public Member Functions inherited from FRHIResource
RHI_API FRHIResource (ERHIResourceType InResourceType)

uint32 AddRef () const

uint32 Release () const

uint32 GetRefCount () const

bool IsValid () const

void DisableLifetimeExtension ()

ERHIResourceType GetType () const

FName GetOwnerName () const

void SetOwnerName (FName InOwnerName)

- Public Member Functions inherited from FRHIShaderData
const FShaderResourceTable & GetShaderResourceTable () const

const TArray< FUniformBufferStaticSlot > & GetStaticSlots () const

void SerializeShaderResourceTable (FArchive &Ar)

- Public Member Functions inherited from FD3D12ShaderData
D3D12_SHADER_BYTECODE GetShaderBytecode () const

ShaderBytecodeHash GetBytecodeHash () const

FORCEINLINE EShaderCodeFeatures GetFeatures () const

FORCEINLINE bool UsesDiagnosticBuffer () const

FORCEINLINE bool UsesGlobalUniformBuffer () const

FORCEINLINE bool UsesRootConstants () const

bool InitCommon (TArrayView< const uint8 > InCode)

- Public Attributes inherited from FRHIShader
struct {

   FString   ShaderName

   TArray< FName >   UniformBufferNames

} Debug

TArray< FShaderCodeValidationStride > DebugStrideValidationData

TArray< FShaderCodeValidationType > DebugSRVTypeValidationData

TArray< FShaderCodeValidationType > DebugUAVTypeValidationData

TArray< FShaderCodeValidationUBSize > DebugUBSizeValidationData

- Public Attributes inherited from FD3D12ShaderData
TArray< uint8 > Code

FShaderCodePackedResourceCounts ResourceCounts {}

uint32 ShaderBindingLayoutHash = 0

- Protected Member Functions inherited from FRHIResource
virtual RHI_API ~FRHIResource ()

- Protected Attributes inherited from FRHIShaderData
FShaderResourceTable ShaderResourceTable

TArray< FUniformBufferStaticSlot > StaticSlots


Detailed Description

This represents a vertex shader that hasn't been combined with a specific declaration to create a bound shader.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
Enumerator
StaticFrequency
The documentation for this class was generated from the following file:
