IDatasmithPointLightElement Class Reference

#include <IDatasmithSceneElements.h>

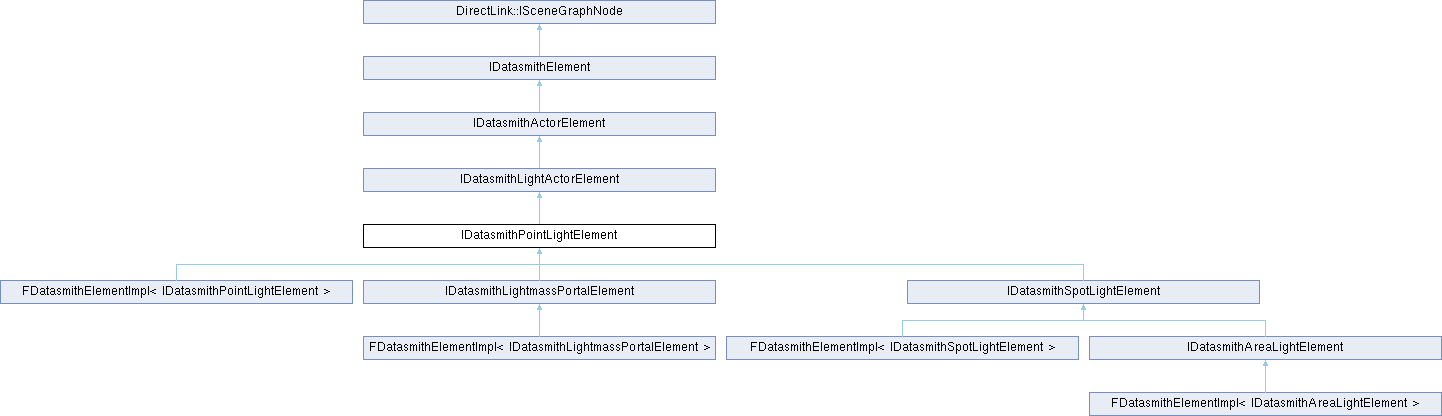

Inheritance diagram for IDatasmithPointLightElement:

Public Member Functions
virtual void	SetIntensityUnits (EDatasmithLightUnits InUnits)=0
virtual EDatasmithLightUnits	GetIntensityUnits () const =0
virtual float	GetSourceRadius () const =0
virtual void	SetSourceRadius (float SourceRadius)=0
virtual float	GetSourceLength () const =0
virtual void	SetSourceLength (float SourceLength)=0
virtual float	GetAttenuationRadius () const =0
virtual void	SetAttenuationRadius (float AttenuationRadius)=0
Public Member Functions inherited from IDatasmithLightActorElement
virtual	~IDatasmithLightActorElement ()
virtual bool	IsEnabled () const =0
virtual void	SetEnabled (bool bIsEnabled)=0
virtual double	GetIntensity () const =0
virtual void	SetIntensity (double Intensity)=0
virtual FLinearColor	GetColor () const =0
virtual void	SetColor (FLinearColor Color)=0
virtual double	GetTemperature () const =0
virtual void	SetTemperature (double Temperature)=0
virtual bool	GetUseTemperature () const =0
virtual void	SetUseTemperature (bool bUseTemperature)=0
virtual const TCHAR *	GetIesFile () const =0
virtual const TCHAR *	GetIesTexturePathName () const =0
virtual void	SetIesFile (const TCHAR *IesFile)=0
virtual void	SetIesTexturePathName (const TCHAR *TextureName)=0
virtual bool	GetUseIes () const =0
virtual void	SetUseIes (bool bUseIes)=0
virtual double	GetIesBrightnessScale () const =0
virtual void	SetIesBrightnessScale (double IesBrightnessScale)=0
virtual bool	GetUseIesBrightness () const =0
virtual void	SetUseIesBrightness (bool bUseIesBrightness)=0
virtual FQuat	GetIesRotation () const =0
virtual void	SetIesRotation (const FQuat &IesRotation)=0
virtual TSharedPtr< IDatasmithMaterialIDElement > &	GetLightFunctionMaterial ()=0
virtual void	SetLightFunctionMaterial (const TSharedPtr< IDatasmithMaterialIDElement > &InMaterial)=0
virtual void	SetLightFunctionMaterial (const TCHAR *InMaterialName)=0
Public Member Functions inherited from IDatasmithActorElement
virtual	~IDatasmithActorElement ()
virtual FVector	GetTranslation () const =0
virtual void	SetTranslation (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetTranslation (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FVector	GetScale () const =0
virtual void	SetScale (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetScale (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FQuat	GetRotation () const =0
virtual void	SetRotation (double InX, double InY, double InZ, double InW, bool bKeepChildrenRelative=true)=0
virtual void	SetRotation (const FQuat &Value, bool bKeepChildrenRelative=true)=0
virtual FTransform	GetRelativeTransform () const =0
virtual const TCHAR *	GetLayer () const =0
virtual void	SetLayer (const TCHAR *InLayer)=0
virtual void	AddTag (const TCHAR *InTag)=0
virtual void	ResetTags ()=0
virtual int32	GetTagsCount () const =0
virtual const TCHAR *	GetTag (int32 TagIndex) const =0
virtual void	AddChild (const TSharedPtr< IDatasmithActorElement > &InChild, EDatasmithActorAttachmentRule AttachementRule=EDatasmithActorAttachmentRule::KeepWorldTransform)=0
virtual int32	GetChildrenCount () const =0
virtual TSharedPtr< IDatasmithActorElement >	GetChild (int32 InIndex)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetChild (int32 InIndex) const =0
virtual void	RemoveChild (const TSharedPtr< IDatasmithActorElement > &InChild)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetParentActor () const =0
virtual void	SetIsAComponent (bool Value)=0
virtual bool	IsAComponent () const =0
virtual void	SetVisibility (bool bInVisibility)=0
virtual bool	GetVisibility () const =0
virtual void	SetCastShadow (bool bInCastShadow)=0
virtual bool	GetCastShadow () const =0
virtual void	SetMobility (EDatasmithActorMobilityType Mobility)=0
virtual EDatasmithActorMobilityType	GetMobility () const =0
Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Member Function Documentation

GetAttenuationRadius()

virtual float IDatasmithPointLightElement::GetAttenuationRadius ( ) const

pure virtual

Get attenuation radius in centimeters

GetIntensityUnits()

virtual EDatasmithLightUnits IDatasmithPointLightElement::GetIntensityUnits ( ) const

pure virtual

GetSourceLength()

virtual float IDatasmithPointLightElement::GetSourceLength ( ) const

pure virtual

Get light length only affects 2D shaped lights

GetSourceRadius()

virtual float IDatasmithPointLightElement::GetSourceRadius ( ) const

pure virtual

Get light radius, width in case of 2D light sources

SetAttenuationRadius()

virtual void IDatasmithPointLightElement::SetAttenuationRadius ( float  AttenuationRadius )

pure virtual

Set attenuation radius in centimeters

SetIntensityUnits()

virtual void IDatasmithPointLightElement::SetIntensityUnits ( EDatasmithLightUnits  InUnits )

pure virtual

SetSourceLength()

virtual void IDatasmithPointLightElement::SetSourceLength ( float  SourceLength )

pure virtual

Set light length only affects 2D shaped lights

SetSourceRadius()

virtual void IDatasmithPointLightElement::SetSourceRadius ( float  SourceRadius )

pure virtual

Set light radius, width in case of 2D light sources

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
