UE::CADKernel::TPolylineCurve< PointType, PointCurveType > Class Template Reference

#include <PolylineCurve.h>

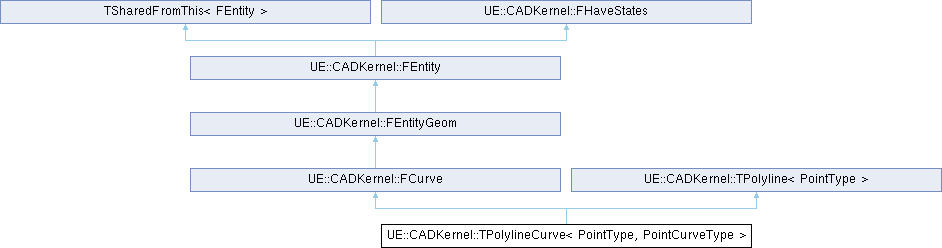

+ Inheritance diagram for UE::CADKernel::TPolylineCurve< PointType, PointCurveType >:

Public Member Functions

virtual void Serialize (FCADKernelArchive &Ar) override

virtual void EvaluateCurvesPoint (double InCoordinate, PointCurveType &OutPoint, int32 InDerivativeOrder=0) const

PointType EvaluatePointAt (double InCoordinate) const

virtual void EvaluateCurvesPoints (const TArray< double > &InCoordinates, TArray< PointCurveType > &OutPoints, int32 InDerivativeOrder=0) const

virtual double ComputeSubLength (const FLinearBoundary &InBoundary) const

const TArray< PointType > & GetPolylinePoints () const

const TArray< double > & GetPolylineParameters () const

virtual void FindNotDerivableCoordinates (const FLinearBoundary &InBoundary, int32 DerivativeOrder, TArray< double > &OutNotDerivableCoordinates) const override

void SetPoints (const TArray< PointType > &InPoints)

template<class PolylineType >
TSharedPtr< FEntityGeom > ApplyMatrixImpl (const FMatrixH &InMatrix) const

virtual void Offset (const FVector &OffsetDirection) override

virtual void ExtendTo (const FVector &DesiredPoint) override

- Public Member Functions inherited from UE::CADKernel::FCurve
int32 GetDimension () const

virtual EEntity GetEntityType () const override

virtual ECurve GetCurveType () const =0

double GetUMin () const

double GetUMax () const

const FLinearBoundary & GetBoundary () const

virtual TSharedPtr< FEntityGeom > ApplyMatrix (const FMatrixH &InMatrix) const override=0

virtual double GetLength (double Tolerance) const

virtual void EvaluatePoint (double Coordinate, FCurvePoint &OutPoint, int32 DerivativeOrder=0) const

virtual FVector EvaluatePoint (double Coordinate) const

virtual void Evaluate2DPoint (double Coordinate, FCurvePoint2D &OutPoint, int32 DerivativeOrder=0) const

virtual FVector2d Evaluate2DPoint (double Coordinate) const

virtual void Evaluate2DPoint (double Coordinate, FVector2d &OutPoint) const

virtual void EvaluatePoints (const TArray< double > &Coordinates, TArray< FCurvePoint > &OutPoints, int32 DerivativeOrder=0) const

virtual void EvaluatePoints (const TArray< double > &Coordinates, TArray< FVector > &OutPoints) const

virtual void Evaluate2DPoints (const TArray< double > &Coordinates, TArray< FVector2d > &OutPoints) const

virtual void Evaluate2DPoints (const TArray< double > &Coordinates, TArray< FCurvePoint2D > &OutPoints, int32 DerivativeOrder=0) const

void FindNotDerivableCoordinates (int32 DerivativeOrder, TArray< double > &OutNotDerivableCoordinates) const

void Presample (TArray< double > &OutSampling, double Tolerance) const

virtual void Presample (const FLinearBoundary &InBoundary, double Tolerance, TArray< double > &OutSampling) const

virtual TSharedPtr< FCurve > MakeBoundedCurve (const FLinearBoundary &InBoundary)

virtual TSharedPtr< FCurve > Rebound (const FLinearBoundary &InBoundary)

virtual void ExtendTo (const FVector2d &DesiredPosition)

- Public Member Functions inherited from UE::CADKernel::FEntityGeom
 FEntityGeom ()=default

FIdent GetKioId () const

- Public Member Functions inherited from UE::CADKernel::FEntity
virtual ~FEntity ()

virtual void Delete ()

virtual void Empty ()

bool IsTopologicalEntity () const

bool IsTopologicalShapeEntity () const

bool IsGeometricalEntity ()

const TCHAR * GetTypeName () const

const FIdent & GetId () const

virtual void SpawnIdent (FDatabase &Database)

virtual void ResetMarkersRecursively () const

- Public Member Functions inherited from TSharedFromThis< FEntity >
TSharedRef< FEntity, Mode > AsShared ()

TSharedRef< FEntity const, Mode > AsShared () const

TSharedRef< SubobjectType, Mode > AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< FEntity, Mode > AsWeak ()

TWeakPtr< FEntity const, Mode > AsWeak () const

TWeakPtr< SubobjectType, Mode > AsWeakSubobject (SubobjectType *SubobjectPtr) const

void UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const *InSharedPtr, OtherType *InObject) const

void UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const *InSharedRef, OtherType *InObject) const

UE_FORCEINLINE_HINT bool DoesSharedInstanceExist () const

- Public Member Functions inherited from UE::CADKernel::FHaveStates
 FHaveStates ()

void Serialize (FCADKernelArchive &Ar)

void ResetElementStatus ()

bool HasMarker1 () const

bool HasMarker2 () const

bool HasMarker1And2 () const

bool HasMarker1Or2 () const

void SetMarker1 () const

void SetMarker2 () const

void ResetMarker1 () const

void ResetMarker2 () const

void ResetMarkers () const

bool IsDeleted () const

void SetDeletedMarker () const

void ResetDeleted () const

virtual bool IsDeletedOrDegenerated () const

virtual bool IsDegenerated () const

virtual void SetAsDegenerated () const

virtual void ResetDegenerated () const

void SetWaitingMarker () const

void ResetWaitingMarker () const

virtual bool IsWaiting () const

void SetProcessedMarker () const

void ResetProcessedMarker () const

virtual bool IsProcessed () const

virtual bool IsProcessedDeletedOrDegenerated () const

void SetToProcessMarker () const

void ResetToProcessMarker () const

virtual bool IsToProcess () const

virtual bool IsNotToProcess () const

virtual bool IsNotToOrAlreadyProcess () const

- Public Member Functions inherited from UE::CADKernel::TPolyline< PointType >
 TPolyline (const TArray< PointType > &InPoints, const TArray< double > &InCoordinates)

 TPolyline (const TArray< PointType > &InPoints)

 TPolyline ()

void Serialize (FCADKernelArchive &Ar)

PointType ApproximatePoint (double InCoordinate) const

void ApproximatePoints (const TArray< double > &InCoordinates, TArray< PointType > &OutPoints) const

void GetSubPolyline (const FLinearBoundary &InBoundary, const EOrientation InOrientation, TArray< PointType > &OutPoints) const

void UpdateSubPolylineBBox (const FLinearBoundary &InBoundary, FPolylineBBox &OutBBox) const

void Sample (const FLinearBoundary &Boundary, const double DesiredSegmentLength, TArray< double > &OutCoordinates) const

double GetCoordinateOfProjectedPoint (const FLinearBoundary &Boundary, const PointType &PointOnEdge, PointType &ProjectedPoint) const

void ProjectPoints (const FLinearBoundary &InBoundary, const TArray< PointType > &InPointsToProject, TArray< double > &ProjectedPointCoordinates, TArray< PointType > &ProjectedPoints) const

const PointType & GetPointAt (int32 Index) const

const TArray< PointType > & GetPoints () const

const TArray< double > & GetCoordinates () const

TArray< double > & GetCoordinates ()

void SwapCoordinates (TArray< double > &NewCoordinates)

void GetAt (int32 Index, double &Coordinate, PointType &Point)

int32 Size () const

void Reserve (int32 Number)

void Empty (int32 Slack=0)

void EmplaceAt (int32 Index, TPolyline< PointType > &Polyline, int32 PointIndex)

void RemoveComplementaryPoints (int32 Offset)

void Pop ()

double GetLength (const FLinearBoundary &InBoundary) const


Protected Member Functions

 TPolylineCurve (const TArray< PointType > &InPoints, const TArray< double > &InCoordinates, int8 InDimension)

 TPolylineCurve (const TArray< PointType > &InPoints, int8 InDimension)

 TPolylineCurve ()

- Protected Member Functions inherited from UE::CADKernel::FCurve
 FCurve (int8 InDimension=3)

 FCurve (const FLinearBoundary &InBounds, int8 InDimension=3)

virtual double ComputeLength (const FLinearBoundary &InBoundary, double Tolerance) const

virtual double ComputeLength2D (const FLinearBoundary &InBoundary, double Tolerance) const

- Protected Member Functions inherited from UE::CADKernel::FEntity
bool SetId (FDatabase &Database)

- Protected Member Functions inherited from TSharedFromThis< FEntity >
 TSharedFromThis ()

 TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThis & operator= (TSharedFromThis const &)

 ~TSharedFromThis ()


Protected Attributes

TPolylineApproximator< PointType > Approximator

- Protected Attributes inherited from UE::CADKernel::FCurve
TCache< double > GlobalLength

FLinearBoundary Boundary

int8 Dimension

- Protected Attributes inherited from UE::CADKernel::FEntityGeom
FIdent CtKioId = 0

- Protected Attributes inherited from UE::CADKernel::FEntity
FIdent Id = 0

- Protected Attributes inherited from UE::CADKernel::FHaveStates
EHaveStates States


Friends

class FEntity

class FPolylineTools


Additional Inherited Members

- Static Public Member Functions inherited from UE::CADKernel::FCurve
static TSharedPtr< FCurve > MakeNurbsCurve (FNurbsCurveData &InNurbsData)

static TSharedPtr< FCurve > MakeBezierCurve (const TArray< FVector > &InPoles)

static TSharedPtr< FCurve > MakeSplineCurve (const TArray< FVector > &InPoles)

static TSharedPtr< FCurve > MakeSplineCurve (const TArray< FVector > &InPoles, const TArray< FVector > &Tangents)

static TSharedPtr< FCurve > MakeSplineCurve (const TArray< FVector > &InPoles, const TArray< FVector > &ArriveTangents, const TArray< FVector > &LeaveTangents)

static TSharedPtr< FEntity > Deserialize (FCADKernelArchive &Archive)

- Static Public Member Functions inherited from UE::CADKernel::FEntity
template<typename OtherEntity , typename... InArgTypes>
static TSharedRef< OtherEntity > MakeShared (InArgTypes &&... Args)

template<typename OtherEntity >
static TSharedRef< OtherEntity > MakeShared (FCADKernelArchive &Archive)

static void SerializeIdent (FCADKernelArchive &Ar, TSharedPtr< FEntity > &Entity, bool bSaveSelection=true)

static void SerializeIdent (FCADKernelArchive &Ar, TWeakPtr< FEntity > &Entity, bool bSaveSelection=true)

static void SerializeIdent (FCADKernelArchive &Ar, FEntity **Entity, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdent (FCADKernelArchive &Ar, EntityType **Entity, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdent (FCADKernelArchive &Ar, TSharedPtr< EntityType > &Entity, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdent (FCADKernelArchive &Ar, TWeakPtr< EntityType > &Entity, bool bSaveSelection=true)

static void SerializeIdents (FCADKernelArchive &Ar, TArray< FEntity * > &Array, bool bSaveSelection=true)

static void SerializeIdents (FCADKernelArchive &Ar, TArray< TWeakPtr< FEntity > > &Array, bool bSaveSelection=true)

static void SerializeIdents (FCADKernelArchive &Ar, TArray< TSharedPtr< FEntity > > &Array, bool bSaveSelection=true)

static void SerializeIdents (FCADKernelArchive &Ar, TArray< TOrientedEntity< FEntity > > &Array)

template<typename EntityType >
static void SerializeIdents (FCADKernelArchive &Ar, TArray< EntityType * > &Array, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdents (FCADKernelArchive &Ar, TArray< TWeakPtr< EntityType > > &Array, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdents (FCADKernelArchive &Ar, TArray< TSharedPtr< EntityType > > &Array, bool bSaveSelection=true)

static void SpawnIdentOnEntities (TArray< FEntity * > &Array, FDatabase &Database)

static void SpawnIdentOnEntities (TArray< TSharedPtr< FEntity > > &Array, FDatabase &Database)

static void SpawnIdentOnEntities (TArray< TOrientedEntity< FEntity > > &Array, FDatabase &Database)

template<typename EntityType >
static void SpawnIdentOnEntities (TArray< TSharedPtr< EntityType > > &Array, FDatabase &Database)

static void ResetMarkersRecursivelyOnEntities (const TArray< FEntity * > &Array)

static void ResetMarkersRecursivelyOnEntities (const TArray< TWeakPtr< FEntity > > &Array)

static void ResetMarkersRecursivelyOnEntities (const TArray< TSharedPtr< FEntity > > &Array)

static void ResetMarkersRecursivelyOnEntities (const TArray< TOrientedEntity< FEntity > > &Array)

template<typename EntityType >
static void ResetMarkersRecursivelyOnEntities (const TArray< TSharedPtr< EntityType > > &Array)

static TSharedPtr< FEntity > Deserialize (FCADKernelArchive &Ar)

static const TCHAR * GetTypeName (EEntity Type)

- Public Attributes inherited from UE::CADKernel::TPolyline< PointType >
TArray< double > Coordinates

TArray< PointType > Points

TArray< PointType > Tangent

TPolylineApproximator< PointType > Approximator

bool bWithTangent = false

- Static Protected Member Functions inherited from TSharedFromThis< FEntity >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode > SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode > SharedThis (const OtherType *ThisPtr)

- Static Protected Attributes inherited from UE::CADKernel::FEntity
static const TCHAR * TypesNames []


Constructor & Destructor Documentation

◆ TPolylineCurve() [1/3]

template<class PointType , class PointCurveType >
UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::TPolylineCurve ( const TArray< PointType > &  InPoints,
const TArray< double > &  InCoordinates,
int8  InDimension
)
inlineprotected

◆ TPolylineCurve() [2/3]

template<class PointType , class PointCurveType >
UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::TPolylineCurve ( const TArray< PointType > &  InPoints,
int8  InDimension
)
inlineprotected

◆ TPolylineCurve() [3/3]

template<class PointType , class PointCurveType >
UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::TPolylineCurve ( )
inlineprotected

Member Function Documentation

◆ ApplyMatrixImpl()

template<class PointType , class PointCurveType >
template<class PolylineType >
TSharedPtr< FEntityGeom > UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::ApplyMatrixImpl ( const FMatrixH &  InMatrix) const
inline

◆ ComputeSubLength()

template<class PointType , class PointCurveType >
virtual double UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::ComputeSubLength ( const FLinearBoundary &  InBoundary) const
inlinevirtual

◆ EvaluateCurvesPoint()

template<class PointType , class PointCurveType >
virtual void UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::EvaluateCurvesPoint ( double  InCoordinate,
PointCurveType &  OutPoint,
int32  InDerivativeOrder = 0
) const
inlinevirtual

◆ EvaluateCurvesPoints()

template<class PointType , class PointCurveType >
virtual void UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::EvaluateCurvesPoints ( const TArray< double > &  InCoordinates,
TArray< PointCurveType > &  OutPoints,
int32  InDerivativeOrder = 0
) const
inlinevirtual

◆ EvaluatePointAt()

template<class PointType , class PointCurveType >
PointType UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::EvaluatePointAt ( double  InCoordinate) const
inline

◆ ExtendTo()

template<class PointType , class PointCurveType >
virtual void UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::ExtendTo ( const FVector &  DesiredPosition)
inlineoverridevirtual

Linear deformation of the curve along the axis [Start point, End point] so that the nearest extremity is at the desired position and the other is not modified

Reimplemented from UE::CADKernel::FCurve.

◆ FindNotDerivableCoordinates()

template<class PointType , class PointCurveType >
virtual void UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::FindNotDerivableCoordinates ( const FLinearBoundary &  InBoundary,
int32  DerivativeOrder,
TArray< double > &  OutNotDerivableCoordinates
) const
inlineoverridevirtual

Reimplemented from UE::CADKernel::FCurve.

◆ GetPolylineParameters()

template<class PointType , class PointCurveType >
const TArray< double > & UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::GetPolylineParameters ( ) const
inline

◆ GetPolylinePoints()

template<class PointType , class PointCurveType >
const TArray< PointType > & UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::GetPolylinePoints ( ) const
inline

◆ Offset()

template<class PointType , class PointCurveType >
virtual void UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::Offset ( const FVector &  OffsetDirection)
inlineoverridevirtual

Implements UE::CADKernel::FCurve.

◆ Serialize()

template<class PointType , class PointCurveType >
virtual void UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::Serialize ( FCADKernelArchive &  Ar)
inlineoverridevirtual

Serialization of a FEntity. Each class derived from FEntity has to override this method (and call the direct base class override method first) E.g. class FEntityXXX : public FEntityXX { virtual void Serialize(FCADKernelArchive& Ar) override { FEntityXX::Serialize(Ar); ... } }

Reimplemented from UE::CADKernel::FCurve.

◆ SetPoints()

template<class PointType , class PointCurveType >
void UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::SetPoints ( const TArray< PointType > &  InPoints)
inline

Friends And Related Symbol Documentation

◆ FEntity

template<class PointType , class PointCurveType >
friend class FEntity
friend

◆ FPolylineTools

template<class PointType , class PointCurveType >
friend class FPolylineTools
friend

Member Data Documentation

◆ Approximator

template<class PointType , class PointCurveType >
TPolylineApproximator<PointType> UE::CADKernel::TPolylineCurve< PointType, PointCurveType >::Approximator
protected
The documentation for this class was generated from the following file:
