UE::Dataflow::TSimulationContext< Base > Class Template Reference

#include <DataflowSimulationContext.h>

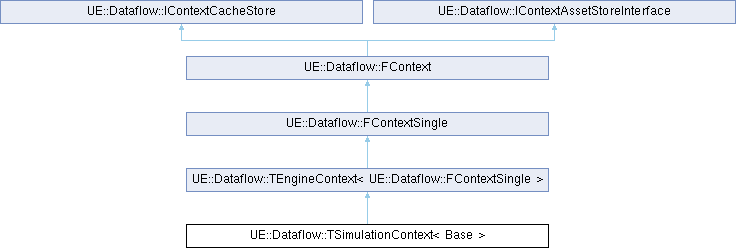

Inheritance diagram for UE::Dataflow::TSimulationContext< Base >:

Public Member Functions
	DATAFLOW_CONTEXT_INTERNAL (UE::Dataflow::TEngineContext< Base >, TSimulationContext)
	TSimulationContext (const TObjectPtr< UObject > &InOwner)
virtual	~TSimulationContext () override
void	SetTimingInfos (const float DeltaSeconds, const float TimeSeconds)
float	GetDeltaTime () const
float	GetSimulationTime () const
template<typename ProxyType >
void	GetTypedProxies (TArray< ProxyType * > &FilteredProxies) const
DATAFLOWSIMULATION_API void	GetSimulationProxies (const FString &ProxyType, const TArray< FString > &SimulationGroups, TArray< FDataflowSimulationProxy * > &FilteredProxies) const
DATAFLOWSIMULATION_API void	AddSimulationProxy (const FString &ProxyType, FDataflowSimulationProxy *SimulationProxy)
DATAFLOWSIMULATION_API void	RemoveSimulationProxy (const FString &ProxyType, const FDataflowSimulationProxy *SimulationProxy)
DATAFLOWSIMULATION_API void	ResetSimulationProxies ()
DATAFLOWSIMULATION_API int32	NumSimulationProxies (const FString &ProxyType) const
DATAFLOWSIMULATION_API void	RegisterProxyGroups ()
DATAFLOWSIMULATION_API void	BuildGroupBits (const TArray< FString > &SimulationGroups, TBitArray<> &GroupBits) const
void	PushIterationIndex ()
void	PopIterationIndex ()
void	SetIterationIndex (const int32 IterationIndex)
int32	GetIterationIndex ()
Public Member Functions inherited from UE::Dataflow::TEngineContext< Base >
	DATAFLOW_CONTEXT_INTERNAL (Base, TEngineContext)
	TEngineContext (const TObjectPtr< UObject > &InOwner)
virtual	~TEngineContext ()
int32	GetKeys (TSet< FContextCacheKey > &InKeys) const
const TUniquePtr< FContextCacheElementBase > *	GetBaseData (FContextCacheKey Key) const
virtual void	Serialize (FArchive &Ar)
Public Member Functions inherited from UE::Dataflow::FContextSingle
	DATAFLOW_CONTEXT_INTERNAL (FContext, FContextSingle)
Public Member Functions inherited from UE::Dataflow::FContext
	FContext ()
virtual	~FContext ()=default
virtual bool	IsA (FName InType) const
virtual FName	GetType () const
template<class T >
const T *	AsType () const
template<class T >
T *	AsType ()
bool	IsThreaded () const
DATAFLOWCORE_API void	SetThreaded (bool bValue)
DATAFLOWCORE_API bool	IsAsyncEvaluating () const
DATAFLOWCORE_API void	CancelAsyncEvaluation ()
DATAFLOWCORE_API void	GetAsyncEvaluationStats (int32 &OutNumPendingTasks, int32 &OutNumRunningTasks, int32 &OutNumCompletedTasks) const
virtual DATAFLOWCORE_API void	SetDataImpl (FContextCacheKey Key, TUniquePtr< FContextCacheElementBase > &&DataStoreEntry)
virtual DATAFLOWCORE_API const TUniquePtr< FContextCacheElementBase > *	GetDataImpl (FContextCacheKey Key) const
virtual DATAFLOWCORE_API bool	HasDataImpl (FContextCacheKey Key, FTimestamp InTimestamp=FTimestamp::Invalid) const
virtual DATAFLOWCORE_API bool	IsEmptyImpl () const
DATAFLOWCORE_API void	Evaluate (const FDataflowNode *Node, const FDataflowOutput *Output, FOnPostEvaluationFunction PostEvaluationFunction)
virtual DATAFLOWCORE_API void	Evaluate (const FDataflowNode *Node, const FDataflowOutput *Output)
virtual DATAFLOWCORE_API bool	Evaluate (const FDataflowOutput &Connection)
DATAFLOWCORE_API void	ClearAllData ()
template<typename T >
void	SetData (FContextCacheKey InKey, const FProperty *InProperty, T &&InValue, const FGuid &InNodeGuid, uint32 InNodeHash, const FTimestamp &InTimestamp)
DATAFLOWCORE_API void	SetDataFromStructView (FContextCacheKey InKey, const FProperty *InProperty, const FConstStructView &StructView, const FGuid &InNodeGuid, uint32 InNodeHash, const FTimestamp &InTimestamp)
DATAFLOWCORE_API void	SetDataFromStructArrayView (FContextCacheKey InKey, const FProperty *InProperty, const FConstStructArrayView &StructArrayView, const FGuid &InNodeGuid, uint32 InNodeHash, const FTimestamp &InTimestamp)
DATAFLOWCORE_API void	SetDataReference (FContextCacheKey Key, const FProperty *Property, FContextCacheKey ReferenceKey, const FTimestamp &InTimestamp)
DATAFLOWCORE_API void	SetNullData (FContextCacheKey InKey, const FProperty *InProperty, const FGuid &InNodeGuid, uint32 InNodeHash, const FTimestamp &InTimestamp)
DATAFLOWCORE_API int32	GetArraySizeFromData (const FContextCacheKey InKey) const
DATAFLOWCORE_API void	SetArrayElementFromData (const FContextCacheKey InArrayKey, int32 Index, const FContextCacheKey InElementKey, const FProperty *InProperty, const FGuid &InNodeGuid, uint32 InNodeHash, const FTimestamp &InTimestamp)
DATAFLOWCORE_API bool	CopyDataToAnotherContext (const FContextCacheKey InSourceKey, FContext &TargetContext, const FContextCacheKey InTargetKey, const FProperty *InProperty, const FGuid &InNodeGuid, uint32 InNodeHash, const FTimestamp &InTimestamp) const
template<class T >
const T &	GetData (FContextCacheKey Key, const FProperty *InProperty, const T &Default=T()) const
DATAFLOWCORE_API const void *	GetUntypedData (FContextCacheKey Key, const FProperty *InProperty) const
DATAFLOWCORE_API bool	HasData (FContextCacheKey Key, FTimestamp InTimestamp=FTimestamp::Invalid) const
DATAFLOWCORE_API bool	IsEmpty () const
virtual DATAFLOWCORE_API const TUniquePtr< FContextCacheElementBase > *	FindCacheElement (FContextCacheKey InKey) const override
virtual DATAFLOWCORE_API bool	HasCacheElement (FContextCacheKey InKey, FTimestamp InTimestamp=FTimestamp::Invalid) const override
virtual DATAFLOWCORE_API UObject *	AddAsset (const FString &AssetPath, const UClass *AssetClass) override
virtual DATAFLOWCORE_API UObject *	CommitAsset (const FString &AssetPath) override
virtual DATAFLOWCORE_API void	ClearAssets () override
DATAFLOWCORE_API FTimestamp	GetTimestamp (FContextCacheKey Key) const
DATAFLOWCORE_API void	PushToCallstack (const FDataflowConnection *Connection)
DATAFLOWCORE_API void	PopFromCallstack (const FDataflowConnection *Connection)
DATAFLOWCORE_API bool	IsInCallstack (const FDataflowConnection *Connection) const
DATAFLOWCORE_API FContextPerfData::FData	GetPerfDataForNode (const FDataflowNode &Node) const
DATAFLOWCORE_API void	ResetPerfDataForNode (const FDataflowNode &Node)
DATAFLOWCORE_API void	AddExternalPerfData (const FContextPerfData &InPerfData)
DATAFLOWCORE_API void	ClearAllPerfData ()
DATAFLOWCORE_API void	EnablePerfData (bool bEnable)
DATAFLOWCORE_API bool	IsPerfDataEnabled () const
DATAFLOWCORE_API bool	IsCacheEntryAfterTimestamp (FContextCacheKey InKey, const FTimestamp InTimestamp) const
DATAFLOWCORE_API void	Info (const FString &InInfo, const FDataflowNode *InNode=nullptr, const FDataflowOutput *InOutput=nullptr)
DATAFLOWCORE_API int32	GetNumInfo () const
DATAFLOWCORE_API void	Warning (const FString &InWarning, const FDataflowNode *InNode=nullptr, const FDataflowOutput *InOutput=nullptr)
DATAFLOWCORE_API int32	GetNumWarnings () const
DATAFLOWCORE_API void	Error (const FString &InError, const FDataflowNode *InNode=nullptr, const FDataflowOutput *InOutput=nullptr)
DATAFLOWCORE_API int32	GetNumErrors () const
bool	NodeHasWarning (const FDataflowNode *InNode)
bool	NodeHasError (const FDataflowNode *InNode)
bool	NodeFailed (const FDataflowNode *InNode)
DATAFLOWCORE_API void	ClearNodesData ()
DATAFLOWCORE_API void	ClearNodeData (const FDataflowNode *InNode)
	DECLARE_MULTICAST_DELEGATE_TwoParams (FOnNodeBeginEvaluateMulticast, const FDataflowNode *Node, const FDataflowOutput *Output)
	DECLARE_MULTICAST_DELEGATE_TwoParams (FOnNodeFinishEvaluateMulticast, const FDataflowNode *Node, const FDataflowOutput *Output)
	DECLARE_MULTICAST_DELEGATE_ThreeParams (FOnContextHasInfoMulticast, const FDataflowNode *Node, const FDataflowOutput *Output, const FString &Info)
	DECLARE_MULTICAST_DELEGATE_ThreeParams (FOnContextHasWarningMulticast, const FDataflowNode *Node, const FDataflowOutput *Output, const FString &Info)
	DECLARE_MULTICAST_DELEGATE_ThreeParams (FOnContextHasErrorMulticast, const FDataflowNode *Node, const FDataflowOutput *Output, const FString &Info)
Public Member Functions inherited from UE::Dataflow::IContextAssetStoreInterface
template<typename T >
T *	AddAssetTyped (const FString &AssetPath)

Additional Inherited Members
Static Public Member Functions inherited from UE::Dataflow::FContext
static FName	StaticType ()
Public Attributes inherited from UE::Dataflow::TEngineContext< Base >
TObjectPtr< UObject >	Owner = nullptr
Public Attributes inherited from UE::Dataflow::FContext
FOnNodeBeginEvaluateMulticast	OnNodeBeginEvaluateMulticast
FOnNodeFinishEvaluateMulticast	OnNodeFinishEvaluateMulticast
FOnContextHasInfoMulticast	OnContextHasInfo
FOnContextHasWarningMulticast	OnContextHasWarning
FOnContextHasErrorMulticast	OnContextHasError
Protected Member Functions inherited from UE::Dataflow::FContext
	FContext (FContext &&)=delete
FContext &	operator= (FContext &&)=delete
	FContext (const FContext &)=delete
FContext &	operator= (const FContext &)=delete
DATAFLOWCORE_API void	BeginContextEvaluation (const FDataflowNode *Node, const FDataflowOutput *Output)
DATAFLOWCORE_API const FContextPerfData &	GetPerfData () const
Protected Attributes inherited from UE::Dataflow::FContext
FContextCache	DataStore
TUniquePtr< FCriticalSection >	DataLock
FContextEvaluator	AsyncEvaluator

Detailed Description

template<typename Base = UE::Dataflow::FContextSingle>
class UE::Dataflow::TSimulationContext< Base >

Simulation context that will be used by all the simulation nodes

Constructor & Destructor Documentation

TSimulationContext()

template<typename Base = UE::Dataflow::FContextSingle>

UE::Dataflow::TSimulationContext< Base >::TSimulationContext ( const TObjectPtr< UObject > &  InOwner )

inlineexplicit

~TSimulationContext()

template<typename Base = UE::Dataflow::FContextSingle>

virtual UE::Dataflow::TSimulationContext< Base >::~TSimulationContext ( )

inlineoverridevirtual

Member Function Documentation

AddSimulationProxy()

template<typename Base >

void UE::Dataflow::TSimulationContext< Base >::AddSimulationProxy	(	const FString &	ProxyType,
		FDataflowSimulationProxy *	SimulationProxy
	)

Add simulation proxy to the context

BuildGroupBits()

template<typename Base >

void UE::Dataflow::TSimulationContext< Base >::BuildGroupBits	(	const TArray< FString > &	SimulationGroups,
		TBitArray<> &	GroupBits
	)		const

Build group bits based on the string array

DATAFLOW_CONTEXT_INTERNAL()

template<typename Base = UE::Dataflow::FContextSingle>

UE::Dataflow::TSimulationContext< Base >::DATAFLOW_CONTEXT_INTERNAL	(	UE::Dataflow::TEngineContext< Base >	,
		TSimulationContext< Base >
	)

GetDeltaTime()

template<typename Base = UE::Dataflow::FContextSingle>

float UE::Dataflow::TSimulationContext< Base >::GetDeltaTime ( ) const

inline

Get the delta time in seconds

GetIterationIndex()

template<typename Base = UE::Dataflow::FContextSingle>

int32 UE::Dataflow::TSimulationContext< Base >::GetIterationIndex ( )

inline

Get the last iteration index

GetSimulationProxies()

template<typename Base >

void UE::Dataflow::TSimulationContext< Base >::GetSimulationProxies	(	const FString &	ProxyType,
		const TArray< FString > &	SimulationGroups,
		TArray< FDataflowSimulationProxy * > &	FilteredProxies
	)		const

Filter the physics solvers matching the groups

GetSimulationTime()

template<typename Base = UE::Dataflow::FContextSingle>

float UE::Dataflow::TSimulationContext< Base >::GetSimulationTime ( ) const

inline

Get the simulation time in seconds

GetTypedProxies()

template<typename Base >

template<typename ProxyType >

void UE::Dataflow::TSimulationContext< Base >::GetTypedProxies

(

TArray< ProxyType * > &

FilteredProxies

)

const

Get the typed proxies

NumSimulationProxies()

template<typename Base >

int32 UE::Dataflow::TSimulationContext< Base >::NumSimulationProxies

(

const FString &

ProxyType

)

const

Return the number of physics solvers

PopIterationIndex()

template<typename Base = UE::Dataflow::FContextSingle>

void UE::Dataflow::TSimulationContext< Base >::PopIterationIndex ( )

inline

Pop the last level of iteration indices

PushIterationIndex()

template<typename Base = UE::Dataflow::FContextSingle>

void UE::Dataflow::TSimulationContext< Base >::PushIterationIndex ( )

inline

Push another level of iteration indices

RegisterProxyGroups()

template<typename Base >

void UE::Dataflow::TSimulationContext< Base >::RegisterProxyGroups

(

)

Register all the proxy groups used in the proxy

RemoveSimulationProxy()

template<typename Base >

void UE::Dataflow::TSimulationContext< Base >::RemoveSimulationProxy	(	const FString &	ProxyType,
		const FDataflowSimulationProxy *	SimulationProxy
	)

Remove simulation proxy from the context

ResetSimulationProxies()

template<typename Base >

void UE::Dataflow::TSimulationContext< Base >::ResetSimulationProxies

(

)

Reset all the simulation proxies

SetIterationIndex()

template<typename Base = UE::Dataflow::FContextSingle>

void UE::Dataflow::TSimulationContext< Base >::SetIterationIndex ( const int32  IterationIndex )

inline

Set the last iteration index

SetTimingInfos()

template<typename Base = UE::Dataflow::FContextSingle>

void UE::Dataflow::TSimulationContext< Base >::SetTimingInfos ( const float  DeltaSeconds, const float  TimeSeconds  )

inline

Set the timing infos

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Experimental/Dataflow/Simulation/Public/Dataflow/DataflowSimulationContext.h
• Engine/Source/Runtime/Experimental/Dataflow/Simulation/Private/Dataflow/DataflowSimulationContext.cpp
