FDataflowSimulationProxy Struct Reference

#include <DataflowSimulationProxy.h>

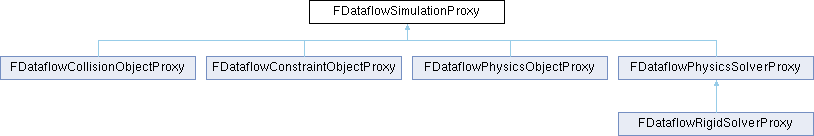

Inheritance diagram for FDataflowSimulationProxy:

Public Member Functions
	FDataflowSimulationProxy ()=default
virtual	~FDataflowSimulationProxy ()=default
virtual bool	IsValid () const
virtual const UScriptStruct *	GetScriptStruct () const
template<class T >
const T *	AsType () const
template<class T >
T *	AsType ()
const TSet< FString > &	GetSimulationGroups () const
UE_API void	SetSimulationGroups (const TSet< FString > &InSimulationGroups)
UE_API bool	HasSimulationGroup (const FString &SimulationGroup) const
UE_API bool	HasGroupBit (const TBitArray<> &SimulationBits) const

Public Attributes
TBitArray	GroupBits

Detailed Description

Dataflow simulation proxy used for simulation (PT)

Constructor & Destructor Documentation

FDataflowSimulationProxy()

FDataflowSimulationProxy::FDataflowSimulationProxy ( )

default

~FDataflowSimulationProxy()

virtual FDataflowSimulationProxy::~FDataflowSimulationProxy ( )

virtualdefault

Member Function Documentation

AsType() [1/2]

template<class T >

T * FDataflowSimulationProxy::AsType ( )

inline

Cast the const proxy to child

AsType() [2/2]

template<class T >

const T * FDataflowSimulationProxy::AsType ( ) const

inline

Cast the proxy to child

GetScriptStruct()

virtual const UScriptStruct * FDataflowSimulationProxy::GetScriptStruct ( ) const

inlinevirtual

Get the proxy script struct

Reimplemented in FDataflowRigidSolverProxy, FDataflowCollisionObjectProxy, FDataflowConstraintObjectProxy, FDataflowPhysicsObjectProxy, and FDataflowPhysicsSolverProxy.

GetSimulationGroups()

const TSet< FString > & FDataflowSimulationProxy::GetSimulationGroups ( ) const

inline

Get the simulation groups from the proxy

HasGroupBit()

bool FDataflowSimulationProxy::HasGroupBit

(

const TBitArray<> &

SimulationBits

)

const

Check if the proxy has at least one valid bit

HasSimulationGroup()

bool FDataflowSimulationProxy::HasSimulationGroup

(

const FString &

SimulationGroup

)

const

Check if the given group is within the proxy simulation groups

IsValid()

virtual bool FDataflowSimulationProxy::IsValid ( ) const

inlinevirtual

Check if the proxy is valid

Reimplemented in FDataflowRigidSolverProxy.

SetSimulationGroups()

void FDataflowSimulationProxy::SetSimulationGroups

(

const TSet< FString > &

InSimulationGroups

)

Set the simulation groups onto the proxy

Member Data Documentation

GroupBits

TBitArray FDataflowSimulationProxy::GroupBits

Bit array matching the simulation groups for fast access

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/Experimental/Dataflow/Simulation/Public/Dataflow/DataflowSimulationProxy.h
• Engine/Source/Runtime/Experimental/Dataflow/Simulation/Private/Dataflow/DataflowSimulationProxy.cpp
