UE::Geometry::IMeshSpatial Class Reference

#include <SpatialInterfaces.h>

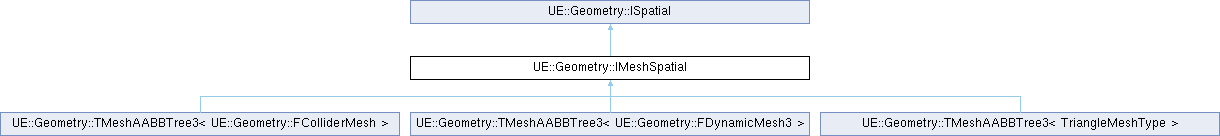

Inheritance diagram for UE::Geometry::IMeshSpatial:

Classes
struct	FQueryOptions

Public Member Functions
virtual	~IMeshSpatial ()=default
virtual bool	SupportsNearestTriangle () const =0
virtual int	FindNearestTriangle (const FVector3d &Point, double &NearestDistSqrOut, const FQueryOptions &Options=FQueryOptions()) const =0
virtual bool	SupportsTriangleRayIntersection () const =0
virtual int	FindNearestHitTriangle (const FRay3d &Ray, const FQueryOptions &Options=FQueryOptions()) const
virtual bool	FindNearestHitTriangle (const FRay3d &Ray, double &NearestT, int &TID, const FQueryOptions &Options=FQueryOptions()) const
virtual bool	FindNearestHitTriangle (const FRay3d &Ray, double &NearestT, int &TID, FVector3d &BaryCoords, const FQueryOptions &Options=FQueryOptions()) const =0
virtual bool	FindAllHitTriangles (const FRay3d &Ray, TArray< MeshIntersection::FHitIntersectionResult > &OutHits, const FQueryOptions &Options=FQueryOptions()) const =0
Public Member Functions inherited from UE::Geometry::ISpatial
virtual	~ISpatial ()=default
virtual bool	SupportsPointContainment () const =0
virtual bool	IsInside (const FVector3d &Point) const =0

Detailed Description

IMeshSpatial is an extension of ISpatial specifically for meshes

Constructor & Destructor Documentation

~IMeshSpatial()

virtual UE::Geometry::IMeshSpatial::~IMeshSpatial ( )

virtualdefault

Member Function Documentation

FindAllHitTriangles()

virtual bool UE::Geometry::IMeshSpatial::FindAllHitTriangles ( const FRay3d &  Ray, TArray< MeshIntersection::FHitIntersectionResult > &  OutHits, const FQueryOptions &  Options = FQueryOptions()  ) const

pure virtual

Find all triangles intersected by the given ray sorted by distance

Parameters

Ray	query ray
OutHits	returned-by-reference hit infos sorted by distance
Options	Query options (ex. max distance)

Returns

true if hit, false if no hit found

Implemented in UE::Geometry::TMeshAABBTree3< TriangleMeshType >, UE::Geometry::TMeshAABBTree3< UE::Geometry::FColliderMesh >, and UE::Geometry::TMeshAABBTree3< UE::Geometry::FDynamicMesh3 >.

FindNearestHitTriangle() [1/3]

virtual int UE::Geometry::IMeshSpatial::FindNearestHitTriangle ( const FRay3d &  Ray, const FQueryOptions &  Options = FQueryOptions()  ) const

inlinevirtual

Parameters

Ray	query ray
Options	Query options (ex. max distance)

Returns

ID of triangle intersected by ray within MaxDistance, or InvalidID if not found

Reimplemented in UE::Geometry::TMeshAABBTree3< TriangleMeshType >, UE::Geometry::TMeshAABBTree3< UE::Geometry::FColliderMesh >, and UE::Geometry::TMeshAABBTree3< UE::Geometry::FDynamicMesh3 >.

FindNearestHitTriangle() [2/3]

virtual bool UE::Geometry::IMeshSpatial::FindNearestHitTriangle ( const FRay3d &  Ray, double &  NearestT, int &  TID, const FQueryOptions &  Options = FQueryOptions()  ) const

inlinevirtual

Find nearest triangle from the given ray

Parameters

Ray	query ray
NearestT	returned-by-reference parameter of the nearest hit
TID	returned-by-reference ID of triangle intersected by ray within MaxDistance, or InvalidID if not found
Options	Query options (ex. max distance)

Returns

true if hit, false if no hit found

Reimplemented in UE::Geometry::TMeshAABBTree3< TriangleMeshType >, UE::Geometry::TMeshAABBTree3< UE::Geometry::FColliderMesh >, and UE::Geometry::TMeshAABBTree3< UE::Geometry::FDynamicMesh3 >.

FindNearestHitTriangle() [3/3]

virtual bool UE::Geometry::IMeshSpatial::FindNearestHitTriangle ( const FRay3d &  Ray, double &  NearestT, int &  TID, FVector3d &  BaryCoords, const FQueryOptions &  Options = FQueryOptions()  ) const

pure virtual

Find nearest triangle from the given ray

Parameters

Ray	query ray
NearestT	returned-by-reference parameter of the nearest hit
TID	returned-by-reference ID of triangle intersected by ray within MaxDistance, or InvalidID if not found
BaryCoords	returned-by-reference Barycentric coordinates of the triangle intersected by ray within MaxDistance, or FVector3d::Zero if not found.
Options	Query options (ex. max distance)

Returns

true if hit, false if no hit found

Implemented in UE::Geometry::TMeshAABBTree3< TriangleMeshType >, UE::Geometry::TMeshAABBTree3< UE::Geometry::FColliderMesh >, and UE::Geometry::TMeshAABBTree3< UE::Geometry::FDynamicMesh3 >.

FindNearestTriangle()

virtual int UE::Geometry::IMeshSpatial::FindNearestTriangle ( const FVector3d &  Point, double &  NearestDistSqrOut, const FQueryOptions &  Options = FQueryOptions()  ) const

pure virtual

Parameters

Query	point
NearestDistSqrOut	returned nearest squared distance, if triangle is found
Options	Query options (ex. max distance)

Returns

ID of triangle nearest to Point within MaxDistance, or InvalidID if not found

Implemented in UE::Geometry::TMeshAABBTree3< TriangleMeshType >, UE::Geometry::TMeshAABBTree3< UE::Geometry::FColliderMesh >, and UE::Geometry::TMeshAABBTree3< UE::Geometry::FDynamicMesh3 >.

SupportsNearestTriangle()

virtual bool UE::Geometry::IMeshSpatial::SupportsNearestTriangle ( ) const

pure virtual

Returns

true if this object supports nearest-triangle queries

Implemented in UE::Geometry::TMeshAABBTree3< TriangleMeshType >, UE::Geometry::TMeshAABBTree3< UE::Geometry::FColliderMesh >, and UE::Geometry::TMeshAABBTree3< UE::Geometry::FDynamicMesh3 >.

SupportsTriangleRayIntersection()

virtual bool UE::Geometry::IMeshSpatial::SupportsTriangleRayIntersection ( ) const

pure virtual

Returns

true if this object supports ray-triangle intersection queries

Implemented in UE::Geometry::TMeshAABBTree3< TriangleMeshType >, UE::Geometry::TMeshAABBTree3< UE::Geometry::FColliderMesh >, and UE::Geometry::TMeshAABBTree3< UE::Geometry::FDynamicMesh3 >.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/GeometryCore/Public/Spatial/SpatialInterfaces.h
