#include <MeshAABBTree3.h>

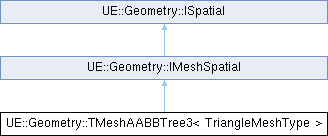

Inheritance diagram for UE::Geometry::TMeshAABBTree3< TriangleMeshType >:

Classes
struct	FBoxesSet

class	FTreeTraversal

Public Types
using	MeshType = TriangleMeshType

using	GetSplitAxisFunc = TUniqueFunction< int(int Depth, const FAxisAlignedBox3d &Box)>

Public Member Functions
	TMeshAABBTree3 ()

	TMeshAABBTree3 (const TriangleMeshType *SourceMesh, bool bAutoBuild=true)

void	SetMesh (const TriangleMeshType *SourceMesh, bool bAutoBuild=true)

const TriangleMeshType *	GetMesh () const

bool	IsValid (bool bAllowUnsafeModifiedMeshQueries) const

void	SetBuildOptions (int32 MaxBoxTriCount, GetSplitAxisFunc &&GetSplitAxisIn=MakeDefaultSplitAxisFunc())

void	Build ()

void	Build (const TArray< int32 > &TriangleList)

virtual bool	SupportsNearestTriangle () const override

virtual int	FindNearestTriangle (const FVector3d &P, double &NearestDistSqr, const FQueryOptions &Options=FQueryOptions()) const override

FAxisAlignedBox3d	GetBoundingBox () const

virtual FVector3d	FindNearestPoint (const FVector3d &Point, const FQueryOptions &Options=FQueryOptions()) const

virtual bool	IsWithinDistanceSquared (const FVector3d &Point, double ThresholdDistanceSqr, int &OutTriangleID, const FQueryOptions &Options=FQueryOptions()) const

virtual int	FindNearestVertex (const FVector3d &P, double &NearestDistSqr, double MaxDist=TNumericLimits< double >::Max(), const FQueryOptions &Options=FQueryOptions())

virtual bool	SupportsTriangleRayIntersection () const override

virtual int	FindNearestHitTriangle (const FRay3d &Ray, const FQueryOptions &Options=FQueryOptions()) const override

virtual bool	FindNearestHitTriangle (const FRay3d &Ray, double &NearestT, int &TID, const FQueryOptions &Options=FQueryOptions()) const override

virtual bool	FindNearestHitTriangle (const FRay3d &Ray, double &NearestT, int &TID, FVector3d &BaryCoords, const FQueryOptions &Options=FQueryOptions()) const override

bool	FindNearestHitTriangle (const FWatertightRay3d &Ray, double &NearestT, int &TID, FVector3d &BaryCoords, const FQueryOptions &Options=FQueryOptions()) const

virtual bool	FindAllHitTriangles (const FRay3d &Ray, TArray< MeshIntersection::FHitIntersectionResult > &OutHits, const FQueryOptions &Options=FQueryOptions()) const override

bool	FindAllHitTriangles (const FWatertightRay3d &Ray, TArray< MeshIntersection::FHitIntersectionResult > &OutHits, const FQueryOptions &Options=FQueryOptions()) const

virtual bool	TestAnyHitTriangle (const FRay3d &Ray, const FQueryOptions &Options=FQueryOptions()) const

virtual FIndex2i	FindNearestTriangles (TMeshAABBTree3 &OtherTree, const TFunction< FVector3d(const FVector3d &)> &TransformF, double &Distance, const FQueryOptions &Options=FQueryOptions(), const FQueryOptions &OtherTreeOptions=FQueryOptions())

virtual bool	SupportsPointContainment () const override

virtual bool	IsInside (const FVector3d &P) const override

virtual void	DoTraversal (FTreeTraversal &Traversal, const FQueryOptions &Options=FQueryOptions()) const

virtual bool	TestIntersection (const TriangleMeshType *TestMesh, FAxisAlignedBox3d TestMeshBounds=FAxisAlignedBox3d::Empty(), const TFunction< FVector3d(const FVector3d &)> &TransformF=nullptr, const FQueryOptions &Options=FQueryOptions()) const

virtual bool	TestIntersection (const TMeshAABBTree3 &OtherTree, const TFunction< FVector3d(const FVector3d &)> &TransformF=nullptr, const FQueryOptions &Options=FQueryOptions(), const FQueryOptions &OtherTreeOptions=FQueryOptions()) const

virtual bool	TestIntersection (const FTriangle3d &Triangle, const FQueryOptions &Options=FQueryOptions()) const

virtual MeshIntersection::FIntersectionsQueryResult	FindAllIntersections (const TMeshAABBTree3 &OtherTree, const TFunction< FVector3d(const FVector3d &)> &TransformF=nullptr, const FQueryOptions &Options=FQueryOptions(), const FQueryOptions &OtherTreeOptions=FQueryOptions(), TFunction< bool(FIntrTriangle3Triangle3d &)> IntersectionFn=nullptr) const

virtual MeshIntersection::FIntersectionsQueryResult	FindAllSelfIntersections (bool bIgnoreTopoConnected=true, const FQueryOptions &Options=FQueryOptions(), TFunction< bool(FIntrTriangle3Triangle3d &)> IntersectionFn=nullptr) const

virtual bool	TestSelfIntersection (bool bIgnoreTopoConnected=true, const FQueryOptions &Options=FQueryOptions()) const

void	SetTolerance (double Tolerance)

double	BoxDistanceSqr (int IBox, const FVector3d &V) const

bool	box_contains (int IBox, const FVector3d &P) const

template<typename RayType >
double	box_ray_intersect_t (int IBox, const RayType &Ray) const

bool	box_box_intersect (int IBox, const FAxisAlignedBox3d &TestBox) const

SIZE_T	GetByteCount () const

void	BuildTopDown (bool bSorted)

template<typename TriIndexEnumerable >
void	BuildTopDown (bool bSorted, TriIndexEnumerable TriangleList, int32 NumTriangles)

void	BuildTopDown (TArray< int > &Triangles, TArray< FVector3d > &Centers, int32 NumTriangles)

int	SplitTriSetMidpoint (TArray< int > &Triangles, TArray< FVector3d > &Centers, int IStart, int ICount, int Depth, int MinTriCount, FBoxesSet &Tris, FBoxesSet &Nodes, FAxisAlignedBox3d &Box)

void	find_nearest_triangles (int iBox, TMeshAABBTree3 &OtherTree, const TFunction< FVector3d(const FVector3d &)> &TransformF, int oBox, int depth, double &nearest_sqr, FIndex2i &nearest_pair, const FQueryOptions &Options, const FQueryOptions &OtherTreeOptions) const

double	box_box_distsqr (int iBox, const FAxisAlignedBox3d &testBox) const

int	find_any_intersection (int iBox, const FTriangle3d &Triangle, const FAxisAlignedBox3d &triBounds, TFunctionRef< bool(const FTriangle3d &A, const FTriangle3d &B)> TriangleIntersectionTest, const FQueryOptions &Options) const

bool	find_any_intersection (int iBox, const TMeshAABBTree3 &OtherTree, const TFunction< FVector3d(const FVector3d &)> &TransformF, int oBox, int depth, TFunctionRef< bool(const FTriangle3d &A, const FTriangle3d &B)> TriangleIntersectionTest, const FQueryOptions &Options, const FQueryOptions &OtherTreeOptions) const

bool	find_self_intersections_acrossboxes (int Box1, int Box2, MeshIntersection::FIntersectionsQueryResult *Result, bool bIgnoreTopoConnected, int depth, TFunctionRef< bool(FIntrTriangle3Triangle3d &)> IntersectFn, const FQueryOptions &Options) const

bool	find_tri_tri_intersections (int TID_A, int IdxRangeStart, int IdxRangeEnd, MeshIntersection::FIntersectionsQueryResult *Result, bool bIgnoreTopoConnected, TFunctionRef< bool(FIntrTriangle3Triangle3d &)> IntersectFn, const FQueryOptions &Options) const

bool	find_self_intersections (MeshIntersection::FIntersectionsQueryResult *Result, bool bIgnoreTopoConnected, TFunctionRef< bool(FIntrTriangle3Triangle3d &)> IntersectFn, const FQueryOptions &Options) const

void	find_intersections (int iBox, const TMeshAABBTree3 &OtherTree, const TFunction< FVector3d(const FVector3d &)> &TransformF, int oBox, int depth, MeshIntersection::FIntersectionsQueryResult &result, TFunctionRef< bool(FIntrTriangle3Triangle3d &)> IntersectFn, const FQueryOptions &Options, const FQueryOptions &OtherTreeOptions) const

void	TestCoverage ()

double	TotalVolume ()

Public Member Functions inherited from UE::Geometry::IMeshSpatial
virtual	~IMeshSpatial ()=default

Public Member Functions inherited from UE::Geometry::ISpatial
virtual	~ISpatial ()=default

Static Public Member Functions
static bool	TriangleIntersectionFilter (const FTriangle3d &A, const FTriangle3d &B)

static bool	TriangleIntersection (FIntrTriangle3Triangle3d &Intr)

static void	AddTriTriIntersectionResult (const FIntrTriangle3Triangle3d &Intr, int TID_A, int TID_B, MeshIntersection::FIntersectionsQueryResult &Result)

Public Attributes
TDynamicVector< int >	BoxToIndex

TDynamicVector< FVector3d >	BoxCenters

TDynamicVector< FVector3d >	BoxExtents

TDynamicVector< int >	IndexList

int	TrianglesEnd = -1

int	RootIndex = -1

Static Public Attributes
static constexpr double	DOUBLE_MAX = TNumericLimits<double>::Max()

Protected Member Functions
template<bool bEarlyStop = false>
bool	find_nearest_tri (int IBox, const FVector3d &P, double &NearestDistSqr, int &TID, const FQueryOptions &Options) const

void	find_nearest_vertex (int IBox, const FVector3d &P, double &NearestDistSqr, int &NearestVertexID, const FQueryOptions &Options)

template<typename RayType = FRay3d>
void	FindHitTriangle (int IBox, const RayType &Ray, double &NearestT, int &TID, FVector3d &BaryCoords, const FQueryOptions &Options=FQueryOptions()) const

template<typename RayType = FRay3d>
void	FindHitTriangles (int IBox, const RayType &Ray, TArray< MeshIntersection::FHitIntersectionResult > &Intersections, const FQueryOptions &Options=FQueryOptions()) const

bool	TestAnyHitTriangle (int IBox, const FRay3d &Ray, int32 &HitTIDOut, double MaxDistance, const FQueryOptions &Options=FQueryOptions()) const

virtual void	TreeTraversalImpl (int IBox, int Depth, FTreeTraversal &Traversal, const FQueryOptions &Options) const

FAxisAlignedBox3d	GetBox (int IBox) const

FAxisAlignedBox3d	GetBox (int iBox, const TFunction< FVector3d(const FVector3d &)> &TransformF) const

FAxisAlignedBox3d	GetBoxEps (int IBox, double Epsilon=FMathd::ZeroTolerance) const

Static Protected Member Functions
static GetSplitAxisFunc	MakeDefaultSplitAxisFunc ()

Protected Attributes
const TriangleMeshType *	Mesh

uint64	MeshChangeStamp = 0

int	TopDownLeafMaxTriCount = 3

GetSplitAxisFunc	GetSplitAxis = MakeDefaultSplitAxisFunc()

double	BoxEps = FMathd::ZeroTolerance

Friends
class	TFastWindingTree< TriangleMeshType >

Member Typedef Documentation

◆ GetSplitAxisFunc

template<class TriangleMeshType >

using UE::Geometry::TMeshAABBTree3< TriangleMeshType >::GetSplitAxisFunc = TUniqueFunction<int(int Depth, const FAxisAlignedBox3d& Box)>

◆ MeshType

template<class TriangleMeshType >

using UE::Geometry::TMeshAABBTree3< TriangleMeshType >::MeshType = TriangleMeshType

Constructor & Destructor Documentation

◆ TMeshAABBTree3() [1/2]

template<class TriangleMeshType >

UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TMeshAABBTree3 ( )

inline

◆ TMeshAABBTree3() [2/2]

template<class TriangleMeshType >

UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TMeshAABBTree3	(	const TriangleMeshType *	SourceMesh,
		bool	bAutoBuild = `true`
	)

inline

Member Function Documentation

◆ AddTriTriIntersectionResult()

template<class TriangleMeshType >

static void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::AddTriTriIntersectionResult	(	const FIntrTriangle3Triangle3d &	Intr,
		int	TID_A,
		int	TID_B,
		MeshIntersection::FIntersectionsQueryResult &	Result
	)

inlinestatic

Helper to add a triangle-triangle intersection result from to a intersection result struct

◆ box_box_distsqr()

template<class TriangleMeshType >

double UE::Geometry::TMeshAABBTree3< TriangleMeshType >::box_box_distsqr	(	int	iBox,
		const FAxisAlignedBox3d &	testBox
	)		const

inline

◆ box_box_intersect()

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::box_box_intersect	(	int	IBox,
		const FAxisAlignedBox3d &	TestBox
	)		const

inline

◆ box_contains()

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::box_contains	(	int	IBox,
		const FVector3d &	P
	)		const

inline

◆ box_ray_intersect_t()

template<class TriangleMeshType >

template<typename RayType >

double UE::Geometry::TMeshAABBTree3< TriangleMeshType >::box_ray_intersect_t	(	int	IBox,
		const RayType &	Ray
	)		const

inline

◆ BoxDistanceSqr()

template<class TriangleMeshType >

double UE::Geometry::TMeshAABBTree3< TriangleMeshType >::BoxDistanceSqr	(	int	IBox,
		const FVector3d &	V
	)		const

inline

◆ Build() [1/2]

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::Build ( )

inline

◆ Build() [2/2]

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::Build ( const TArray< int32 > & TriangleList )

inline

◆ BuildTopDown() [1/3]

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::BuildTopDown ( bool bSorted )

inline

◆ BuildTopDown() [2/3]

template<class TriangleMeshType >

template<typename TriIndexEnumerable >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::BuildTopDown	(	bool	bSorted,
		TriIndexEnumerable	TriangleList,
		int32	NumTriangles
	)

inline

◆ BuildTopDown() [3/3]

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::BuildTopDown	(	TArray< int > &	Triangles,
		TArray< FVector3d > &	Centers,
		int32	NumTriangles
	)

inline

◆ DoTraversal()

template<class TriangleMeshType >

virtual void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::DoTraversal	(	FTreeTraversal &	Traversal,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlinevirtual

Hierarchically descend through the tree Nodes, calling the FTreeTraversal functions at each level

◆ find_any_intersection() [1/2]

template<class TriangleMeshType >

int UE::Geometry::TMeshAABBTree3< TriangleMeshType >::find_any_intersection	(	int	iBox,
		const FTriangle3d &	Triangle,
		const FAxisAlignedBox3d &	triBounds,
		TFunctionRef< bool(const FTriangle3d &A, const FTriangle3d &B)>	TriangleIntersectionTest,
		const FQueryOptions &	Options
	)		const

inline

◆ find_any_intersection() [2/2]

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::find_any_intersection	(	int	iBox,
		const TMeshAABBTree3< TriangleMeshType > &	OtherTree,
		const TFunction< FVector3d(const FVector3d &)> &	TransformF,
		int	oBox,
		int	depth,
		TFunctionRef< bool(const FTriangle3d &A, const FTriangle3d &B)>	TriangleIntersectionTest,
		const FQueryOptions &	Options,
		const FQueryOptions &	OtherTreeOptions
	)		const

inline

◆ find_intersections()

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::find_intersections	(	int	iBox,
		const TMeshAABBTree3< TriangleMeshType > &	OtherTree,
		const TFunction< FVector3d(const FVector3d &)> &	TransformF,
		int	oBox,
		int	depth,
		MeshIntersection::FIntersectionsQueryResult &	result,
		TFunctionRef< bool(FIntrTriangle3Triangle3d &)>	IntersectFn,
		const FQueryOptions &	Options,
		const FQueryOptions &	OtherTreeOptions
	)		const

inline

◆ find_nearest_tri()

template<class TriangleMeshType >

template<bool bEarlyStop = false>

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::find_nearest_tri	(	int	IBox,
		const FVector3d &	P,
		double &	NearestDistSqr,
		int &	TID,
		const FQueryOptions &	Options
	)		const

inlineprotected

◆ find_nearest_triangles()

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::find_nearest_triangles	(	int	iBox,
		TMeshAABBTree3< TriangleMeshType > &	OtherTree,
		const TFunction< FVector3d(const FVector3d &)> &	TransformF,
		int	oBox,
		int	depth,
		double &	nearest_sqr,
		FIndex2i &	nearest_pair,
		const FQueryOptions &	Options,
		const FQueryOptions &	OtherTreeOptions
	)		const

inline

◆ find_nearest_vertex()

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::find_nearest_vertex	(	int	IBox,
		const FVector3d &	P,
		double &	NearestDistSqr,
		int &	NearestVertexID,
		const FQueryOptions &	Options
	)

inlineprotected

◆ find_self_intersections()

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::find_self_intersections	(	MeshIntersection::FIntersectionsQueryResult *	Result,
		bool	bIgnoreTopoConnected,
		TFunctionRef< bool(FIntrTriangle3Triangle3d &)>	IntersectFn,
		const FQueryOptions &	Options
	)		const

inline

◆ find_self_intersections_acrossboxes()

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::find_self_intersections_acrossboxes	(	int	Box1,
		int	Box2,
		MeshIntersection::FIntersectionsQueryResult *	Result,
		bool	bIgnoreTopoConnected,
		int	depth,
		TFunctionRef< bool(FIntrTriangle3Triangle3d &)>	IntersectFn,
		const FQueryOptions &	Options
	)		const

inline

◆ find_tri_tri_intersections()

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::find_tri_tri_intersections	(	int	TID_A,
		int	IdxRangeStart,
		int	IdxRangeEnd,
		MeshIntersection::FIntersectionsQueryResult *	Result,
		bool	bIgnoreTopoConnected,
		TFunctionRef< bool(FIntrTriangle3Triangle3d &)>	IntersectFn,
		const FQueryOptions &	Options
	)		const

inline

◆ FindAllHitTriangles() [1/2]

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindAllHitTriangles	(	const FRay3d &	Ray,
		TArray< MeshIntersection::FHitIntersectionResult > &	OutHits,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlineoverridevirtual

Find all triangles intersected by the given ray sorted by distance

Parameters

Ray	query ray
OutHits	returned-by-reference hit infos sorted by distance
Options	Query options (ex. max distance)

Returns: true if hit, false if no hit found

Implements UE::Geometry::IMeshSpatial.

◆ FindAllHitTriangles() [2/2]

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindAllHitTriangles	(	const FWatertightRay3d &	Ray,
		TArray< MeshIntersection::FHitIntersectionResult > &	OutHits,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inline

◆ FindAllIntersections()

template<class TriangleMeshType >

virtual MeshIntersection::FIntersectionsQueryResult UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindAllIntersections	(	const TMeshAABBTree3< TriangleMeshType > &	OtherTree,
		const TFunction< FVector3d(const FVector3d &)> &	TransformF = `nullptr`,
		const FQueryOptions &	Options = `FQueryOptions()`,
		const FQueryOptions &	OtherTreeOptions = `FQueryOptions()`,
		TFunction< bool(FIntrTriangle3Triangle3d &)>	IntersectionFn = `nullptr`
	)		const

inlinevirtual

Compute all intersections between two meshes. TransformF argument transforms vertices of OtherTree to our tree (can be null if in same coord space) Returns pairs of intersecting triangles, which could intersect in either point or segment Currently does not return coplanar intersections.

◆ FindAllSelfIntersections()

template<class TriangleMeshType >

virtual MeshIntersection::FIntersectionsQueryResult UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindAllSelfIntersections	(	bool	bIgnoreTopoConnected = `true`,
		const FQueryOptions &	Options = `FQueryOptions()`,
		TFunction< bool(FIntrTriangle3Triangle3d &)>	IntersectionFn = `nullptr`
	)		const

inlinevirtual

Compute self intersections on our mesh. Returns pairs of intersecting triangles, which could intersect in either point or segment Currently does not return coplanar intersections.

Parameters

bIgnoreTopoConnected Ignore intersections between triangles that share a vertex (if false a lot of triangles that simply share an edge will be counted as self intersecting)

◆ FindHitTriangle()

template<class TriangleMeshType >

template<typename RayType = FRay3d>

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindHitTriangle	(	int	IBox,
		const RayType &	Ray,
		double &	NearestT,
		int &	TID,
		FVector3d &	BaryCoords,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlineprotected

◆ FindHitTriangles()

template<class TriangleMeshType >

template<typename RayType = FRay3d>

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindHitTriangles	(	int	IBox,
		const RayType &	Ray,
		TArray< MeshIntersection::FHitIntersectionResult > &	Intersections,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlineprotected

◆ FindNearestHitTriangle() [1/4]

template<class TriangleMeshType >

virtual int UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindNearestHitTriangle	(	const FRay3d &	Ray,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlineoverridevirtual

Parameters

Ray	query ray
Options	Query options (ex. max distance)

Returns: ID of triangle intersected by ray within MaxDistance, or InvalidID if not found

Reimplemented from UE::Geometry::IMeshSpatial.

◆ FindNearestHitTriangle() [2/4]

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindNearestHitTriangle	(	const FRay3d &	Ray,
		double &	NearestT,
		int &	TID,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlineoverridevirtual

Find nearest triangle from the given ray

Parameters

Ray	query ray
NearestT	returned-by-reference parameter of the nearest hit
TID	returned-by-reference ID of triangle intersected by ray within MaxDistance, or InvalidID if not found
Options	Query options (ex. max distance)

Returns: true if hit, false if no hit found

Reimplemented from UE::Geometry::IMeshSpatial.

◆ FindNearestHitTriangle() [3/4]

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindNearestHitTriangle	(	const FRay3d &	Ray,
		double &	NearestT,
		int &	TID,
		FVector3d &	BaryCoords,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlineoverridevirtual

Find nearest triangle from the given ray

Parameters

Ray	query ray
NearestT	returned-by-reference parameter of the nearest hit
TID	returned-by-reference ID of triangle intersected by ray within MaxDistance, or InvalidID if not found
BaryCoords	returned-by-reference Barycentric coordinates of the triangle intersected by ray within MaxDistance, or FVector3d::Zero if not found.
Options	Query options (ex. max distance)

Returns: true if hit, false if no hit found

Implements UE::Geometry::IMeshSpatial.

◆ FindNearestHitTriangle() [4/4]

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindNearestHitTriangle	(	const FWatertightRay3d &	Ray,
		double &	NearestT,
		int &	TID,
		FVector3d &	BaryCoords,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inline

◆ FindNearestPoint()

template<class TriangleMeshType >

virtual FVector3d UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindNearestPoint	(	const FVector3d &	Point,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlinevirtual

Convenience function that calls FindNearestTriangle and then finds nearest point

Returns: nearest point to Point, or Point itself if a nearest point was not found

◆ FindNearestTriangle()

template<class TriangleMeshType >

virtual int UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindNearestTriangle	(	const FVector3d &	P,
		double &	NearestDistSqr,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlineoverridevirtual

Find the triangle closest to P, and distance to it, within distance MaxDist, or return InvalidID Use MeshQueries.TriangleDistance() to get more information

Implements UE::Geometry::IMeshSpatial.

◆ FindNearestTriangles()

template<class TriangleMeshType >

virtual FIndex2i UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindNearestTriangles	(	TMeshAABBTree3< TriangleMeshType > &	OtherTree,
		const TFunction< FVector3d(const FVector3d &)> &	TransformF,
		double &	Distance,
		const FQueryOptions &	Options = `FQueryOptions()`,
		const FQueryOptions &	OtherTreeOptions = `FQueryOptions()`
	)

inlinevirtual

Find nearest pair of triangles on this tree with OtherTree, within Options.MaxDistance. TransformF transforms vertices of OtherTree into our coordinates. can be null. returns triangle-id pair (my_tri,other_tri), or FIndex2i::Invalid if not found within max_dist Use MeshQueries.TrianglesDistance() to get more information Note: Only uses MaxDistance from Options; OtherTreeOptions.MaxDistance is not used

◆ FindNearestVertex()

template<class TriangleMeshType >

virtual int UE::Geometry::TMeshAABBTree3< TriangleMeshType >::FindNearestVertex	(	const FVector3d &	P,
		double &	NearestDistSqr,
		double	MaxDist = `TNumericLimits<double>::Max()`,
		const FQueryOptions &	Options = `FQueryOptions()`
	)

inlinevirtual

Find the Vertex closest to P, and distance to it, within distance MaxDist, or return InvalidID

◆ GetBoundingBox()

template<class TriangleMeshType >

FAxisAlignedBox3d UE::Geometry::TMeshAABBTree3< TriangleMeshType >::GetBoundingBox ( ) const

inline

Get the overall bounding box of the whole tree

◆ GetBox() [1/2]

template<class TriangleMeshType >

FAxisAlignedBox3d UE::Geometry::TMeshAABBTree3< TriangleMeshType >::GetBox ( int IBox ) const

inlineprotected

◆ GetBox() [2/2]

template<class TriangleMeshType >

FAxisAlignedBox3d UE::Geometry::TMeshAABBTree3< TriangleMeshType >::GetBox	(	int	iBox,
		const TFunction< FVector3d(const FVector3d &)> &	TransformF
	)		const

inlineprotected

◆ GetBoxEps()

template<class TriangleMeshType >

FAxisAlignedBox3d UE::Geometry::TMeshAABBTree3< TriangleMeshType >::GetBoxEps	(	int	IBox,
		double	Epsilon = `FMathd::ZeroTolerance`
	)		const

inlineprotected

◆ GetByteCount()

template<class TriangleMeshType >

SIZE_T UE::Geometry::TMeshAABBTree3< TriangleMeshType >::GetByteCount ( ) const

inline

◆ GetMesh()

template<class TriangleMeshType >

const TriangleMeshType * UE::Geometry::TMeshAABBTree3< TriangleMeshType >::GetMesh ( ) const

inline

◆ IsInside()

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::IsInside ( const FVector3d & Point ) const

inlineoverridevirtual

Returns: true if the query point is inside the object

Implements UE::Geometry::ISpatial.

◆ IsValid()

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::IsValid ( bool bAllowUnsafeModifiedMeshQueries ) const

inline

Parameters

bAllowUnsafeModifiedMeshQueries if true, then a built tree will still be considered valid even if the mesh change stamp has been modified

Returns: true if tree is built and mesh is unchanged (identified based on change stamp)

◆ IsWithinDistanceSquared()

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::IsWithinDistanceSquared	(	const FVector3d &	Point,
		double	ThresholdDistanceSqr,
		int &	OutTriangleID,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlinevirtual

Test whether there is any triangle closer than sqrt(ThresholdDistanceSqr) to Point Note that FQueryOptions::MaxDistance is ignored by this query, as ThresholdDistanceSqr controls the query distance instead

Parameters

OutTriangleID The ID of a triangle (not necessarily the closest) within the distance threshold, or InvalidID if none found.

◆ MakeDefaultSplitAxisFunc()

template<class TriangleMeshType >

static GetSplitAxisFunc UE::Geometry::TMeshAABBTree3< TriangleMeshType >::MakeDefaultSplitAxisFunc ( )

inlinestaticprotected

◆ SetBuildOptions()

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::SetBuildOptions	(	int32	MaxBoxTriCount,
		GetSplitAxisFunc &&	GetSplitAxisIn = `MakeDefaultSplitAxisFunc()`
	)

inline

◆ SetMesh()

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::SetMesh	(	const TriangleMeshType *	SourceMesh,
		bool	bAutoBuild = `true`
	)

inline

◆ SetTolerance()

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::SetTolerance ( double Tolerance )

inline

Sets the box intersection tolerance TODO: move into the IMeshSpatial::FQueryOptions and delete this function

◆ SplitTriSetMidpoint()

template<class TriangleMeshType >

int UE::Geometry::TMeshAABBTree3< TriangleMeshType >::SplitTriSetMidpoint	(	TArray< int > &	Triangles,
		TArray< FVector3d > &	Centers,
		int	IStart,
		int	ICount,
		int	Depth,
		int	MinTriCount,
		FBoxesSet &	Tris,
		FBoxesSet &	Nodes,
		FAxisAlignedBox3d &	Box
	)

inline

◆ SupportsNearestTriangle()

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::SupportsNearestTriangle ( ) const

inlineoverridevirtual

Returns: true if this object supports nearest-triangle queries

Implements UE::Geometry::IMeshSpatial.

◆ SupportsPointContainment()

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::SupportsPointContainment ( ) const

inlineoverridevirtual

Returns: true if this object supports point-containment inside/outside queries

Implements UE::Geometry::ISpatial.

◆ SupportsTriangleRayIntersection()

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::SupportsTriangleRayIntersection ( ) const

inlineoverridevirtual

Returns: true if this object supports ray-triangle intersection queries

Implements UE::Geometry::IMeshSpatial.

◆ TestAnyHitTriangle() [1/2]

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TestAnyHitTriangle	(	const FRay3d &	Ray,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlinevirtual

Returns: true if ray hits the mesh at some point (doesn't necessarily find the nearest hit).

◆ TestAnyHitTriangle() [2/2]

template<class TriangleMeshType >

bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TestAnyHitTriangle	(	int	IBox,
		const FRay3d &	Ray,
		int32 &	HitTIDOut,
		double	MaxDistance,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlineprotected

◆ TestCoverage()

template<class TriangleMeshType >

void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TestCoverage ( )

inline

◆ TestIntersection() [1/3]

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TestIntersection	(	const FTriangle3d &	Triangle,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlinevirtual

Returns true if triangle intersects any triangle of our mesh

◆ TestIntersection() [2/3]

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TestIntersection	(	const TMeshAABBTree3< TriangleMeshType > &	OtherTree,
		const TFunction< FVector3d(const FVector3d &)> &	TransformF = `nullptr`,
		const FQueryOptions &	Options = `FQueryOptions()`,
		const FQueryOptions &	OtherTreeOptions = `FQueryOptions()`
	)		const

inlinevirtual

Returns true if there is any intersection between our mesh and 'other' mesh. TransformF takes vertices of OtherTree into our tree - can be null if in same coord space

◆ TestIntersection() [3/3]

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TestIntersection	(	const TriangleMeshType *	TestMesh,
		FAxisAlignedBox3d	TestMeshBounds = `FAxisAlignedBox3d::Empty()`,
		const TFunction< FVector3d(const FVector3d &)> &	TransformF = `nullptr`,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlinevirtual

return true if any triangle of TestMesh intersects with our tree. If TestMeshBounds is not empty, only test collision if the provided bounding box intersects the root AABB box Use TransformF to transform vertices of TestMesh into space of this tree.

◆ TestSelfIntersection()

template<class TriangleMeshType >

virtual bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TestSelfIntersection	(	bool	bIgnoreTopoConnected = `true`,
		const FQueryOptions &	Options = `FQueryOptions()`
	)		const

inlinevirtual

◆ TotalVolume()

template<class TriangleMeshType >

double UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TotalVolume ( )

inline

Total sum of volumes of all boxes in the tree. Mainly useful to evaluate tree quality.

◆ TreeTraversalImpl()

template<class TriangleMeshType >

virtual void UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TreeTraversalImpl	(	int	IBox,
		int	Depth,
		FTreeTraversal &	Traversal,
		const FQueryOptions &	Options
	)		const

inlineprotectedvirtual

◆ TriangleIntersection()

template<class TriangleMeshType >

static bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TriangleIntersection ( FIntrTriangle3Triangle3d & Intr )

inlinestatic

Standard tri tri intersection test (with computing intersection geometry)

Parameters

Intr	Stores intersection problem; after call, should be set with intersection result

Returns: true if triangles were intersecting

◆ TriangleIntersectionFilter()

template<class TriangleMeshType >

static bool UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TriangleIntersectionFilter	(	const FTriangle3d &	A,
		const FTriangle3d &	B
	)

inlinestatic

Standard tri tri intersection test (without computing intersection geometry)

Friends And Related Symbol Documentation

◆ TFastWindingTree< TriangleMeshType >

template<class TriangleMeshType >

friend class TFastWindingTree< TriangleMeshType >

friend

Member Data Documentation

◆ BoxCenters

template<class TriangleMeshType >

TDynamicVector<FVector3d> UE::Geometry::TMeshAABBTree3< TriangleMeshType >::BoxCenters

◆ BoxEps

template<class TriangleMeshType >

double UE::Geometry::TMeshAABBTree3< TriangleMeshType >::BoxEps = FMathd::ZeroTolerance

protected

◆ BoxExtents

template<class TriangleMeshType >

TDynamicVector<FVector3d> UE::Geometry::TMeshAABBTree3< TriangleMeshType >::BoxExtents

◆ BoxToIndex

template<class TriangleMeshType >

TDynamicVector<int> UE::Geometry::TMeshAABBTree3< TriangleMeshType >::BoxToIndex

◆ DOUBLE_MAX

template<class TriangleMeshType >

constexpr double UE::Geometry::TMeshAABBTree3< TriangleMeshType >::DOUBLE_MAX = TNumericLimits<double>::Max()

staticconstexpr

◆ GetSplitAxis

template<class TriangleMeshType >

GetSplitAxisFunc UE::Geometry::TMeshAABBTree3< TriangleMeshType >::GetSplitAxis = MakeDefaultSplitAxisFunc()

protected

◆ IndexList

template<class TriangleMeshType >

TDynamicVector<int> UE::Geometry::TMeshAABBTree3< TriangleMeshType >::IndexList

◆ Mesh

template<class TriangleMeshType >

const TriangleMeshType* UE::Geometry::TMeshAABBTree3< TriangleMeshType >::Mesh

protected

◆ MeshChangeStamp

template<class TriangleMeshType >

uint64 UE::Geometry::TMeshAABBTree3< TriangleMeshType >::MeshChangeStamp = 0

protected

◆ RootIndex

template<class TriangleMeshType >

int UE::Geometry::TMeshAABBTree3< TriangleMeshType >::RootIndex = -1

◆ TopDownLeafMaxTriCount

template<class TriangleMeshType >

int UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TopDownLeafMaxTriCount = 3

protected

◆ TrianglesEnd

template<class TriangleMeshType >

int UE::Geometry::TMeshAABBTree3< TriangleMeshType >::TrianglesEnd = -1

The documentation for this class was generated from the following file:

Engine/Source/Runtime/GeometryCore/Public/Spatial/MeshAABBTree3.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Member Typedef Documentation

◆ GetSplitAxisFunc

◆ MeshType

Constructor & Destructor Documentation

◆ TMeshAABBTree3() [1/2]

◆ TMeshAABBTree3() [2/2]

Member Function Documentation

◆ AddTriTriIntersectionResult()

◆ box_box_distsqr()

◆ box_box_intersect()

◆ box_contains()

◆ box_ray_intersect_t()

◆ BoxDistanceSqr()

◆ Build() [1/2]

◆ Build() [2/2]

◆ BuildTopDown() [1/3]

◆ BuildTopDown() [2/3]

◆ BuildTopDown() [3/3]

◆ DoTraversal()

◆ find_any_intersection() [1/2]

◆ find_any_intersection() [2/2]

◆ find_intersections()

◆ find_nearest_tri()

◆ find_nearest_triangles()

◆ find_nearest_vertex()

◆ find_self_intersections()

◆ find_self_intersections_acrossboxes()

◆ find_tri_tri_intersections()

◆ FindAllHitTriangles() [1/2]

◆ FindAllHitTriangles() [2/2]

◆ FindAllIntersections()

◆ FindAllSelfIntersections()

◆ FindHitTriangle()

◆ FindHitTriangles()

◆ FindNearestHitTriangle() [1/4]

◆ FindNearestHitTriangle() [2/4]

◆ FindNearestHitTriangle() [3/4]

◆ FindNearestHitTriangle() [4/4]

◆ FindNearestPoint()

◆ FindNearestTriangle()

◆ FindNearestTriangles()

◆ FindNearestVertex()

◆ GetBoundingBox()

◆ GetBox() [1/2]

◆ GetBox() [2/2]

◆ GetBoxEps()

◆ GetByteCount()

◆ GetMesh()

◆ IsInside()

◆ IsValid()

◆ IsWithinDistanceSquared()

◆ MakeDefaultSplitAxisFunc()

◆ SetBuildOptions()

◆ SetMesh()

◆ SetTolerance()

◆ SplitTriSetMidpoint()

◆ SupportsNearestTriangle()

◆ SupportsPointContainment()

◆ SupportsTriangleRayIntersection()

◆ TestAnyHitTriangle() [1/2]

◆ TestAnyHitTriangle() [2/2]

◆ TestCoverage()

◆ TestIntersection() [1/3]

◆ TestIntersection() [2/3]

◆ TestIntersection() [3/3]

◆ TestSelfIntersection()

◆ TotalVolume()

◆ TreeTraversalImpl()

◆ TriangleIntersection()

◆ TriangleIntersectionFilter()
