UDocumentation UE5.7 10.02.2026 (Source)
API documentation for Unreal Engine 5.7
Public Types | Public Member Functions | List of all members
UE::Geometry::Spline::TLinearSpline< T > Class Template Reference

#include <LinearSpline.h>

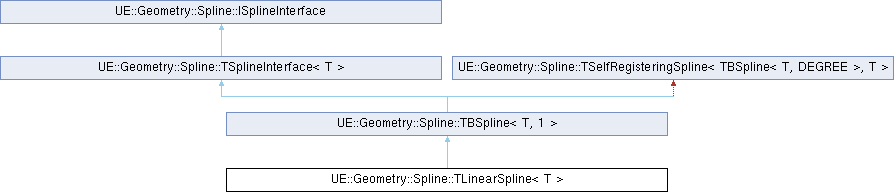

+ Inheritance diagram for UE::Geometry::Spline::TLinearSpline< T >:

Public Types

using Base = TBSpline< T, 1 >

- Public Types inherited from UE::Geometry::Spline::TBSpline< T, 1 >
using ValueType = typename TSplineInterface< T >::ValueType

using FWindow = TStaticArray< const ValueType *, WindowSize >

- Public Types inherited from UE::Geometry::Spline::TSplineInterface< VALUETYPE >
typedef VALUETYPE ValueType


Public Member Functions

 DECLARE_SPLINE_TYPE_ID (TEXT("BSpline1"), *TSplineValueTypeTraits< T >::Name)

 TLinearSpline ()

virtual float GetParameter (int32 Index) const override

virtual bool SetParameter (int32 Index, float NewParam) override

- Public Member Functions inherited from UE::Geometry::Spline::TBSpline< T, 1 >
 DECLARE_SPLINE_TYPE_ID (BSplineNameSelector< DEGREE >::Name, *TSplineValueTypeTraits< T >::Name)

 TBSpline ()=default

virtual ~TBSpline () override=default

void Dump () const

virtual void Clear () override

virtual bool IsEqual (const ISplineInterface *OtherSpline) const override

virtual bool Serialize (FArchive &Ar) override

bool operator== (const TBSpline &Other) const

virtual FInterval1f GetParameterSpace () const override

virtual void SetClosedLoop (bool bClosed) override

virtual bool IsClosedLoop () const override

virtual TUniquePtr< ISplineInterface > Clone () const override

virtual int32 GetNumberOfSegments () const override

virtual FInterval1f GetSegmentParameterRange (int32 SegmentIndex) const override

virtual ValueType EvaluateImpl (float Parameter) const override

virtual float FindNearest (const ValueType &Point, float &OutSquaredDistance) const override

int32 NumKeys () const

const ValueType & GetValue (int32 Idx) const

int32 AddValue (const ValueType &NewValue)

bool SetValue (int32 Idx, const ValueType &NewValue)

int32 InsertValue (int32 Idx, const ValueType &NewValue)

virtual bool RemoveValue (int32 Index)

virtual int32 FindIndexForParameter (float Parameter, float &OutLocalParam) const

const TArray< FKnot > & GetKnotVector () const

const TArray< FKnot > & GetPairKnots () const

void ResetKnotVector ()

int32 GetKnotMultiplicity (int32 KnotIndex) const

bool SetCustomKnots (const TArray< FKnot > &NewKnots)

virtual void Reparameterize (EParameterizationPolicy ParameterizationPolicy)

void SetClampedEnds (bool bInClampEnds)

bool IsClampedEnds () const

FInterval1f GetKnotRange () const

- Public Member Functions inherited from UE::Geometry::Spline::TSplineInterface< VALUETYPE >
 TSplineInterface ()

virtual ~TSplineInterface () override=default

ValueType Evaluate (float Parameter) const

virtual float FindNearest (const ValueType &Point, float &OutSquaredDistance) const =0

virtual FSplineTypeId::IdType GetTypeId () const override

virtual FString GetValueTypeName () const override

virtual void SetPreInfinityMode (EOutOfBoundsHandlingMode InMode)

virtual void SetPostInfinityMode (EOutOfBoundsHandlingMode InMode)

virtual EOutOfBoundsHandlingMode GetPreInfinityMode () const

virtual EOutOfBoundsHandlingMode GetPostInfinityMode () const

- Public Member Functions inherited from UE::Geometry::Spline::ISplineInterface
virtual ~ISplineInterface ()=default

virtual FString GetImplementationName () const =0


Additional Inherited Members

- Static Public Member Functions inherited from UE::Geometry::Spline::TSplineInterface< VALUETYPE >
static void SetTypeName (const FString &InTypeName)

- Static Public Attributes inherited from UE::Geometry::Spline::TBSpline< T, 1 >
static constexpr int32 Degree

static constexpr int32 WindowSize

- Protected Member Functions inherited from UE::Geometry::Spline::TBSpline< T, 1 >
void SetKnot (int32 KnotIdx, float NewValue)

bool RemoveKnot (int32 KnotIdx)

void SwapKnots (int32 KnotIdxA, int32 KnotIdxB)

bool InsertKnot (FKnot InKnot)

float GetNearestAvailableKnotValue (const FValidKnotSearchParams &InSearchParams) const

virtual int32 GetExpectedNumKnots () const

void GenerateUniformKnots (int32 KnotCount)

void GenerateChordLengthKnots (int32 KnotCount)

void GenerateCentripetalKnots (int32 KnotCount)

void ApplyClampedKnotsMultiplicity ()

void UpdateFlatKnotsCache () const

void MarkFlatKnotsCacheDirty () const

void PrintKnotVector () const

- Protected Member Functions inherited from UE::Geometry::Spline::TSplineInterface< VALUETYPE >
float HandleOutOfBounds (float Parameter) const

- Protected Attributes inherited from UE::Geometry::Spline::TBSpline< T, 1 >
TArray< ValueType > Values

TArray< FKnot > PairKnots

TArray< float > FlatKnots

bool bFlatKnotsCacheDirty

bool bIsClosedLoop

bool bClampEnds

- Protected Attributes inherited from UE::Geometry::Spline::TSplineInterface< VALUETYPE >
EOutOfBoundsHandlingMode PreInfinityMode = EOutOfBoundsHandlingMode::Zero

EOutOfBoundsHandlingMode PostInfinityMode = EOutOfBoundsHandlingMode::Zero


Member Typedef Documentation

◆ Base

template<typename T >
using UE::Geometry::Spline::TLinearSpline< T >::Base = TBSpline<T, 1>

Constructor & Destructor Documentation

◆ TLinearSpline()

template<typename T >
UE::Geometry::Spline::TLinearSpline< T >::TLinearSpline ( )
inline

Member Function Documentation

◆ DECLARE_SPLINE_TYPE_ID()

template<typename T >
UE::Geometry::Spline::TLinearSpline< T >::DECLARE_SPLINE_TYPE_ID ( TEXT("BSpline1")  ,
*TSplineValueTypeTraits< T >::Name
)

◆ GetParameter()

template<typename T >
virtual float UE::Geometry::Spline::TLinearSpline< T >::GetParameter ( int32  Index) const
inlineoverridevirtual

Reimplemented from UE::Geometry::Spline::TBSpline< T, 1 >.

◆ SetParameter()

template<typename T >
virtual bool UE::Geometry::Spline::TLinearSpline< T >::SetParameter ( int32  Index,
float  NewParam
)
inlineoverridevirtual

Reimplemented from UE::Geometry::Spline::TBSpline< T, 1 >.

The documentation for this class was generated from the following file:
