FD3D12GraphicsPipelineState Struct Reference

#include <D3D12PipelineState.h>

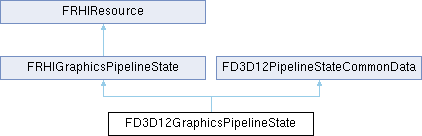

Inheritance diagram for FD3D12GraphicsPipelineState:

Public Member Functions
	FD3D12GraphicsPipelineState ()=delete
	FD3D12GraphicsPipelineState (const FGraphicsPipelineStateInitializer &Initializer, const FD3D12RootSignature *InRootSignature, FD3D12PipelineState *InPipelineState)
	~FD3D12GraphicsPipelineState ()
FORCEINLINE FD3D12VertexShader *	GetVertexShader () const
FORCEINLINE FD3D12PixelShader *	GetPixelShader () const
FORCEINLINE FD3D12MeshShader *	GetMeshShader () const
FORCEINLINE FD3D12AmplificationShader *	GetAmplificationShader () const
FORCEINLINE FD3D12GeometryShader *	GetGeometryShader () const
FRHIGraphicsShader *	GetShader (EShaderFrequency Frequency) const override
Public Member Functions inherited from FRHIGraphicsPipelineState
	FRHIGraphicsPipelineState ()
void	SetSortKey (uint64 InSortKey)
uint64	GetSortKey () const
Public Member Functions inherited from FRHIResource
RHI_API	FRHIResource (ERHIResourceType InResourceType)
uint32	AddRef () const
uint32	Release () const
uint32	GetRefCount () const
bool	IsValid () const
void	DisableLifetimeExtension ()
ERHIResourceType	GetType () const
FName	GetOwnerName () const
void	SetOwnerName (FName InOwnerName)
Public Member Functions inherited from FD3D12PipelineStateCommonData
	FD3D12PipelineStateCommonData (const FD3D12RootSignature *InRootSignature, FD3D12PipelineState *InPipelineState)

Public Attributes
FGraphicsPipelineStateInitializer	PipelineStateInitializer
TStaticArray< uint16, MaxVertexElementCount >	StreamStrides
bool	bShaderNeedsGlobalConstantBuffer [SF_NumStandardFrequencies]
Public Attributes inherited from FD3D12PipelineStateCommonData
const FD3D12RootSignature *const	RootSignature
FD3D12PipelineState *	PipelineState
D3D12ResourceFrameCounter	FrameCounter

Additional Inherited Members
Protected Member Functions inherited from FRHIResource
virtual RHI_API	~FRHIResource ()

Constructor & Destructor Documentation

FD3D12GraphicsPipelineState() [1/2]

FD3D12GraphicsPipelineState::FD3D12GraphicsPipelineState ( )

delete

FD3D12GraphicsPipelineState() [2/2]

FD3D12GraphicsPipelineState::FD3D12GraphicsPipelineState	(	const FGraphicsPipelineStateInitializer &	Initializer,
		const FD3D12RootSignature *	InRootSignature,
		FD3D12PipelineState *	InPipelineState
	)

~FD3D12GraphicsPipelineState()

FD3D12GraphicsPipelineState::~FD3D12GraphicsPipelineState

(

)

Member Function Documentation

GetAmplificationShader()

FORCEINLINE FD3D12AmplificationShader * FD3D12GraphicsPipelineState::GetAmplificationShader ( ) const

inline

GetGeometryShader()

FORCEINLINE FD3D12GeometryShader * FD3D12GraphicsPipelineState::GetGeometryShader ( ) const

inline

GetMeshShader()

FORCEINLINE FD3D12MeshShader * FD3D12GraphicsPipelineState::GetMeshShader ( ) const

inline

GetPixelShader()

FORCEINLINE FD3D12PixelShader * FD3D12GraphicsPipelineState::GetPixelShader ( ) const

inline

GetShader()

FRHIGraphicsShader * FD3D12GraphicsPipelineState::GetShader ( EShaderFrequency  Frequency ) const

inlineoverridevirtual

Implements FRHIGraphicsPipelineState.

GetVertexShader()

FORCEINLINE FD3D12VertexShader * FD3D12GraphicsPipelineState::GetVertexShader ( ) const

inline

Member Data Documentation

bShaderNeedsGlobalConstantBuffer

bool FD3D12GraphicsPipelineState::bShaderNeedsGlobalConstantBuffer[SF_NumStandardFrequencies]

PipelineStateInitializer

FGraphicsPipelineStateInitializer FD3D12GraphicsPipelineState::PipelineStateInitializer

StreamStrides

TStaticArray<uint16, MaxVertexElementCount> FD3D12GraphicsPipelineState::StreamStrides

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/D3D12RHI/Private/D3D12PipelineState.h
• Engine/Source/Runtime/D3D12RHI/Private/D3D12Pipelinestate.cpp
