#include <Matrix.h>

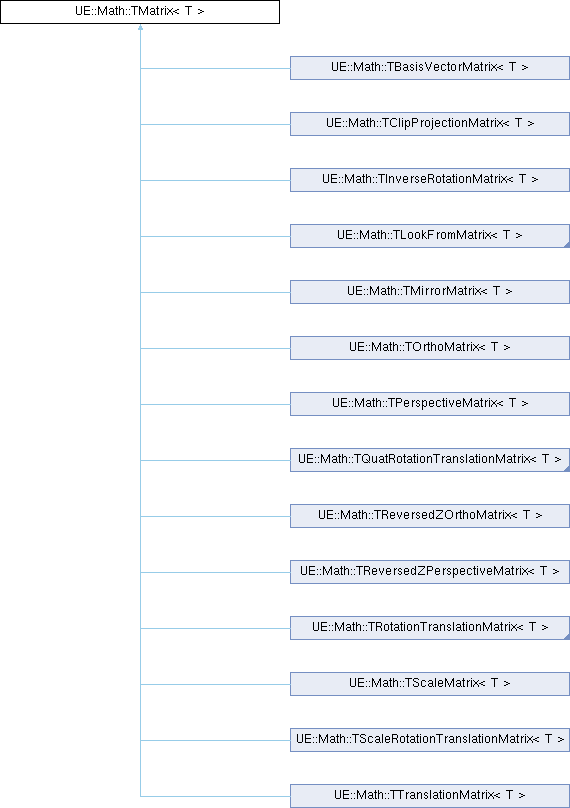

Inheritance diagram for UE::Math::TMatrix< T >:

Public Types
using	FReal = T

Public Member Functions
void	DiagnosticCheckNaN () const

	TMatrix ()=default

	TMatrix (EForceInit)

	TMatrix (const TPlane< T > &InX, const TPlane< T > &InY, const TPlane< T > &InZ, const TPlane< T > &InW)

	TMatrix (const TVector< T > &InX, const TVector< T > &InY, const TVector< T > &InZ, const TVector< T > &InW)

void	SetIdentity ()

TMatrix< T >	operator* (const TMatrix< T > &Other) const

void	operator*= (const TMatrix< T > &Other)

TMatrix< T >	operator+ (const TMatrix< T > &Other) const

void	operator+= (const TMatrix< T > &Other)

TMatrix< T >	operator* (T Other) const

void	operator*= (T Other)

bool	operator== (const TMatrix< T > &Other) const

bool	Equals (const TMatrix< T > &Other, T Tolerance=UE_KINDA_SMALL_NUMBER) const

bool	operator!= (const TMatrix< T > &Other) const

TVector4< T >	TransformFVector4 (const TVector4< T > &V) const

TVector4< T >	TransformPosition (const TVector< T > &V) const

TVector< T >	InverseTransformPosition (const TVector< T > &V) const

TVector4< T >	TransformVector (const TVector< T > &V) const

TVector< T >	InverseTransformVector (const TVector< T > &V) const

TMatrix< T >	GetTransposed () const

T	Determinant () const

T	RotDeterminant () const

TMatrix< T >	InverseFast () const

TMatrix< T >	Inverse () const

TMatrix< T >	TransposeAdjoint () const

void	RemoveScaling (T Tolerance=UE_SMALL_NUMBER)

TMatrix< T >	GetMatrixWithoutScale (T Tolerance=UE_SMALL_NUMBER) const

TVector< T >	ExtractScaling (T Tolerance=UE_SMALL_NUMBER)

TVector< T >	GetScaleVector (T Tolerance=UE_SMALL_NUMBER) const

TMatrix< T >	RemoveTranslation () const

TMatrix< T >	ConcatTranslation (const TVector< T > &Translation) const

bool	ContainsNaN () const

void	ScaleTranslation (const TVector< T > &Scale3D)

T	GetMinimumAxisScale () const

T	GetMaximumAxisScale () const

TMatrix< T >	ApplyScale (T Scale) const

TVector< T >	GetOrigin () const

TVector< T >	GetScaledAxis (EAxis::Type Axis) const

void	GetScaledAxes (TVector< T > &X, TVector< T > &Y, TVector< T > &Z) const

TVector< T >	GetUnitAxis (EAxis::Type Axis) const

void	GetUnitAxes (TVector< T > &X, TVector< T > &Y, TVector< T > &Z) const

void	SetAxis (int32 i, const TVector< T > &Axis)

void	SetOrigin (const TVector< T > &NewOrigin)

void	SetAxes (const TVector< T > Axis0=NULL, const TVector< T > Axis1=NULL, const TVector< T > Axis2=NULL, const TVector< T > Origin=NULL)

TVector< T >	GetColumn (int32 i) const

void	SetColumn (int32 i, TVector< T > Value)

CORE_API UE::Math::TRotator< T >	Rotator () const

CORE_API UE::Math::TQuat< T >	ToQuat () const

void	To3x4MatrixTranspose (T *Out) const

bool	GetFrustumNearPlane (TPlane< T > &OuTPln) const

bool	GetFrustumFarPlane (TPlane< T > &OuTPln) const

bool	GetFrustumLeftPlane (TPlane< T > &OuTPln) const

bool	GetFrustumRightPlane (TPlane< T > &OuTPln) const

bool	GetFrustumTopPlane (TPlane< T > &OuTPln) const

bool	GetFrustumBottomPlane (TPlane< T > &OuTPln) const

void	Mirror (EAxis::Type MirrorAxis, EAxis::Type FlipAxis)

FString	ToString () const

void	DebugPrint () const

uint32	ComputeHash () const

bool	Serialize (FArchive &Ar)

bool	SerializeFromMismatchedTag (FName StructTag, FArchive &Ar)

template<typename FArg UE_REQUIRES>
	TMatrix (const TMatrix< FArg > &From)

void	To3x4MatrixTranspose (float *Out) const

Public Attributes
T	M [4][4]

Static Public Attributes
static CORE_API const TMatrix	Identity

Member Typedef Documentation

◆ FReal

template<typename T >

using UE::Math::TMatrix< T >::FReal = T

Constructor & Destructor Documentation

◆ TMatrix() [1/5]

template<typename T >

UE::Math::TMatrix< T >::TMatrix ( )

default

◆ TMatrix() [2/5]

template<typename T >

UE::Math::TMatrix< T >::TMatrix ( EForceInit )

inlineexplicit

Constructor.

Parameters

EForceInit Force Init Enum.

◆ TMatrix() [3/5]

template<typename T >

UE::Math::TMatrix< T >::TMatrix	(	const TPlane< T > &	InX,
		const TPlane< T > &	InY,
		const TPlane< T > &	InZ,
		const TPlane< T > &	InW
	)

inline

Constructor.

Parameters

InX	X plane
InY	Y plane
InZ	Z plane
InW	W plane

TMatrix inline functions.

◆ TMatrix() [4/5]

template<typename T >

UE::Math::TMatrix< T >::TMatrix	(	const TVector< T > &	InX,
		const TVector< T > &	InY,
		const TVector< T > &	InZ,
		const TVector< T > &	InW
	)

inline

Constructor.

Parameters

InX	X vector
InY	Y vector
InZ	Z vector
InW	W vector

◆ TMatrix() [5/5]

template<typename T >

template<typename FArg UE_REQUIRES>

UE::Math::TMatrix< T >::TMatrix ( const TMatrix< FArg > & From )

inlineexplicit

Member Function Documentation

◆ ApplyScale()

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::ApplyScale ( T Scale ) const

inline

Apply Scale to this matrix

◆ ComputeHash()

template<typename T >

uint32 UE::Math::TMatrix< T >::ComputeHash ( ) const

inline

For debugging purpose, could be changed

◆ ConcatTranslation()

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::ConcatTranslation ( const TVector< T > & Translation ) const

inline

Returns a matrix with an additional translation concatenated.

◆ ContainsNaN()

template<typename T >

bool UE::Math::TMatrix< T >::ContainsNaN ( ) const

inline

Returns true if any element of this matrix is NaN

Returns true if any element of this matrix is not finite

◆ DebugPrint()

template<typename T >

void UE::Math::TMatrix< T >::DebugPrint ( ) const

inline

Output ToString

◆ Determinant()

template<typename T >

T UE::Math::TMatrix< T >::Determinant ( ) const

inline

◆ DiagnosticCheckNaN()

template<typename T >

void UE::Math::TMatrix< T >::DiagnosticCheckNaN ( ) const

inline

◆ Equals()

template<typename T >

bool UE::Math::TMatrix< T >::Equals	(	const TMatrix< T > &	Other,
		T	Tolerance = `UE_KINDA_SMALL_NUMBER`
	)		const

inline

Checks whether another Matrix is equal to this, within specified tolerance.

Parameters

Other	The other Matrix.
Tolerance	Error Tolerance.

Returns: true if two Matrix are equal, within specified tolerance, otherwise false.

◆ ExtractScaling()

template<typename T >

TVector< T > UE::Math::TMatrix< T >::ExtractScaling ( T Tolerance = UE_SMALL_NUMBER )

inline

Remove any scaling from this matrix (ie magnitude of each row is 1) and return the 3D scale vector that was initially present with error Tolerance

Remove any scaling from this matrix (ie magnitude of each row is 1) and return the 3D scale vector that was initially present.

◆ GetColumn()

template<typename T >

TVector< T > UE::Math::TMatrix< T >::GetColumn ( int32 i ) const

inline

get a column of this matrix

Parameters

i	index into the column of the matrix

Returns: vector of the column

◆ GetFrustumBottomPlane()

template<typename T >

bool UE::Math::TMatrix< T >::GetFrustumBottomPlane ( TPlane< T > & OuTPln ) const

inline

Parameters

OuTPln the bottom plane of the Frustum of this matrix

◆ GetFrustumFarPlane()

template<typename T >

bool UE::Math::TMatrix< T >::GetFrustumFarPlane ( TPlane< T > & OuTPln ) const

inline

Parameters

OuTPln the far plane of the Frustum of this matrix

◆ GetFrustumLeftPlane()

template<typename T >

bool UE::Math::TMatrix< T >::GetFrustumLeftPlane ( TPlane< T > & OuTPln ) const

inline

Parameters

OuTPln the left plane of the Frustum of this matrix

◆ GetFrustumNearPlane()

template<typename T >

bool UE::Math::TMatrix< T >::GetFrustumNearPlane ( TPlane< T > & OuTPln ) const

inline

Parameters

OuTPln the near plane of the Frustum of this matrix

◆ GetFrustumRightPlane()

template<typename T >

bool UE::Math::TMatrix< T >::GetFrustumRightPlane ( TPlane< T > & OuTPln ) const

inline

Parameters

OuTPln the right plane of the Frustum of this matrix

◆ GetFrustumTopPlane()

template<typename T >

bool UE::Math::TMatrix< T >::GetFrustumTopPlane ( TPlane< T > & OuTPln ) const

inline

Parameters

OuTPln the top plane of the Frustum of this matrix

◆ GetMatrixWithoutScale()

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::GetMatrixWithoutScale ( T Tolerance = UE_SMALL_NUMBER ) const

inline

◆ GetMaximumAxisScale()

template<typename T >

T UE::Math::TMatrix< T >::GetMaximumAxisScale ( ) const

inline

Returns: the maximum magnitude of any row of the matrix.

◆ GetMinimumAxisScale()

template<typename T >

T UE::Math::TMatrix< T >::GetMinimumAxisScale ( ) const

inline

Returns: the minimum magnitude of any row of the matrix.

◆ GetOrigin()

template<typename T >

TVector< T > UE::Math::TMatrix< T >::GetOrigin ( ) const

inline

◆ GetScaledAxes()

template<typename T >

void UE::Math::TMatrix< T >::GetScaledAxes	(	TVector< T > &	X,
		TVector< T > &	Y,
		TVector< T > &	Z
	)		const

inline

get axes of this matrix scaled by the scale of the matrix

Parameters

X	axes returned to this param
Y	axes returned to this param
Z	axes returned to this param

◆ GetScaledAxis()

template<typename T >

TVector< T > UE::Math::TMatrix< T >::GetScaledAxis ( EAxis::Type Axis ) const

inline

get axis of this matrix scaled by the scale of the matrix

Parameters

i	index into the axis of the matrix @ return vector of the axis

◆ GetScaleVector()

template<typename T >

TVector< T > UE::Math::TMatrix< T >::GetScaleVector ( T Tolerance = UE_SMALL_NUMBER ) const

inline

return a 3D scale vector calculated from this matrix (where each component is the magnitude of a row vector) with error Tolerance.

return a 3D scale vector calculated from this matrix (where each component is the magnitude of a row vector).

◆ GetTransposed()

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::GetTransposed ( ) const

inline

◆ GetUnitAxes()

template<typename T >

void UE::Math::TMatrix< T >::GetUnitAxes	(	TVector< T > &	X,
		TVector< T > &	Y,
		TVector< T > &	Z
	)		const

inline

get unit length axes of this matrix

Parameters

X	axes returned to this param
Y	axes returned to this param
Z	axes returned to this param

◆ GetUnitAxis()

template<typename T >

TVector< T > UE::Math::TMatrix< T >::GetUnitAxis ( EAxis::Type Axis ) const

inline

get unit length axis of this matrix

Parameters

i	index into the axis of the matrix

Returns: vector of the axis

◆ Inverse()

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::Inverse ( ) const

inline

Get the inverse of this matrix. Will silently change nil/nan matrices to identity.

◆ InverseFast()

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::InverseFast ( ) const

inline

Get the inverse of this matrix. Will ensure on nil matrices in non-final builds. Not faster than Inverse.

◆ InverseTransformPosition()

template<typename T >

TVector< T > UE::Math::TMatrix< T >::InverseTransformPosition ( const TVector< T > & V ) const

inline

Inverts the matrix and then transforms V - correctly handles scaling in this matrix.

◆ InverseTransformVector()

template<typename T >

TVector< T > UE::Math::TMatrix< T >::InverseTransformVector ( const TVector< T > & V ) const

inline

Transform a direction vector by the inverse of this matrix - will not take into account translation part. If you want to transform a surface normal (or plane) and correctly account for non-uniform scaling you should use TransformByUsingAdjointT with adjoint of matrix inverse.

Faster version of InverseTransformVector that assumes no scaling. WARNING: Will NOT work correctly if there is scaling in the matrix.

◆ Mirror()

template<typename T >

void UE::Math::TMatrix< T >::Mirror	(	EAxis::Type	MirrorAxis,
		EAxis::Type	FlipAxis
	)

inline

Utility for mirroring this transform across a certain plane, and flipping one of the axis as well.

◆ operator!=()

template<typename T >

bool UE::Math::TMatrix< T >::operator!= ( const TMatrix< T > & Other ) const

inline

Checks whether another Matrix is not equal to this, within specified tolerance.

Parameters

Other The other Matrix.

Returns: true if two Matrix are not equal, within specified tolerance, otherwise false.

◆ operator*() [1/2]

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::operator* ( const TMatrix< T > & Other ) const

inline

Gets the result of multiplying a Matrix to this.

Parameters

Other The matrix to multiply this by.

Returns: The result of multiplication.

◆ operator*() [2/2]

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::operator* ( T Other ) const

inline

This isn't applying SCALE, just multiplying the value to all members - i.e. weighting

◆ operator*=() [1/2]

template<typename T >

void UE::Math::TMatrix< T >::operator*= ( const TMatrix< T > & Other )

inline

Multiply this by a matrix.

Parameters

Other the matrix to multiply by this.

Returns: reference to this after multiply.

◆ operator*=() [2/2]

template<typename T >

void UE::Math::TMatrix< T >::operator*= ( T Other )

inline

Multiply this matrix by a weighting factor.

Parameters

other The weight.

Returns: a reference to this after weighting.

◆ operator+()

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::operator+ ( const TMatrix< T > & Other ) const

inline

Gets the result of adding a matrix to this.

Parameters

Other The Matrix to add.

Returns: The result of addition.

◆ operator+=()

template<typename T >

void UE::Math::TMatrix< T >::operator+= ( const TMatrix< T > & Other )

inline

Adds to this matrix.

Parameters

Other The matrix to add to this.

Returns: Reference to this after addition.

◆ operator==()

template<typename T >

bool UE::Math::TMatrix< T >::operator== ( const TMatrix< T > & Other ) const

inline

Checks whether two matrix are identical.

Parameters

Other The other matrix.

Returns: true if two matrix are identical, otherwise false.

◆ RemoveScaling()

template<typename T >

void UE::Math::TMatrix< T >::RemoveScaling ( T Tolerance = UE_SMALL_NUMBER )

inline

◆ RemoveTranslation()

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::RemoveTranslation ( ) const

inline

◆ Rotator()

template<typename T >

UE::Math::TRotator< T > UE::Math::TMatrix< T >::Rotator ( ) const

Returns: rotator representation of this matrix

◆ RotDeterminant()

template<typename T >

T UE::Math::TMatrix< T >::RotDeterminant ( ) const

inline

Returns: the determinant of rotation 3x3 matrix

Calculate determinant of rotation 3x3 matrix

◆ ScaleTranslation()

template<typename T >

void UE::Math::TMatrix< T >::ScaleTranslation ( const TVector< T > & Scale3D )

inline

Scale the translation part of the matrix by the supplied vector.

◆ Serialize()

template<typename T >

bool UE::Math::TMatrix< T >::Serialize ( FArchive & Ar )

inline

◆ SerializeFromMismatchedTag()

template<typename T >

bool UE::Math::TMatrix< T >::SerializeFromMismatchedTag	(	FName	StructTag,
		FArchive &	Ar
	)

inline

◆ SetAxes()

template<typename T >

void UE::Math::TMatrix< T >::SetAxes	(	const TVector< T > *	Axis0 = `NULL`,
		const TVector< T > *	Axis1 = `NULL`,
		const TVector< T > *	Axis2 = `NULL`,
		const TVector< T > *	Origin = `NULL`
	)

inline

Update the axes of the matrix if any value is NULL do not update that axis

Parameters

Axis0	set matrix row 0
Axis1	set matrix row 1
Axis2	set matrix row 2
Origin	set matrix row 3

◆ SetAxis()

template<typename T >

void UE::Math::TMatrix< T >::SetAxis	(	int32	i,
		const TVector< T > &	Axis
	)

inline

set an axis of this matrix

Parameters

i	index into the axis of the matrix
Axis	vector of the axis

◆ SetColumn()

template<typename T >

void UE::Math::TMatrix< T >::SetColumn	(	int32	i,
		TVector< T >	Value
	)

inline

Set a column of this matrix

Parameters

i	index of the matrix column
Value	new value of the column

◆ SetIdentity()

template<typename T >

void UE::Math::TMatrix< T >::SetIdentity ( )

inline

◆ SetOrigin()

template<typename T >

void UE::Math::TMatrix< T >::SetOrigin ( const TVector< T > & NewOrigin )

inline

◆ To3x4MatrixTranspose() [1/2]

void UE::Math::TMatrix< float >::To3x4MatrixTranspose ( float * Out ) const

inline

◆ To3x4MatrixTranspose() [2/2]

template<typename T >

void UE::Math::TMatrix< T >::To3x4MatrixTranspose ( T * Out ) const

inline

Convert this Atom to the 3x4 transpose of the transformation matrix.

◆ ToQuat()

template<typename T >

CORE_API UE::Math::TQuat< T > UE::Math::TMatrix< T >::ToQuat ( ) const

Transform a rotation matrix into a quaternion.

Warning: rotation part will need to be unit length for this to be right!

◆ ToString()

template<typename T >

FString UE::Math::TMatrix< T >::ToString ( ) const

inline

Get a textual representation of the vector.

Returns: Text describing the vector.

◆ TransformFVector4()

template<typename T >

TVector4< T > UE::Math::TMatrix< T >::TransformFVector4 ( const TVector4< T > & V ) const

inline

◆ TransformPosition()

template<typename T >

UE_FORCEINLINE_HINT TVector4< T > UE::Math::TMatrix< T >::TransformPosition ( const TVector< T > & V ) const

Transform a location - will take into account translation part of the TMatrix<T>.

◆ TransformVector()

template<typename T >

UE_FORCEINLINE_HINT TVector4< T > UE::Math::TMatrix< T >::TransformVector ( const TVector< T > & V ) const

Transform a direction vector - will not take into account translation part of the TMatrix<T>. If you want to transform a surface normal (or plane) and correctly account for non-uniform scaling you should use TransformByUsingAdjointT.

◆ TransposeAdjoint()

template<typename T >

TMatrix< T > UE::Math::TMatrix< T >::TransposeAdjoint ( ) const

inline

Member Data Documentation

◆ Identity

template<typename T >

CORE_API const TMatrix UE::Math::TMatrix< T >::Identity

static

◆ M

template<typename T >

T UE::Math::TMatrix< T >::M[4][4]

The documentation for this struct was generated from the following files:

Engine/Source/Runtime/Core/Public/Math/MathFwd.h
Engine/Source/Runtime/Core/Public/Math/Matrix.h
Engine/Source/Runtime/Core/Private/Math/UnrealMath.cpp
Engine/Source/Runtime/Core/Public/Math/Matrix.inl

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Member Typedef Documentation

◆ FReal

Constructor & Destructor Documentation

◆ TMatrix() [1/5]

◆ TMatrix() [2/5]

◆ TMatrix() [3/5]

◆ TMatrix() [4/5]

◆ TMatrix() [5/5]

Member Function Documentation

◆ ApplyScale()

◆ ComputeHash()

◆ ConcatTranslation()

◆ ContainsNaN()

◆ DebugPrint()

◆ Determinant()

◆ DiagnosticCheckNaN()

◆ Equals()

◆ ExtractScaling()

◆ GetColumn()

◆ GetFrustumBottomPlane()

◆ GetFrustumFarPlane()

◆ GetFrustumLeftPlane()

◆ GetFrustumNearPlane()

◆ GetFrustumRightPlane()

◆ GetFrustumTopPlane()

◆ GetMatrixWithoutScale()

◆ GetMaximumAxisScale()

◆ GetMinimumAxisScale()

◆ GetOrigin()

◆ GetScaledAxes()

◆ GetScaledAxis()

◆ GetScaleVector()

◆ GetTransposed()

◆ GetUnitAxes()

◆ GetUnitAxis()

◆ Inverse()

◆ InverseFast()

◆ InverseTransformPosition()

◆ InverseTransformVector()

◆ Mirror()

◆ operator!=()

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator+()

◆ operator+=()

◆ operator==()

◆ RemoveScaling()

◆ RemoveTranslation()

◆ Rotator()

◆ RotDeterminant()

◆ ScaleTranslation()

◆ Serialize()

◆ SerializeFromMismatchedTag()

◆ SetAxes()

◆ SetAxis()

◆ SetColumn()

◆ SetIdentity()

◆ SetOrigin()

◆ To3x4MatrixTranspose() [1/2]

◆ To3x4MatrixTranspose() [2/2]

◆ ToQuat()

◆ ToString()

◆ TransformFVector4()

◆ TransformPosition()

◆ TransformVector()

◆ TransposeAdjoint()

Member Data Documentation

◆ Identity

◆ M
