UDocumentation UE5.7 10.02.2026 (Source)
API documentation for Unreal Engine 5.7
Public Member Functions | Protected Member Functions | List of all members
Audio::FAudioMixerPlatformAudioLink Class Reference

#include <AudioMixerPlatformAudioLink.h>

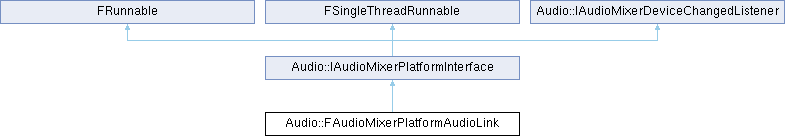

+ Inheritance diagram for Audio::FAudioMixerPlatformAudioLink:

Public Member Functions

 FAudioMixerPlatformAudioLink ()

virtual ~FAudioMixerPlatformAudioLink ()=default

- Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
virtual AUDIOMIXERCORE_API ~IAudioMixerPlatformInterface ()

virtual bool CheckAudioDeviceChange ()

virtual void ResumePlaybackOnNewDevice ()

virtual FString GetCurrentDeviceName () const

virtual AUDIOMIXERCORE_API int32 GetIndexForDevice (const FString &InDeviceName)

virtual bool MoveAudioStreamToNewAudioDevice (const FString &InNewDeviceId)

virtual bool MoveAudioStreamToNewAudioDevice ()

virtual bool RequestDeviceSwap (const FString &DeviceID, bool bInForce, const TCHAR *InReason=nullptr)

virtual void SubmitBuffer (const uint8 *Buffer)

virtual void SubmitDirectOutBuffer (const int32 InDirectOutIndex, const Audio::FAlignedFloatBuffer &InBuffer)

virtual int32 GetNumFrames (const int32 InNumReqestedFrames)

virtual bool DisablePCMAudioCaching () const

virtual bool SupportsHardwareDecompression () const

virtual bool IsNonRealtime () const

virtual void SuspendContext ()

virtual void ResumeContext ()

virtual void OnHardwareUpdate ()

virtual IAudioPlatformDeviceInfoCache * GetDeviceInfoCache () const

virtual bool IsDeviceInfoValid (const FAudioPlatformDeviceInfo &InDeviceInfo) const

virtual bool ShouldUseDeviceInfoCache () const

AUDIOMIXERCORE_API uint32 Run () override

virtual class FSingleThreadRunnable * GetSingleThreadInterface () override

virtual AUDIOMIXERCORE_API void Tick () override

AUDIOMIXERCORE_API IAudioMixerPlatformInterface ()

AUDIOMIXERCORE_API void ReadNextBuffer ()

virtual AUDIOMIXERCORE_API void FadeIn ()

virtual AUDIOMIXERCORE_API void FadeOut ()

FString GetLastError () const

AUDIOMIXERCORE_API void PostInitializeHardware ()

bool GetIsListeningForDeviceEvents () const

void SetIsListeningForDeviceEvents (bool bInListeningForDeviceEvents)

- Public Member Functions inherited from FRunnable
virtual bool Init ()

virtual void Stop ()

virtual void Exit ()

virtual ~FRunnable ()

- Public Member Functions inherited from FSingleThreadRunnable
virtual ~FSingleThreadRunnable ()

- Public Member Functions inherited from Audio::IAudioMixerDeviceChangedListener
virtual ~IAudioMixerDeviceChangedListener ()=default

virtual void RegisterDeviceChangedListener ()

virtual void UnregisterDeviceChangedListener ()

virtual void OnDefaultCaptureDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId)

virtual void OnDefaultRenderDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId)

virtual void OnDeviceAdded (const FString &DeviceId, bool bIsRenderDevice)

virtual void OnDeviceRemoved (const FString &DeviceId, bool bIsRenderDevice)

virtual void OnDeviceStateChanged (const FString &DeviceId, const EAudioDeviceState InState, bool bIsRenderDevice)

virtual void OnFormatChanged (const FString &InDeviceId, const FFormatChangedData &InFormat)

virtual void OnSessionDisconnect (EDisconnectReason InReason)

virtual FString GetDeviceId () const


Protected Member Functions

FString GetPlatformApi () const override

bool InitializeHardware () override

bool TeardownHardware () override

bool IsInitialized () const override

bool GetNumOutputDevices (uint32 &OutNumOutputDevices) override

bool GetOutputDeviceInfo (const uint32 InDeviceIndex, FAudioPlatformDeviceInfo &OutInfo) override

bool GetDefaultOutputDeviceIndex (uint32 &OutDefaultDeviceIndex) const override

virtual bool OpenAudioStream (const FAudioMixerOpenStreamParams &Params) override

bool CloseAudioStream () override

bool StartAudioStream () override

bool StopAudioStream () override

FAudioPlatformDeviceInfo GetPlatformDeviceInfo () const override

FString GetDefaultDeviceName () override

FAudioPlatformSettings GetPlatformSettings () const override

- Protected Member Functions inherited from Audio::IAudioMixerPlatformInterface
AUDIOMIXERCORE_API uint32 MainAudioDeviceRun ()

virtual AUDIOMIXERCORE_API uint32 RunInternal ()

void AudioMixerPlatformLogOnce (const FString &LogDetails, const FString &FileName, int32 LineNumber, ELogVerbosity::Type InVerbosity=ELogVerbosity::Error)

AUDIOMIXERCORE_API void BeginGeneratingAudio ()

AUDIOMIXERCORE_API void StopGeneratingAudio ()

AUDIOMIXERCORE_API void ApplyMasterAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)

AUDIOMIXERCORE_API void ApplyPrimaryAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)

template<typename BufferType >
void ApplyAttenuationInternal (TArrayView< BufferType > &InOutBuffer)

AUDIOMIXERCORE_API void StartRunningNullDevice ()

AUDIOMIXERCORE_API void StopRunningNullDevice ()

AUDIOMIXERCORE_API void CreateNullDeviceThread (const TFunction< void()> InCallback, float InBufferDuration, bool bShouldPauseOnStart)


Additional Inherited Members

- Public Types inherited from Audio::IAudioMixerDeviceChangedListener
enum class  EDisconnectReason {
  DeviceRemoval , ServerShutdown , FormatChanged , SessionLogoff ,
  SessionDisconnected , ExclusiveModeOverride
}

- Static Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API bool GetChannelTypeAtIndex (const int32 Index, EAudioMixerChannel::Type &OutType)

- Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
FAudioOutputStreamInfo AudioStreamInfo

FAudioMixerOpenStreamParams OpenStreamParams

Audio::FOutputBuffer OutputBuffer

bool bWarnedBufferUnderrun

TUniquePtr< FRunnableThread > AudioRenderThread

FEvent * AudioRenderEvent

FCriticalSection DeviceSwapCriticalSection

FThreadSafeBool bIsInDeviceSwap

FEvent * AudioFadeEvent

int32 NumOutputBuffers

float FadeVolume

FParam FadeParam

FString CurrentDeviceName

FString LastError

int32 CallCounterApplyAttenuationInternal { 0 }

int32 CallCounterReadNextBuffer { 0 }

FThreadSafeBool bPerformingFade

FThreadSafeBool bFadedOut

FThreadSafeBool bIsDeviceInitialized

FThreadSafeBool bMoveAudioStreamToNewAudioDevice

FThreadSafeBool bIsUsingNullDevice

FThreadSafeBool bIsGeneratingAudio

const int32 InstanceID { -1 }

- Static Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API FThreadSafeCounter NextInstanceID


Constructor & Destructor Documentation

◆ FAudioMixerPlatformAudioLink()

Audio::FAudioMixerPlatformAudioLink::FAudioMixerPlatformAudioLink ( )

◆ ~FAudioMixerPlatformAudioLink()

virtual Audio::FAudioMixerPlatformAudioLink::~FAudioMixerPlatformAudioLink ( )
virtualdefault

Member Function Documentation

◆ CloseAudioStream()

bool Audio::FAudioMixerPlatformAudioLink::CloseAudioStream ( )
overrideprotectedvirtual

Closes the audio stream (if it's open).

Implements Audio::IAudioMixerPlatformInterface.

◆ GetDefaultDeviceName()

FString Audio::FAudioMixerPlatformAudioLink::GetDefaultDeviceName ( )
overrideprotectedvirtual

Return any optional device name defined in platform configuratio.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetDefaultOutputDeviceIndex()

bool Audio::FAudioMixerPlatformAudioLink::GetDefaultOutputDeviceIndex ( uint32 &  OutDefaultDeviceIndex) const
overrideprotectedvirtual

Returns the default device index.

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ GetNumOutputDevices()

bool Audio::FAudioMixerPlatformAudioLink::GetNumOutputDevices ( uint32 &  OutNumOutputDevices)
overrideprotectedvirtual

Returns the number of output devices.

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ GetOutputDeviceInfo()

bool Audio::FAudioMixerPlatformAudioLink::GetOutputDeviceInfo ( const uint32  InDeviceIndex,
FAudioPlatformDeviceInfo &  OutInfo
)
overrideprotectedvirtual

Gets the device information of the given device index.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetPlatformApi()

FString Audio::FAudioMixerPlatformAudioLink::GetPlatformApi ( ) const
inlineoverrideprotectedvirtual

Returns the platform API name.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetPlatformDeviceInfo()

FAudioPlatformDeviceInfo Audio::FAudioMixerPlatformAudioLink::GetPlatformDeviceInfo ( ) const
overrideprotectedvirtual

Returns the platform device info of the currently open audio stream.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetPlatformSettings()

FAudioPlatformSettings Audio::FAudioMixerPlatformAudioLink::GetPlatformSettings ( ) const
overrideprotectedvirtual

Gets the platform specific audio settings.

Implements Audio::IAudioMixerPlatformInterface.

◆ InitializeHardware()

bool Audio::FAudioMixerPlatformAudioLink::InitializeHardware ( )
overrideprotectedvirtual

Initialize the hardware.

Implements Audio::IAudioMixerPlatformInterface.

◆ IsInitialized()

bool Audio::FAudioMixerPlatformAudioLink::IsInitialized ( ) const
overrideprotectedvirtual

Is the hardware initialized.

Implements Audio::IAudioMixerPlatformInterface.

◆ OpenAudioStream()

bool Audio::FAudioMixerPlatformAudioLink::OpenAudioStream ( const FAudioMixerOpenStreamParams &  Params)
overrideprotectedvirtual

Opens up a new audio stream with the given parameters.

Implements Audio::IAudioMixerPlatformInterface.

◆ StartAudioStream()

bool Audio::FAudioMixerPlatformAudioLink::StartAudioStream ( )
overrideprotectedvirtual

Starts the audio stream processing and generating audio.

Implements Audio::IAudioMixerPlatformInterface.

◆ StopAudioStream()

bool Audio::FAudioMixerPlatformAudioLink::StopAudioStream ( )
overrideprotectedvirtual

Stops the audio stream (but keeps the audio stream open).

Implements Audio::IAudioMixerPlatformInterface.

◆ TeardownHardware()

bool Audio::FAudioMixerPlatformAudioLink::TeardownHardware ( )
overrideprotectedvirtual

Teardown the hardware.

Implements Audio::IAudioMixerPlatformInterface.

The documentation for this class was generated from the following files:
