Audio::FMixerPlatformAndroid Class Reference

#include <AudioMixerPlatformAndroid.h>

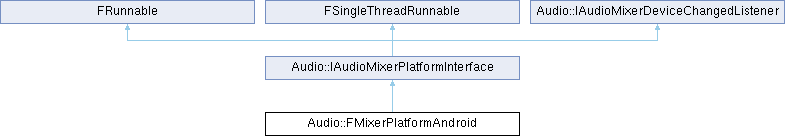

+ Inheritance diagram for Audio::FMixerPlatformAndroid:

Public Member Functions

 FMixerPlatformAndroid ()

 ~FMixerPlatformAndroid ()

virtual FString GetPlatformApi () const override

virtual bool InitializeHardware () override

virtual bool TeardownHardware () override

virtual bool IsInitialized () const override

virtual bool GetNumOutputDevices (uint32 &OutNumOutputDevices) override

virtual bool GetOutputDeviceInfo (const uint32 InDeviceIndex, FAudioPlatformDeviceInfo &OutInfo) override

virtual bool GetDefaultOutputDeviceIndex (uint32 &OutDefaultDeviceIndex) const override

virtual bool OpenAudioStream (const FAudioMixerOpenStreamParams &Params) override

virtual bool CloseAudioStream () override

virtual bool StartAudioStream () override

virtual bool StopAudioStream () override

virtual FAudioPlatformDeviceInfo GetPlatformDeviceInfo () const override

virtual void SubmitBuffer (const uint8 *Buffer) override

virtual FString GetDefaultDeviceName () override

virtual FAudioPlatformSettings GetPlatformSettings () const override

virtual void SuspendContext () override

virtual void ResumeContext () override

- Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
virtual AUDIOMIXERCORE_API ~IAudioMixerPlatformInterface ()

virtual bool CheckAudioDeviceChange ()

virtual void ResumePlaybackOnNewDevice ()

virtual FString GetCurrentDeviceName () const

virtual AUDIOMIXERCORE_API int32 GetIndexForDevice (const FString &InDeviceName)

virtual bool MoveAudioStreamToNewAudioDevice (const FString &InNewDeviceId)

virtual bool MoveAudioStreamToNewAudioDevice ()

virtual bool RequestDeviceSwap (const FString &DeviceID, bool bInForce, const TCHAR *InReason=nullptr)

virtual void SubmitDirectOutBuffer (const int32 InDirectOutIndex, const Audio::FAlignedFloatBuffer &InBuffer)

virtual int32 GetNumFrames (const int32 InNumReqestedFrames)

virtual bool DisablePCMAudioCaching () const

virtual bool SupportsHardwareDecompression () const

virtual bool IsNonRealtime () const

virtual void OnHardwareUpdate ()

virtual IAudioPlatformDeviceInfoCache * GetDeviceInfoCache () const

virtual bool IsDeviceInfoValid (const FAudioPlatformDeviceInfo &InDeviceInfo) const

virtual bool ShouldUseDeviceInfoCache () const

AUDIOMIXERCORE_API uint32 Run () override

virtual class FSingleThreadRunnable * GetSingleThreadInterface () override

virtual AUDIOMIXERCORE_API void Tick () override

AUDIOMIXERCORE_API IAudioMixerPlatformInterface ()

AUDIOMIXERCORE_API void ReadNextBuffer ()

virtual AUDIOMIXERCORE_API void FadeIn ()

virtual AUDIOMIXERCORE_API void FadeOut ()

FString GetLastError () const

AUDIOMIXERCORE_API void PostInitializeHardware ()

bool GetIsListeningForDeviceEvents () const

void SetIsListeningForDeviceEvents (bool bInListeningForDeviceEvents)

- Public Member Functions inherited from FRunnable
virtual bool Init ()

virtual void Stop ()

virtual void Exit ()

virtual ~FRunnable ()

- Public Member Functions inherited from FSingleThreadRunnable
virtual ~FSingleThreadRunnable ()

- Public Member Functions inherited from Audio::IAudioMixerDeviceChangedListener
virtual ~IAudioMixerDeviceChangedListener ()=default

virtual void RegisterDeviceChangedListener ()

virtual void UnregisterDeviceChangedListener ()

virtual void OnDefaultCaptureDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId)

virtual void OnDefaultRenderDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId)

virtual void OnDeviceAdded (const FString &DeviceId, bool bIsRenderDevice)

virtual void OnDeviceRemoved (const FString &DeviceId, bool bIsRenderDevice)

virtual void OnDeviceStateChanged (const FString &DeviceId, const EAudioDeviceState InState, bool bIsRenderDevice)

virtual void OnFormatChanged (const FString &InDeviceId, const FFormatChangedData &InFormat)

virtual void OnSessionDisconnect (EDisconnectReason InReason)

virtual FString GetDeviceId () const


Additional Inherited Members

- Public Types inherited from Audio::IAudioMixerDeviceChangedListener
enum class  EDisconnectReason {
  DeviceRemoval , ServerShutdown , FormatChanged , SessionLogoff ,
  SessionDisconnected , ExclusiveModeOverride
}

- Static Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API bool GetChannelTypeAtIndex (const int32 Index, EAudioMixerChannel::Type &OutType)

- Protected Member Functions inherited from Audio::IAudioMixerPlatformInterface
AUDIOMIXERCORE_API uint32 MainAudioDeviceRun ()

virtual AUDIOMIXERCORE_API uint32 RunInternal ()

void AudioMixerPlatformLogOnce (const FString &LogDetails, const FString &FileName, int32 LineNumber, ELogVerbosity::Type InVerbosity=ELogVerbosity::Error)

AUDIOMIXERCORE_API void BeginGeneratingAudio ()

AUDIOMIXERCORE_API void StopGeneratingAudio ()

AUDIOMIXERCORE_API void ApplyMasterAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)

AUDIOMIXERCORE_API void ApplyPrimaryAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)

template<typename BufferType >
void ApplyAttenuationInternal (TArrayView< BufferType > &InOutBuffer)

AUDIOMIXERCORE_API void StartRunningNullDevice ()

AUDIOMIXERCORE_API void StopRunningNullDevice ()

AUDIOMIXERCORE_API void CreateNullDeviceThread (const TFunction< void()> InCallback, float InBufferDuration, bool bShouldPauseOnStart)

- Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
FAudioOutputStreamInfo AudioStreamInfo

FAudioMixerOpenStreamParams OpenStreamParams

Audio::FOutputBuffer OutputBuffer

bool bWarnedBufferUnderrun

TUniquePtr< FRunnableThread > AudioRenderThread

FEvent * AudioRenderEvent

FCriticalSection DeviceSwapCriticalSection

FThreadSafeBool bIsInDeviceSwap

FEvent * AudioFadeEvent

int32 NumOutputBuffers

float FadeVolume

FParam FadeParam

FString CurrentDeviceName

FString LastError

int32 CallCounterApplyAttenuationInternal { 0 }

int32 CallCounterReadNextBuffer { 0 }

FThreadSafeBool bPerformingFade

FThreadSafeBool bFadedOut

FThreadSafeBool bIsDeviceInitialized

FThreadSafeBool bMoveAudioStreamToNewAudioDevice

FThreadSafeBool bIsUsingNullDevice

FThreadSafeBool bIsGeneratingAudio

const int32 InstanceID { -1 }

- Static Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API FThreadSafeCounter NextInstanceID


Constructor & Destructor Documentation

◆ FMixerPlatformAndroid()

Audio::FMixerPlatformAndroid::FMixerPlatformAndroid ( )

◆ ~FMixerPlatformAndroid()

Audio::FMixerPlatformAndroid::~FMixerPlatformAndroid ( )

Member Function Documentation

◆ CloseAudioStream()

bool Audio::FMixerPlatformAndroid::CloseAudioStream ( )
overridevirtual

Closes the audio stream (if it's open).

Implements Audio::IAudioMixerPlatformInterface.

◆ GetDefaultDeviceName()

FString Audio::FMixerPlatformAndroid::GetDefaultDeviceName ( )
overridevirtual

Return any optional device name defined in platform configuratio.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetDefaultOutputDeviceIndex()

bool Audio::FMixerPlatformAndroid::GetDefaultOutputDeviceIndex ( uint32 &  OutDefaultDeviceIndex) const
overridevirtual

Returns the default device index.

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ GetNumOutputDevices()

bool Audio::FMixerPlatformAndroid::GetNumOutputDevices ( uint32 &  OutNumOutputDevices)
overridevirtual

Returns the number of output devices.

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ GetOutputDeviceInfo()

bool Audio::FMixerPlatformAndroid::GetOutputDeviceInfo ( const uint32  InDeviceIndex,
FAudioPlatformDeviceInfo &  OutInfo
)
overridevirtual

Gets the device information of the given device index.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetPlatformApi()

virtual FString Audio::FMixerPlatformAndroid::GetPlatformApi ( ) const
inlineoverridevirtual

Returns the platform API name.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetPlatformDeviceInfo()

FAudioPlatformDeviceInfo Audio::FMixerPlatformAndroid::GetPlatformDeviceInfo ( ) const
overridevirtual

Returns the platform device info of the currently open audio stream.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetPlatformSettings()

FAudioPlatformSettings Audio::FMixerPlatformAndroid::GetPlatformSettings ( ) const
overridevirtual

Gets the platform specific audio settings.

Implements Audio::IAudioMixerPlatformInterface.

◆ InitializeHardware()

bool Audio::FMixerPlatformAndroid::InitializeHardware ( )
overridevirtual

Initialize the hardware.

Implements Audio::IAudioMixerPlatformInterface.

◆ IsInitialized()

bool Audio::FMixerPlatformAndroid::IsInitialized ( ) const
overridevirtual

Is the hardware initialized.

Implements Audio::IAudioMixerPlatformInterface.

◆ OpenAudioStream()

bool Audio::FMixerPlatformAndroid::OpenAudioStream ( const FAudioMixerOpenStreamParams &  Params)
overridevirtual

Opens up a new audio stream with the given parameters.

Implements Audio::IAudioMixerPlatformInterface.

◆ ResumeContext()

void Audio::FMixerPlatformAndroid::ResumeContext ( )
overridevirtual

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ StartAudioStream()

bool Audio::FMixerPlatformAndroid::StartAudioStream ( )
overridevirtual

Starts the audio stream processing and generating audio.

Implements Audio::IAudioMixerPlatformInterface.

◆ StopAudioStream()

bool Audio::FMixerPlatformAndroid::StopAudioStream ( )
overridevirtual

Stops the audio stream (but keeps the audio stream open).

Implements Audio::IAudioMixerPlatformInterface.

◆ SubmitBuffer()

void Audio::FMixerPlatformAndroid::SubmitBuffer ( const uint8 *  Buffer)
overridevirtual

Submit the given buffer to the platform's output audio device.

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ SuspendContext()

void Audio::FMixerPlatformAndroid::SuspendContext ( )
overridevirtual

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ TeardownHardware()

bool Audio::FMixerPlatformAndroid::TeardownHardware ( )
overridevirtual

Teardown the hardware.

Implements Audio::IAudioMixerPlatformInterface.

The documentation for this class was generated from the following files:
