#include <AudioMixerPlatformSDL.h>

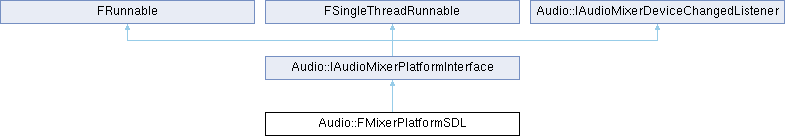

Inheritance diagram for Audio::FMixerPlatformSDL:

Public Member Functions
	FMixerPlatformSDL ()

virtual	~FMixerPlatformSDL ()

FString	GetPlatformApi () const override

bool	InitializeHardware () override

bool	TeardownHardware () override

bool	IsInitialized () const override

bool	GetNumOutputDevices (uint32 &OutNumOutputDevices) override

bool	GetOutputDeviceInfo (const uint32 InDeviceIndex, FAudioPlatformDeviceInfo &OutInfo) override

bool	GetDefaultOutputDeviceIndex (uint32 &OutDefaultDeviceIndex) const override

virtual bool	OpenAudioStream (const FAudioMixerOpenStreamParams &Params) override

bool	CloseAudioStream () override

bool	StartAudioStream () override

bool	StopAudioStream () override

FAudioPlatformDeviceInfo	GetPlatformDeviceInfo () const override

void	SubmitBuffer (const uint8 *Buffer) override

FString	GetDefaultDeviceName () override

FAudioPlatformSettings	GetPlatformSettings () const override

void	ResumeContext () override

void	SuspendContext () override

void	HandleOnBufferEnd (uint8 *InOutputBuffer, int32 InOutputBufferLength)

SDL_AudioFormat	GetPlatformAudioFormat ()

Uint8	GetPlatformChannels ()

EAudioMixerStreamDataFormat::Type	GetAudioStreamFormat ()

int32	GetAudioStreamChannelSize ()

int32	GetOutputBufferByteLength ()

Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
virtual AUDIOMIXERCORE_API	~IAudioMixerPlatformInterface ()

virtual bool	CheckAudioDeviceChange ()

virtual void	ResumePlaybackOnNewDevice ()

virtual FString	GetCurrentDeviceName () const

virtual AUDIOMIXERCORE_API int32	GetIndexForDevice (const FString &InDeviceName)

virtual bool	MoveAudioStreamToNewAudioDevice (const FString &InNewDeviceId)

virtual bool	MoveAudioStreamToNewAudioDevice ()

virtual bool	RequestDeviceSwap (const FString &DeviceID, bool bInForce, const TCHAR *InReason=nullptr)

virtual void	SubmitDirectOutBuffer (const int32 InDirectOutIndex, const Audio::FAlignedFloatBuffer &InBuffer)

virtual int32	GetNumFrames (const int32 InNumReqestedFrames)

virtual bool	DisablePCMAudioCaching () const

virtual bool	SupportsHardwareDecompression () const

virtual bool	IsNonRealtime () const

virtual void	OnHardwareUpdate ()

virtual IAudioPlatformDeviceInfoCache *	GetDeviceInfoCache () const

virtual bool	IsDeviceInfoValid (const FAudioPlatformDeviceInfo &InDeviceInfo) const

virtual bool	ShouldUseDeviceInfoCache () const

AUDIOMIXERCORE_API uint32	Run () override

virtual class FSingleThreadRunnable *	GetSingleThreadInterface () override

virtual AUDIOMIXERCORE_API void	Tick () override

AUDIOMIXERCORE_API	IAudioMixerPlatformInterface ()

AUDIOMIXERCORE_API void	ReadNextBuffer ()

virtual AUDIOMIXERCORE_API void	FadeIn ()

virtual AUDIOMIXERCORE_API void	FadeOut ()

FString	GetLastError () const

AUDIOMIXERCORE_API void	PostInitializeHardware ()

bool	GetIsListeningForDeviceEvents () const

void	SetIsListeningForDeviceEvents (bool bInListeningForDeviceEvents)

Public Member Functions inherited from FRunnable
virtual bool	Init ()

virtual void	Stop ()

virtual void	Exit ()

virtual	~FRunnable ()

Public Member Functions inherited from FSingleThreadRunnable
virtual	~FSingleThreadRunnable ()

Public Member Functions inherited from Audio::IAudioMixerDeviceChangedListener
virtual	~IAudioMixerDeviceChangedListener ()=default

virtual void	RegisterDeviceChangedListener ()

virtual void	UnregisterDeviceChangedListener ()

virtual void	OnDefaultCaptureDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId)

virtual void	OnDefaultRenderDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId)

virtual void	OnDeviceAdded (const FString &DeviceId, bool bIsRenderDevice)

virtual void	OnDeviceRemoved (const FString &DeviceId, bool bIsRenderDevice)

virtual void	OnDeviceStateChanged (const FString &DeviceId, const EAudioDeviceState InState, bool bIsRenderDevice)

virtual void	OnFormatChanged (const FString &InDeviceId, const FFormatChangedData &InFormat)

virtual void	OnSessionDisconnect (EDisconnectReason InReason)

virtual FString	GetDeviceId () const

Protected Attributes
FCriticalSection	OutputBufferMutex

Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
FAudioOutputStreamInfo	AudioStreamInfo

FAudioMixerOpenStreamParams	OpenStreamParams

Audio::FOutputBuffer	OutputBuffer

bool	bWarnedBufferUnderrun

TUniquePtr< FRunnableThread >	AudioRenderThread

FEvent *	AudioRenderEvent

FCriticalSection	DeviceSwapCriticalSection

FThreadSafeBool	bIsInDeviceSwap

FEvent *	AudioFadeEvent

int32	NumOutputBuffers

float	FadeVolume

FParam	FadeParam

FString	CurrentDeviceName

FString	LastError

int32	CallCounterApplyAttenuationInternal { 0 }

int32	CallCounterReadNextBuffer { 0 }

FThreadSafeBool	bPerformingFade

FThreadSafeBool	bFadedOut

FThreadSafeBool	bIsDeviceInitialized

FThreadSafeBool	bMoveAudioStreamToNewAudioDevice

FThreadSafeBool	bIsUsingNullDevice

FThreadSafeBool	bIsGeneratingAudio

const int32	InstanceID { -1 }

Additional Inherited Members
Public Types inherited from Audio::IAudioMixerDeviceChangedListener
enum class	EDisconnectReason { DeviceRemoval , ServerShutdown , FormatChanged , SessionLogoff , SessionDisconnected , ExclusiveModeOverride }

Static Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API bool	GetChannelTypeAtIndex (const int32 Index, EAudioMixerChannel::Type &OutType)

Protected Member Functions inherited from Audio::IAudioMixerPlatformInterface
AUDIOMIXERCORE_API uint32	MainAudioDeviceRun ()

virtual AUDIOMIXERCORE_API uint32	RunInternal ()

void	AudioMixerPlatformLogOnce (const FString &LogDetails, const FString &FileName, int32 LineNumber, ELogVerbosity::Type InVerbosity=ELogVerbosity::Error)

AUDIOMIXERCORE_API void	BeginGeneratingAudio ()

AUDIOMIXERCORE_API void	StopGeneratingAudio ()

AUDIOMIXERCORE_API void	ApplyMasterAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)

AUDIOMIXERCORE_API void	ApplyPrimaryAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)

template<typename BufferType >
void	ApplyAttenuationInternal (TArrayView< BufferType > &InOutBuffer)

AUDIOMIXERCORE_API void	StartRunningNullDevice ()

AUDIOMIXERCORE_API void	StopRunningNullDevice ()

AUDIOMIXERCORE_API void	CreateNullDeviceThread (const TFunction< void()> InCallback, float InBufferDuration, bool bShouldPauseOnStart)

Static Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API FThreadSafeCounter	NextInstanceID

Constructor & Destructor Documentation

◆ FMixerPlatformSDL()

Audio::FMixerPlatformSDL::FMixerPlatformSDL ( )

◆ ~FMixerPlatformSDL()

Audio::FMixerPlatformSDL::~FMixerPlatformSDL ( )

virtual

Member Function Documentation

◆ CloseAudioStream()

bool Audio::FMixerPlatformSDL::CloseAudioStream ( )

overridevirtual

Closes the audio stream (if it's open).

Implements Audio::IAudioMixerPlatformInterface.

◆ GetAudioStreamChannelSize()

int32 Audio::FMixerPlatformSDL::GetAudioStreamChannelSize ( )

inline

◆ GetAudioStreamFormat()

EAudioMixerStreamDataFormat::Type Audio::FMixerPlatformSDL::GetAudioStreamFormat ( )

inline

◆ GetDefaultDeviceName()

FString Audio::FMixerPlatformSDL::GetDefaultDeviceName ( )

overridevirtual

Return any optional device name defined in platform configuratio.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetDefaultOutputDeviceIndex()

bool Audio::FMixerPlatformSDL::GetDefaultOutputDeviceIndex ( uint32 & OutDefaultDeviceIndex ) const

overridevirtual

Returns the default device index.

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ GetNumOutputDevices()

bool Audio::FMixerPlatformSDL::GetNumOutputDevices ( uint32 & OutNumOutputDevices )

overridevirtual

Returns the number of output devices.

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ GetOutputBufferByteLength()

int32 Audio::FMixerPlatformSDL::GetOutputBufferByteLength ( )

inline

◆ GetOutputDeviceInfo()

bool Audio::FMixerPlatformSDL::GetOutputDeviceInfo	(	const uint32	InDeviceIndex,
		FAudioPlatformDeviceInfo &	OutInfo
	)

overridevirtual

Gets the device information of the given device index.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetPlatformApi()

FString Audio::FMixerPlatformSDL::GetPlatformApi ( ) const

inlineoverridevirtual

Returns the platform API name.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetPlatformAudioFormat()

SDL_AudioFormat Audio::FMixerPlatformSDL::GetPlatformAudioFormat ( )

inline

◆ GetPlatformChannels()

Uint8 Audio::FMixerPlatformSDL::GetPlatformChannels ( )

inline

◆ GetPlatformDeviceInfo()

FAudioPlatformDeviceInfo Audio::FMixerPlatformSDL::GetPlatformDeviceInfo ( ) const

overridevirtual

Returns the platform device info of the currently open audio stream.

Implements Audio::IAudioMixerPlatformInterface.

◆ GetPlatformSettings()

FAudioPlatformSettings Audio::FMixerPlatformSDL::GetPlatformSettings ( ) const

overridevirtual

Gets the platform specific audio settings.

Implements Audio::IAudioMixerPlatformInterface.

◆ HandleOnBufferEnd()

void Audio::FMixerPlatformSDL::HandleOnBufferEnd	(	uint8 *	InOutputBuffer,
		int32	InOutputBufferLength
	)

◆ InitializeHardware()

bool Audio::FMixerPlatformSDL::InitializeHardware ( )

overridevirtual

Initialize the hardware.

Implements Audio::IAudioMixerPlatformInterface.

◆ IsInitialized()

bool Audio::FMixerPlatformSDL::IsInitialized ( ) const

overridevirtual

Is the hardware initialized.

Implements Audio::IAudioMixerPlatformInterface.

◆ OpenAudioStream()

bool Audio::FMixerPlatformSDL::OpenAudioStream ( const FAudioMixerOpenStreamParams & Params )

overridevirtual

Opens up a new audio stream with the given parameters.

Implements Audio::IAudioMixerPlatformInterface.

◆ ResumeContext()

void Audio::FMixerPlatformSDL::ResumeContext ( )

overridevirtual

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ StartAudioStream()

bool Audio::FMixerPlatformSDL::StartAudioStream ( )

overridevirtual

Starts the audio stream processing and generating audio.

Implements Audio::IAudioMixerPlatformInterface.

◆ StopAudioStream()

bool Audio::FMixerPlatformSDL::StopAudioStream ( )

overridevirtual

Stops the audio stream (but keeps the audio stream open).

Implements Audio::IAudioMixerPlatformInterface.

◆ SubmitBuffer()

void Audio::FMixerPlatformSDL::SubmitBuffer ( const uint8 * Buffer )

overridevirtual

Submit the given buffer to the platform's output audio device.

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ SuspendContext()

void Audio::FMixerPlatformSDL::SuspendContext ( )

overridevirtual

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ TeardownHardware()

bool Audio::FMixerPlatformSDL::TeardownHardware ( )

overridevirtual

Teardown the hardware.

Implements Audio::IAudioMixerPlatformInterface.

Member Data Documentation

◆ OutputBufferMutex

FCriticalSection Audio::FMixerPlatformSDL::OutputBufferMutex

protected

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Linux/AudioMixerSDL/Private/AudioMixerPlatformSDL.h
Engine/Source/Runtime/Linux/AudioMixerSDL/Private/AudioMixerPlatformSDL.cpp
