Chaos::TPBDIndexedConstraintContainer< ConstaintContainerType > Class Template Reference

#include <IndexedConstraintContainer.h>

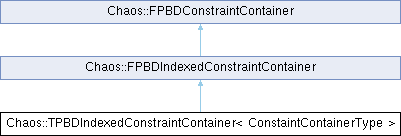

Inheritance diagram for Chaos::TPBDIndexedConstraintContainer< ConstaintContainerType >:

Public Types
using	FConstaintContainerType = ConstaintContainerType

Public Member Functions
	TPBDIndexedConstraintContainer (FConstraintHandleTypeID InType)
virtual TUniquePtr< FConstraintContainerSolver >	CreateSceneSolver (const int32 Priority) override final
virtual TUniquePtr< FConstraintContainerSolver >	CreateGroupSolver (const int32 Priority) override final
Public Member Functions inherited from Chaos::FPBDIndexedConstraintContainer
	FPBDIndexedConstraintContainer (FConstraintHandleTypeID InType)
virtual void	SetConstraintEnabled (int32 ConstraintIndex, bool bEnabled)
virtual bool	IsConstraintEnabled (int32 ConstraintIndex) const
Public Member Functions inherited from Chaos::FPBDConstraintContainer
CHAOS_API	FPBDConstraintContainer (FConstraintHandleTypeID InConstraintHandleType)
virtual CHAOS_API	~FPBDConstraintContainer ()
int32	GetContainerId () const
void	SetContainerId (int32 InContainerId)
const FConstraintHandleTypeID &	GetConstraintHandleType () const
virtual int32	GetNumConstraints () const =0
virtual void	ResetConstraints ()=0
virtual void	UpdatePositionBasedState (const FReal Dt)
virtual void	PrepareTick ()=0
virtual void	UnprepareTick ()=0
virtual void	DisconnectConstraints (const TSet< TGeometryParticleHandle< FReal, 3 > * > &)
virtual void	OnDisableParticle (FGeometryParticleHandle *DisabledParticle)
virtual void	OnEnableParticle (FGeometryParticleHandle *EnabledParticle)
virtual void	AddConstraintsToGraph (Private::FPBDIslandManager &IslandManager)=0

Additional Inherited Members
Protected Member Functions inherited from Chaos::FPBDIndexedConstraintContainer
int32	GetConstraintIndex (const FIndexedConstraintHandle *ConstraintHandle) const
void	SetConstraintIndex (FIndexedConstraintHandle *ConstraintHandle, int32 ConstraintIndex) const
Protected Attributes inherited from Chaos::FPBDConstraintContainer
FConstraintHandleTypeID	ConstraintHandleType
int32	ContainerId

Member Typedef Documentation

FConstaintContainerType

template<typename ConstaintContainerType >

using Chaos::TPBDIndexedConstraintContainer< ConstaintContainerType >::FConstaintContainerType = ConstaintContainerType

Constructor & Destructor Documentation

TPBDIndexedConstraintContainer()

template<typename ConstaintContainerType >

Chaos::TPBDIndexedConstraintContainer< ConstaintContainerType >::TPBDIndexedConstraintContainer ( FConstraintHandleTypeID  InType )

inline

Member Function Documentation

CreateGroupSolver()

template<typename ConstaintContainerType >

virtual TUniquePtr< FConstraintContainerSolver > Chaos::TPBDIndexedConstraintContainer< ConstaintContainerType >::CreateGroupSolver ( const int32  Priority )

inlinefinaloverridevirtual

Create a constraint solver for an Evolution with Graph support (World evolution). The system will create several of these: usually one per worker thread (Island Group) but possibly more in complex scenes where constraint coloring is being used. It will be used to solve constraints in groups, with the constraints in each group determined by the graph/islands/islandgroups.

Implements Chaos::FPBDConstraintContainer.

CreateSceneSolver()

template<typename ConstaintContainerType >

virtual TUniquePtr< FConstraintContainerSolver > Chaos::TPBDIndexedConstraintContainer< ConstaintContainerType >::CreateSceneSolver ( const int32  Priority )

inlinefinaloverridevirtual

Create a constraint solver for an Evolution without Graph support (RBAN evolution). There will only be one of these per scene (RBAN node) and it is used to solve all constraints in the container (serially).

Implements Chaos::FPBDConstraintContainer.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Experimental/Chaos/Public/Chaos/Evolution/IndexedConstraintContainer.h
