#include <ArchiveProxy.h>

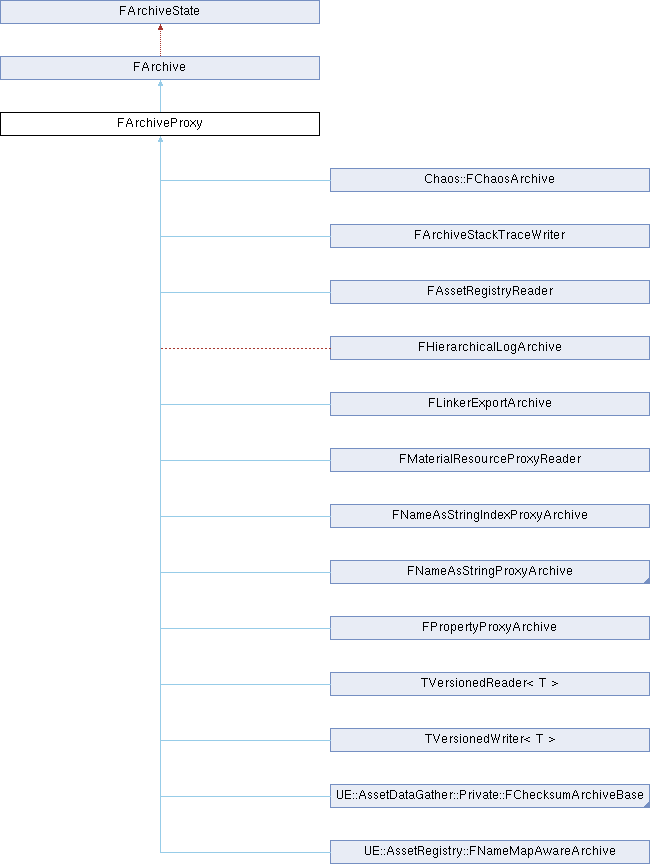

Inheritance diagram for FArchiveProxy:

Public Member Functions
CORE_API	FArchiveProxy (FArchive &InInnerArchive)

CORE_API	~FArchiveProxy ()

	FArchiveProxy (FArchiveProxy &&)=delete

	FArchiveProxy (const FArchiveProxy &)=delete

FArchiveProxy &	operator= (FArchiveProxy &&)=delete

FArchiveProxy &	operator= (const FArchiveProxy &)=delete

virtual FArchive &	operator<< (FName &Value) override

virtual FArchive &	operator<< (FText &Value) override

virtual FArchive &	operator<< (UObject *&Value) override

virtual FArchive &	operator<< (FObjectPtr &Value) override

virtual FArchive &	operator<< (FLazyObjectPtr &Value) override

virtual FArchive &	operator<< (FSoftObjectPath &Value) override

virtual FArchive &	operator<< (FSoftObjectPtr &Value) override

virtual FArchive &	operator<< (FWeakObjectPtr &Value) override

virtual FArchive &	operator<< (FField *&Value) override

virtual void	Serialize (void *V, int64 Length) override

virtual void	SerializeBits (void *Bits, int64 LengthBits) override

virtual void	SerializeInt (uint32 &Value, uint32 Max) override

virtual void	SerializeIntPacked (uint32 &Value) override

virtual void	Preload (UObject *Object) override

virtual void	CountBytes (SIZE_T InNum, SIZE_T InMax) override

virtual CORE_API FString	GetArchiveName () const override

virtual FLinker *	GetLinker () override

virtual int64	Tell () override

virtual int64	TotalSize () override

virtual bool	AtEnd () override

virtual void	Seek (int64 InPos) override

virtual void	AttachBulkData (UObject Owner, FBulkData BulkData) override

virtual void	DetachBulkData (FBulkData *BulkData, bool bEnsureBulkDataIsLoaded) override

virtual bool	SerializeBulkData (FBulkData &BulkData, const FBulkDataSerializationParams &Params) override

virtual bool	Precache (int64 PrecacheOffset, int64 PrecacheSize) override

virtual bool	SetCompressionMap (TArray< FCompressedChunk > *CompressedChunks, ECompressionFlags CompressionFlags) override

virtual void	Flush () override

virtual bool	Close () override

virtual void	MarkScriptSerializationStart (const UObject *Obj) override

virtual void	MarkScriptSerializationEnd (const UObject *Obj) override

virtual const FCustomVersionContainer &	GetCustomVersions () const override

virtual void	SetCustomVersions (const FCustomVersionContainer &NewVersions) override

virtual void	ResetCustomVersions () override

virtual void	MarkSearchableName (const TObjectPtr< const UObject > &TypeObject, const FName &ValueName) const override

virtual UObject *	GetArchetypeFromLoader (const UObject *Obj) override

virtual bool	AttachExternalReadDependency (FExternalReadCallback &ReadCallback) override

virtual bool	ShouldSkipProperty (const FProperty *InProperty) const override

virtual bool	UseToResolveEnumerators () const override

virtual void	FlushCache () override

virtual void	ForceBlueprintFinalization () override

virtual void	SetDebugSerializationFlags (uint32 InCustomFlags) override

virtual void	SetFilterEditorOnly (bool InFilterEditorOnly) override

void	SetSerializedProperty (FProperty *InProperty) override

void	SetSerializedPropertyChain (const FArchiveSerializedPropertyChain InSerializedPropertyChain, class FProperty InSerializedPropertyOverride=nullptr) override

virtual void	PushSerializedProperty (class FProperty *InProperty, const bool bIsEditorOnlyProperty) override

virtual void	PopSerializedProperty (class FProperty *InProperty, const bool bIsEditorOnlyProperty) override

virtual UE_FORCEINLINE_HINT bool	IsProxyOf (FArchive *InOther) const override

virtual FArchive *	GetCacheableArchive () override

virtual ::FArchiveState &	GetInnermostState () override

Public Member Functions inherited from FArchive
	FArchive ()=default

	FArchive (const FArchive &)=default

FArchive &	operator= (const FArchive &ArchiveToCopy)=default

virtual CORE_API	~FArchive ()

template<class T >
FArchive &	operator<< (TCheckedObjPtr< T > &Value)

virtual CORE_API void	SerializeIntPacked64 (uint64 &Value)

FArchiveState &	GetArchiveState ()

const FArchiveState &	GetArchiveState () const

virtual void	AttachBulkData (UE::Serialization::FEditorBulkData *BulkData)

virtual void	DetachBulkData (UE::Serialization::FEditorBulkData *BulkData, bool bEnsureBulkDataIsLoaded)

CORE_API void	SerializeCompressed (void *V, int64 Length, FName CompressionFormatCannotChange, ECompressionFlags Flags=COMPRESS_NoFlags, bool bTreatBufferAsFileReader=false)

CORE_API void	SerializeCompressedNew (void V, int64 Length, FName CompressionFormatToEncode, FName CompressionFormatToDecodeOldV1Files, ECompressionFlags Flags=COMPRESS_NoFlags, bool bTreatBufferAsFileReader=false, int64 OutPartialReadLength=nullptr)

CORE_API void	SerializeCompressedNew (void *V, int64 Length)

CORE_API void	ByteSwap (void *V, int32 Length)

FArchive &	ByteOrderSerialize (void *V, int32 Length)

void	StartSerializingDefaults ()

void	StopSerializingDefaults ()

template<typename FmtType , typename... Types>
void	Logf (const FmtType &Fmt, Types... Args)

virtual CORE_API void	UsingCustomVersion (const struct FGuid &Guid)

void	SetCookData (FArchiveCookData *InCookData)

FArchiveCookData *	GetCookData ()

template<SIZE_T Size>
bool	FastPathLoad (void *InDest)

virtual void	PushFileRegionType (EFileRegionType Type)

virtual void	PopFileRegionType ()

CORE_API void	SetArchiveState (const FArchiveState &InState)

CORE_API void	SetError ()

CORE_API void	ClearError ()

CORE_API void	SetCriticalError ()

bool	IsByteSwapping ()

void	ThisContainsCode ()

void	ThisContainsMap ()

CORE_API void	ThisRequiresLocalizationGather ()

UE_FORCEINLINE_HINT FPackageFileVersion	UEVer () const

UE_FORCEINLINE_HINT int32	LicenseeUEVer () const

UE_FORCEINLINE_HINT FEngineVersionBase	EngineVer () const

virtual CORE_API uint32	EngineNetVer () const

virtual CORE_API uint32	GameNetVer () const

CORE_API int32	CustomVer (const struct FGuid &Key) const

UE_FORCEINLINE_HINT bool	IsLoading () const

UE_FORCEINLINE_HINT bool	IsLoadingFromCookedPackage () const

UE_FORCEINLINE_HINT bool	IsSaving () const

bool	IsTransacting () const

UE_FORCEINLINE_HINT bool	IsTextFormat () const

UE_FORCEINLINE_HINT bool	WantBinaryPropertySerialization () const

UE_FORCEINLINE_HINT bool	UseUnversionedPropertySerialization () const

UE_FORCEINLINE_HINT bool	IsForcingUnicode () const

UE_FORCEINLINE_HINT bool	IsPersistent () const

UE_FORCEINLINE_HINT bool	GetError () const

UE_FORCEINLINE_HINT bool	IsError () const

UE_FORCEINLINE_HINT bool	IsCriticalError () const

UE_FORCEINLINE_HINT bool	ContainsCode () const

UE_FORCEINLINE_HINT bool	ContainsMap () const

bool	RequiresLocalizationGather () const

UE_FORCEINLINE_HINT bool	ForceByteSwapping () const

UE_FORCEINLINE_HINT bool	IsSerializingDefaults () const

UE_FORCEINLINE_HINT bool	IsIgnoringArchetypeRef () const

UE_FORCEINLINE_HINT bool	DoDelta () const

UE_FORCEINLINE_HINT bool	DoIntraPropertyDelta () const

UE_FORCEINLINE_HINT bool	IsIgnoringOuterRef () const

UE_FORCEINLINE_HINT bool	IsIgnoringClassGeneratedByRef () const

UE_FORCEINLINE_HINT bool	IsIgnoringClassRef () const

UE_FORCEINLINE_HINT bool	IsAllowingLazyLoading () const

UE_FORCEINLINE_HINT bool	IsObjectReferenceCollector () const

UE_FORCEINLINE_HINT bool	IsModifyingWeakAndStrongReferences () const

UE_FORCEINLINE_HINT bool	IsCountingMemory () const

UE_FORCEINLINE_HINT uint32	GetPortFlags () const

UE_FORCEINLINE_HINT bool	HasAnyPortFlags (uint32 Flags) const

UE_FORCEINLINE_HINT bool	HasAllPortFlags (uint32 Flags) const

uint32	GetDebugSerializationFlags () const

UE_FORCEINLINE_HINT bool	ShouldSkipBulkData () const

UE_FORCEINLINE_HINT int64	GetMaxSerializeSize () const

CORE_API void	SetCustomVersion (const struct FGuid &Key, int32 Version, FName FriendlyName)

void	SetByteSwapping (bool Enabled)

void	SetPortFlags (uint32 InPortFlags)

bool	IsFilterEditorOnly () const

bool	IsSavingOptionalObject () const

virtual void	SetSavingOptionalObject (bool InSavingOptionalObject)

bool	IsSaveGame () const

UE_FORCEINLINE_HINT bool	IsNetArchive () const

UE_FORCEINLINE_HINT bool	IsCooking () const

UE_FORCEINLINE_HINT const ITargetPlatform *	CookingTarget () const

void	SetSavePackageData (FArchiveSavePackageData *InSavePackageData)

FArchiveSavePackageData *	GetSavePackageData ()

UE_FORCEINLINE_HINT FArchiveCookContext *	GetCookContext ()

UE_FORCEINLINE_HINT class FProperty *	GetSerializedProperty () const

CORE_API void	GetSerializedPropertyChain (TArray< class FProperty * > &OutProperties) const

UE_FORCEINLINE_HINT const FArchiveSerializedPropertyChain *	GetSerializedPropertyChain () const

virtual void	SetSerializeContext (FUObjectSerializeContext *InLoadContext)

virtual CORE_API void	Reset ()

virtual CORE_API void	SetIsLoading (bool bInIsLoading)

virtual CORE_API void	SetIsLoadingFromCookedPackage (bool bInIsLoadingFromCookedPackage)

virtual CORE_API void	SetIsSaving (bool bInIsSaving)

virtual CORE_API void	SetIsTransacting (bool bInIsTransacting)

virtual CORE_API void	SetIsTextFormat (bool bInIsTextFormat)

virtual CORE_API void	SetWantBinaryPropertySerialization (bool bInWantBinaryPropertySerialization)

virtual CORE_API void	SetUseUnversionedPropertySerialization (bool bInUseUnversioned)

virtual CORE_API void	SetForceUnicode (bool bInForceUnicode)

virtual CORE_API void	SetIsPersistent (bool bInIsPersistent)

virtual CORE_API void	SetUEVer (FPackageFileVersion InVer)

virtual CORE_API void	SetLicenseeUEVer (int32 InVer)

virtual CORE_API void	SetEngineVer (const FEngineVersionBase &InVer)

virtual CORE_API void	SetEngineNetVer (const uint32 InEngineNetVer)

virtual CORE_API void	SetGameNetVer (const uint32 InGameNetVer)

UE_FORCEINLINE_HINT bool	ShouldSkipCompilingAssets () const

CORE_API void	SetShouldSkipUpdateCustomVersion (bool bShouldSkip)

UE_FORCEINLINE_HINT bool	ShouldSkipUpdateCustomVersion () const

CORE_API void	SetMigratingRemoteObjects (bool bMigrating)

UE_FORCEINLINE_HINT constexpr bool	IsMigratingRemoteObjects () const

virtual const FUObjectMigrationContext *	GetMigrationContext () const

Protected Attributes
FArchive &	InnerArchive

Additional Inherited Members
Public Attributes inherited from FArchive
FFastPathLoadBuffer *	ActiveFPLB

FFastPathLoadBuffer	InlineFPLB

uint8	ArContainsCode: 1

uint8	ArContainsMap: 1

UE_DEPRECATED(5.6, "Public access to ArRequiresLocalizationGather has been deprecated - please use Ar.RequiresLocalizationGather() and Ar.ThisRequiresLocalizationGather() for getting and setting respectively.") uint8 ArRequiresLocalizationGather uint8	ArForceByteSwapping: 1

uint8	ArIgnoreArchetypeRef: 1

uint8	ArNoDelta: 1

uint8	ArNoIntraPropertyDelta: 1

uint8	ArIgnoreOuterRef: 1

uint8	ArIgnoreClassGeneratedByRef: 1

uint8	ArIgnoreClassRef: 1

uint8	ArAllowLazyLoading: 1

uint8	ArIsObjectReferenceCollector: 1

uint8	ArIsModifyingWeakAndStrongReferences: 1

uint8	ArIsCountingMemory: 1

uint8	ArShouldSkipBulkData: 1

uint8	ArIsFilterEditorOnly: 1

uint8	ArIsSavingOptionalObject: 1

uint8	ArIsSaveGame: 1

uint8	ArIsNetArchive: 1

uint8	ArUseCustomPropertyList: 1

int32	ArSerializingDefaults

uint32	ArPortFlags

int64	ArMaxSerializeSize

uint8	ArMergeOverrides: 1

uint8	ArPreserveArrayElements: 1

const struct FCustomPropertyListNode *	ArCustomPropertyList

Protected Member Functions inherited from FArchive
void	SetShouldSkipCompilingAssets (bool Enabled)

Static Protected Member Functions inherited from FArchive
static CORE_API void	LinkProxy (FArchiveState &Inner, FArchiveState &Proxy)

static CORE_API void	UnlinkProxy (FArchiveState &Inner, FArchiveState &Proxy)

Detailed Description

Base class for archive proxies.

Archive proxies are archive types that modify the behavior of another archive type.

Constructor & Destructor Documentation

◆ FArchiveProxy() [1/3]

FArchiveProxy::FArchiveProxy ( FArchive & InInnerArchive )

Creates and initializes a new instance of the archive proxy.

Parameters

InInnerArchive The inner archive to proxy.

◆ ~FArchiveProxy()

FArchiveProxy::~FArchiveProxy ( )

◆ FArchiveProxy() [2/3]

FArchiveProxy::FArchiveProxy ( FArchiveProxy && )

delete

◆ FArchiveProxy() [3/3]

FArchiveProxy::FArchiveProxy ( const FArchiveProxy & )

delete

Member Function Documentation

◆ AtEnd()

virtual bool FArchiveProxy::AtEnd ( )

inlineoverridevirtual

Returns true if the current location within the backing data storage is at the end, always returns false if there is no storage.

Reimplemented from FArchive.

◆ AttachBulkData()

virtual void FArchiveProxy::AttachBulkData	(	UObject *	Owner,
		FBulkData *	BulkData
	)

inlineoverridevirtual

Attaches/ associates the passed in bulk data object with the linker.

Parameters

Owner	UObject owning the bulk data
BulkData	Bulk data object to associate

Reimplemented from FArchive.

◆ AttachExternalReadDependency()

virtual bool FArchiveProxy::AttachExternalReadDependency ( FExternalReadCallback & ReadCallback )

inlineoverridevirtual

Adds external read dependency

Returns: true if dependency has been added, false if Archive does not support them

Reimplemented from FArchive.

◆ Close()

virtual bool FArchiveProxy::Close ( )

inlineoverridevirtual

Attempts to close and finalize any handles used for backing data storage, returns true if it succeeded.

Reimplemented from FArchive.

◆ CountBytes()

virtual void FArchiveProxy::CountBytes	(	SIZE_T	InNum,
		SIZE_T	InMax
	)

inlineoverridevirtual

Called to get the computed size from a size-detecting archive after it has finished serializing.

Reimplemented from FArchive.

◆ DetachBulkData()

virtual void FArchiveProxy::DetachBulkData	(	FBulkData *	BulkData,
		bool	bEnsureBulkDataIsLoaded
	)

inlineoverridevirtual

Detaches the passed in bulk data object from the linker.

Parameters

BulkData	Bulk data object to detach
bEnsureBulkDataIsLoaded	Whether to ensure that the bulk data is loaded before detaching

Reimplemented from FArchive.

◆ Flush()

virtual void FArchiveProxy::Flush ( )

inlineoverridevirtual

Attempts to finish writing any buffered data to disk/permanent storage.

Reimplemented from FArchive.

◆ FlushCache()

virtual void FArchiveProxy::FlushCache ( )

inlineoverridevirtual

Flushes cache and frees internal data.

Reimplemented from FArchive.

◆ ForceBlueprintFinalization()

virtual void FArchiveProxy::ForceBlueprintFinalization ( )

inlineoverridevirtual

Inform the archive that a blueprint would like to force finalization, normally this is triggered by CDO load, but if there's no CDO we force finalization.

Reimplemented from FArchive.

◆ GetArchetypeFromLoader()

virtual UObject * FArchiveProxy::GetArchetypeFromLoader ( const UObject * Obj )

inlineoverridevirtual

Called to retrieve the archetype from the event driven loader. If this returns null, then call GetArchetype yourself.

Reimplemented from FArchive.

◆ GetArchiveName()

FString FArchiveProxy::GetArchiveName ( ) const

overridevirtual

Returns the name of the Archive. Useful for getting the name of the package a struct or object is in when a loading error occurs.

This is overridden for the specific Archive Types

Reimplemented from FArchive.

Reimplemented in FMaterialResourceProxyReader.

◆ GetCacheableArchive()

virtual FArchive * FArchiveProxy::GetCacheableArchive ( )

inlineoverridevirtual

Returns a pointer to an archive that represents the same data that the current archive covers, but that can be cached and reused later In the case of standard archives, this function will just return a pointer to itself. If the archive is actually a temporary proxy to another archive, and has a shorter lifecycle than the source archive, it should return either a pointer to the underlying archive, or if the data becomes inaccessible when the proxy object disappears (as is the case with text format archives) then nullptr

Reimplemented from FArchive.

◆ GetCustomVersions()

virtual const FCustomVersionContainer & FArchiveProxy::GetCustomVersions ( ) const

inlineoverridevirtual

Gets the custom version numbers for this archive. These are used to check for system or game-specific version numbers.

Returns: The container of custom versions in the archive.

Reimplemented from FArchive.

◆ GetInnermostState()

virtual ::FArchiveState & FArchiveProxy::GetInnermostState ( )

inlineoverridevirtual

Returns lowest level archive state, proxy archives will override this.

Reimplemented from FArchive.

◆ GetLinker()

virtual FLinker * FArchiveProxy::GetLinker ( )

inlineoverridevirtual

If this archive is a FLinkerLoad or FLinkerSave, returns a pointer to the ULinker portion.

Returns: The linker, or nullptr if the archive is not a linker.

Reimplemented from FArchive.

◆ IsProxyOf()

virtual UE_FORCEINLINE_HINT bool FArchiveProxy::IsProxyOf ( FArchive * InOther ) const

inlineoverridevirtual

Determine if the given archive is a valid "child" of this archive. In general, this means "is exactly the same" but this function allows a derived archive to support "child" or "internal" archives which are different objects that proxy the original one in some way.

Parameters

BulkData	Bulk data object to detach
bEnsureBulkDataIsLoaded	Whether to ensure that the bulk data is loaded before detaching

Reimplemented from FArchive.

◆ MarkScriptSerializationEnd()

virtual void FArchiveProxy::MarkScriptSerializationEnd ( const UObject * Obj )

inlineoverridevirtual

Called when an object stops serializing property data using script serialization.

Reimplemented from FArchive.

◆ MarkScriptSerializationStart()

virtual void FArchiveProxy::MarkScriptSerializationStart ( const UObject * Obj )

inlineoverridevirtual

Called when an object begins serializing property data using script serialization.

Reimplemented from FArchive.

◆ MarkSearchableName()

virtual void FArchiveProxy::MarkSearchableName	(	const TObjectPtr< const UObject > &	TypeObject,
		const FName &	ValueName
	)		const

inlineoverridevirtual

Called to register a reference to a specific name value, of type TypeObject (UEnum or UStruct normally). Const so it can be called from PostSerialize

Reimplemented from FArchive.

◆ operator<<() [1/9]

virtual FArchive & FArchiveProxy::operator<< ( FField *& Value )

inlineoverridevirtual

Serializes a Field value from or into this archive.

This operator can be implemented by sub-classes that wish to serialize UObject instances.

Parameters

Value The value to serialize.

Returns: This instance.

Reimplemented from FArchive.

Reimplemented in FPropertyProxyArchive.

◆ operator<<() [2/9]

virtual FArchive & FArchiveProxy::operator<< ( FLazyObjectPtr & Value )

inlineoverridevirtual

Serializes a lazy object pointer value from or into this archive.

Most of the time, FLazyObjectPtrs are serialized as UObject*, but some archives need to override this.

Parameters

Value The value to serialize.

Returns: This instance.

Reimplemented from FArchive.

◆ operator<<() [3/9]

virtual FArchive & FArchiveProxy::operator<< ( FName & Value )

inlineoverridevirtual

Serializes an FName value from or into this archive.

This operator can be implemented by sub-classes that wish to serialize FName instances.

Parameters

Value The value to serialize.

Returns: This instance.

Reimplemented from FArchive.

Reimplemented in FNameAsStringProxyArchive, FMaterialResourceProxyReader, FNameAsStringIndexProxyArchive, UE::AssetRegistry::FNameMapAwareArchive, and FAssetRegistryReader.

◆ operator<<() [4/9]

virtual FArchive & FArchiveProxy::operator<< ( FObjectPtr & Value )

inlineoverridevirtual

Serializes a wrapped object pointer value from or into this archive.

Most of the time, FObjectPtrs are serialized as UObject*, but some archives need to override this.

Parameters

Value The value to serialize.

Returns: This instance.

Reimplemented from FArchive.

Reimplemented in FObjectAndNameAsStringProxyArchive, and FObjectAsTraceIdProxyArchive.

◆ operator<<() [5/9]

virtual FArchive & FArchiveProxy::operator<< ( FSoftObjectPath & Value )

inlineoverridevirtual

Serializes soft object paths from or into this archive.

Parameters

Value Soft object path to serialize.

Returns: This instance.

Reimplemented from FArchive.

Reimplemented in FObjectAndNameAsStringProxyArchive, and FObjectAsTraceIdProxyArchive.

◆ operator<<() [6/9]

virtual FArchive & FArchiveProxy::operator<< ( FSoftObjectPtr & Value )

inlineoverridevirtual

Serializes asset pointer from or into this archive.

Most of the time, FSoftObjectPtr are serialized as UObject *, but some archives need to override this.

Parameters

Value The asset pointer to serialize.

Returns: This instance.

Reimplemented from FArchive.

Reimplemented in FObjectAndNameAsStringProxyArchive, and FObjectAsTraceIdProxyArchive.

◆ operator<<() [7/9]

virtual FArchive & FArchiveProxy::operator<< ( FText & Value )

inlineoverridevirtual

Serializes an FText value from or into an archive.

Parameters

Ar	The archive to serialize from or to.
Value	The value to serialize.

Reimplemented from FArchive.

Reimplemented in UE::AssetDataGather::Private::FChecksumArchiveBase.

◆ operator<<() [8/9]

virtual FArchive & FArchiveProxy::operator<< ( FWeakObjectPtr & Value )

inlineoverridevirtual

Serializes FWeakObjectPtr value from or into this archive.

This operator can be implemented by sub-classes that wish to serialize FWeakObjectPtr instances.

Parameters

Value The value to serialize.

Returns: This instance.

Reimplemented from FArchive.

Reimplemented in FObjectAndNameAsStringProxyArchive, and FObjectAsTraceIdProxyArchive.

◆ operator<<() [9/9]

virtual FArchive & FArchiveProxy::operator<< ( UObject *& Value )

inlineoverridevirtual

Serializes an UObject value from or into this archive.

This operator can be implemented by sub-classes that wish to serialize UObject instances.

Parameters

Value The value to serialize.

Returns: This instance.

Reimplemented from FArchive.

Reimplemented in FObjectAndNameAsStringProxyArchive, and FObjectAsTraceIdProxyArchive.

◆ operator=() [1/2]

FArchiveProxy & FArchiveProxy::operator= ( const FArchiveProxy & )

delete

◆ operator=() [2/2]

FArchiveProxy & FArchiveProxy::operator= ( FArchiveProxy && )

delete

◆ PopSerializedProperty()

virtual void FArchiveProxy::PopSerializedProperty	(	class FProperty *	InProperty,
		const bool	bIsEditorOnlyProperty
	)

inlineoverridevirtual

Pops editor-only marker from the stack of currently serialized properties

Reimplemented from FArchive.

◆ Precache()

virtual bool FArchiveProxy::Precache	(	int64	PrecacheOffset,
		int64	PrecacheSize
	)

inlineoverridevirtual

Hint the archive that the region starting at passed in offset and spanning the passed in size is going to be read soon and should be precached.

The function returns whether the precache operation has completed or not which is an important hint for code knowing that it deals with potential async I/O. The archive is free to either not implement this function or only partially precache so it is required that given sufficient time the function will return true. Archives not based on async I/O should always return true.

This function will not change the current archive position.

Parameters

PrecacheOffset	Offset at which to begin precaching.
PrecacheSize	Number of bytes to precache

Returns: false if precache operation is still pending, true otherwise

Reimplemented from FArchive.

◆ Preload()

virtual void FArchiveProxy::Preload ( UObject * Object )

inlineoverridevirtual

Tells the archive to attempt to preload the specified object so data can be loaded out of it.

Reimplemented from FArchive.

◆ PushSerializedProperty()

virtual void FArchiveProxy::PushSerializedProperty	(	class FProperty *	InProperty,
		const bool	bIsEditorOnlyProperty
	)

inlineoverridevirtual

Pushes editor-only marker to the stack of currently serialized properties

Reimplemented from FArchive.

◆ ResetCustomVersions()

virtual void FArchiveProxy::ResetCustomVersions ( )

inlineoverridevirtual

Resets the custom version numbers for this archive.

Reimplemented from FArchive.

◆ Seek()

virtual void FArchiveProxy::Seek ( int64 InPos )

inlineoverridevirtual

Attempts to set the current offset into backing data storage, this will do nothing if there is no storage.

Reimplemented from FArchive.

Reimplemented in FMaterialResourceProxyReader, and FLinkerExportArchive.

◆ Serialize()

virtual void FArchiveProxy::Serialize	(	void *	V,
		int64	Length
	)

inlineoverridevirtual

Reimplemented from FArchive.

Reimplemented in FArchiveStackTraceWriter, UE::AssetDataGather::Private::FChecksumArchiveWriter, and UE::AssetDataGather::Private::FChecksumArchiveReader.

◆ SerializeBits()

virtual void FArchiveProxy::SerializeBits	(	void *	Bits,
		int64	LengthBits
	)

inlineoverridevirtual

Reimplemented from FArchive.

Reimplemented in UE::AssetDataGather::Private::FChecksumArchiveBase.

◆ SerializeBulkData()

virtual bool FArchiveProxy::SerializeBulkData	(	FBulkData &	BulkData,
		const FBulkDataSerializationParams &	Params
	)

inlineoverridevirtual

Serialize bulk data.

Parameters

BulkData	Bulk data object to serialize
Params	Serialization parameters

Returns: true if the bulk data was serialized, false to fallback to default serialization (inline)

Reimplemented from FArchive.

◆ SerializeInt()

virtual void FArchiveProxy::SerializeInt	(	uint32 &	Value,
		uint32	Max
	)

inlineoverridevirtual

Reimplemented from FArchive.

Reimplemented in UE::AssetDataGather::Private::FChecksumArchiveBase.

◆ SerializeIntPacked()

virtual void FArchiveProxy::SerializeIntPacked ( uint32 & Value )

inlineoverridevirtual

Packs int value into bytes of 7 bits with 8th bit for 'more'

Reimplemented from FArchive.

Reimplemented in UE::AssetDataGather::Private::FChecksumArchiveBase.

◆ SetCompressionMap()

virtual bool FArchiveProxy::SetCompressionMap	(	TArray< FCompressedChunk > *	CompressedChunks,
		ECompressionFlags	CompressionFlags
	)

inlineoverridevirtual

Sets mapping from offsets/ sizes that are going to be used for seeking and serialization to what is actually stored on disk. If the archive supports dealing with compression in this way it is going to return true.

Parameters

CompressedChunks	Pointer to array containing information about [un]compressed chunks
CompressionFlags	Flags determining compression format associated with mapping

Returns: true if archive supports translating offsets & uncompressing on read, false otherwise

Reimplemented from FArchive.

◆ SetCustomVersions()

virtual void FArchiveProxy::SetCustomVersions ( const FCustomVersionContainer & CustomVersionContainer )

inlineoverridevirtual

Sets the custom version numbers for this archive.

Parameters

CustomVersionContainer - The container of custom versions to copy into the archive.

Reimplemented from FArchive.

◆ SetDebugSerializationFlags()

virtual void FArchiveProxy::SetDebugSerializationFlags ( uint32 InCustomFlags )

inlineoverridevirtual

Sets the archives custom serialization modifier flags (nothing to do with PortFlags or Custom versions)

Parameters

InCustomFlags the new flags to use for custom serialization

Reimplemented from FArchive.

◆ SetFilterEditorOnly()

virtual void FArchiveProxy::SetFilterEditorOnly ( bool InFilterEditorOnly )

inlineoverridevirtual

Sets a flag indicating that this archive needs to filter editor-only content.

Parameters

InFilterEditorOnly Whether to filter editor-only content.

Reimplemented from FArchive.

◆ SetSerializedProperty()

void FArchiveProxy::SetSerializedProperty ( FProperty * InProperty )

inlineoverridevirtual

Overrides the property that is currently being serialized

Note: : You likely want to call PushSerializedProperty/PopSerializedProperty instead

Parameters

InProperty Pointer to the property that is currently being serialized

Reimplemented from FArchive.

◆ SetSerializedPropertyChain()

void FArchiveProxy::SetSerializedPropertyChain	(	const FArchiveSerializedPropertyChain *	InSerializedPropertyChain,
		class FProperty *	InSerializedPropertyOverride = `nullptr`
	)

inlineoverridevirtual

Set the raw serialized property chain for this archive, optionally overriding the serialized property too (or null to use the head of the property chain)

Reimplemented from FArchive.

◆ ShouldSkipProperty()

virtual bool FArchiveProxy::ShouldSkipProperty ( const FProperty * InProperty ) const

inlineoverridevirtual

Checks whether the archive wants to skip the property independent of the other flags

Reimplemented from FArchive.

◆ Tell()

virtual int64 FArchiveProxy::Tell ( )

inlineoverridevirtual

Returns the current location within the backing data storage, which can possibly be passed to Seek later to restore a read/write location. If this returns -1, there is no backing data storage and Seek will not function.

Reimplemented from FArchive.

Reimplemented in UE::AssetDataGather::Private::FChecksumArchiveWriter, UE::AssetDataGather::Private::FChecksumArchiveReader, FLinkerExportArchive, and FMaterialResourceProxyReader.

◆ TotalSize()

virtual int64 FArchiveProxy::TotalSize ( )

inlineoverridevirtual

Returns total size of the backing data storage.

Reimplemented from FArchive.

◆ UseToResolveEnumerators()

virtual bool FArchiveProxy::UseToResolveEnumerators ( ) const

inlineoverridevirtual

Checks whether the archive is used to resolve out-of-date enum indexes If function returns true, the archive should be called only for objects containing user defined enum

Returns: true if the archive is used to resolve out-of-date enum indexes

Reimplemented from FArchive.

Member Data Documentation

◆ InnerArchive

FArchive& FArchiveProxy::InnerArchive

protected

Holds the archive that this archive is a proxy to.

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Core/Public/Serialization/ArchiveProxy.h
Engine/Source/Runtime/Core/Private/Serialization/Archive.cpp
Engine/Source/Runtime/Core/Private/Serialization/ArchiveProxy.cpp

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FArchiveProxy() [1/3]

◆ ~FArchiveProxy()

◆ FArchiveProxy() [2/3]

◆ FArchiveProxy() [3/3]

Member Function Documentation

◆ AtEnd()

◆ AttachBulkData()

◆ AttachExternalReadDependency()

◆ Close()

◆ CountBytes()

◆ DetachBulkData()

◆ Flush()

◆ FlushCache()

◆ ForceBlueprintFinalization()

◆ GetArchetypeFromLoader()

◆ GetArchiveName()

◆ GetCacheableArchive()

◆ GetCustomVersions()

◆ GetInnermostState()

◆ GetLinker()

◆ IsProxyOf()

◆ MarkScriptSerializationEnd()

◆ MarkScriptSerializationStart()

◆ MarkSearchableName()

◆ operator<<() [1/9]

◆ operator<<() [2/9]

◆ operator<<() [3/9]

◆ operator<<() [4/9]

◆ operator<<() [5/9]

◆ operator<<() [6/9]

◆ operator<<() [7/9]

◆ operator<<() [8/9]

◆ operator<<() [9/9]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ PopSerializedProperty()

◆ Precache()

◆ Preload()

◆ PushSerializedProperty()

◆ ResetCustomVersions()

◆ Seek()

◆ Serialize()

◆ SerializeBits()

◆ SerializeBulkData()

◆ SerializeInt()

◆ SerializeIntPacked()

◆ SetCompressionMap()

◆ SetCustomVersions()

◆ SetDebugSerializationFlags()

◆ SetFilterEditorOnly()

◆ SetSerializedProperty()

◆ SetSerializedPropertyChain()

◆ ShouldSkipProperty()

◆ Tell()

◆ TotalSize()

◆ UseToResolveEnumerators()

Member Data Documentation

◆ InnerArchive
