FMetalSurface Class Reference

#include <MetalResources.h>

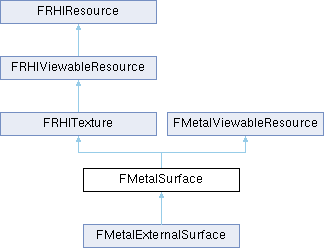

Inheritance diagram for FMetalSurface:

Public Member Functions
	FMetalSurface (FMetalDevice &Device, FMetalTextureCreateDesc const &CreateDesc)
virtual	~FMetalSurface ()
void	Initialize (FRHICommandListBase &RHICmdList)
MTL::Buffer *	AllocSurface (const FRHILockTextureArgs &Arguments, uint32 MipBytes, uint32 DestStride)
void	UpdateSurfaceAndDestroySourceBuffer (FMetalRHICommandContext *Context, MTL::Buffer *SourceBuffer, uint32 MipIndex, uint32 ArrayIndex)
FRHILockTextureResult	Lock (const FRHILockTextureArgs &Arguments, bool bSingleLayer)
void	Unlock (const FRHILockTextureArgs &Arguments)
FRHILockTextureResult	AsyncLock (FRHICommandListBase &RHICmdList, const FRHILockTextureArgs &Arguments)
uint32	GetMipSize (uint32 MipIndex, uint32 *Stride, bool bSingleLayer)
uint32	GetMemorySize ()
uint32	GetNumFaces ()
MTLTexturePtr	GetDrawableTexture ()
void	ReleaseDrawableTexture ()
MTLTexturePtr	GetCurrentTexture ()
MTLTexturePtr	Reallocate (MTLTexturePtr Texture, MTL::TextureUsage UsageModifier)
void	MakeAliasable (void)
virtual void *	GetTextureBaseRHI () override final
virtual void *	GetNativeResource () const override final
Public Member Functions inherited from FRHITexture
virtual const FRHITextureDesc &	GetDesc () const
virtual class FRHITextureReference *	GetTextureReference ()
virtual FRHIDescriptorHandle	GetDefaultBindlessHandle () const
virtual void *	GetNativeShaderResourceView () const
virtual void	GetWriteMaskProperties (void *&OutData, uint32 &OutSize)
FIntVector	GetSizeXYZ () const
FIntVector	GetMipDimensions (uint8 MipIndex) const
bool	IsMultisampled () const
bool	HasClearValue () const
FLinearColor	GetClearColor () const
void	GetDepthStencilClearValue (float &OutDepth, uint32 &OutStencil) const
float	GetDepthClearValue () const
uint32	GetStencilClearValue () const
void	SetLastRenderTime (float InLastRenderTime)
double	GetLastRenderTime () const
RHI_API void	SetName (FName InName)
FRHITexture *	GetTexture2D ()
FRHITexture *	GetTexture2DArray ()
FRHITexture *	GetTexture3D ()
FRHITexture *	GetTextureCube ()
uint32	GetSizeX () const
uint32	GetSizeY () const
FIntPoint	GetSizeXY () const
uint32	GetSizeZ () const
uint32	GetNumMips () const
EPixelFormat	GetFormat () const
ETextureCreateFlags	GetFlags () const
uint32	GetNumSamples () const
const FClearValueBinding	GetClearBinding () const
uint32	GetSize () const
Public Member Functions inherited from FRHIViewableResource
ERHIAccess	GetTrackedAccess_Unsafe () const
FName	GetName () const
Public Member Functions inherited from FRHIResource
RHI_API	FRHIResource (ERHIResourceType InResourceType)
uint32	AddRef () const
uint32	Release () const
uint32	GetRefCount () const
bool	IsValid () const
void	DisableLifetimeExtension ()
ERHIResourceType	GetType () const
FName	GetOwnerName () const
void	SetOwnerName (FName InOwnerName)
Public Member Functions inherited from FMetalViewableResource
	~FMetalViewableResource ()
bool	HasLinkedViews () const
void	UpdateLinkedViews (FMetalRHICommandContext *Context)

Public Attributes
FMetalDevice &	Device
uint8	FormatKey
MTLTexturePtr	Texture
MTLTexturePtr	MSAATexture
MTLTexturePtr	MSAAResolveTexture
FMetalBufferPtr	BackingBuffer
class FMetalViewport *	Viewport

Protected Member Functions
	FMetalSurface (FMetalDevice &MetalDevice, MTLTexturePtr InTexture, FRHITextureCreateDesc const &CreateDesc)
Protected Member Functions inherited from FRHITexture
	FRHITexture ()=delete
RHI_API	FRHITexture (const FRHITextureCreateDesc &CreateDesc)
RHI_API	FRHITexture (ERHIResourceType InResourceType)
Protected Member Functions inherited from FRHIViewableResource
	FRHIViewableResource (ERHIResourceType InResourceType, ERHIAccess InAccess, const TCHAR *InName, FName InOwnerName)
virtual void	SetTrackedAccessFromContext (FRHITrackedAccess InTrackedAccess)
void	TakeOwnership (FRHIViewableResource &Other)
void	ReleaseOwnership ()
Protected Member Functions inherited from FRHIResource
virtual RHI_API	~FRHIResource ()

Protected Attributes
uint64	TotalTextureSize
Protected Attributes inherited from FRHIViewableResource
FName	Name

Constructor & Destructor Documentation

FMetalSurface() [1/2]

FMetalSurface::FMetalSurface	(	FMetalDevice &	Device,
		FMetalTextureCreateDesc const &	CreateDesc
	)

Constructor that will create Texture and Color/DepthBuffers as needed

~FMetalSurface()

FMetalSurface::~FMetalSurface ( )

virtual

Destructor

FMetalSurface() [2/2]

FMetalSurface::FMetalSurface ( FMetalDevice &  MetalDevice, MTLTexturePtr  InTexture, FRHITextureCreateDesc const &  CreateDesc  )

inlineprotected

Constructor for derived classes

Member Function Documentation

AllocSurface()

MTL::Buffer * FMetalSurface::AllocSurface	(	const FRHILockTextureArgs &	Arguments,
		uint32	MipBytes,
		uint32	DestStride
	)

Returns

A newly allocated buffer object large enough for the surface within the texture specified.

AsyncLock()

FRHILockTextureResult FMetalSurface::AsyncLock	(	FRHICommandListBase &	RHICmdList,
		const FRHILockTextureArgs &	Arguments
	)

Locks one of the texture's mip-maps.

Parameters

ArrayIndex

Index of the texture array/face in the form Index*6+Face

Returns

A pointer to the specified texture data.

GetCurrentTexture()

MTLTexturePtr FMetalSurface::GetCurrentTexture

(

)

GetDrawableTexture()

MTLTexturePtr FMetalSurface::GetDrawableTexture

(

)

Gets the drawable texture if this is a back-buffer surface.

GetMemorySize()

uint32 FMetalSurface::GetMemorySize

(

)

Returns how much memory is used by the surface

GetMipSize()

uint32 FMetalSurface::GetMipSize	(	uint32	MipIndex,
		uint32 *	Stride,
		bool	bSingleLayer
	)

Returns how much memory a single mip uses, and optionally returns the stride

GetNativeResource()

virtual void * FMetalSurface::GetNativeResource ( ) const

inlinefinaloverridevirtual

Returns access to the platform-specific native resource pointer. This is designed to be used to provide plugins with access to the underlying resource and should be used very carefully or not at all.

Returns

The pointer to the native resource or NULL if it not initialized or not supported for this resource type for some reason

Reimplemented from FRHITexture.

GetNumFaces()

uint32 FMetalSurface::GetNumFaces

(

)

Returns the number of faces for the texture

GetTextureBaseRHI()

virtual void * FMetalSurface::GetTextureBaseRHI ( )

inlinefinaloverridevirtual

Returns access to the platform-specific RHI texture baseclass. This is designed to provide the RHI with fast access to its base classes in the face of multiple inheritance.

Returns

The pointer to the platform-specific RHI texture baseclass or NULL if it not initialized or not supported for this RHI

Reimplemented from FRHITexture.

Initialize()

void FMetalSurface::Initialize

(

FRHICommandListBase &

RHICmdList

)

Lock()

FRHILockTextureResult FMetalSurface::Lock	(	const FRHILockTextureArgs &	Arguments,
		bool	bSingleLayer
	)

Locks one of the texture's mip-maps.

Parameters

ArrayIndex

Index of the texture array/face in the form Index*6+Face

Returns

A pointer to the specified texture data.

MakeAliasable()

void FMetalSurface::MakeAliasable

(

void

)

Reallocate()

MTLTexturePtr FMetalSurface::Reallocate	(	MTLTexturePtr	Texture,
		MTL::TextureUsage	UsageModifier
	)

ReleaseDrawableTexture()

void FMetalSurface::ReleaseDrawableTexture

(

)

Unlock()

void FMetalSurface::Unlock

(

const FRHILockTextureArgs &

Arguments

)

Unlocks a previously locked mip-map.

Parameters

ArrayIndex

Index of the texture array/face in the form Index*6+Face

UpdateSurfaceAndDestroySourceBuffer()

void FMetalSurface::UpdateSurfaceAndDestroySourceBuffer	(	FMetalRHICommandContext *	Context,
		MTL::Buffer *	SourceBuffer,
		uint32	MipIndex,
		uint32	ArrayIndex
	)

Apply the data in Buffer to the surface specified. Will also handle destroying SourceBuffer appropriately.

Member Data Documentation

BackingBuffer

FMetalBufferPtr FMetalSurface::BackingBuffer

Device

FMetalDevice& FMetalSurface::Device

FormatKey

uint8 FMetalSurface::FormatKey

MSAAResolveTexture

MTLTexturePtr FMetalSurface::MSAAResolveTexture

MSAATexture

MTLTexturePtr FMetalSurface::MSAATexture

Texture

MTLTexturePtr FMetalSurface::Texture

TotalTextureSize

uint64 FMetalSurface::TotalTextureSize

protected

Viewport

class FMetalViewport* FMetalSurface::Viewport

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Apple/MetalRHI/Public/MetalResources.h
• Engine/Source/Runtime/Apple/MetalRHI/Private/MetalTexture.cpp
