FSlateTextureAtlas Class Reference

#include <TextureAtlas.h>

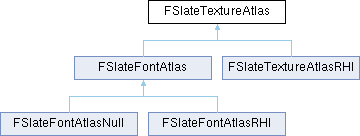

Inheritance diagram for FSlateTextureAtlas:

Classes
struct	FCopyRowData

Public Member Functions
SLATECORE_API	FSlateTextureAtlas (uint32 InWidth, uint32 InHeight, uint32 InBytesPerPixel, ESlateTextureAtlasPaddingStyle InPaddingStyle, bool bInUpdatesAfterInitialization)
virtual SLATECORE_API	~FSlateTextureAtlas ()
SLATECORE_API void	EmptyAtlasData ()
SLATECORE_API const FAtlasedTextureSlot *	AddTexture (uint32 TextureWidth, uint32 TextureHeight, const TArray< uint8 > &Data)
uint32	GetWidth () const
uint32	GetHeight () const
SLATECORE_API void	MarkTextureDirty ()
virtual void	ConditionalUpdateTexture ()=0
virtual void	ReleaseResources ()=0
virtual FSlateShaderResource *	GetAtlasTexture () const =0

Protected Member Functions
SLATECORE_API const FAtlasedTextureSlot *	FindSlotForTexture (uint32 InWidth, uint32 InHeight)
void	AddFreeSlot (uint32 InX, uint32 InY, uint32 InWidth, uint32 InHeight)
SLATECORE_API void	InitAtlasData ()
SLATECORE_API void	CopyRow (const FCopyRowData &CopyRowData)
SLATECORE_API void	ZeroRow (const FCopyRowData &CopyRowData)
SLATECORE_API void	CopyDataIntoSlot (const FAtlasedTextureSlot *SlotToCopyTo, const TArray< uint8 > &Data)

Static Protected Member Functions
static int32	GetFreeSlotSearchIndex (uint32 InWidth, uint32 InHeight)

Protected Attributes
TArray< uint8 >	AtlasData
FAtlasedTextureSlot *	AtlasUsedSlots
TArray< FAtlasedTextureSlot * >	AtlasEmptySlotsMap
uint32	AtlasWidth
uint32	AtlasHeight
uint32	BytesPerPixel
ESlateTextureAtlasPaddingStyle	PaddingStyle
bool	bNeedsUpdate
bool	bUpdatesAfterInitialization
ESlateTextureAtlasThreadId	AtlasOwnerThread

Detailed Description

Base class texture atlases in Slate

Constructor & Destructor Documentation

FSlateTextureAtlas()

FSlateTextureAtlas::FSlateTextureAtlas	(	uint32	InWidth,
		uint32	InHeight,
		uint32	InBytesPerPixel,
		ESlateTextureAtlasPaddingStyle	InPaddingStyle,
		bool	bInUpdatesAfterInitialization
	)

~FSlateTextureAtlas()

FSlateTextureAtlas::~FSlateTextureAtlas ( )

virtual

Member Function Documentation

AddFreeSlot()

void FSlateTextureAtlas::AddFreeSlot ( uint32  InX, uint32  InY, uint32  InWidth, uint32  InHeight  )

protected

Adds a new slot to the free slot list.

AddTexture()

const FAtlasedTextureSlot * FSlateTextureAtlas::AddTexture	(	uint32	TextureWidth,
		uint32	TextureHeight,
		const TArray< uint8 > &	Data
	)

Adds a texture to the atlas

Parameters

TextureWidth	Width of the texture
TextureHeight	Height of the texture
Data	Raw texture data

ConditionalUpdateTexture()

virtual void FSlateTextureAtlas::ConditionalUpdateTexture ( )

pure virtual

Updates the texture used for rendering if needed

Implemented in FSlateTextureAtlasRHI, FSlateFontAtlasNull, and FSlateFontAtlasRHI.

CopyDataIntoSlot()

void FSlateTextureAtlas::CopyDataIntoSlot ( const FAtlasedTextureSlot *  SlotToCopyTo, const TArray< uint8 > &  Data  )

protected

Copies texture data into the atlas at a given slot

Parameters

SlotToCopyTo	The occupied slot in the atlas where texture data should be copied to
Data	The data to copy into the atlas

CopyRow()

void FSlateTextureAtlas::CopyRow ( const FCopyRowData &  CopyRowData )

protected

Copies a single row from a source texture to a dest texture, respecting the padding.

Parameters

CopyRowData

Information for how to copy a row

EmptyAtlasData()

void FSlateTextureAtlas::EmptyAtlasData

(

)

Clears atlas cpu data. It does not clear rendering data

FindSlotForTexture()

const FAtlasedTextureSlot * FSlateTextureAtlas::FindSlotForTexture ( uint32  InWidth, uint32  InHeight  )

protected

Finds the optimal slot for a texture in the atlas

Parameters

Width	The width of the texture we are adding
Height	The height of the texture we are adding

GetAtlasTexture()

virtual FSlateShaderResource * FSlateTextureAtlas::GetAtlasTexture ( ) const

pure virtual

Implemented in FSlateFontAtlas, and FSlateTextureAtlasRHI.

GetFreeSlotSearchIndex()

int32 FSlateTextureAtlas::GetFreeSlotSearchIndex ( uint32  InWidth, uint32  InHeight  )

staticprotected

Get the index to start looking for a free slot.

GetHeight()

uint32 FSlateTextureAtlas::GetHeight ( ) const

inline

Returns

the height of the atlas

GetWidth()

uint32 FSlateTextureAtlas::GetWidth ( ) const

inline

Returns

the width of the atlas

InitAtlasData()

void FSlateTextureAtlas::InitAtlasData ( )

protected

Creates enough space for a single texture the width and height of the atlas

MarkTextureDirty()

void FSlateTextureAtlas::MarkTextureDirty

(

)

Marks the texture as dirty and needing its rendering resources updated

ReleaseResources()

virtual void FSlateTextureAtlas::ReleaseResources ( )

pure virtual

Releases rendering resources of this texture

Implemented in FSlateFontAtlasNull, FSlateFontAtlasRHI, and FSlateTextureAtlasRHI.

ZeroRow()

void FSlateTextureAtlas::ZeroRow ( const FCopyRowData &  CopyRowData )

protected

Zeros out a row in the dest texture (used with PaddingStyle == PadWithZero). respecting the padding.

Parameters

CopyRowData

Information for how to copy a row

Member Data Documentation

AtlasData

TArray<uint8> FSlateTextureAtlas::AtlasData

protected

Actual texture data contained in the atlas

AtlasEmptySlotsMap

TArray<FAtlasedTextureSlot*> FSlateTextureAtlas::AtlasEmptySlotsMap

protected

The list of atlas slots pointing to empty texture data in the atlas

AtlasHeight

uint32 FSlateTextureAtlas::AtlasHeight

protected

Height of the atlas

AtlasOwnerThread

ESlateTextureAtlasThreadId FSlateTextureAtlas::AtlasOwnerThread

protected

The type of thread that owns this atlas - this is the only thread that can safely update it NOTE: We don't use the thread ID here, as the render thread can be recreated if it gets suspended and resumed, giving it a new ID

AtlasUsedSlots

FAtlasedTextureSlot* FSlateTextureAtlas::AtlasUsedSlots

protected

The list of atlas slots pointing to used texture data in the atlas

AtlasWidth

uint32 FSlateTextureAtlas::AtlasWidth

protected

Width of the atlas

bNeedsUpdate

bool FSlateTextureAtlas::bNeedsUpdate

protected

True if this texture needs to have its rendering resources updated

bUpdatesAfterInitialization

bool FSlateTextureAtlas::bUpdatesAfterInitialization

protected

True if this texture can update after initialziation and we should preserve the atlas slots and cpu memory

BytesPerPixel

uint32 FSlateTextureAtlas::BytesPerPixel

protected

Bytes per pixel in the atlas

PaddingStyle

ESlateTextureAtlasPaddingStyle FSlateTextureAtlas::PaddingStyle

protected

Padding style

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/SlateCore/Public/Textures/TextureAtlas.h
• Engine/Source/Runtime/SlateCore/Private/Textures/TextureAtlas.cpp
