UDocumentation UE5.7 10.02.2026 (Source)
API documentation for Unreal Engine 5.7
Public Member Functions | Protected Member Functions | List of all members
FStaticMeshUpdate Class Reference

#include <StaticMeshUpdate.h>

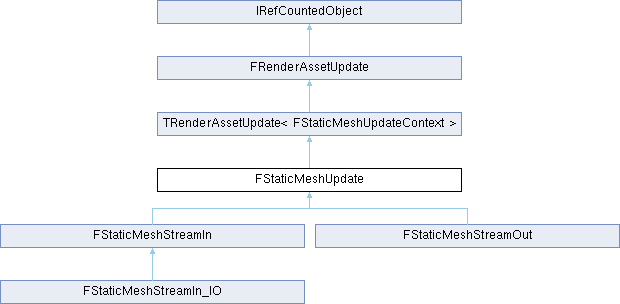

+ Inheritance diagram for FStaticMeshUpdate:

Public Member Functions

 FStaticMeshUpdate (const UStaticMesh *InMesh)

virtual void Abort ()

- Public Member Functions inherited from TRenderAssetUpdate< FStaticMeshUpdateContext >
 TRenderAssetUpdate (const UStreamableRenderAsset *InAsset)

void PushTask (const FContext &Context, EThreadType InTaskThread, const FCallback &InTaskCallback, EThreadType InCancelationThread, const FCallback &InCancelationCallback)

EThreadType GetRelevantThread () const final override

- Public Member Functions inherited from FRenderAssetUpdate
UE_API FRenderAssetUpdate (const UStreamableRenderAsset *InAsset)

UE_API void Tick (EThreadType InCurrentThread)

bool IsCompleted () const

virtual bool CanAbandon () const

virtual void OnAbandoned ()

bool IsCancelled () const

bool IsSuccessfullyFinished () const

UE_API ETaskState DoLock ()

UE_API void DoUnlock (ETaskState PreviousTaskState)

bool IsLocked () const

FReturnedRefCountValue AddRef () const final override

UE_API uint32 Release () const final override

uint32 GetRefCount () const final override

- Public Member Functions inherited from IRefCountedObject
virtual ~IRefCountedObject ()


Protected Member Functions

virtual ~FStaticMeshUpdate ()

- Protected Member Functions inherited from TRenderAssetUpdate< FStaticMeshUpdateContext >
ETaskState TickInternal (EThreadType InCurrentThread, bool bCheckForSuspension) final override

void ClearCallbacks ()

- Protected Member Functions inherited from FRenderAssetUpdate
virtual UE_API ~FRenderAssetUpdate ()

void MarkAsCancelled ()

void MarkAsSuccessfullyFinished ()

UE_API void ScheduleGTTask ()

UE_API void ScheduleRenderTask ()

UE_API void ScheduleAsyncTask ()


Additional Inherited Members

- Public Types inherited from TRenderAssetUpdate< FStaticMeshUpdateContext >
typedef FStaticMeshUpdateContext FContext

typedef TFunction< void(const FContext &Context)> FCallback

- Public Types inherited from FRenderAssetUpdate
enum  EThreadType {
  TT_None , TT_Render , TT_Async , TT_GameThread ,
  TT_GameRunningAsync
}

enum  ETaskState {
  TS_Done , TS_Suspended , TS_InProgress , TS_Locked ,
  TS_Init
}

- Protected Types inherited from FRenderAssetUpdate
typedef FAutoDeleteAsyncTask< FMipUpdateTask > FAsyncMipUpdateTask

- Protected Attributes inherited from TRenderAssetUpdate< FStaticMeshUpdateContext >
EThreadType TaskThread

FCallback TaskCallback

EThreadType CancelationThread

FCallback CancelationCallback

- Protected Attributes inherited from FRenderAssetUpdate
const FStreamableRenderResourceState ResourceState

const int32 CurrentFirstLODIdx = INDEX_NONE

const int32 PendingFirstLODIdx = INDEX_NONE

FCriticalSection CS

int32 ScheduledGTTasks

int32 ScheduledRenderTasks

int32 ScheduledAsyncTasks

const UStreamableRenderAsset * StreamableAsset = nullptr

FThreadSafeCounter TaskSynchronization

bool bIsCancelled

bool bDeferExecution

bool bSuccess

volatile ETaskState TaskState


Detailed Description

This class provides a framework for loading and unloading the LODs of static meshes. Each thread essentially calls Tick() until the job is done. The object can be safely deleted when IsCompleted() returns true.

Constructor & Destructor Documentation

◆ FStaticMeshUpdate()

FStaticMeshUpdate::FStaticMeshUpdate ( const UStaticMesh *  InMesh)

◆ ~FStaticMeshUpdate()

virtual FStaticMeshUpdate::~FStaticMeshUpdate ( )
inlineprotectedvirtual

Member Function Documentation

◆ Abort()

virtual void FStaticMeshUpdate::Abort ( )
inlinevirtual

Cancel the current update. Will also attempt to cancel pending IO requests, see FTexture2DStreamIn_IO::Abort(). This is called outside of the update loop when a cancelation is required for external events.

Reimplemented from FRenderAssetUpdate.

Reimplemented in FStaticMeshStreamIn_IO.

The documentation for this class was generated from the following files:
