#include <IDatasmithSceneElements.h>

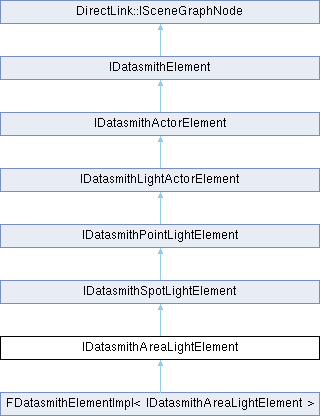

Inheritance diagram for IDatasmithAreaLightElement:

Public Member Functions
virtual EDatasmithLightShape	GetLightShape () const =0

virtual void	SetLightShape (EDatasmithLightShape Shape)=0

virtual void	SetLightType (EDatasmithAreaLightType LightType)=0

virtual EDatasmithAreaLightType	GetLightType () const =0

virtual void	SetWidth (float InWidth)=0

virtual float	GetWidth () const =0

virtual void	SetLength (float InLength)=0

virtual float	GetLength () const =0

Public Member Functions inherited from IDatasmithSpotLightElement
virtual float	GetInnerConeAngle () const =0

virtual void	SetInnerConeAngle (float InnerConeAngle)=0

virtual float	GetOuterConeAngle () const =0

virtual void	SetOuterConeAngle (float OuterConeAngle)=0

Public Member Functions inherited from IDatasmithPointLightElement
virtual void	SetIntensityUnits (EDatasmithLightUnits InUnits)=0

virtual EDatasmithLightUnits	GetIntensityUnits () const =0

virtual float	GetSourceRadius () const =0

virtual void	SetSourceRadius (float SourceRadius)=0

virtual float	GetSourceLength () const =0

virtual void	SetSourceLength (float SourceLength)=0

virtual float	GetAttenuationRadius () const =0

virtual void	SetAttenuationRadius (float AttenuationRadius)=0

Public Member Functions inherited from IDatasmithLightActorElement
virtual	~IDatasmithLightActorElement ()

virtual bool	IsEnabled () const =0

virtual void	SetEnabled (bool bIsEnabled)=0

virtual double	GetIntensity () const =0

virtual void	SetIntensity (double Intensity)=0

virtual FLinearColor	GetColor () const =0

virtual void	SetColor (FLinearColor Color)=0

virtual double	GetTemperature () const =0

virtual void	SetTemperature (double Temperature)=0

virtual bool	GetUseTemperature () const =0

virtual void	SetUseTemperature (bool bUseTemperature)=0

virtual const TCHAR *	GetIesFile () const =0

virtual const TCHAR *	GetIesTexturePathName () const =0

virtual void	SetIesFile (const TCHAR *IesFile)=0

virtual void	SetIesTexturePathName (const TCHAR *TextureName)=0

virtual bool	GetUseIes () const =0

virtual void	SetUseIes (bool bUseIes)=0

virtual double	GetIesBrightnessScale () const =0

virtual void	SetIesBrightnessScale (double IesBrightnessScale)=0

virtual bool	GetUseIesBrightness () const =0

virtual void	SetUseIesBrightness (bool bUseIesBrightness)=0

virtual FQuat	GetIesRotation () const =0

virtual void	SetIesRotation (const FQuat &IesRotation)=0

virtual TSharedPtr< IDatasmithMaterialIDElement > &	GetLightFunctionMaterial ()=0

virtual void	SetLightFunctionMaterial (const TSharedPtr< IDatasmithMaterialIDElement > &InMaterial)=0

virtual void	SetLightFunctionMaterial (const TCHAR *InMaterialName)=0

Public Member Functions inherited from IDatasmithActorElement
virtual	~IDatasmithActorElement ()

virtual FVector	GetTranslation () const =0

virtual void	SetTranslation (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0

virtual void	SetTranslation (const FVector &Value, bool bKeepChildrenRelative=true)=0

virtual FVector	GetScale () const =0

virtual void	SetScale (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0

virtual void	SetScale (const FVector &Value, bool bKeepChildrenRelative=true)=0

virtual FQuat	GetRotation () const =0

virtual void	SetRotation (double InX, double InY, double InZ, double InW, bool bKeepChildrenRelative=true)=0

virtual void	SetRotation (const FQuat &Value, bool bKeepChildrenRelative=true)=0

virtual FTransform	GetRelativeTransform () const =0

virtual const TCHAR *	GetLayer () const =0

virtual void	SetLayer (const TCHAR *InLayer)=0

virtual void	AddTag (const TCHAR *InTag)=0

virtual void	ResetTags ()=0

virtual int32	GetTagsCount () const =0

virtual const TCHAR *	GetTag (int32 TagIndex) const =0

virtual void	AddChild (const TSharedPtr< IDatasmithActorElement > &InChild, EDatasmithActorAttachmentRule AttachementRule=EDatasmithActorAttachmentRule::KeepWorldTransform)=0

virtual int32	GetChildrenCount () const =0

virtual TSharedPtr< IDatasmithActorElement >	GetChild (int32 InIndex)=0

virtual const TSharedPtr< IDatasmithActorElement > &	GetChild (int32 InIndex) const =0

virtual void	RemoveChild (const TSharedPtr< IDatasmithActorElement > &InChild)=0

virtual const TSharedPtr< IDatasmithActorElement > &	GetParentActor () const =0

virtual void	SetIsAComponent (bool Value)=0

virtual bool	IsAComponent () const =0

virtual void	SetVisibility (bool bInVisibility)=0

virtual bool	GetVisibility () const =0

virtual void	SetCastShadow (bool bInCastShadow)=0

virtual bool	GetCastShadow () const =0

virtual void	SetMobility (EDatasmithActorMobilityType Mobility)=0

virtual EDatasmithActorMobilityType	GetMobility () const =0

Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0

virtual const TCHAR *	GetName () const =0

virtual void	SetName (const TCHAR *InName)=0

virtual const TCHAR *	GetLabel () const =0

virtual void	SetLabel (const TCHAR *InLabel)=0

virtual FMD5Hash	CalculateElementHash (bool bForce)=0

Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default

virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.

virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const

UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)

virtual const FParameterStore &	GetStore () const =0
	data

virtual FParameterStore &	GetStore ()=0

virtual void	CustomSerialize (class FSnapshotProxy &Ar)

void	CustomSerialize (class FSnapshotProxy &Ar) const

FSceneGraphId	GetNodeId () const
	References.

void	SetNodeId (FSceneGraphId Id)

UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)

UE_API int32	GetReferenceProxyCount () const

UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const

UE_API FName	GetReferenceProxyName (int32 Index) const

UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)

UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Detailed Description

An area light is an emissive shape (light shape) with a light component (light type)

Member Function Documentation

◆ GetLength()

virtual float IDatasmithAreaLightElement::GetLength ( ) const

pure virtual

◆ GetLightShape()

virtual EDatasmithLightShape IDatasmithAreaLightElement::GetLightShape ( ) const

pure virtual

Get the light shape Rectangle/Sphere/Disc/Cylinder

◆ GetLightType()

virtual EDatasmithAreaLightType IDatasmithAreaLightElement::GetLightType ( ) const

pure virtual

◆ GetWidth()

virtual float IDatasmithAreaLightElement::GetWidth ( ) const

pure virtual

◆ SetLength()

virtual void IDatasmithAreaLightElement::SetLength ( float InLength )

pure virtual

Set the area light shape size on the X axis

◆ SetLightShape()

virtual void IDatasmithAreaLightElement::SetLightShape ( EDatasmithLightShape Shape )

pure virtual

Set the light shape Rectangle/Sphere/Disc/Cylinder

◆ SetLightType()

virtual void IDatasmithAreaLightElement::SetLightType ( EDatasmithAreaLightType LightType )

pure virtual

Set the type of light for an area light: Point/Spot/Rect

◆ SetWidth()

virtual void IDatasmithAreaLightElement::SetWidth ( float InWidth )

pure virtual

Set the area light shape size on the Y axis

The documentation for this class was generated from the following file:

Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
