IDatasmithCameraActorElement Class Reference

#include <IDatasmithSceneElements.h>

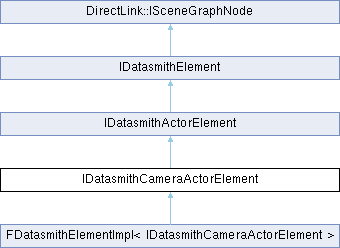

Inheritance diagram for IDatasmithCameraActorElement:

Public Member Functions
virtual	~IDatasmithCameraActorElement ()
virtual float	GetSensorWidth () const =0
virtual void	SetSensorWidth (float SensorWidth)=0
virtual float	GetSensorAspectRatio () const =0
virtual void	SetSensorAspectRatio (float SensorAspectRatio)=0
virtual bool	GetEnableDepthOfField () const =0
virtual void	SetEnableDepthOfField (bool bEnableDepthOfField)=0
virtual float	GetFocusDistance () const =0
virtual void	SetFocusDistance (float FocusDistance)=0
virtual float	GetFStop () const =0
virtual void	SetFStop (float FStop)=0
virtual float	GetFocalLength () const =0
virtual void	SetFocalLength (float FocalLength)=0
virtual TSharedPtr< IDatasmithPostProcessElement > &	GetPostProcess ()=0
virtual const TSharedPtr< IDatasmithPostProcessElement > &	GetPostProcess () const =0
virtual void	SetPostProcess (const TSharedPtr< IDatasmithPostProcessElement > &PostProcess)=0
virtual const TCHAR *	GetLookAtActor () const =0
virtual void	SetLookAtActor (const TCHAR *ActorName)=0
virtual bool	GetLookAtAllowRoll () const =0
virtual void	SetLookAtAllowRoll (bool bAllow)=0
Public Member Functions inherited from IDatasmithActorElement
virtual	~IDatasmithActorElement ()
virtual FVector	GetTranslation () const =0
virtual void	SetTranslation (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetTranslation (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FVector	GetScale () const =0
virtual void	SetScale (double InX, double InY, double InZ, bool bKeepChildrenRelative=true)=0
virtual void	SetScale (const FVector &Value, bool bKeepChildrenRelative=true)=0
virtual FQuat	GetRotation () const =0
virtual void	SetRotation (double InX, double InY, double InZ, double InW, bool bKeepChildrenRelative=true)=0
virtual void	SetRotation (const FQuat &Value, bool bKeepChildrenRelative=true)=0
virtual FTransform	GetRelativeTransform () const =0
virtual const TCHAR *	GetLayer () const =0
virtual void	SetLayer (const TCHAR *InLayer)=0
virtual void	AddTag (const TCHAR *InTag)=0
virtual void	ResetTags ()=0
virtual int32	GetTagsCount () const =0
virtual const TCHAR *	GetTag (int32 TagIndex) const =0
virtual void	AddChild (const TSharedPtr< IDatasmithActorElement > &InChild, EDatasmithActorAttachmentRule AttachementRule=EDatasmithActorAttachmentRule::KeepWorldTransform)=0
virtual int32	GetChildrenCount () const =0
virtual TSharedPtr< IDatasmithActorElement >	GetChild (int32 InIndex)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetChild (int32 InIndex) const =0
virtual void	RemoveChild (const TSharedPtr< IDatasmithActorElement > &InChild)=0
virtual const TSharedPtr< IDatasmithActorElement > &	GetParentActor () const =0
virtual void	SetIsAComponent (bool Value)=0
virtual bool	IsAComponent () const =0
virtual void	SetVisibility (bool bInVisibility)=0
virtual bool	GetVisibility () const =0
virtual void	SetCastShadow (bool bInCastShadow)=0
virtual bool	GetCastShadow () const =0
virtual void	SetMobility (EDatasmithActorMobilityType Mobility)=0
virtual EDatasmithActorMobilityType	GetMobility () const =0
Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Constructor & Destructor Documentation

~IDatasmithCameraActorElement()

virtual IDatasmithCameraActorElement::~IDatasmithCameraActorElement ( )

inlinevirtual

Member Function Documentation

GetEnableDepthOfField()

virtual bool IDatasmithCameraActorElement::GetEnableDepthOfField ( ) const

pure virtual

The focus method of the camera, either None (no DoF) or Manual

GetFocalLength()

virtual float IDatasmithCameraActorElement::GetFocalLength ( ) const

pure virtual

Get camera focal length in millimeters

GetFocusDistance()

virtual float IDatasmithCameraActorElement::GetFocusDistance ( ) const

pure virtual

Get camera focus distance in centimeters

GetFStop()

virtual float IDatasmithCameraActorElement::GetFStop ( ) const

pure virtual

Get camera FStop also known as FNumber

GetLookAtActor()

virtual const TCHAR * IDatasmithCameraActorElement::GetLookAtActor ( ) const

pure virtual

Get camera look at actor name

GetLookAtAllowRoll()

virtual bool IDatasmithCameraActorElement::GetLookAtAllowRoll ( ) const

pure virtual

Get camera look at allow roll state

GetPostProcess() [1/2]

virtual const TSharedPtr< IDatasmithPostProcessElement > & IDatasmithCameraActorElement::GetPostProcess ( ) const

pure virtual

Get camera's postprocess

GetPostProcess() [2/2]

virtual TSharedPtr< IDatasmithPostProcessElement > & IDatasmithCameraActorElement::GetPostProcess ( )

pure virtual

Get camera's postprocess

GetSensorAspectRatio()

virtual float IDatasmithCameraActorElement::GetSensorAspectRatio ( ) const

pure virtual

Get framebuffer aspect ratio (width/height)

GetSensorWidth()

virtual float IDatasmithCameraActorElement::GetSensorWidth ( ) const

pure virtual

Get camera sensor width in millimeters

SetEnableDepthOfField()

virtual void IDatasmithCameraActorElement::SetEnableDepthOfField ( bool  bEnableDepthOfField )

pure virtual

The focus method of the camera, either None (no DoF) or Manual

SetFocalLength()

virtual void IDatasmithCameraActorElement::SetFocalLength ( float  FocalLength )

pure virtual

Set camera focal length in millimeters

SetFocusDistance()

virtual void IDatasmithCameraActorElement::SetFocusDistance ( float  FocusDistance )

pure virtual

Set camera focus distance in centimeters

SetFStop()

virtual void IDatasmithCameraActorElement::SetFStop ( float  FStop )

pure virtual

Set camera FStop also known as FNumber

SetLookAtActor()

virtual void IDatasmithCameraActorElement::SetLookAtActor ( const TCHAR *  ActorName )

pure virtual

Set camera look at actor name

SetLookAtAllowRoll()

virtual void IDatasmithCameraActorElement::SetLookAtAllowRoll ( bool  bAllow )

pure virtual

Set camera look at allow roll state

SetPostProcess()

virtual void IDatasmithCameraActorElement::SetPostProcess ( const TSharedPtr< IDatasmithPostProcessElement > &  PostProcess )

pure virtual

Set camera's postprocess

SetSensorAspectRatio()

virtual void IDatasmithCameraActorElement::SetSensorAspectRatio ( float  SensorAspectRatio )

pure virtual

Set framebuffer aspect ratio (width/height)

SetSensorWidth()

virtual void IDatasmithCameraActorElement::SetSensorWidth ( float  SensorWidth )

pure virtual

Set camera sensor width in millimeters

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
