IDatasmithLevelSequenceElement Class Reference

#include <DatasmithAnimationElements.h>

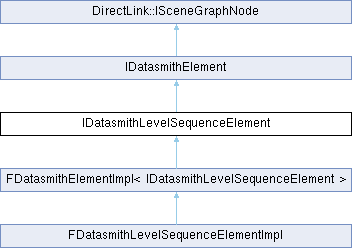

Inheritance diagram for IDatasmithLevelSequenceElement:

Public Member Functions
virtual	~IDatasmithLevelSequenceElement ()
virtual const TCHAR *	GetFile () const =0
virtual void	SetFile (const TCHAR *InFile)=0
virtual FMD5Hash	GetFileHash () const =0
virtual void	SetFileHash (FMD5Hash Hash)=0
virtual float	GetFrameRate () const =0
virtual void	SetFrameRate (float FramePerSecs)=0
virtual void	AddAnimation (const TSharedRef< IDatasmithBaseAnimationElement > &InAnimation)=0
virtual int32	GetAnimationsCount () const =0
virtual TSharedPtr< IDatasmithBaseAnimationElement >	GetAnimation (int32 InIndex)=0
virtual void	RemoveAnimation (const TSharedRef< IDatasmithBaseAnimationElement > &InAnimation)=0
Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Detailed Description

IDatasmithLevelSequenceElement holds a set of animations

Constructor & Destructor Documentation

~IDatasmithLevelSequenceElement()

virtual IDatasmithLevelSequenceElement::~IDatasmithLevelSequenceElement ( )

inlinevirtual

Member Function Documentation

AddAnimation()

virtual void IDatasmithLevelSequenceElement::AddAnimation ( const TSharedRef< IDatasmithBaseAnimationElement > &  InAnimation )

pure virtual

Adds an animation to the level sequence.

Parameters

InAnimation

the animation to add

Implemented in FDatasmithLevelSequenceElementImpl.

GetAnimation()

virtual TSharedPtr< IDatasmithBaseAnimationElement > IDatasmithLevelSequenceElement::GetAnimation ( int32  InIndex )

pure virtual

Returns the animation using this index

Implemented in FDatasmithLevelSequenceElementImpl.

GetAnimationsCount()

virtual int32 IDatasmithLevelSequenceElement::GetAnimationsCount ( ) const

pure virtual

Returns the number of animations in the level sequence

Implemented in FDatasmithLevelSequenceElementImpl.

GetFile()

virtual const TCHAR * IDatasmithLevelSequenceElement::GetFile ( ) const

pure virtual

Get the output filename, it can be absolute or relative to the scene file

Implemented in FDatasmithLevelSequenceElementImpl.

GetFileHash()

virtual FMD5Hash IDatasmithLevelSequenceElement::GetFileHash ( ) const

pure virtual

Return a MD5 hash of the content of the Level Sequence Element. Used in CalculateElementHash to quickly identify Element with identical content

Implemented in FDatasmithLevelSequenceElementImpl.

GetFrameRate()

virtual float IDatasmithLevelSequenceElement::GetFrameRate ( ) const

pure virtual

Implemented in FDatasmithLevelSequenceElementImpl.

RemoveAnimation()

virtual void IDatasmithLevelSequenceElement::RemoveAnimation ( const TSharedRef< IDatasmithBaseAnimationElement > &  InAnimation )

pure virtual

Removes an animation from the level sequence.

Parameters

InAnimation

the animation to remove

Implemented in FDatasmithLevelSequenceElementImpl.

SetFile()

virtual void IDatasmithLevelSequenceElement::SetFile ( const TCHAR *  InFile )

pure virtual

Set the output filename, it can be absolute or relative to the scene file

Implemented in FDatasmithLevelSequenceElementImpl.

SetFileHash()

virtual void IDatasmithLevelSequenceElement::SetFileHash ( FMD5Hash  Hash )

pure virtual

Set the MD5 hash of the Level Sequence file. This should be a hash of its content.

Implemented in FDatasmithLevelSequenceElementImpl.

SetFrameRate()

virtual void IDatasmithLevelSequenceElement::SetFrameRate ( float  FramePerSecs )

pure virtual

Implemented in FDatasmithLevelSequenceElementImpl.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/DatasmithAnimationElements.h
